How To Configure Tender Types
Introduction
The purpose of this guide is to show how to configure Tender Types (i.e. Payment Methods) on the Enactor Estate Manager and POS.
Tender Type configuration is used to set up the behaviours and business rules for how different payment methods will operate at the Point of Sale, and in the Back Office (Store Server or Estate Manager).
Most of the Tender settings are common to all the various tender types. However some tender types (e.g. Cash) have additional settings. This guide will cover these at the end.
Dependent on the tender type, there may be other entities that also need to be set up. These are covered in other specific guides (e.g. Card Payments, Gift Cards).
Overview
This guide will cover the Tender Type configuration settings, covering each tab of the Tender maintenance utility in the Estate Manager:
- General
- Restrictions 1
- Restrictions 2
- Discount Restrictions
- Overlap Tenders
- User Limits
- Cash Management
- Change
- Surcharge
- Attributes
It will then cover the specific settings for the following main tender types:
- Cash Tender
- Card Tender
- Cheque Tender
Prerequisites
Resources
Before starting, you should have the following resources in place:
- Enactor Estate Manager
- Enactor POS (configured within the UK Region, connected to the Estate Manager)
- Standard Configuration, including:
- Base Configuration
- UK Retail (I have used UK in this example, but it could be other regional config packs)
- Retail Segment pack (I have used UK Fashion here)
- Regionally appropriate data including Product, Localisation, Tenders, Vouchers etc.
Prior Training/Experience
You should be familiar with the following:
- Estate Manager configuration
- Enactor configuration concepts, including Locations, POS Terminals etc.
- Data broadcasting
- Standard POS Sales processes
If necessary, please revise the appropriate how-to guides on these concepts before starting the Tender Type configuration process.
Configuration Steps
General Tender Configuration
To access the Tender Maintenance utility in the Estate Manager, navigate to Tender configuration using the Search or the path:
Main Menu > Configuration > Financial > Tenders

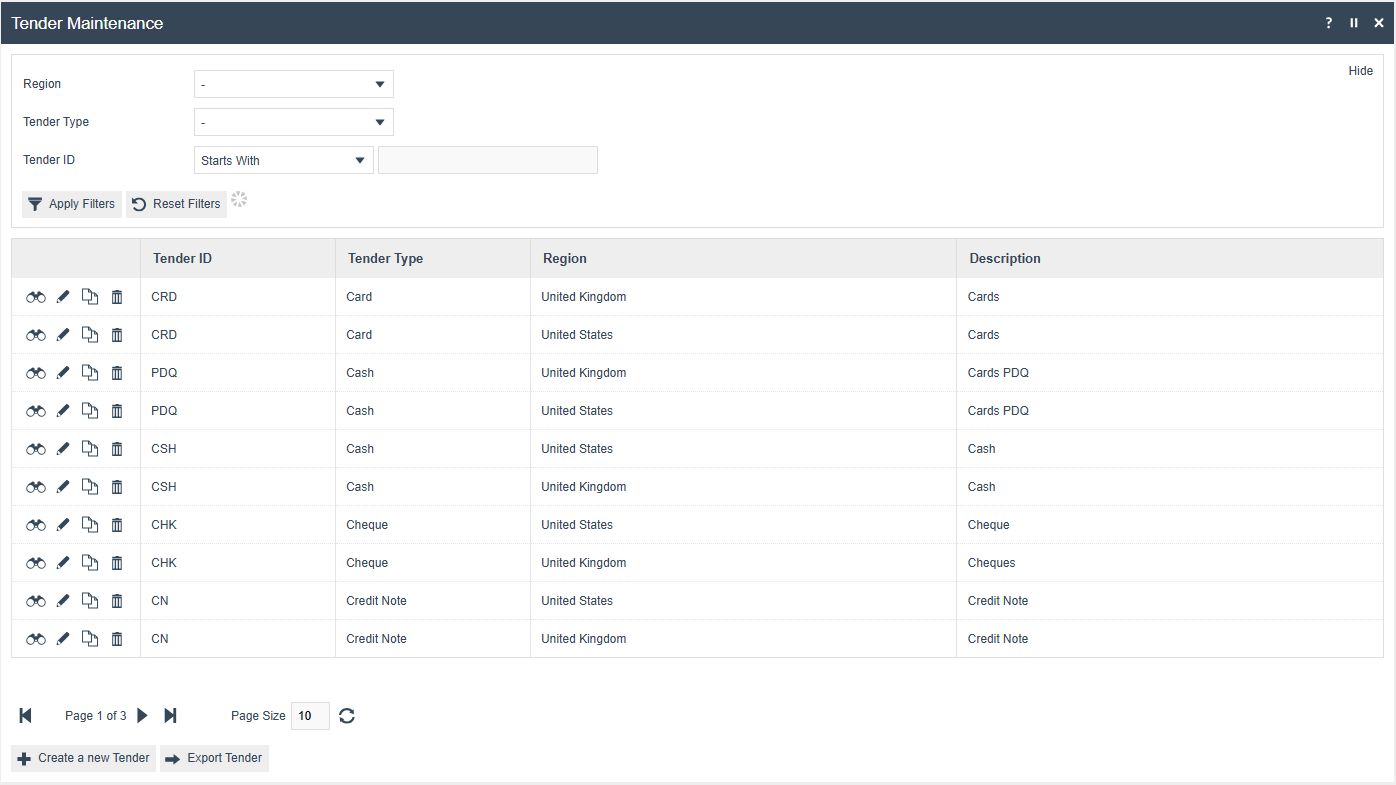

Initially you will be presented with the normal selection screen.

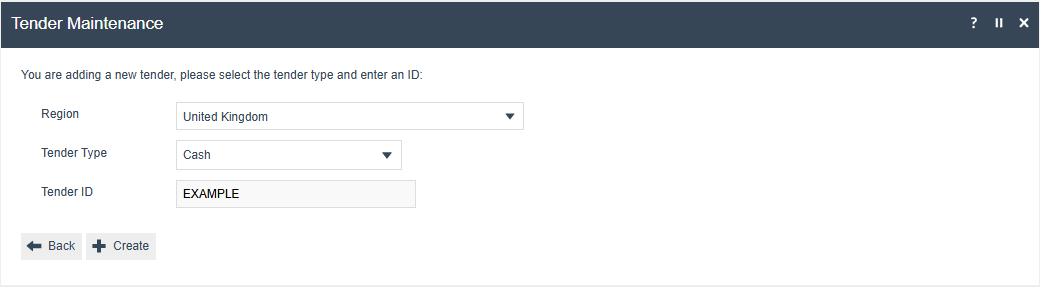

When you create a new tender, you will be asked to provide a Region, a Tender Type and a Tender ID:
| Entry | Example Value | Description |
|---|---|---|
| Region | United Kingdom | Tenders are normally managed regionally as currency and local compliance rules often need to be applied |
| Tender Type | Cash | Sets the basic rules for the Tender (e.g. Cash, Card, Cheque, Gift Card) |
| Tender ID | EXAMPLE | A unique identifier for this tender within the region |
Tenders configured at a higher region in the hierarchy will be available to stores in lower-level regions.
A retailer may use multiple Cash Tenders. For example, if the retailer accepts GBP cash plus two other currencies, they would have three cash tenders in total.
Once the basic details have been entered (or if you are editing an existing Tender Type), the full set of tabs is displayed:
This completes the General Tender Configuration.

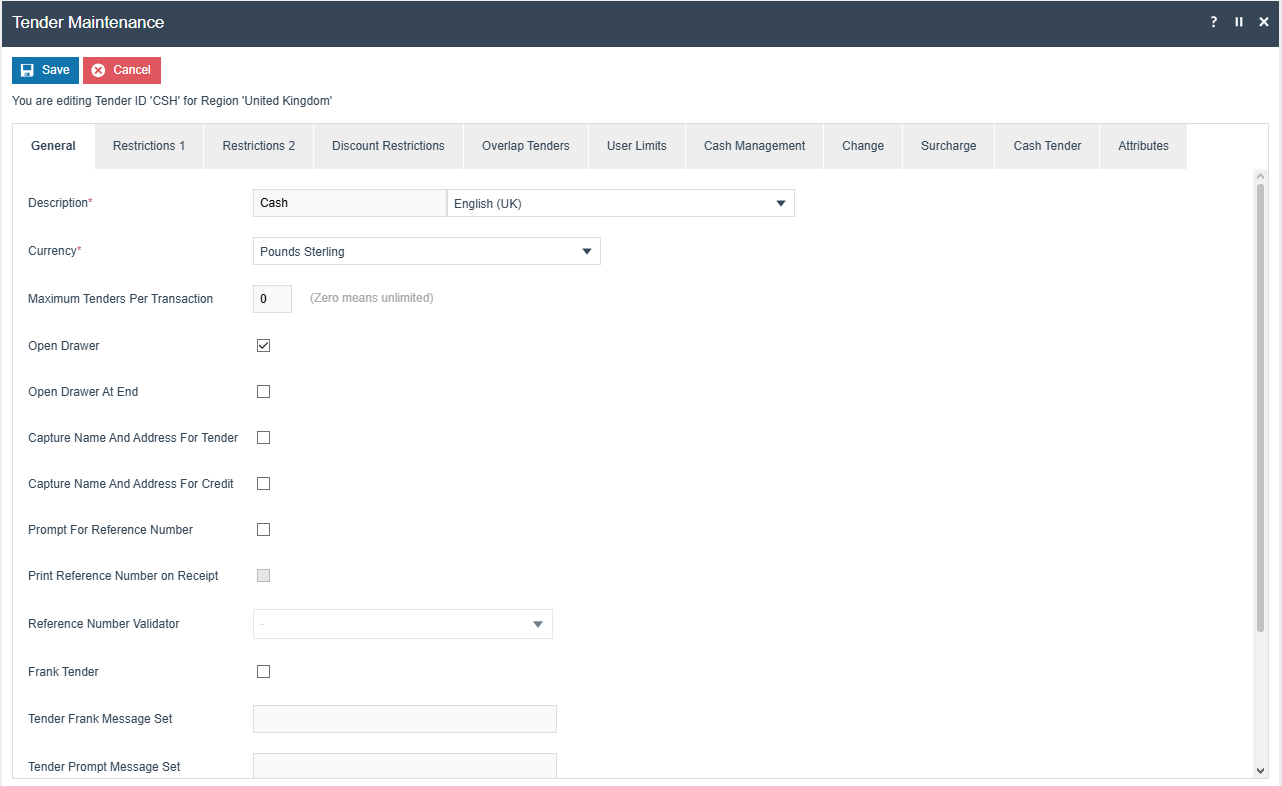

General Tab
This is used for the main information and settings for the tender type.
| Configuration | Description |
|---|---|
| Description | Appears on screen and on the customer's receipt to describe the payment method. Different descriptions can be set for each language. |
| Currency | The currency applied for the tender type. If different from the Store currency, an exchange translation will be applied. |
| Maximum Tenders | Restricts how many payments for this tender type can be used in a transaction. Only normally used for Card Tenders (where the acquirer may limit to e.g. 3 tenders per transaction). |
| Open Drawer (At end) | Fires the cash drawer when the tender is taken. Used for cash and other tenders that need to be stored securely. If the "Open Drawer at end" option is used, the drawer will only fire once the transaction has been fully tendered. |
The remaining settings are less frequently used. The Capture Name & Address and reference number settings can be used if additional data capture is required. The franking rules are used for documents that need to be printed (e.g. cheques) which is rarely used today.
This completes the General Tab configuration.
Restrictions 1 Tab
This tab holds the main restrictions for how the tender type may be used for payments and refunds.
There are references to "Debits" and "Credits" on this tab. In this context, "Debit" means accepting a payment from a customer (e.g. a sale) and "Credit" means paying money to a customer (e.g. a refund).
For Debits and Credits, there are settings as follows:
| Configuration | Description |
|---|---|
| Debits/Credits allowed | Indicates that the tender type may be used for both debits and credits. For example, some tenders may not be used for making payments out (Credits). |
| Debit/Credit tendering restrictions | Controls how the tender type may be used in relation to the transaction balance. Options: None - no restrictions, may over-tender; Amount less than or equal to balance - cannot exceed the balance; Amount must equal balance - no over or under tendering; Amount less than next currency unit - rarely used; Amount must equal transaction total - must be the sole tender for the entire transaction. |
| Debit/Credit Limit | The maximum value that can be used for this tender. May be overridden by User Limits (see below). |
| Aggregate Limits | Where there are multiple tenders for the same tender type on the transaction, they are added together to check whether the maximum value limit is reached. |
| Minimum Limit | A minimum value for the tender. Rarely used. |
| Force Amount Entered | The user must enter a value. |
| Prompt with Amount Due | The POS will prompt the user to enter an amount and pre-fill the field with the remaining transaction balance. |
| Force Amount Due | The POS will automatically apply the tender to the remaining balance due and the user will not be able to change the amount (unless they enter it manually before choosing the tender). |
| Minimum Transaction Value | Only allows use of the tender if the transaction is over a certain value. |
| Transaction Tender Limit | Used for enforcing money laundering rules. Any tenders with this flag set are added together, and if the total exceeds the Transaction Tender Limit value (set on the POS Terminal - Tendering tab), an alert is raised and an authorised user needs to complete the transaction. |
| Enable Promotion Check | Allows the POS to check whether the tender type is included in any promotion rules. If tender-based promotions are not used, it should be disabled to avoid unnecessary checks. |
| Rounding Rules | Required for jurisdictions (e.g. Belgium, Sweden) where some small-value denominations are not accepted. Debit/Credit payments should be set to be rounded up/down according to the applicable rules. |
| Tax Refund Eligible | Indicates that if this payment is used and the transaction meets the other requirements, the customer will be offered the opportunity to receive a tax (e.g. VAT) refund. |
This completes the Restrictions 1 Tab configuration.
Restrictions 2 Tab
There are two key settings on this tab:
Debit/Credit effect on Loyalty Points: allows the application to give additional or remove points for payments (or part payments) using this tender. For example, you might set the Loyalty redemption tender so that it removes loyalty points from the transaction, avoiding the possibility of customers "doubling up" on points when spending their redemption. Use of this will depend on the Loyalty programme policies.

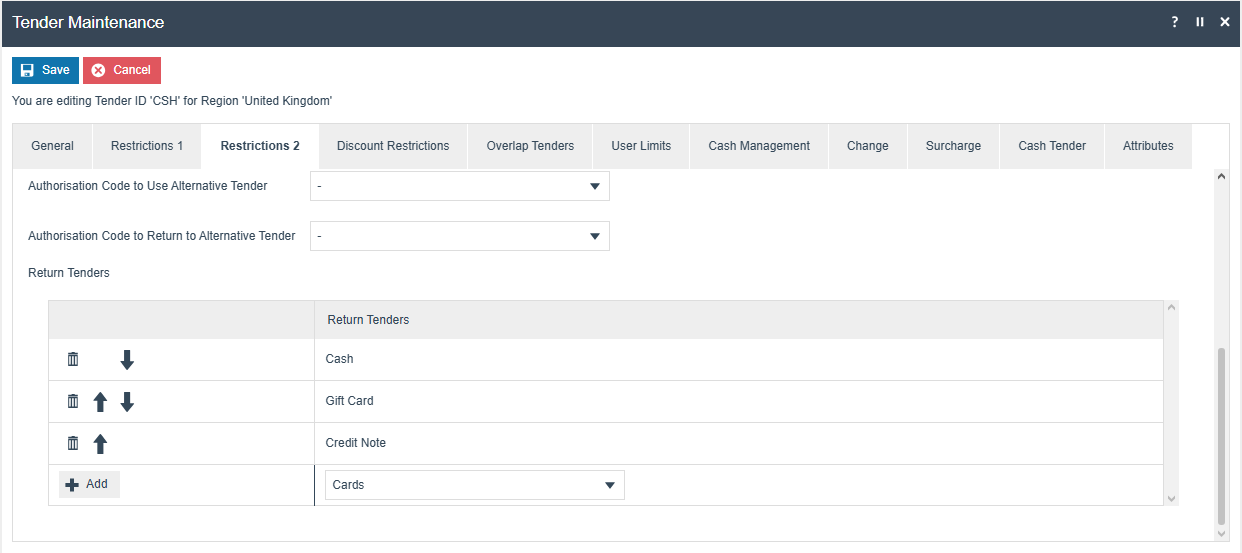

Return Tenders: controls which tender type(s) may be used when refunding transactions that were paid for with this tender. For example, when configuring the Cash tender, the retailer may choose to allow refunds in Cash, via Credit Note or Gift Card. When more than one possible return tender is used, the order may be altered using the arrows:
If no return tenders are configured, then the full list of tenders for the region will be offered to the user for a with-receipt return.
These rules may be overridden dependent on the return reason code used, and the user may have privileges that allow them to skip the refund tender list and choose their own.
This completes the Restrictions 2 Tab configuration.
Discount Restrictions Tab
The settings on this tab may be used to disallow the use of the tender type if there are manual or automated promotional discounts applied to the transaction.
The disallow all discounts/disallow all promotions checkboxes will prevent the use of the tender for manual/automated discounts respectively.
The drop downs may be used to select authorisation codes that will provide the user with the authority to override the tender prevention (for details on authorisation codes, refer to the "How to Configure Users, User Roles and User Templates" guide).
This completes the Discount Restrictions Tab configuration.
Overlap Tenders
This is used to allow/disallow the use of certain combinations of tender types within a single transaction. For example, the retailer may wish to prevent the use of multiple Payment Card tenders within a single transaction. These settings tend to be used only rarely in production environments.
Any overlap tenders added to the list will then be allowed should the user select them, having already added at least one instance of the current tender type to the transaction.
A function authorisation code may be assigned to allow users who have that privilege to override the overlap rule if required.
If no overlap tenders are maintained (which is the default) then all tenders are allowed to be overlapped with each other.
This completes the Overlap Tenders configuration.
User Limits

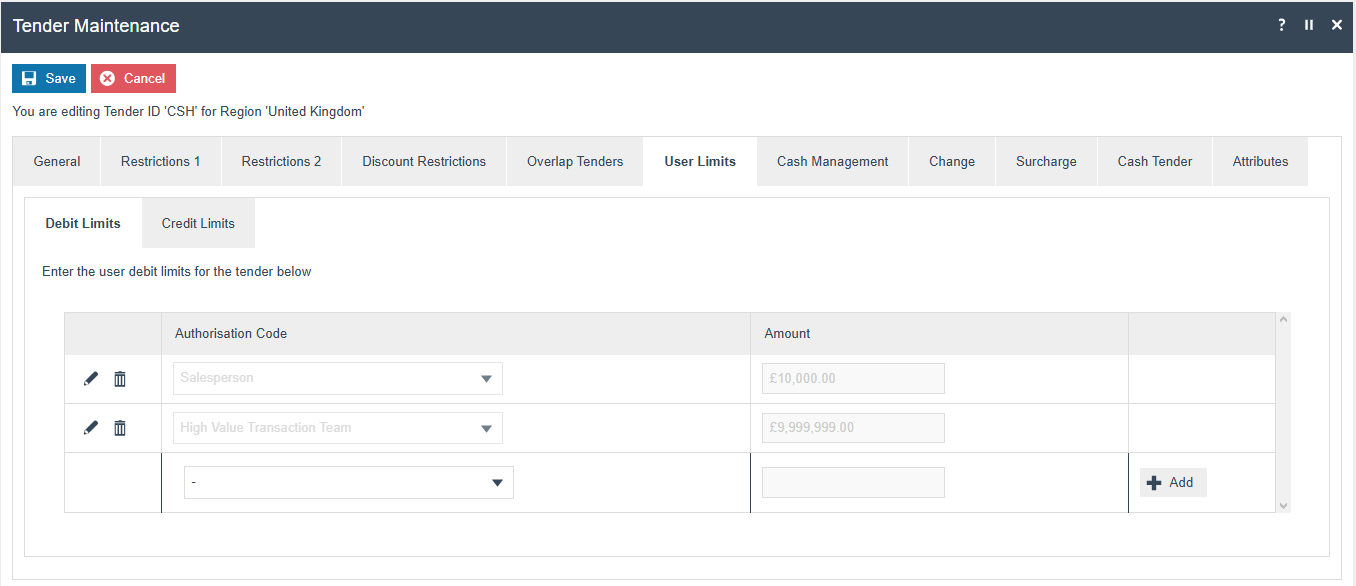

The user limits tab allows use of Function Authorisation codes to set up user levels with different value limits for payments (Debits) and refunds (Credits).
For example, a retailer may wish to allow most shopfloor users to accept cash up to a value of 10,000. Only "High Value Team" users with a special Function Authorisation code will be allowed to accept cash values above that limit.
This would be set up with rules similar to the below:
Most users will have the "Salesperson" Function authorisation code assigned, so they can take cash payments up to 10,000; members of the "High Value Transaction" team will be able to take cash payments up to 9,999,999.
By setting Credit limits, refunds can be controlled in a similar way.
If you set any rules for Tender User limits, then all users must have an authorisation code that is included on the list. If they do not, they will be unable to take payment/refund with that tender at all. Tender User Limits will override the values set in the Restrictions 1 tab.
This completes the User Limits configuration.
Cash Management Tab
The detailed information on how to configure Cash Management is covered in the guide "How to configure Terminal Cash up and Empty".
Here we will cover the key settings included on the Cash Management tab for the tender. Most of the settings are checkboxes that indicate whether the tender type should be included in the specified cash management processes:
| Configuration | Description |
|---|---|
| Banking Tender | The tender type should be included when transferring cash to bank. True for tenders such as cash, payment cards and cheques; false for internal tenders such as Gift Cards. |
| Auto Banked | The tender will be automatically considered to be banked as soon as it is processed. Used for electronic tenders such as payment cards. |
| Include in Safe Limit Check | Store safes may have an insured value limit applied. If ticked, this tender is considered to be part of that limit. Should be enabled for all public tenders such as cash. |
| Cashup Tender | The tender type is included in cash up (counting and reconciliation) processes. |
| Currency Purchase Tender | The tender type should be included when transferring cash from bank to the store. |
| Float Tender | The tender type is included in float activities (transferring funds from safe to cash drawer). Used for tenders that form part of the cash drawer float, usually just cash. |
| Pickup Tender | The tender type is included in pickup activities (transferring funds from cash drawer to safe). |
| Auto Picked Up | The tender will be automatically considered to be picked up as soon as it is captured at the POS. |
| Spot Check Tender | The tender type is included in spot checks (ad hoc checks to compare the cash drawer/safe total with the system total). |
| Enter by Quantity | When counting this tender, the values are entered as quantities rather than the financial value; normally used in combination with Enter by Denomination. |
| Enter by Denomination | When counting this tender, values are entered for each denomination for the currency. Simplifies counting of funds such as cash where many denominations may be held in the cash drawer. |
| Allow Negative Cashup Value | Negative cashup values are usually only applicable for electronic tenders issued at the POS, e.g. Credit Notes; normally disallowed. |
| Tracked Item | Each of these items is individually tracked (e.g. Gift Vouchers). When cashed up, these items will be checked off individually. |
| Safe/Terminal Discrepancy Thresholds | The cashup process will check any discrepancy value (difference between counted and expected values) against the threshold limit. If the discrepancy exceeds the threshold, the user will be alerted and either a recount will be required or a privileged user may override the alert. |
| Maximum Amount | Limits the amount that may be entered for the value of this Tender in Cash Management operations. |
This completes the Cash Management Tab configuration.
Change Tab
Change settings are used to control whether/how change may be returned to the customer when they pay more than the transaction balance with this tender type.
| Configuration | Description |
|---|---|
| Assign Change to Over Payment | No change will be returned to the customer. Any excess payment will be treated as an "over payment" retained by the retailer. A reason code may be assigned so that the over payment can be treated appropriately by external systems. If set, the other Change Tender settings will be disabled. |
| Change Tender | Returns any change in the selected tender. For example, payment by a foreign currency tender may return change using the main cash tender. If not set, change is returned in the same tender type as the payment. |
| Change Limit | The maximum value of change that may be returned. |
| Change Minimum Limit | The minimum value of change to be returned. |
| Secondary Change Tender | If the calculated change value exceeds the maximum or is lower than the minimum limit set for the tender, a secondary change tender will be applied. |
| Secondary Change/Minimum Change Limits | As for the primary limits above. If the change is outside these limits too, any remaining excess would be treated as overpayment. |
| Credit Change Tender | Sets the tender type to be used if change is given on refunds (credits). Rarely used. |
This completes the Change Tab configuration.
Surcharge Tab
This is used to configure a surcharge to be applied on the transaction if this payment is used. The surcharge may be a fixed fee or a percentage of the tender value. The surcharge may be applied only on tenders over a minimum or up to a maximum value.
This setting is rarely used.
This completes the Surcharge Tab configuration.
Attributes Tab

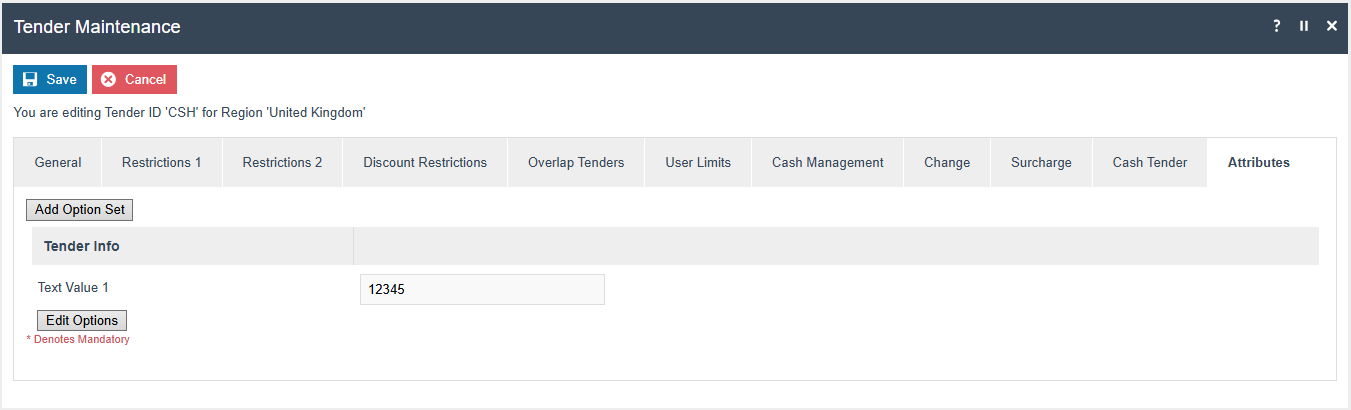

Attributes are freeform data values that may be freely assigned to the Tender type. Attribute data structures may be configured using the Attribute/Option Set configuration utility.
Once the data structure(s) have been configured, data component(s) may then be configured for the chosen tender type.
Attribute data has no impact on standard Enactor functionality. However, the data can be included on the transaction data that is exported from the Estate Manager, and can then be used by external applications.
This completes the Attributes Tab configuration.
Tender Specific Configurations
Some tender types have specific data components. The key ones are provided below:
Cash Tender
This has one data element - Drawer Limit. This specifies the maximum value of this tender that is expected to be held in shopfloor cash drawers.
If this value is exceeded on a POS, then the users will receive alerts. The user may then ignore that alert and carry on taking sales, but the alert will return every few minutes, until a Pickup is carried out. Once the Pickup has been completed and the cash drawer total has been reduced to below the limit, the alerts will stop.
Card Tender
These settings are specific to Payment Card Tenders:
| Configuration | Description |
|---|---|
| Cashback Tender | If cashback is allowed, the cashback tender (usually local cash) is configured here. |
| Disable Card Validation | If set, no card validation will be carried out. Rarely used. |
| Print Separate Customer Voucher | If set, the customer will receive two receipts for Card transactions - one with the card payment details and one with the normal receipt. If not set, the customer receives a single receipt with all information. |
| Always Print Merchant Voucher | Printing a merchant copy is normally only carried out in exception circumstances. If set, a merchant copy will always be printed. |
| Card Tender Return | Sets the rule for how the card number should be validated on with-receipt card returns. Options: to any card, to any card used in the original transaction, or only to the same card as originally used. |
Cheque Tender
Cheque tender settings are broadly in four areas:
These settings are used when cheques are automatically printed by the POS:
These settings are used to control how cheque guarantee cards are validated:
These settings are used to control how any online cheque authorisation is handled, including floor limit rules:
The remaining settings are used to control how much cheque information should be captured (when cheque MICR reading is not used):
This completes the Tender Specific Configurations.
