How To Configure Fiscal Norway

Introduction

For shared background on Enactor fiscal compliance, see Fiscal Overview.

The purpose of this guide is to demonstrate the steps required to configure the Enactor POS system for full compliance with Norwegian fiscal legislation. This includes transaction signing, SAF-T file export, tax configuration, tender mapping, X/Z report setup, and ongoing operational considerations.

---

Norway Description

The fiscal approach in Norway is based around signing transactions. It is not necessary to use an external device for this signing process. Instead each POS manufacturer must declare to the Norwegian Tax Authority that their POS software is compliant and when making this declaration they must supply the public key from the key pair used to sign each transaction.

The POS software must also provide a function to export transactions in the SAF-T file format specified by the Tax Authority. The retailer is then responsible for submitting the SAF-T file to the Tax Authority who can then use the public key provided by the POS supplier to ensure that no records have been modified. This process is described in more detail in the following document supplied by the Norwegian Tax Authority: Requirements and Guidelines for Implementing Digital Signatures in Cash Register Systems (PDF)

As well as the requirement to sign, record, and prevent the modification of transactions, the legislation in Norway places requirements on the POS for functions that must and must not be present. The requirements are well documented in an English translation maintained by the Norwegian Authorities: Norwegian Cash Register System Regulations

The primary required and forbidden functions are described in the following lists.

Required Functions

• The cash register system must be able to register a change float.
• The cash register system must be able to register different means of payment.
• The cash register system must have a clock. The clock must be set to Norwegian standard time and adjusted for summer time during the summer.
• The cash register system must clearly differentiate between positive and negative amounts on all receipts and reports and in the electronic journal.
• Cash register systems intended for use by several enterprises with a bookkeeping obligation must be organised in such a manner that all continuous use, including means of payment, is registered separately for each enterprise with a bookkeeping obligation.
• Each POS must have a cash drawer except where cash is not accepted.

Forbidden Functions

• The software in a cash register system must not include any other functions than those stipulated in the system documentation.
• The software in a cash register system must not be capable of being connected to or integrated with equipment or software that make it possible to alter or delete the electronic journal.
• The software in a cash register system must not include functions that make it possible for the user to remove, alter or add information to registrations. It must not be possible to change pre-programmed text for goods and services during or after registration.
• It must not be possible to conclude a sale without the system printing a sales receipt. The requirement for the cash register system generating a print automatically does not apply if there is a payment solution which is integrated with the cash register system.
• The system must not be capable of printing more than one copy receipt. This does not prohibit tax free stores at airports printing several STEB copies.
• It must not be possible to carry out registrations in the cash register system if the integrated cash box is open.
• It must not be possible to carry out registrations in the cash register system if the storage memory is full.
• It must not be possible to mark particular goods or services in the cash register system so that they are not included in X reports and Z reports.
• A cash register system that is connected to a non-automatic weighing instrument must not be capable of affecting the instrument's measurement properties.

---

System Description

The Enactor system is distributed. There is a central component called the Estate Manager (EM) where configuration is performed and which is the master data store for the system configuration. Configuration performed on the EM must be broadcast to the POS devices before it takes effect. The system is extremely configurable but only a small subset of this configuration is required to ensure that Norwegian fiscal legislation is complied with. This required configuration is described later in this document and there are further how-to guides available which describe the other configuration options available at Enactor Insights.

info

The critical configuration option for Norway is the Fiscalisation Type on the POS terminal. When this is set to Norway, the rules of the Norwegian fiscal legislation will be applied on that device. If the EM is used to configure the system in a way that would not be compliant in Norway, the POS will be prevented from starting where its fiscalisation type is set to Norway. Once a POS has been configured as a Norwegian fiscal POS it is not possible to change or remove the fiscalisation type.

As well as being the master data store for configuration, the EM is also the master data store for the transactions that are performed on the POS. Transactions are also stored on the POS and the store server at the time of the sale. However the purging of the data on the store server and the POS databases is usually relatively short (days/weeks rather than the years data would be retained on the EM). Although transaction data is purged from the POS this would not be done until it had been transmitted to the EM and a Z report has been run for any transactions being purged.

At the time transactions are performed on the POS they are signed as described in the Norwegian Tax Authority signing requirements document. These transactions are then stored along with their signature in a commercially available SQL database application. A number of database applications are supported by the solution to account for the different licensing agreements that retailers already have in place. These include Oracle, MySQL, MSSQL and MariaDB. In all cases the standard authentication mechanisms are used to ensure that user access is restricted and that data cannot be deleted or modified by unauthorised users.

The method and structure used to retain and protect data on the store server and the EM is the same as that on the POS. When transactions are transmitted from the POS to the Store Server and then from the Store Server to the EM they are protected by SSL. Data is submitted to the Store Server and then to the EM in near real time and would expect to be processed into the database within minutes in a normally operating system. Queues are used to ensure that data is still retained in the case of abnormal operation, such as network outages. The application also uses a system of sequence numbers to identify situations where transactions are not flowing through the system as expected.

Should an inspection of the data be required in a production environment, Enactor will be able to provide access to the database directly so that the tables containing transactions and their signatures can be inspected. A function is provided within the EM that allows the data to be exported in the SAF-T format as required by the legislation.

As well as sales and returns the POS will also record other events in the database as required to produce the SAF-T file. These are also transmitted to the Estate Manager and its database is the fiscal record.

These events include:

• Receipt Copy
• Floats
• Pickups
• X and Z reports
• Cash Drawer Open/No Sale

Returns are typically performed as receipt returns where the original sale is linked to the return either by scanning the original sale receipt barcode or searching for the original sale on the POS. However it is possible to perform a non-receipted return. This would be used in a couple of scenarios: the customer no longer has the original receipt or remembers enough details about the transaction (Store, Date, Time) to find the transaction with a search, but the retailer still wishes to return the item as a gesture of goodwill. Alternatively, the sale was performed on a system other than Enactor (i.e. web order or sale from the previous POS solution). In these cases the return is signed and recorded as usual but there will not be a reference to the original sale in the return transaction record.

Fiscal Module Version Declarations

Model	Version	Comment
ENACTOR	1.0	Initial Declaration, not deployed in any production environments.
ENACTOR	1.0.277	Fixed defect with wrong software version being used in the SAF-T file, released to Lindex.
ENACTOR	1.0.303	Resolved issues with X and Z report (non-production release).

---

Configuration Overview

The following configuration changes are needed and should be broadcast to all Norwegian devices in preparation for go live. IDs below follow the Enactor naming convention, but each retailer is free to use their own naming conventions to match configuration used in other countries.

The following steps are required to configure Norwegian fiscal compliance:

1. Tax - Configure tax groups, tax schema, tax rates, and tax group tax methods
2. Tenders - Map each tender to a Norwegian fiscal tender type
3. Location Terminal Template - Create a template for Norwegian stores with VAT number and locale
4. POS Terminal Template - Set fiscalisation type, currency, locale, and peripherals
5. Account Credentials - Import the signing key credentials provided by Enactor
6. Privileges - Assign the fiscal reports privilege to appropriate roles
7. Menus - Configure X report, Z report, and fiscal information menu buttons
8. User Role - Enable the Fiscal Information Details process
9. Product Tax - Assign tax groups to products for Norwegian devices
10. MMGroup to Fiscal Product Group Mapping - Map product groups to Norwegian article group codes
11. Broadcasting - Deliver all configuration to Norwegian POS devices

---

Tax

Tax Groups

The following tax groups should be configured and broadcast to the Norwegian devices.

Tax Group ID	Description
NO1	NO Normal Tax Group
NO2	NO Reduced Tax Group 1
NO3	NO Reduced Tax Group 2

---

Tax Schema

The following tax schema should be configured and broadcast to the Norwegian devices.

Tax Schema ID	Description	Price Include Tax
NO	NO VAT	TRUE

---

Tax Rates

The following tax rates should be configured and broadcast to the Norwegian devices.

Tax Rate ID	Description	Display Code	Percentage
NO_R1	NO Normal	1	25%
NO_R2	NO Reduced 1	11	15%
NO_R3	NO Reduced 2	12	12%

The Standard VAT code should be configured in the Fiscal Tax Rate Reference.

Configure the Fiscal Tax Rate Reference with the standard VAT code for each Norwegian tax rate. This value is used in the X/Z report tax breakdown and the SAF-T file.

The following table from the Norwegian Tax Authority GitHub repository Skatteetaten SAF-T should be consulted to see what each rate's display code should be. This will be used both for the tax breakdown on the X/Z report and the SAF-T file.

Code	Description (Norwegian)	Description (English)	Tax Rate	Compensation
0	Ingen merverdiavgiftsbehandling (anskaffelser)	No VAT treatment		TRUE
1	Fradragsberettiget innenlands merverdiavgift	Input VAT deductible (domestic)	Regular rate	TRUE
11	Fradragsberettiget innenlands merverdiavgift	Input VAT deductible (domestic)	Reduced rate, middle	TRUE
12	Fradragsberettiget innenlands merverdiavgift	Input VAT deductible (domestic)	Reduced rate, raw fish
13	Fradragsberettiget innenlands merverdiavgift	Input VAT deductible (domestic)	Reduced rate, low	TRUE
14	Fradragsberettiget innforselsmerverdiavgift	Input VAT deductible (paid on import)	Regular rate	TRUE
15	Fradragsberettiget innforselsmerverdiavgift	Input VAT deductible (paid on import)	Reduced rate, middle	TRUE
20	Kostnad ved innforsel av varer, ingen merverdiavgiftsbehandling	No VAT treatment		TRUE
21	Kostnad ved innforsel av varer	Basis on import of goods	Regular rate	TRUE
22	Kostnad ved innforsel av varer	Basis on import of goods	Reduced rate, middle	TRUE
3	Utgaende merverdiavgift	Output VAT	Regular rate
31	Utgaende merverdiavgift	Output VAT	Reduced rate, middle
32	Utgaende merverdiavgift	Output VAT	Reduced rate, raw fish
33	Utgaende merverdiavgift	Output VAT	Reduced rate, low
5	Innenlands omsetning fritatt for merverdiavgift	No output VAT	Zero rate
51	Innenlandsk omsetning med omvendt avgiftplikt	Domestic sales of reverse charge/VAT obligation	Zero rate
52	Utforsel av varer og tjenester	Export of goods and services	Zero rate
6	Omsetning utenfor merverdiavgiftsloven	Not liable to VAT treatment, outside the scope of the VAT legislation
7	Ingen merverdiavgiftsbehandling (inntekter)	No VAT treatment - no turnover according to the VAT legislation
81	Grunnlag innforsel av varer med fradragsrett	Importation of goods, VAT deductible	Regular rate	TRUE
82	Grunnlag innforsel av varer uten fradragsrett	Importation of goods, without deduction of VAT	Regular rate	TRUE
83	Grunnlag innforsel av varer med fradragsrett	Importation of goods, VAT deductible	Reduced rate, middle	TRUE
84	Grunnlag innforsel av varer uten fradragsrett	Importation of goods, without deduction of VAT	Reduced rate, middle	TRUE
85	Grunnlag innforsel av varer uten merverdiavgift	Importation of goods, not applicable for VAT	Zero rate	TRUE
86	Tjenester kjopt fra utlandet med fradragsrett	Services purchased from abroad, VAT deductible	Regular rate	TRUE
87	Tjenester kjopt fra utlandet uten fradragsrett	Services purchased from abroad, without deduction of VAT	Regular rate	TRUE
88	Tjenester kjopt fra utlandet med fradragsrett	Services purchased from abroad, VAT deductible	Reduced rate, low	TRUE
89	Tjenester kjopt fra utlandet uten fradragsrett	Services purchased from abroad, without deduction of VAT	Reduced rate, low	TRUE
91	Kjop av klimakvoter eller gull med fradragsrett	Purchase of emissions trading or gold, VAT deductible	Regular rate	TRUE
92	Kjop av klimakvoter eller gull uten fradragsrett	Purchase of emissions trading or gold, without deduction of VAT	Regular rate	TRUE

---

Tax Group Tax Methods

The following tax group tax methods should be configured and broadcast to the Norwegian devices.

Tax Group ID	Tax Scheme ID	Description	Tax Rate
NO_1	NO	NO Normal	NO Normal
NO_2	NO	NO Reduced 1	NO Reduced 1
NO_3	NO	NO Reduced 2	NO Reduced 2

---

Tenders

When setting up tenders for use in Norway they need to be configured with a Fiscal Tender ID.

Set the value in Tender Maintenance > General > Fiscal Tender Type to the value that should be shown under Standard Payment Type on the X/Z reports.

Set the Fiscal Tender Type to the appropriate payment type code from the Norwegian Tax Authority reference table below. This value appears on X/Z reports under Standard Payment Type.

Each tender needs to map to the corresponding PredefinedBasicID-12 from the Norwegian Tax Authority GitHub repository Skatteetaten SAF-T which is shown below for reference.

PredefinedBasicID-12	Description (English)	Description (Norwegian)
12001	Cash	Kontant (alle typer valuta)
12002	Debit card	Bankkort (debet kort)
12003	Credit card	Kredittkort
12004	Bank account	Bankkonto
12005	Gift token	Gavekort
12006	Customer card	Kundekonto
12007	Loyalty, stamps	Lojalitetspoeng
12008	Bottle deposit	Pant
12009	Check	Sjekk
12010	Credit note	Tilgodelapp
12011	Mobile phone apps	Mobiltelefon losninger, ulike betalingsapplikasjoner
12999	Other	Ovrige

---

Location Terminal Template

Search for Location Template within the EM and click to edit this entity. From the screen that is shown, create a new template for the Norwegian stores by clicking Create a New Location Template.

Select Create a New Location Template to begin configuring a template for all Norwegian store locations.

Give the template a sensible name (e.g. NO_Store) and select Store as the location type.

Enter a descriptive template name such as NO_Store and set the Location Type to Store.

From here you can populate the common values for the Norwegian locations. VAT No should be set to your organisation's Norwegian VAT number as this is used to produce the SAF-T file. The Locale should also be set to Norway. See Enactor Insights for further details on configuring the location template.

tip

Using a location template is recommended rather than configuring each store individually, as it is less prone to error.

---

POS Terminal Template

The POS Terminal Template used by all devices in Norway should be configured to have the Fiscalisation Type set to Norway. Currency should be set to Norwegian Kroner and Locale to Norwegian. The Enable End Point Status Monitor should be checked.

Set Currency to Norwegian Kroner, Locale to Norwegian, and tick Enable End Point Status Monitor.

Within the Peripherals tab the Audit Printer Type needs to be set to Electronic Audit Log.

On the Peripherals tab, set Audit Printer Type to Electronic Audit Log.

On the Day Start tab the Opening Float With Day Start must be checked.

On the Day Start tab, tick Opening Float With Day Start to ensure a float is registered at the beginning of each fiscal day.

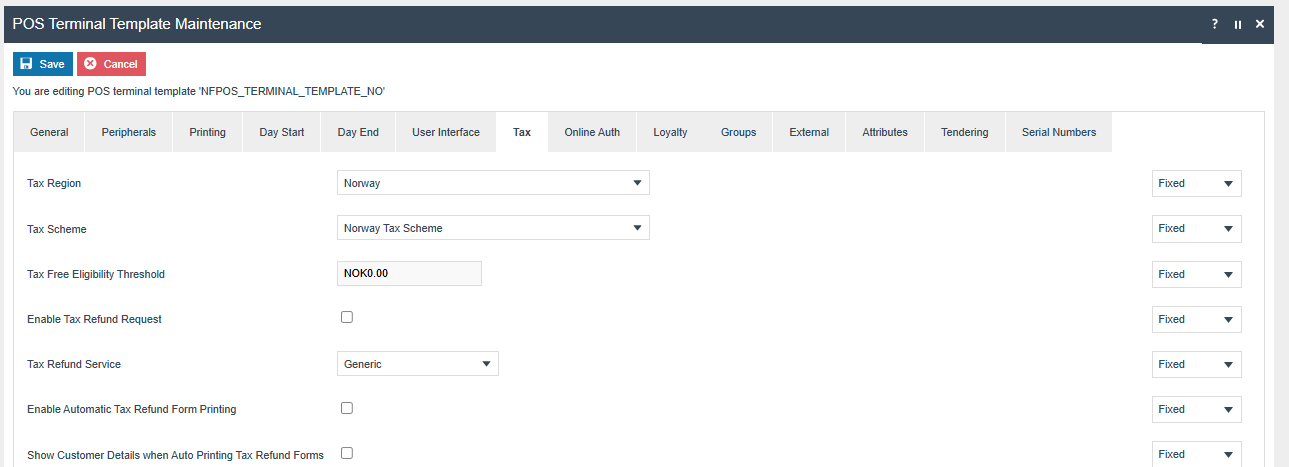

Within the Tax section the Tax Region should be set to Norway and the Tax Scheme to NO VAT.

Set Tax Region to Norway and Tax Scheme to NO VAT.

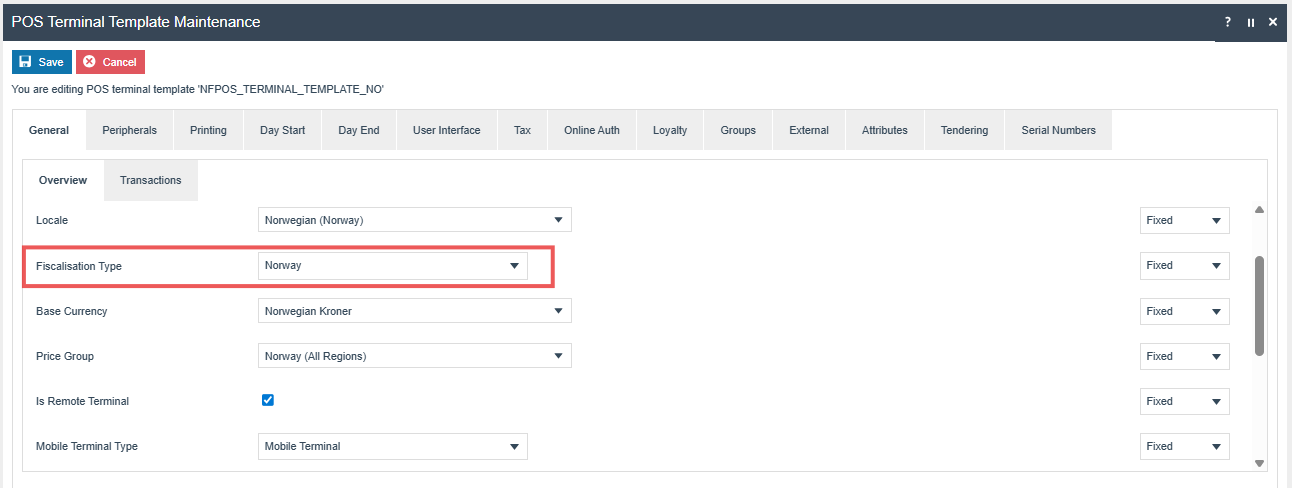

Fiscalisation Type should be set to Norway.

Set Fiscalisation Type to Norway. Once set on a device this cannot be changed or removed.

Location

Each location in Norway should have its Tax Region set to Norway and Tax Scheme set to NO VAT, although this should normally be done through the location template.

Set Tax Region to Norway and Tax Scheme to NO VAT on each Norwegian location. This is normally inherited from the location template.

---

Account Credentials

It is necessary to import a set of account credentials into the Estate Manager. This configuration will be provided by Enactor since it contains the pre-encrypted key that is used to sign the transactions. This key is encrypted with a symmetric key and provided by Enactor ahead of time since it is a requirement of the legislation that this key is not disclosed to the retailer to ensure they cannot circumvent the signing process. The symmetric key that is used to encrypt the private key is not disclosed to customers and this protects against any end user obtaining the private key used to sign transactions.

info

Once the account credential has been imported on the EM it must be broadcast to all Norwegian devices.

---

Privileges

The following privileges will need to be configured and broadcast to the Norwegian devices. Care should be taken to ensure that these privileges are given to the appropriate users of the system to ensure that the functions can be performed at an appropriate time.

note

It is necessary to run a Z report every day so there should always be a user present in the store at the end of the day with the appropriate privileges to do this.

Privilege ID	Package
Print Fiscal Reports	POS Fiscalisation

---

Menus

At an appropriate point within the Norwegian POS menu structure (suggested on the Admin menu), a fiscalisation menu with the following items will need to be configured and broadcast to the Norwegian POS devices. This menu will be used for performing X and Z reports. Although access to this report is controlled with the above privilege, it may be beneficial to only configure this button on the menu for the appropriate role (i.e. if a manager will perform this function it is only available on the manager menu).

Event	ID	Button Label	Data Name	Data Java Type	Data Value
Fiscal_PrintReports_X	Fiscal_PrintReports_X	X Report	ReportType	String	X
Fiscal_PrintReports_Z	Fiscal_PrintReports_Z	Z Report	ReportType	String	Z

Configure the X Report and Z Report menu buttons on the Admin menu using the event IDs and data values shown in the table above.

Set the Event to Fiscal_PrintReports_X with Data Name ReportType and Data Value X.

Set the Event to Fiscal_PrintReports_Z with Data Name ReportType and Data Value Z.

Create a menu button in the SALES menu with event Fiscal_Information_Details.

Add a button to the SALES menu with event Fiscal_Information_Details to allow users to view fiscal information on the POS.

Configure the event details for the Fiscal Information Details menu button.

---

User Role

To configure the required settings for the new screen that includes fiscalisation type and Fiscal Module Version, select the relevant User Role ID (such as Sales Assistant). Edit the chosen User Role ID and navigate to the Authorised Functions section. From there, select POS Fiscalisation as the Application Package from the dropdown menu. Next, choose Fiscal Information Details Norway as the Process and enable the Run Fiscal Information Details Process option.

Select POS Fiscalisation as the Application Package, choose Fiscal Information Details Norway as the Process, and enable the Run Fiscal Information Details Process option.

---

Product Tax

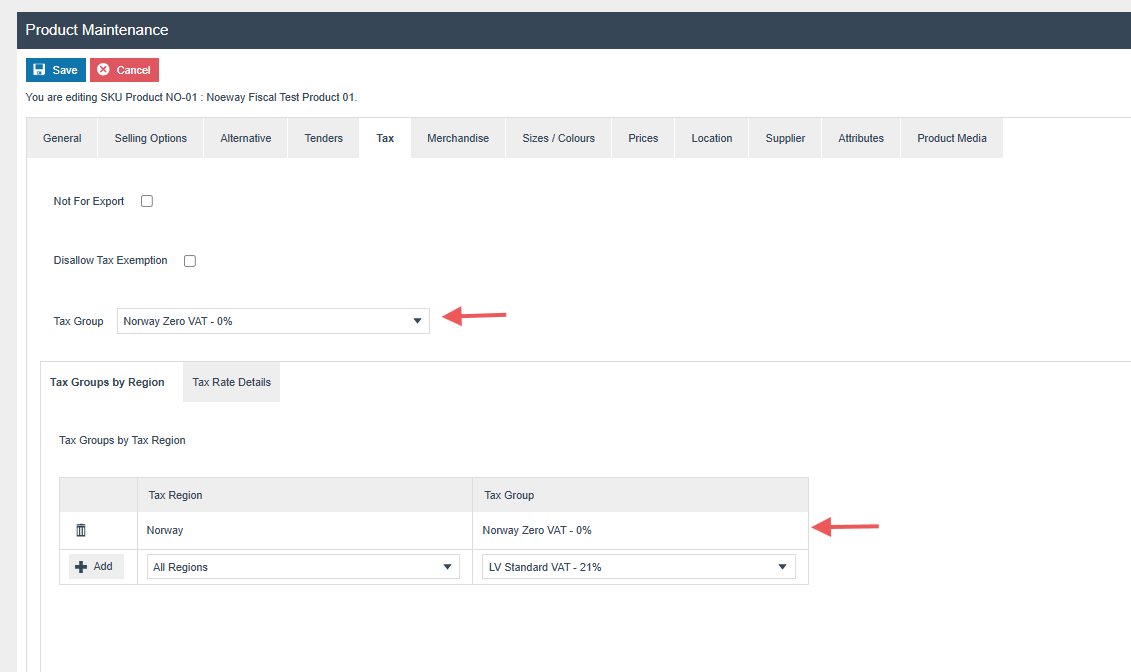

The following tax configurations should be configured against the products and broadcast to the appropriate Norwegian devices. A tax group can be defined to either configure the tax group directly or have a tax group by tax region.

Assign the appropriate Norwegian tax group to each product. You can configure a single tax group or set a tax group by tax region.

---

MMGroup to Fiscal Product Group Mapping

In Norway it is necessary to map products to an Article Group Code provided by the Norwegian Tax Authority. Enactor only supports a single MMGroup Hierarchy so to configure this mapping it is necessary to add an attribute to the MMGroups for products sold in Norway with the mapping to the Norwegian Tax Authority article group code.

To map an MM group with a fiscal article group, complete the following configuration:

1. Go to Group Maintenance > MM Group
2. Select the particular MM Group
3. Navigate to the MM Group Attributes tab
4. Create an Attribute / Option Set as follows:
   • Set ID - FISCAL

Create a new Attribute / Option Set with Set ID set to FISCAL.

The FISCAL attribute/option set is now visible in the MM Group attributes list.

5. Add a new text attribute as follows:
   • ID - NO_FISCAL_PROD_GROUP_REF
   • Name - Norway Fiscal Product Group Reference

Create a new text attribute with ID set to NO_FISCAL_PROD_GROUP_REF and Name set to Norway Fiscal Product Group Reference.

The NO_FISCAL_PROD_GROUP_REF attribute is now saved and available for use.

6. Save that attribute.
7. Go back to the MMG Attributes tab.
8. Add the relevant fiscal article group reference value according to the Norway bookkeeping regulations.

Navigate back to the MMG Attributes tab and enter the fiscal article group reference value for this MM Group.

The fiscal article group reference value is now configured for this MM Group.

tip

It is possible to provide this configuration for a parent element in the hierarchy. The Tax Authority Article Group Code will be applied to all of its children.

---

Payment Service CREDIT_DEBIT Mapping

1. Navigate to Attribute / Option Set Maintenance
2. Click Create a New Option Set with the following values:
   • Attribute / Option Set - CREDIT_DEBIT_MAPPING
   • Type - Tender Attributes
   • Region - Norway

Create a new option set with Attribute / Option Set set to CREDIT_DEBIT_MAPPING, Type set to Tender Attributes, and Region set to Norway.

3. Click Add under the created Attribute/Option Set
4. Select Add Text Option
5. Create 3 Text Attributes:

Create three text attributes: MAPPING_PROPERTY, CREDIT, and DEBIT.

Mapping Property:

• ID - MAPPING_PROPERTY
• Validation - Strings
• Allow blank - Enable

Configure the MAPPING_PROPERTY attribute with Validation set to Strings and Allow blank enabled.

The MAPPING_PROPERTY attribute is saved.

Credit:

• ID - CREDIT
• Validation - Strings
• Allow blank - Enable

Configure the CREDIT attribute with Validation set to Strings and Allow blank enabled.

The CREDIT attribute is saved.

Debit:

• ID - DEBIT
• Validation - Strings
• Allow blank - Enable

Configure the DEBIT attribute with Validation set to Strings and Allow blank enabled.

The DEBIT attribute is saved.

6. Navigate to Tender Maintenance
7. Edit the Tender ID related to the Card (Payment Service) tender
8. Navigate to Attributes
9. Add values to the attributes as follows:
   • MAPPING_PROPERTY - cardDetails.cardDescription
   • CREDIT - MC Credit, Visa Credit
   • DEBIT - MASTERCARD, Visa Debit

Set MAPPING_PROPERTY to cardDetails.cardDescription. Add the relevant credit card keywords under CREDIT and debit card keywords under DEBIT, separated by commas.

note

Set MAPPING_PROPERTY to the same value as mentioned above. Add keywords for CREDIT and DEBIT, separating each keyword with a comma. Obtain the possible card description values for credit and debit cards from the payment service provider.

---

Norway Specific Functions

The operation of both the POS and the Estate Manager is for the most part the same as any other country when the Norwegian fiscal module is being used. This guide does not intend to cover the full operation of the POS - instead the Enactor documentation should be referred to at Enactor Insights.

This section covers Norwegian specific operations as well as considerations that should be taken with regard to maintaining a compliant solution in Norway.

---

Z Report

The configuration section above detailed the setup for a menu from which to trigger the Z report as well as a set of permissions to enable a member of store staff to trigger this report on the POS. Staff should be trained to run this report every day and retain the printed Z report that it will produce in accordance with the fiscal regulations. Running the Z report closes the fiscal day and will contain adjusted grand totals to account for that day's trade.

---

X Report

The X report is configured and runs in the same way as the Z report. However its operation is different; it is a purely informational report and does not close the day or affect grand totals, although the data it contains is very similar to the Z report. It is not necessary to run the X report but it is provided to allow a member of staff to see what the Z report position would be at present if the day were closed by running the Z report.

---

Enabling X/Z Report Printing

Both X/Z report printing functionalities are now privilege-controlled. To print X/Z reports, you must first enable the following privileges:

• enactor.pos.AuthorisesPrintFiscalReports
• enactor.pos.PrintFiscalReportsAllowed

info

Unless these privileges are enabled, printing X/Z reports will not be allowed.

To configure this, go to User Role Maintenance in the Estate Manager (EM). Based on your Role ID, navigate to the Authorised Functions tab, select POS Fiscalisation as the Application Package, and set the Function ID to enactor.pos.AuthorisesPrintFiscalReports. Then enable the function.

Repeat the same steps for enactor.pos.PrintFiscalReportsAllowed.

Once these privileges are enabled for the relevant roles, X/Z report printing will be permitted.

Enable the enactor.pos.AuthorisesPrintFiscalReports and enactor.pos.PrintFiscalReportsAllowed privileges under POS Fiscalisation for all roles that need to print X/Z reports.

---

SAF-T File Export

From the Estate Manager it is possible to trigger the production of a SAF-T file. This should only be required if requested by the Tax Authorities at the time of an audit. However, it would be pragmatic to produce this report on a regular schedule to maintain a second record of transactions along with the database and its backups in the event of a total loss of the Enactor database and its backups also failing.

First select the SAF-T Generator report from Reports > Fiscal.

Populate the required date ranges, location, and device from the screen shown below and click Generate.

Select the SAF-T Generator from Reports > Fiscal. Enter the required date range, location, and device, then click Generate.

This will trigger a scheduled job in the background which can be monitored from the scheduled jobs page as usual. Once the job has completed it will be possible to download the generated XML file from File Downloads on the EM.

Once the scheduled job completes, download the generated SAF-T XML file from the File Downloads page on the Estate Manager.

note

Generated SAF-T files are no longer located in /FiscalData/Norway/SAF-T. They are currently available at the following path: /var/lib/docker/volumes/enactor-data-emp-home/_data/Exports/<USER>/<yyyymmdd>

---

Fiscal Tables

Estate Manager

It is important that all data contained in the EM is backed up in a manner that ensures data will not be lost in the event of a disk or server failure. Strategies for doing this vary and each retailer will have their own approach depending on their particular situation. However, the following list of tables comprises the fiscal archive. It is critical that data contained in these tables is not removed either intentionally or otherwise before the mandated retention period for transaction data is over, as this will result in invalid SAF-T files with signature chains that have breaks within them.

• Fiscal Transactions
• Retail Transaction Archive
• Products
• Product Groups
• Location

---

POS/PDP

Data held on the POS/PDP is less critical than the Estate Manager since the fiscal data store is the Estate Manager and the data about transactions held on the POS is temporary. However one special consideration needs to be given when recovering from a disaster on a POS or PDP server since the signature for each transaction contains the signature of the prior transaction as part of the data that is signed.

The normal disaster recovery process for a POS or a PDP is to rebuild and install it and then schedule a broadcast of the required configuration from the EM to the new device. Commonly the same device ID is used for the new device even in the event of total hardware failure since retailers like to keep consistency in their POS naming conventions. If this process is followed in Norway without adaptation this will result in a new signature chain being started for that POS which will appear in a SAF-T audit as a break in the signature chain for the device.

Instead, when recovering from a POS or PDP disaster in Norway an extra step is required to discover the last signature the failed device produced. This signature will then need to be reseeded to the new POS. In the case of a PDP it will be necessary to reseed the signature of each device hosted by the PDP.

info

This is an advanced and extraordinary procedure. The first time you perform this you should contact support@enactor.zendesk.com to arrange for a member of the fiscal team to walk through the procedure with you. The following instructions are not intended to be sufficient for you to perform this procedure without help.

First check on the Estate Manager that there are no inbound documents waiting to be processed from the failed device. It will then be necessary to find within the EM SQL database the last transaction processed from the failed device in the Fiscal Transactions table and extract the signature from the XML column. After building the new POS but before logging in, it will be necessary to populate this value to the appropriate table on the POS.

---
