Inbound Integration Guide - Product Base Data

Description

This How-to guide explains the integration of following configuration data entities.

Merchandise Management Group (mmGroup)
Products: MerchandiseProduct, SkuProduct, StyleSizeProduct, and Style Colour Size Product
Product Price
Selling Code

Notes

This guide does not cover all possible integration topics. Please see the Enactor Books for detailed information.

See the Inbound Integration Guide - Introduction for the basics of importing and exporting data.

Overview

Products, prices, and merchandise groups represent the items that are typically sold in a customer transaction.

Merchandise Management Group (mmGroup)

The merchandise hierarchy is managed as a merchandise management group. This group defines the merchandise folder structure that will be used by other entities including products.

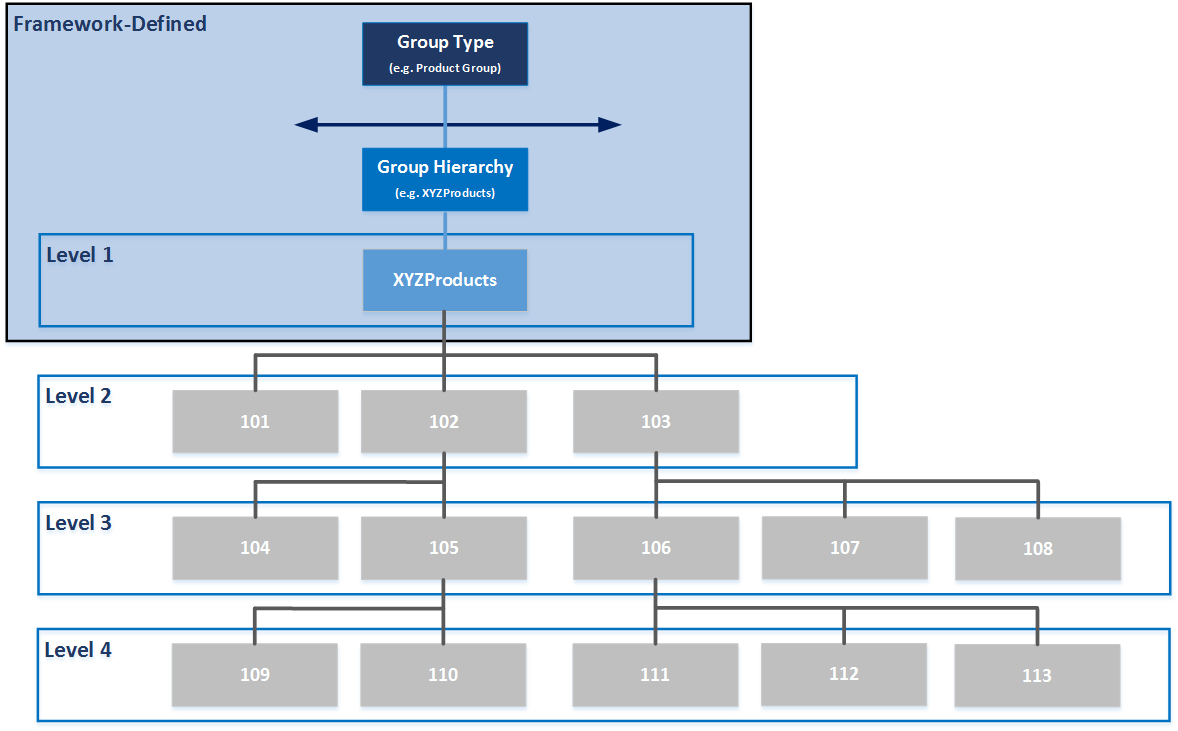

There are many different types of group data. The group structure is hierarchical and supports up to 10 levels.

XML Example

<?xml version="1.0" encoding="UTF-8" standalone="yes"?>
<Batch xmlns:core="http://www.enactor.com/core"
       xmlns:retail="http://www.enactor.com/retail">
    <retail:mmGroup>
        <retail:groupId>FASHION</retail:groupId>
        <retail:groupTypeId>mmGroup</retail:groupTypeId>
        <retail:groupHierarchyId>FASHION</retail:groupHierarchyId>
        <retail:level>1</retail:level>
        <retail:level1GroupId>FASHION</retail:level1GroupId>
        <retail:name>Fashion</retail:name>
        <retail:variantGroupId>All</retail:variantGroupId>
        <retail:variantGroupTypeId>region</retail:variantGroupTypeId>
        <retail:variantGroupHierarchyId>All</retail:variantGroupHierarchyId>
        <retail:variantLevel>1</retail:variantLevel>
        <retail:allowPriceEntry>false</retail:allowPriceEntry>
        <retail:concession>false</retail:concession>
        <retail:forceMessageAcknowledgement>false</retail:forceMessageAcknowledgement>
        <retail:operatorMessage/>
        <retail:quantityEntry>false</retail:quantityEntry>
        <retail:receiptMessage/>
        <retail:exportWarningMessage></retail:exportWarningMessage>
        <retail:fasciaId groupTypeId="fascia"></retail:fasciaId>
    </retail:mmGroup>
    <retail:mmGroup>
        <retail:groupId>BOYS</retail:groupId>
        <retail:groupTypeId>mmGroup</retail:groupTypeId>
        <retail:groupHierarchyId>FASHION</retail:groupHierarchyId>
        <retail:level>2</retail:level>
        <retail:level10GroupId></retail:level10GroupId>
        <retail:level1GroupId>FASHION</retail:level1GroupId>
        <retail:level2GroupId>BOYS</retail:level2GroupId>
        <retail:level3GroupId></retail:level3GroupId>
        <retail:level4GroupId></retail:level4GroupId>
        <retail:level5GroupId></retail:level5GroupId>
        <retail:level6GroupId></retail:level6GroupId>
        <retail:level7GroupId></retail:level7GroupId>
        <retail:level8GroupId></retail:level8GroupId>
        <retail:level9GroupId></retail:level9GroupId>
        <retail:name>Boys</retail:name>
        <retail:variantGroupId>All</retail:variantGroupId>
        <retail:variantGroupTypeId>region</retail:variantGroupTypeId>
        <retail:variantGroupHierarchyId>All</retail:variantGroupHierarchyId>
        <retail:variantLevel>1</retail:variantLevel>
        <retail:allowPriceEntry>false</retail:allowPriceEntry>
        <retail:concession>false</retail:concession>
        <retail:forceMessageAcknowledgement>false</retail:forceMessageAcknowledgement>
        <retail:operatorMessage/>
        <retail:quantityEntry>false</retail:quantityEntry>
        <retail:receiptMessage/>
        <retail:fasciaId groupTypeId="fascia"></retail:fasciaId>
    </retail:mmGroup>
    <retail:mmGroup>
        <retail:groupId>BOYS_SHIRTS</retail:groupId>
        <retail:groupTypeId>mmGroup</retail:groupTypeId>
        <retail:groupHierarchyId>FASHION</retail:groupHierarchyId>
        <retail:level>3</retail:level>
        <retail:level10GroupId></retail:level10GroupId>
        <retail:level1GroupId>FASHION</retail:level1GroupId>
        <retail:level2GroupId>BOYS</retail:level2GroupId>
        <retail:level3GroupId>BOYS_SHIRTS</retail:level3GroupId>
        <retail:level4GroupId></retail:level4GroupId>
        <retail:level5GroupId></retail:level5GroupId>
        <retail:level6GroupId></retail:level6GroupId>
        <retail:level7GroupId></retail:level7GroupId>
        <retail:level8GroupId></retail:level8GroupId>
        <retail:level9GroupId></retail:level9GroupId>
        <retail:name>Boys Shirts</retail:name>
        <retail:variantGroupId>All</retail:variantGroupId>
        <retail:variantGroupTypeId>region</retail:variantGroupTypeId>
        <retail:variantGroupHierarchyId>All</retail:variantGroupHierarchyId>
        <retail:variantLevel>1</retail:variantLevel>
        <retail:allowPriceEntry>false</retail:allowPriceEntry>
        <retail:concession>false</retail:concession>
        <retail:forceMessageAcknowledgement>false</retail:forceMessageAcknowledgement>
        <retail:operatorMessage/>
        <retail:quantityEntry>false</retail:quantityEntry>
        <retail:receiptMessage/>
        <retail:fasciaId groupTypeId="fascia"></retail:fasciaId>
    </retail:mmGroup>
</Batch>

XML Structure

XML Tag	Parent Element	Type	Description	Data Type	Length
mmgroup		Root	Outer wrapper for the entity	String	n/a
groupId	mmGroup	Element	Unique ID for the group	String	20
groupTypeId	mmGroup	Element	(Fixed) group type - mmGroup	String	30
groupHierarchyId	mmGroup	Element	Unique ID for the hierarchy	String	20
level	mmGroup	Element	Level of group within hierarchy structure	Integer	11
level1GroupId	mmGroup	Element	Top level group ID Required if level >= 1	String	20
level2GroupId	mmGroup	Element	Next level group ID required if level >= 2	String	20
level3GroupId	mmGroup	Element	Next level group ID required if level >= 3	String	20
level4GroupId	mmGroup	Element	Next level group ID required if level >= 4	String	20
level5GroupId	mmGroup	Element	Next level group ID required if level >= 5	String	20
level6GroupId	mmGroup	Element	Next level group ID required if level >= 6	String	20
level7GroupId	mmGroup	Element	Next level group ID required if level >= 7	String	20
level8GroupId	mmGroup	Element	Next level group ID required if level >= 8	String	20
level9GroupId	mmGroup	Element	Next level group ID required if level >= 9	String	20
level10GroupId	mmGroup	Element	Next level group ID required if level == 10	String	20
name	mmGroup	Element	Description of Group	String	40
variantGroupId	mmGroup	Element	Region Group to which mmGroup belongs	String	20
variantGroupTypeId	mmGroup	Element	(Fixed) group type - region	String	30
variantGroup HierarchyId	mmGroup	Element	Region Hierarchy to which mmGroup belongs	String	20
variantLevel	mmGroup	Element	region hierarchy level	Integer	11
fasciaId	mmGroup	Element	ID of fascia to which MMGroup belongs	String	20
allowPriceEntry	mmGroup	Element	This mmgroup allows price entry	Boolean
concession	mmGroup	Element	This mmgroup is a concession	Boolean
forceMessage Acknowledgement	mmGroup	Element	Operator must acknowledge operator message (if defined)	Boolean
quantityEntry	mmGroup	Element	This mmgroup allows quantity entry	Boolean
exportWarning Message	mmGroup	Element	export warning message	String	200
operatorMessage	mmGroup	Element	operator message (if defined)	Locale String
receiptMessage	mmGroup	Element	receipt message (if defined)	Locale String

Locale String

XML Tag	Parent Element	Type	Description	Data Type	Length
string	productDescription, productLong Description	Element	Locale string definition	String	200
variant	string	Attribute
language	string	Attribute	Locale language	String
country	string	Attribute	Locale country	String

Product

The product entity holds the data for the products that will be sold in a transaction.

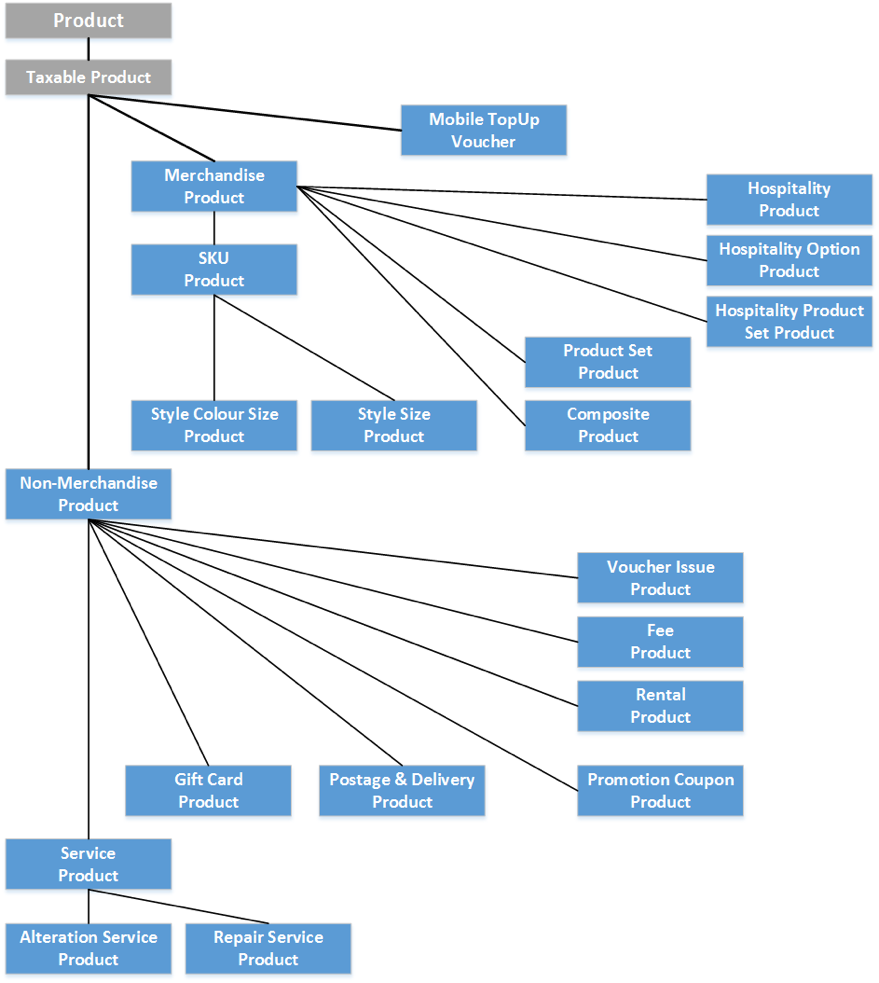

Many different types of products are supported by Enactor. These include merchandise products, style/color/size products, and SKU products.

Merchandise Product

Merchandise products will use the attributes from mmGroup, brand, and range.

XML Example

<?xml version="1.0" encoding="UTF-8" standalone="yes"?>
<Batch xmlns:core="http://www.enactor.com/core"
       xmlns:retail="http://www.enactor.com/retail">
    <retail:merchandiseProduct>
        <retail:productId>270717806</retail:productId>
        <retail:type>merchandiseProduct</retail:type>
        <retail:productDescription>
            <core:string variant="" language="en" country="US">Bulova Women's Watch</core:string>
        </retail:productDescription>
        <retail:productLongDescription>
            <core:string variant="" language="en" country="US">This chic women's watch from the Classic collection by Bulova showcases a rose-gold-tone dial set in a 28mm rose-gold-tone stainless steel case. The matching rose-gold-tone stainless steel bracelet.</core:string>
        </retail:productLongDescription>
        <retail:productLongDescriptionURL></retail:productLongDescriptionURL>
        <retail:productInfo></retail:productInfo>
        <retail:fasciaId/>
        <retail:imageURL>image://PRODUCT/watch5a.jpg</retail:imageURL>
        <retail:imageFilenameId type="jpg" category="PRODUCT">watch5a</retail:imageFilenameId>
        <retail:productInformationURL></retail:productInformationURL>
        <retail:posDetails>
            <retail:productOptionSetDetails>
                <retail:isTemplate>false</retail:isTemplate>
            </retail:productOptionSetDetails>
            <retail:isTemplate>false</retail:isTemplate>
        </retail:posDetails>
        <retail:isTemplate>false</retail:isTemplate>
        <retail:status>LIVE</retail:status>
        <retail:externalReference></retail:externalReference>
        <retail:lastUpdated>2020-03-23T13:45:02.822-04:00</retail:lastUpdated>
        <retail:taxExemptProhibited>false</retail:taxExemptProhibited>
        <retail:exportDetails>
            <retail:isTemplate>false</retail:isTemplate>
        </retail:exportDetails>
        <retail:mmGroupId variantGroupHierarchyId="All" variantGroupId="All" variantGroupTypeId="region" groupHierarchyId="SIGNET" groupTypeId="mmGroup">SIG_WATCH_WMN</retail:mmGroupId>
        <retail:brandId/>
        <retail:rangeId/>
        <retail:inventoryDetails>
            <retail:allowForLoan>false</retail:allowForLoan>
            <retail:allowCustomerOrder>false</retail:allowCustomerOrder>
            <retail:isTemplate>false</retail:isTemplate>
        </retail:inventoryDetails>
        <retail:productDimensions>
            <retail:isTemplate>false</retail:isTemplate>
        </retail:productDimensions>
        <retail:warrantyDetails>
            <retail:isTemplate>false</retail:isTemplate>
        </retail:warrantyDetails>
        <retail:standardCostPrice>0.0</retail:standardCostPrice>
        <retail:standardMargin>0.0</retail:standardMargin>
    </retail:merchandiseProduct>
</Batch>

XML Structure

XML Tag	Parent Element	Type	Description	Data Type	Length
merchandiseProduct		Root	Outer wrapper for the entity	String	n/a
productId	merchandiseProduct	Element	Unique Id for the product	String	20
type	merchandiseProduct	Element	Fixed: merchandiseProduct		n/a
product Description	merchandiseProduct	Element	Locale specific description of product	Locale String	30
productLong Description	merchandiseProduct	Element	Locale specific long description of product	Locale String	50
productLong DescriptionURL	merchandiseProduct	Element	URL for product description	String
productInfo	merchandiseProduct	Element	Extra long description of product	String	5000
startDate	merchandiseProduct	Element	Date when product is first allowed to be sold, if omitted, the beginning of time	Date Time
endDate	merchandiseProduct	Element	Date when product is last allowed to be sold, If omitted, the end of time	Date Time
fasciaId	merchandiseProduct	Element	Unique identifier for a Fascia	String
imageURL	merchandiseProduct	Element	URL for product image	String
product InformationURL	merchandiseProduct	Element	URL for additional product information	String
posDetails	merchandiseProduct	Element	Fixed: posDetails
operatorMessage	posDetails	Element	Message to be displayed to the operator	Locale String
customerMessage	posDetails	Element	Message to be displayed to the customer	Locale String
cashierAge Restrict	posDetails	Element	Cashier minimum age	Integer
numberCopy Receipts	posDetails	Element	Number of receipt copies to print
maxDiscount	posDetails	Element	Maximum discount amount	Double
maxEmployee Discount	posDetails	Element	Maximum employee discount amount	Double
excludeFrom Employee Discount	posDetails	Element	If true, exclude this item from employee discounts	Boolean
returnsTime Limit	posDetails	Element	Number of days allowed for return	Integer
maxQtyPer Transaction	posDetails	Element	Maximum quantity of this item allowed per transaction	Double
customerAge Restriction	posDetails	Element	Customer minimum age	Integer
receiptMessage	posDetails	Element	Message to be printed on the receipt	Locale String
captureSerialNo	posDetails	Element	Capture a product serial number	Boolean
priceEntry	posDetails	Element	Allow price entry	Boolean
quantityEntry	posDetails	Element	Allow quantity entry	Boolean
minimum SalesUnit	posDetails	Element	Minimum sales quantity	Double
allowDiscounts	posDetails	Element	Allow discounts on product	Boolean
capture ReasonCode	posDetails	Element	Force capture of reason code	Boolean
capture NameAddress	posDetails	Element	Force capture of customer name and address	Boolean
capture ReferenceNo	posDetails	Element	Force capture of a reference number	Boolean
taxModifiable	posDetails	Element	Allow tax to be modified	Boolean
forceMessage Acknowledgement	posDetails	Element	Force operator to acknowledge displayed operator message	Boolean
forceSalesperson Capture	posDetails	Element	Force capture of salesperson id	Boolean
disallowZero PriceEntry	posDetails	Element	If true, do not allow zero price for product	Boolean
disallowReturns	posDetails	Element	If true, do not allow product to be returned	Boolean
disallowPrice Overrides	posDetails	Element	If true, do not allow price overrides	Boolean
disallow Promotions	posDetails	Element	If true, do not allow promotions on this product	Boolean
preventStore Transaction	posDetails	Element	If true, do not allow a transaction with this product to be stored/recalled	Boolean
productOption SetDetails	posDetails	Element
isTemplate	productOptionSetDetails	Element	If true, this product option set is from a template	Boolean
disallow QuantityEntry	posDetails	Element	If true, do not allow quantity entry	Boolean
perishable	posDetails	Element	If true, this product is perishable	Boolean
isTemplate	posDetails	Element	If true, this posDetails is from a template	Boolean
status	posDetails	Element	Value from the Product Status entity	String
externalReference	posDetails	Element	External product reference number	String
taxExempt Prohibited	posDetails	Element	If true, tax exempt is not allowed on this product	Boolean
taxGroupId	posDetails	Element	Value from Tax Groups entity	String
exportDetails	posDetails	Element
notForExport	exportDetails	Element	If true, product is not allowed for export	Boolean
isTemplate	exportDetails	Element	If true, exportDetails is from a template	Boolean
mmGroupId	posDetails	Element	Value from mmGroup Group entity	String
brandId	posDetails	Element	Value from brand Group entity	String
rangeId	posDetails	Element	Value from range Group entity	String
inventoryDetails	posDetails	Element
allowForLoan	inventoryDetails	Element	If true, allow product to be loaned	Boolean
allowCustomer Order	inventoryDetails	Element	If true, allow product in customer order	Boolean
allowPurchase Order	inventoryDetails	Element	If true, allow product in purchase order	Boolean
customerOrder Only	inventoryDetails	Element	If true, allow product in customer order only	Boolean
directToStore Delivery	inventoryDetails	Element	If true, product will be sent directly to store	Boolean
isStocked	inventoryDetails	Element	If true, product is stocked in store	Boolean
isTemplate	inventoryDetails	Element	If true, inventory details are from a template	Boolean
product Dimensions	posDetails	Element
height	productDimensions	Element	Height dimension of the product	Double
length	productDimensions	Element	Length dimension of the product	Double
width	productDimensions	Element	Width dimension of the product	Double
weight	productDimensions	Element	Weight of the product	Double
sizeDescription	productDimensions	Element	Size description of the product	String
isTemplate	productDimensions	Element	If true, product dimensions are from a template	Boolean
warrantyDetails	posDetails	Element
warrantyPeriod Months	warrantyDetails	Element	If > 0, number of months for warranty is valid if = 0, unlimited duration	Integer
localisedWarranty Information	warrantyDetails	Element	Description of the warranty	Locale String
extended WarrantyAvailable	warrantyDetails	Element	If true, an extended warranty is available	Boolean
warranty Information	warrantyDetails	Element	Extended description of the warranty	Locale String
isTemplate	warrantyDetails	Element	If true, warranty details are from a template	Boolean
seasonId	posDetails	Element	Value from Seasons entity	String
standardCostPrice	posDetails	Element	Standard cost of product	Double
standardMargin	posDetails	Element	Standard margin of product	Double

Locale String

XML Tag	Parent Element	Type	Description	Data Type	Length
string	productDescription, productLong Description	Element	Locale string definition	String	200
variant	string	Attribute
language	string	Attribute	Locale language	String
country	string	Attribute	Locale country	String

SKU Product

The SKU product extends the merchandise product.

XML Example

#### XML Example

```xml
<?xml version="1.0" encoding="UTF-8" standalone="yes"?>
<Batch xmlns:core="[http://www.enactor.com/core](http://www.enactor.com/core)"
       xmlns:retail="[http://www.enactor.com/retail](http://www.enactor.com/retail)">
    <retail:skuProduct>
        <retail:productId>KD092JS-1</retail:productId>
        <retail:type>skuProduct</retail:type>
        <retail:productDescription>
            <core:string variant="" language="en" country="GB">Nike Capri Trainer</core:string>
        </retail:productDescription>
        <retail:productLongDescription>
            <core:string variant="" language="en" country="GB">From Nike. Combination leather and synthetic upper for durability and comfort. Autoclave construction fuses the outsole to the upper for durability and a classic look and feel. Rubber outsole with dot</core:string>
        </retail:productLongDescription>
        <retail:productLongDescriptionURL></retail:productLongDescriptionURL>
        <retail:productInfo>Upper: leather and synthetic. Linings and sock: textile. Sole: other materials.</retail:productInfo>
        <retail:fasciaId></retail:fasciaId>
        <retail:imageURL>image://PRODUCT/KD092JS-1.jpg</retail:imageURL>
        <retail:imageFilenameId type="jpg" category="PRODUCT">KD092JS-1</retail:imageFilenameId>
        <retail:productInformationURL></retail:productInformationURL>
        <retail:posDetails>
            <retail:productOptionSetDetails>
                <retail:isTemplate>false</retail:isTemplate>
            </retail:productOptionSetDetails>
            <retail:isTemplate>false</retail:isTemplate>
        </retail:posDetails>
        <retail:isTemplate>false</retail:isTemplate>
        <retail:status>LIVE</retail:status>
        <retail:externalReference></retail:externalReference>
        <retail:taxExemptProhibited>false</retail:taxExemptProhibited>
        <retail:taxGroupId>A</retail:taxGroupId>
        <retail:exportDetails>
            <retail:notForExport>false</retail:notForExport>
            <retail:isTemplate>false</retail:isTemplate>
        </retail:exportDetails>
        <retail:mmGroupId variantGroupHierarchyId="All" variantGroupId="All" variantGroupTypeId="region" groupHierarchyId="FASHION" groupTypeId="mmGroup">MENS_SHOES</retail:mmGroupId>
        <retail:brandId variantGroupHierarchyId="All" variantGroupId="All" variantGroupTypeId="region" groupHierarchyId="FASHION" groupTypeId="brand">NIKE</retail:brandId>
        <retail:rangeId></retail:rangeId>
        <retail:inventoryDetails>
            <retail:allowForLoan>false</retail:allowForLoan>
            <retail:allowCustomerOrder>true</retail:allowCustomerOrder>
            <retail:allowPurchaseOrder>true</retail:allowPurchaseOrder>
            <retail:customerOrderOnly>false</retail:customerOrderOnly>
            <retail:directToStoreDelivery>false</retail:directToStoreDelivery>
            <retail:isStocked>true</retail:isStocked>
            <retail:isTemplate>false</retail:isTemplate>
        </retail:inventoryDetails>
        <retail:productDimensions>
            <retail:isTemplate>false</retail:isTemplate>
        </retail:productDimensions>
        <retail:warrantyDetails>
            <retail:isTemplate>false</retail:isTemplate>
        </retail:warrantyDetails>
        <retail:seasonId>ALL</retail:seasonId>
        <retail:standardCostPrice>0.0</retail:standardCostPrice>
        <retail:standardMargin>0.0</retail:standardMargin>
        <retail:colourId colourRangeId="MENS_SHOES">BLACK</retail:colourId>
        <retail:sizeId sizeRangeId="MENS_SHOES">12</retail:sizeId>
        <retail:styleId>KD092JS</retail:styleId>
        <retail:styleAttributeValues/>
    </retail:skuProduct>
</Batch>

XML Structure

The skuProduct includes all elements of the merchandiseProduct and the following additional elements.

skuProduct

XML Tag	Parent Element	Type	Description	Data Type	Length
skuProduct		Root	Outer wrapper for the entity	String	n/a
. . .	skuProduct	Element	All merchandiseProduct XML tags
colourId	skuProduct	Element	See table below	String
sizeId	skuProduct	Element	See table below	String
styleId	skuProduct	Element	Unique id of a styleColourSizeProduct or styleSizeProduct	String	20

The styleId value links the related skuProducts as a family of products.

colourId

XML Tag	Parent Element	Type	Description	Data Type	Length
colourId		Root	Outer wrapper for the entity	String	n/a
colourIdRange	colourId	Attribute	Value from the Colour Range entity	String
value	colourId	Value	Value for this color choice	String

sizeId

XML Tag	Parent Element	Type	Description	Data Type	Length
sizeId		Root	Outer wrapper for the entity	String	n/a
sizeIdRange	sizeId	Attribute	Value from the Size Range entity	String
value	sizeId	Value	Value for this size choice	String

Style Size Product

The StyleSizeProduct extends the SKUProduct. The style size product is a collection of products with size choices from the size range.

XML Example

<?xml version="1.0" encoding="UTF-8" standalone="yes"?>
<Batch>
    <retail:styleSizeProduct xmlns:core="http://www.enactor.com/core"
                           xmlns:retail="http://www.enactor.com/retail">
        <retail:productId>21110</retail:productId>
        <retail:type>styleSizeProduct</retail:type>
        <retail:productDescription>
            <core:string variant="" language="en" country="CA">Men's Nike Flyknit 4.0</core:string>
            <core:string variant="" language="en" country="GB">Men's Nike Flyknit 4.0</core:string>
            <core:string variant="" language="en" country="US">Men's Nike Flyknit 4.0</core:string>
            <core:string variant="" language="fr" country="CA">Men's Nike Flyknit 4.0</core:string>
        </retail:productDescription>
        <retail:productLongDescription/>
        <retail:productLongDescriptionURL></retail:productLongDescriptionURL>
        <retail:productInfo></retail:productInfo>
        <retail:fasciaId/>
        <retail:imageURL>image://PRODUCT/MNikeShoe.jpg</retail:imageURL>
        <retail:imageFilenameId type="jpg" category="PRODUCT">MNikeShoe</retail:imageFilenameId>
        <retail:productInformationURL></retail:productInformationURL>
        <retail:posDetails>
            <retail:productOptionSetDetails>
                <retail:isTemplate>false</retail:isTemplate>
            </retail:productOptionSetDetails>
            <retail:isTemplate>false</retail:isTemplate>
        </retail:posDetails>
        <retail:isTemplate>false</retail:isTemplate>
        <retail:status>LIVE</retail:status>
        <retail:externalReference></retail:externalReference>
        <retail:taxExemptProhibited>false</retail:taxExemptProhibited>
        <retail:exportDetails>
            <retail:isTemplate>false</retail:isTemplate>
        </retail:exportDetails>
        <retail:mmGroupId variantGroupHierarchyId="All" variantGroupId="All" variantGroupTypeId="region" groupHierarchyId="ALL" groupTypeId="mmGroup">SHOES_MEN_ATH</retail:mmGroupId>
        <retail:brandId variantGroupHierarchyId="All" variantGroupId="All" variantGroupTypeId="region" groupHierarchyId="SHOES" groupTypeId="brand">SHOES_NIKE</retail:brandId>
        <retail:rangeId></retail:rangeId>
        <retail:inventoryDetails>
            <retail:allowForLoan>false</retail:allowForLoan>
            <retail:allowCustomerOrder>true</retail:allowCustomerOrder>
            <retail:isTemplate>false</retail:isTemplate>
        </retail:inventoryDetails>
        <retail:productDimensions>
            <retail:isTemplate>false</retail:isTemplate>
        </retail:productDimensions>
        <retail:warrantyDetails>
            <retail:isTemplate>false</retail:isTemplate>
        </retail:warrantyDetails>
        <retail:seasonId></retail:seasonId>
        <retail:standardCostPrice>0.0</retail:standardCostPrice>
        <retail:standardMargin>0.0</retail:standardMargin>
        <retail:sizeRangeId>SHOES</retail:sizeRangeId>
        <retail:styleAttributes/>
    </retail:styleSizeProduct>
</Batch>

XML Structure

The StyleSizeProduct includes all elements of the SKUProduct and the following additional elements.

XML Tag	Parent Element	Type	Description	Data Type	Length
StyleSizeProduct		Root	Outer wrapper for the entity	String	n/a
. . .	StyleSizeProduct	Element	All merchandiseProduct XML tags
sizeRangeId	StyleSizeProduct	Element	Value from the Size Range entity	String

Style Colour Size Product

The StyleColourSizeProduct extends the SKUProduct. The style colour size product is a collection of products with colour and size choices from the colour range and size range.

XML Example

<?xml version="1.0" encoding="UTF-8" standalone="yes"?>
<Batch>
    <retail:styleColourSizeProduct xmlns:core="http://www.enactor.com/core"
                               xmlns:retail="http://www.enactor.com/retail">
        <retail:productId>0DQJOJ4</retail:productId>
        <retail:type>styleColourSizeProduct</retail:type>
        <retail:productDescription>
            <core:string variant="" language="en" country="GB">Tile Print Shorts</core:string>
        </retail:productDescription>
        <retail:productLongDescription>
            <core:string variant="" language="en" country="GB">Enhance your child's ensemble with these childrens girls tile print shorts from Roberto Cavalli. Boasting an all over tile print design, this bold pair feature an clasp closure and belt loops.</core:string>
        </retail:productLongDescription>
        <retail:productLongDescriptionURL></retail:productLongDescriptionURL>
        <retail:productInfo>100% cotton, Machine washable</retail:productInfo>
        <retail:fasciaId/>
        <retail:imageURL>image://PRODUCT/11_0DQJOJ4.jpg</retail:imageURL>
        <retail:imageFilenameId type="jpg" category="PRODUCT">11_0DQJOJ4</retail:imageFilenameId>
        <retail:productInformationURL></retail:productInformationURL>
        <retail:posDetails>
            <retail:productOptionSetDetails>
                <retail:isTemplate>false</retail:isTemplate>
            </retail:productOptionSetDetails>
            <retail:isTemplate>false</retail:isTemplate>
        </retail:posDetails>
        <retail:isTemplate>false</retail:isTemplate>
        <retail:status>LIVE</retail:status>
        <retail:externalReference></retail:externalReference>
        <retail:taxExemptProhibited>false</retail:taxExemptProhibited>
        <retail:taxGroupId>A</retail:taxGroupId>
        <retail:exportDetails>
            <retail:notForExport>false</retail:notForExport>
            <retail:isTemplate>false</retail:isTemplate>
        </retail:exportDetails>
        <retail:mmGroupId variantGroupHierarchyId="All" variantGroupId="All" variantGroupTypeId="region" groupHierarchyId="FASHION" groupTypeId="mmGroup">GC_SHORTS_SKIRTS</retail:mmGroupId>
        <retail:brandId variantGroupHierarchyId="All" variantGroupId="All" variantGroupTypeId="region" groupHierarchyId="FASHION" groupTypeId="brand">ROBERTO CAVALLI</retail:brandId>
        <retail:rangeId></retail:rangeId>
        <retail:inventoryDetails>
            <retail:allowForLoan>false</retail:allowForLoan>
            <retail:allowCustomerOrder>true</retail:allowCustomerOrder>
            <retail:allowPurchaseOrder>true</retail:allowPurchaseOrder>
            <retail:customerOrderOnly>false</retail:customerOrderOnly>
            <retail:directToStoreDelivery>false</retail:directToStoreDelivery>
            <retail:isStocked>true</retail:isStocked>
            <retail:isTemplate>false</retail:isTemplate>
        </retail:inventoryDetails>
        <retail:productDimensions>
            <retail:isTemplate>false</retail:isTemplate>
        </retail:productDimensions>
        <retail:warrantyDetails>
            <retail:isTemplate>false</retail:isTemplate>
        </retail:warrantyDetails>
        <retail:seasonId>ALL</retail:seasonId>
        <retail:standardCostPrice>0.0</retail:standardCostPrice>
        <retail:standardMargin>0.0</retail:standardMargin>
        <retail:sizeRangeId>GC_SHORTS_SKIRTS</retail:sizeRangeId>
        <retail:styleAttributes/>
        <retail:colourRangeId>GC_SHORTS_SKIRTS</retail:colourRangeId>
    </retail:styleColourSizeProduct>
</Batch>

XML Structure

The StyleColorSizeProduct includes all elements of the SKUProduct and the following additional elements.

XML Tag	Parent Element	Type	Description	Data Type	Length
styleColorSizeProduct		Root	Outer wrapper for the entity	String	n/a
. . .	styleColorSizeProduct	Element	All merchandiseProduct XML tags
colourRangeId	styleColorSizeProduct	Element	Value from the Colour Range entity	String
sizeRangeId	styleColorSizeProduct	Element	Value from the Size Range entity	String

Product Price

Multiple Prices may be defined for any given Product. An individual ProductPrice may be directly associated with a PriceGroup (defined in Groups) or a Location (which takes precedence if used), but not both.

XML Example

<?xml version="1.0" encoding="UTF-8" standalone="yes"?>
<Batch xmlns:core="http://www.enactor.com/core"
    xmlns:retail="http://www.enactor.com/retail">
    <retail:productPrice>
        <retail:productId>000001</retail:productId>
        <retail:locationId></retail:locationId>
        <retail:priceGroupId variantGroupHierarchyId="All" variantGroupId="All" variantGroupTypeId="region" groupHierarchyId="ALL" groupTypeId="priceGroup">UK</retail:priceGroupId>
        <retail:currencyId>GBP</retail:currencyId>
        <retail:priceType>R</retail:priceType>
        <retail:priceContext></retail:priceContext>
        <retail:price>0</retail:price>
        <retail:pricingMethod></retail:pricingMethod>
    </retail:productPrice>
</Batch>

XML Structure

XML Tag	Parent Element	Type	Description	Data Type	Length
productPrice		Root	Outer wrapper for the entity	String	n/a
productId	productPrice	Element	Id for the product to which the price is assigned	Integer
locationId	productPrice	Element	If using location specific pricing, the location id for which the price is applicable	String
priceGroupId	productPrice	Element	If using price groups, the price group Id for which the price is applicable	String
currencyId	productPrice	Element	Currency code for the price	String
startDate	productPrice	Element	Date the price is valid from, if omitted, the beginning of time	Date Time
priceType	productPrice	Element	Date the price is valid to, if omitted, the end of time	Date Time
priceContext	productPrice	Element	Option product ID	String
price	productPrice	Element	Price in lowest denomination, i.e. pence for GBP	Integer
pricingMethod	productPrice	Element	If selling by measure system, the unit of measure to sell by	String
equivalentMeasure SystemId	productPrice	Element	If selling by measure system, fix to LENGTH_METRIC. Do not provide if sold by whole unit	String
equivalentUnitOf MeasureId	productPrice	Element	If selling by measure system, unit price applies to. Do not provide if sold by whole unit. Default values are METRE, CENTIMETER, MILLIMETER (configurable)	String
roundingRuleId	productPrice	Element	Id for the rounding rule	String

Price is a whole number that is a multiple of the lowest denomination of currency for the region to which the price applies. For example, in the UK, the lowest denomination is the pence which is £0.01 so all prices should be expressed using pence. For a price of £12.34, the price value would be 1234.

priceGroupId

XML Tag	Parent Element	Type	Description	Data Type
priceGroupId		Element
variantGroup HierarchyId	priceGroupId	Attribute	The group hierarchy id of the region of the price group	String
variantGroupId	priceGroupId	Attribute	The group id of the region for this price group	String
variantGroupTypeId	priceGroupId	Attribute	Fixed: region
groupHierarchyId	priceGroupId	Attribute	The id of the price group	String
groupTypeId	priceGroupId	Attribute	Fixed: priceGroup

Selling Code

A selling code is similar to a barcode for a product. This is a alias or an alternate way to identify a product.

XML Example

<?xml version="1.0" encoding="UTF-8" standalone="yes"?>
<Batch xmlns:retail="http://www.enactor.com/retail">
    <retail:sellingCode>
        <retail:regionId groupHierarchyId="All" groupTypeId="region">All</retail:regionId>
        <retail:sellingCode>038000138430</retail:sellingCode>
        <retail:productId>3800013843</retail:productId>
        <retail:effectiveFrom>2017-09-28T00:00:00-04:00</retail:effectiveFrom>
        <retail:effectiveTo>2025-12-31T00:00:00-04:00</retail:effectiveFrom>
    </retail:sellingCode>
</Batch>

XML Structure

XML Tag	Parent Element	Type	Description	Data Type	Length
sellingCode		Root	Outer wrapper for the entity	String	n/a
regionId	sellingCode	Element	Region the selling code applies to	String
sellingCode	sellingCode	Element	Barcode	String
productId	sellingCode	Element	Product id that the code is linked to	String
effectiveFrom	sellingCode	Element	Date the code is valid from, if omitted, the beginning of time	Date Time
effectiveTo	sellingCode	Element	Date the code is valid to, if omitted, the end of time	Date Time

regionId

XML Tag	Parent Element	Type	Description	Data Type
priceGroupId		Element
groupHierarchyId	priceGroupId	Attribute	The id of the price group	String
groupTypeId	priceGroupId	Attribute	Fixed: priceGroup

MM Group Delete

XML Example

<?xml version="1.0" encoding="UTF-8" standalone="yes"?>
<Batch xmlns:core="http://www.enactor.com/core"
       xmlns:retail="http://www.enactor.com/retail"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance">
    <core:entityDeleteRequest>
        <core:entityKey xsi:type="core:GroupKey"
                        variantGroupHierarchyId="variantGroupHierarchyId"
                        variantGroupId="variantGroupId"
                        variantGroupTypeId="variantGroupTypeId"
                        groupHierarchyId="groupHierarchyId"
                        groupTypeId="groupTypeId">groupId</core:entityKey>
    </core:entityDeleteRequest>
</Batch>

XML Structure

entityDeleteRequest

XML Tag	Parent Element	Type	Description	Data Type
entityKey	entityDelete Request	Element	The mmGroup key to delete	String
type	entityKey	Attribute	Fixed:GroupKey
variantGroup HierarchyId	entityKey	Attribute	Region hierarchy id	String
variantGroupId	entityKey	Attribute	Region id	String
variantGroup TypeId	entityKey	Attribute	Fixed:region
groupHierarchyId	entityKey	Attribute	Hierarchy Id	String
groupTypeId	entityKey	Attribute	fixed:mmGroup

Selling Code Delete

XML Example

<?xml version="1.0" encoding="UTF-8" standalone="yes"?>
<Batch xmlns:core="http://www.enactor.com/core"
    xmlns:retail="http://www.enactor.com/retail"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance">

    <!--   SellingCodeKey -->
    <core:entityDeleteRequest>
        <core:entityKey xsi:type="retail:SellingCodeKey">
            <retail:regionId variantGroupHierarchyId="variantGroupHierarchyId" variantGroupId="variantGroupId" variantGroupTypeId="variantGroupTypeId" groupHierarchyId="groupHierarchyId" groupTypeId="groupTypeId">groupId</retail:regionId>
            <retail:sellingCode>sellingCode</retail:sellingCode>
        </core:entityKey>
    </core:entityDeleteRequest>
</Batch>

XML Structure

entityDeleteRequest

XML Tag	Parent Element	Type	Description	Data Type
entityKey	entityDelete Request	Element		String
type	entityKey	Attribute	Fixed:SellingCodeKey
regionId	entityKey	Element	The region id in which the sellingCode applies	String
group HierarchyId	regionId	Attribute	Region hierarchy id	String
groupTypeId	regionId	Attribute	Fixed:region

Product Delete

XML Example

<?xml version="1.0" encoding="UTF-8" standalone="yes"?>
<Batch xmlns:core="http://www.enactor.com/core"
    xmlns:retail="http://www.enactor.com/retail"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance">

    <!--   merchandiseProduct - ProductKey -->
    <!--   skuProduct - ProductKey -->
    <!--   styleSizeProduct - ProductKey -->
    <!--   styleColourSizeProduct - ProductKey -->
    <core:entityDeleteRequest>
        <core:entityKey xsi:type="retail:ProductKey">productKey</core:entityKey>
    </core:entityDeleteRequest>
</Batch>

XML Structure

entityDeleteRequest

XML Tag	Parent Element	Type	Description	Data Type	Length
entityKey	entityDelete Request	Element	Unique id of the product to delete	String
type	entityKey	Attribute	Fixed:ProductKey

Product Price Delete

XML Example

<?xml version="1.0" encoding="UTF-8" standalone="yes"?>
<Batch xmlns:core="http://www.enactor.com/core"
    xmlns:retail="http://www.enactor.com/retail"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance">

    <!--   ProductPriceKey  (locationKey) -->
    <core:entityDeleteRequest>
        <core:entityKey xsi:type="retail:ProductPriceKey">
            <retail:productId>productId</retail:productId>
            <retail:locationId>locationId</retail:locationId>
            <retail:priceGroupId/>
            <retail:currencyId>currencyId</retail:currencyId>
            <retail:startDate>2000-02-01T00:00:00.000-05:00</retail:startDate>
            <retail:endDate>2026-01-31T00:00:00.000-05:00</retail:endDate>
            <retail:priceType>priceType</retail:priceType>
            <retail:priceContext></retail:priceContext>
        </core:entityKey>
    </core:entityDeleteRequest>

    <!--   ProductPriceKey (priceGroup) -->
    <core:entityDeleteRequest>
        <core:entityKey xsi:type="retail:ProductPriceKey">
            <retail:productId>productId</retail:productId>
            <retail:locationId></retail:locationId>
            <retail:priceGroupId variantGroupHierarchyId="variantGroupHierarchyId" variantGroupId="variantGroupId" variantGroupTypeId="variantGroupTypeId" groupHierarchyId="groupHierarchyId" groupTypeId="groupTypeId">groupId</retail:priceGroupId>
            <retail:currencyId>currencyId</retail:currencyId>
            <retail:startDate>2000-02-01T00:00:00.000-05:00</retail:startDate>
            <retail:endDate>2026-01-31T00:00:00.000-05:00</retail:endDate>
            <retail:priceType>priceType</retail:priceType>
            <retail:priceContext></retail:priceContext>
        </core:entityKey>
    </core:entityDeleteRequest>
</Batch>

XML Structure

entityDeleteRequest

XML Tag	Parent Element	Type	Description	Data Type
entityKey	entityDelete Request	Element	Unique id of the product to delete	String
type	entityKey	Attribute	Fixed:ProductPriceKey
productId	entityKey	Element	Unique id of the product	String
priceGroupId	entityKey	Element	Price group key for the price to be deleted	String
currencyId	entityKey	Element	Currency id for the price to be deleted	String
priceType	entityKey	Element	Price type for the price to be deleted	String

Description​

Notes​

Overview​

Merchandise Management Group (mmGroup)​

XML Example​

XML Structure​

Product​

Merchandise Product​

XML Example​

XML Structure​

SKU Product​

XML Example​

XML Structure​

Style Size Product​

XML Example​

XML Structure​

Style Colour Size Product​

XML Example​

XML Structure​

Product Price​

XML Example​

XML Structure​

Selling Code​

XML Example​

XML Structure​

MM Group Delete​

XML Example​

XML Structure​

Selling Code Delete​

XML Example​

XML Structure​

Product Delete​

XML Example​

XML Structure​

Product Price Delete​

XML Example​

XML Structure​

Description

Notes

Overview

Merchandise Management Group (mmGroup)

XML Example

XML Structure

Product

Merchandise Product

XML Example

XML Structure

SKU Product

XML Example

XML Structure

Style Size Product

XML Example

XML Structure

Style Colour Size Product

XML Example

XML Structure

Product Price

XML Example

XML Structure

Selling Code

XML Example

XML Structure

MM Group Delete

XML Example

XML Structure

Selling Code Delete

XML Example

XML Structure

Product Delete

XML Example

XML Structure

Product Price Delete

XML Example

XML Structure
