Outbound Integration Guide - Retail Transaction Data

Description

This How-to guide explains the integration of following data entities.

normalRetailSaleTransaction

employeeRetailSaleTransaction

restaurantSaleTransaction

Notes

This guide does not cover all possible integration topics. Please see the Enactor Books for detailed information.

See the Outbound Integration Guide - Introduction for the basics of exporting data.

This guide does not cover all fields in the XML data. See the Enactor Books and the XML Schemas for a complete listing.

Overview

Transactions are the most common output document and represent the trading activity from a point of sale or mobile device.

Transactions are generated throughout the Retail Estate and migrated via a system of Message Queues to the Estate Manager for central processing.

Retail Transactions are Device Transactions, which include additional properties to identify the Transaction within the context of the device, its source application, time of creation, who created it, and any recorded customer identification or customer loyalty associated with the Transaction.

Variants of the Retail transaction include RetailSaleTransactions, ProductWastageTransactions, TaxRefundRequestTransactions, and RetailQuoteTransactions.

Retail Sale Transactions are Retail Transactions involving actual sale of goods or service and include the variants NormalRetailSaleTransactions, RepairAmendmentTransactions, RestaurantSaleTransactions, AirportSaleTransactions, EmployeeRetailSaleTransactions and RestaurantEmployeeSaleTransactions.

Additionally, Orders placed on the POS will also generate NormalRetailSaleTransactions with specific basket items such as orderDetailItem, customerOrderDepositBasketItem, and customerOrderPaymentBasketItem.

Who, What, Where, When, and How

Everything that you need to know from the transaction is available from the generated XML.

Who

Who created and completed the transaction are in the originatedBy and completedBy elements.

The originatedBy group contains the information on the transaction creation.

<retail:originatedBy>
        <retail:locationId>0001</retail:locationId>
        <retail:branchNumber>1</retail:branchNumber>
        <retail:terminalNumber>101</retail:terminalNumber>
        <retail:transactionNumber>3</retail:transactionNumber>
        <retail:deviceId>mpos1@0001.enactor</retail:deviceId>
        <retail:userId>1</retail:userId>
        <retail:regionId groupHierarchyId="All" groupTypeId="region">UK</retail:regionId>
        <retail:userEmployeeId></retail:userEmployeeId>
        <retail:printableName>Mike Carrell</retail:printableName>
</retail:originatedBy>

The completedBy group contains the information on the transaction completion.

<retail:completedBy>
        <retail:locationId>0001</retail:locationId>
        <retail:branchNumber>1</retail:branchNumber>
        <retail:terminalNumber>101</retail:terminalNumber>
        <retail:transactionNumber>3</retail:transactionNumber>
        <retail:deviceId>mpos1@0001.enactor</retail:deviceId>
        <retail:userId>1</retail:userId>
        <retail:regionId groupHierarchyId="All" groupTypeId="region">UK</retail:regionId>
        <retail:userEmployeeId></retail:userEmployeeId>
        <retail:printableName>Mike Carrell</retail:printableName>
        <retail:cashManagementMethod>TERMINAL</retail:cashManagementMethod>
        <retail:cashManagementOwnerId>101</retail:cashManagementOwnerId>
        <retail:branchName>Enactor Store</retail:branchName>
</retail:completedBy>

Where

Where the transaction was created and completed are in the originatedBy and completedBy elements.

The originatedBy group contains the information on the transaction creation.

<retail:originatedBy>
        <retail:locationId>0001</retail:locationId>
        <retail:branchNumber>1</retail:branchNumber>
        <retail:terminalNumber>101</retail:terminalNumber>
        <retail:transactionNumber>3</retail:transactionNumber>
        <retail:deviceId>mpos1@0001.enactor</retail:deviceId>
        <retail:userId>1</retail:userId>
        <retail:regionId groupHierarchyId="All" groupTypeId="region">UK</retail:regionId>
        <retail:userEmployeeId></retail:userEmployeeId>
        <retail:printableName>Mike Carrell</retail:printableName>
</retail:originatedBy>

The completedBy group contains the information on the transaction completion.

<retail:completedBy>
        <retail:locationId>0001</retail:locationId>
        <retail:branchNumber>1</retail:branchNumber>
        <retail:terminalNumber>101</retail:terminalNumber>
        <retail:transactionNumber>3</retail:transactionNumber>
        <retail:deviceId>mpos1@0001.enactor</retail:deviceId>
        <retail:userId>1</retail:userId>
        <retail:regionId groupHierarchyId="All" groupTypeId="region">UK</retail:regionId>
        <retail:userEmployeeId></retail:userEmployeeId>
        <retail:printableName>Mike Carrell</retail:printableName>
        <retail:cashManagementMethod>TERMINAL</retail:cashManagementMethod>
        <retail:cashManagementOwnerId>101</retail:cashManagementOwnerId>
        <retail:branchName>Enactor Store</retail:branchName>
</retail:completedBy>

When

When the transaction was created and completed are in the dateTimeCreated and dateTimeCompleted elements.

<retail:dateTimeCreated>2020-10-15T19:38:59Z</retail:dateTimeCreated>
<retail:dateTimeCompleted>2020-10-15T19:39:18Z</retail:dateTimeCompleted>

How

How the transaction was created is in the applicationId, source, and sourceApplication elements.

<retail:applicationId>POS</retail:applicationId>
<retail:source>mpos1@0001.enactor</retail:source>
<retail:sourceApplication>POS</retail:sourceApplication>

What

The main purpose of the XML is to describe what happened in the transaction.

There are elements that will identify if the transaction was performed in training mode, if a loyalty customer was present, if the transaction was voided, or if the transaction was returned to name a few.

Training mode information is in the trainingDetails group.

Customer information is in the customerRetailDetails group.

Loyalty information is in the loyaltyPointsDetails group.

Return information is in the returnHistoryItem group.

Item information, including products, promotions, modifiers, and tenders are in the basket group.

NormalRetailSaleTransaction

XML Structure

normalRetailSaleTransaction

XML Tag	Parent Element	Type	Description	Data Type	Length
normalRetail SaleTransaction		Root	Outer wrapper for the entity
applicationId	normalRetail SaleTransaction	Element	Unique identifier of an application. The id of the application which produced the transaction.	String	40
transactionId	normalRetail SaleTransaction	Element	Unique identifier for the transaction	String	100
source	normalRetail SaleTransaction	Element	Device id where the transaction was created	String	40
sourceApplication	normalRetail SaleTransaction	Element	Id of the application that created the transaction	String	50
topic	normalRetail SaleTransaction	Element		String	50
sequenceNumber	normalRetail SaleTransaction	Element	Sequence number that will be unique by to the device	Long
transactionNumber	normalRetail SaleTransaction	Element	The transaction number for this transaction	Long
applicationVersion	normalRetail SaleTransaction	Element	The version number of the application that generated this transaction	String
originatedBy	normalRetail SaleTransaction	Element	Details of the user who created the transaction	originated By
completedBy	normalRetail SaleTransaction	Element	Details of the user who completed the transaction	completed By
dateTimeCreated	normalRetail SaleTransaction	Element	Date and time when the transaction was created	DateTime
dateTimeCompleted	normalRetail SaleTransaction	Element	Date and time when the transaction was completed	DateTime
trainingDetails	normalRetail SaleTransaction	Element	Details if the transaction was performed in training mode	training Details
authorisingDetails	normalRetail SaleTransaction	Element	Details of the user who authorised the transaction	authorising Details
customerRetail Details	normalRetail SaleTransaction	Element		customer Retail Details
basket	normalRetail SaleTransaction	Element		basket
loyaltyPointsDetails	normalRetail SaleTransaction	Element		loyalty Points Details
receiptDetails	normalRetail SaleTransaction	Element		receipt Details
reversalType	normalRetail SaleTransaction	Element	type of reversal, i.e. automatic or manual
reversedTransaction Id	normalRetail SaleTransaction	Element	Unique identifier of a ReversedTransaction. ID of the reversed transaction, i.e. Post Void or Tender Correction. (See TransactionKey)	transaction Key
reversedTransaction Details	normalRetail SaleTransaction	Element	Details of the reversed transaction, i.e. Post Void or Tender Correction. (See TransactionDetails)	transaction Details
reversingTransaction Id	normalRetail SaleTransaction	Element	Unique identifier of a ReversingTransaction. ID of the reversing transaction, i.e. Post Void or Tender Correction. (See TransactionKey)	transaction Key
reversingTransaction Details	normalRetail SaleTransaction	Element	Details of the reversing transaction, i.e. Post Void or Tender Correction. (See TransactionDetails)	transaction Details
notes	normalRetail SaleTransaction	Element	This is any text that can be added to the transaction.	String
storedBy	normalRetail SaleTransaction	Element	Details of the device, location, user, date and time that the transaction of stored	storedBy Details

originatedBy

XML Tag	Parent Element	Type	Description
originatedBy		Root	Outer wrapper for the entity
locationId	originatedBy	Element	Location Id where the transaction was created
branchNumber	originatedBy	Element	Branch number where the transaction was created
terminalNumber	originatedBy	Element	terminal number where the transaction was created
transactionNumber	originatedBy	Element	Transaction number when the transaction was created.
deviceId	originatedBy	Element	Device where the transaction was created
userId	originatedBy	Element	User Id of the user who created the transaction
regionId	originatedBy	Element	Region id where of the location where the transaction was created
userEmployeeId	originatedBy	Element	Employee id of the user who created the transaction
printableName	originatedBy	Element	Printable name of the user that created the transaction

completedBy

XML Tag	Parent Element	Type	Description
completedBy		Root	Outer wrapper for the entity
locationId	completedBy	Element	Location Id where the transaction was created
branchNumber	completedBy	Element	Branch number where the transaction was created
terminalNumber	completedBy	Element	terminal number where the transaction was created
transactionNumber	completedBy	Element	Transaction number when the transaction was created.
deviceId	completedBy	Element	Device where the transaction was created
userId	completedBy	Element	User Id of the user who created the transaction
regionId	completedBy	Element	Region id where of the location where the transaction was created
userEmployeeId	completedBy	Element	Employee id of the user who created the transaction
printableName	completedBy	Element	Printable name of the user that created the transaction
cashManagement Method	completedBy	Element	The cash management type
cashManagement OwnerId	completedBy	Element	The cash management session owner id
branchName	completedBy	Element	The name of the branch where the transaction was complete

trainingDetails

XML Tag	Parent Element	Type	Description	Data Type	Length
trainingDetails		Root	Outer wrapper for the entity
trainingMode	trainingDetails	Element	if true, transaction was in training mode; if false, transaction was not in training mode; if omitted, false	boolean
training SupervisorId	trainingDetails	Element	The id of the training supervisor	string	20

authorisingDetails

XML Tag	Parent Element	Type	Description	Data Type	Length
authorising Details		Root	Outer wrapper for the entity
locationId	authorising Details	Element	Location Id where the transaction was created

customerRetailDetails

XML Tag	Parent Element	Type	Description	Data Type	Length
customer RetailDetails		Root	Outer wrapper for the entity
customer Number	customer RetailDetails	Element	The customer number	string	20
customer Address	customer RetailDetails	Element	Customer address details (see Address)	Address
partyTypeId	customer RetailDetails	Element	Unique identifier of a party	string
relatedPartyTypeId	customerRetailDetails	Element	Unique identifier of the related party type	string
identityDetails	customerRetailDetails	Element	Details to identify the parties involved in this transaction	string
relatedParties	customerRetailDetails	Element	Describes the details of all the parties who are related to this transaction	relatedParties Details
validated Online	customer RetailDetails	Element	if true, customer was validated online; if omitted, false	boolean
newCustomer	customer RetailDetails	Element	if true, customer is a new customer if omitted, false	boolean
loyaltyAccount Number	customer RetailDetails	Element	Loyalty account number for this customer	string
loyalty SchemeId	customer RetailDetails	Element	Id of the loyalty scheme associated with this customer	string	20
customerGroup	customer RetailDetails	Element	List of customer groups associated with this customer (see CustomerGroup)	Group
marketing DetailsCaptured	customer RetailDetails	Element	if true, marketing details have been captured for this customer if omitted, false	boolean

loyaltyPointsDetails

XML Tag	Parent Element	Type	Description	Data Type
loyaltyPoints Details		Root	Outer wrapper for the entity
dayNumber	loyaltyPoints Details	Attribute		int
loyaltyPoints Balance	loyaltyPoints Details	Element	Current loyalty points balance	long
loyaltyPoints Earned	loyaltyPoints Details	Element	Number of loyalty points earned for this transaction	long
promotional LoyaltyPoints Earned	loyaltyPoints Details	Element	Number of promotional loyalty points earned for this transaction	long
loyaltyPoints Missed	loyaltyPoints Details	Element	Number of loyalty points missing in this transaction	long
loyaltyPoints Rate	loyaltyPoints Details	Element	points rate for this loyalty account	int
loyaltyAccount Offline	loyaltyPoints Details	Element	if true, loyalty account was offline if omitted, false	boolean
loyaltyPoints Used	loyaltyPoints Details	Element	Number of loyalty points used in this transaction	long
totalSpend	loyaltyPoints Details	Element	Total spend applicable to this transaction	long
spendToNext Tier	loyaltyPoints Details	Element	Amount needed to spend to get to the next loyalty tier	long
externalProvider	loyaltyPoints Details	Element	if true, loyalty is managed by an external provider if omitted, false	boolean
noLoyaltyUpdate	loyaltyPoints Details	Element	if true, loyalty accounts should not be updated if omitted, false	boolean
rewardValue	loyaltyPoints Details	Element	Equivalent currency value of the reward	double
rewardValue Redeemed	loyaltyPoints Details	Element	Equivalent currency value of the redeemed reward	double

receiptDetails

XML Tag	Parent Element	Type	Description	Data Type
receiptDetails		Root	Outer wrapper for the entity
receipt Requested	receiptDetails	Element	if true, a receipt has been requested if omitted, false	boolean
taxReceipt Requested	receiptDetails	Element	if true, a tax receipt has been requested; if omitted, false	boolean
giftReceipt Requested	receiptDetails	Element	if true, a gift receipt has been requested; if omitted, false	boolean
emailReceipt Requested	receiptDetails	Element	if true, an email receipt has been requested if omitted, false	boolean
copyReceipts	receiptDetails	Element	Total number of copy receipts required	int
receiptPrinted	receiptDetails	Element	if true, receipt printed if omitted, false	boolean
taxReceipt Printed	receiptDetails	Element	if true, tax receipt printed if omitted, false	boolean
giftReceipt Printed	receiptDetails	Element	if true, gift receipt printed if omitted, false	boolean

returnHistoryItem

XML Tag	Parent Element	Type	Description	Data Type
returnHistoryItem		Root	Outer wrapper for the entity
deviceId	returnHistory Item	Element		string
dateTime Created	returnHistory Item	Element	datetime when the item was returned	dateTime
originalLine Number	returnHistory Item	Element	line number of the returned item in the original transaction	int
returnedAt	returnHistory Item	Element	see returnedAt	returnedAt
returnedQuantity	returnHistory Item	Element	The quantity returned
returnedValue	returnHistory Item	Element	The value of the item returned
returnedTender Allocation	returnHistory Item	Element	see returnedTenderAllocation	returned Tender Allocation

returnedAt

XML Tag	Parent Element	Type	Description	Data Type
returnedAt		Root	Outer wrapper for the entity
regionId	returnedAt	Element	The region id where the return was performed	group
locationKey	returnedAt	Element	The location where the return was performed	string
deviceId	returnedAt	Element	The device id where the return was performed	string
userId	returnedAt	Element	The user who performed the return	string
dateTime Returned	returnedAt	Element	The datetime when the return was performed	dateTime
branchNumber	returnedAt	Element	The branch number of the location	string
terminalNumber	returnedAt	Element	The terminal number of the device	string
transactionNumber	returnedAt	Element	The transaction number for the return transaction	long

returnedTenderAllocation

XML Tag	Parent Element	Type	Description	Data Type
returnedTender Allocation		Root	Outer wrapper for the entity
tenderId	returnedTender Allocation	Element	The id of the returned tender	tenderId
groupId	returnedTender Allocation	Element	The tender region id	group
amount	returnedTender Allocation	Element	The tender amount returned	long

basket

XML Tag	Parent Element	Type	Description	Data Type
basket		Root	Outer wrapper for the entity
items	basket	Element	The items in the basket	items
balance	basket	Element	Balance of the transaction	long
currencyId	basket	Element	Id of the currency for the transaction	string
currency Description	basket	Element	Description of the currency	string
taxInclusive	basket	Element	if true, indicates subtotal is inclusive of tax amount if omitted, false	boolean
taxSchemeId	basket	Element	Id of associated tax scheme	string
itemCount	basket	Element	Number of items in the basket	int
saleItem Quantity	basket	Element	Total quantity of the sale items in the basket	double
returnItem Quantity	basket	Element	Total quantity of the return items in the basket	double
returnMerchandise ItemQuantity	basket	Element	Total quantity of return merchandise items in the basket	double
returnMerchandise ItemNetValue	basket	Element	Total value of merchandise items in the basket	long
saleItem NetValue	basket	Element	Net value of sale items in the basket	long
returnItem NetValue	basket	Element	Net value of return items in the basket	long
merchandise ItemQuantity	basket	Element	Total quantity of merchandise items in the basket	double
merchandise ItemValue	basket	Element	Total value of merchandise items in the basket	long
total	basket	Element	Total of the basket	long
grossTotal	basket	Element	Gross total of the basket	long
taxTotal	basket	Element	toal of all tax applied to the basket	long
totalTax Adjustment	basket	Element	Total value of any tax adjustments on the basket	long
preAuth Balance	basket	Element	Balance before authorisation	long
effectiveSale Value	basket	Element		long

items (common)

XML Tag	Parent Element	Type	Description	Data Type	Length
items		Root	Outer wrapper for the entity
itemType	items	Element	various item types including SaleItems, MerchandiseItems, NonMerchandiseItems, TenderItems for a full list of all item types, see the Enactor books
isReturn	itemType	Attribute	if true, item is being returned in this transaction if omitted, false	boolean
lineNumber	itemType	Element	Line number in the transaction	int
description	itemType	Element	Description of the item	string	40
deviceId		Element	Id of the device that created the item	string
value		Element	Value of the line before any discount or promotion, i.e. quantity multiplied by price.	long
netValue		Element	Value of the item as perceived by the customer taking into account item modifiers and transaction discounts. The sum of all the net values must add up to basket total. A positive value increases the balance owed, a negative value decreases it.	long
effectiveNet Value		Element	Value of the item as perceived by the organisation. For example it includes the effect of distributed savings that result from promotions which the customer would not necessarily perceive as an effect on value. The sum of all the effective net values add must add up to the basket total.	long
dateTime Created		Element	date and time when the item was created	dateTime
userId		Element	Id of the user who created this item	string
authorising UserId		Element	Id of the authorising user for this item	string
voided		Element	if true, item was voided if omitted, false	boolean

The item structure will depend on the type of item in the basket. Merchandise items have various types - SKU, Style Size, Style Colour Size, etc. Tenders will have a tag based on the type of the tender - Cash, Cheque, Card, etc. The tag will be representative of the type of item that was entered in the transaction.

XML Tag	Type	Description	Data Type	Length
colourDescription	Element	Colour description of the product
colourId	Element	Colour id of the product
handKeyed	Element	if true, product was keyed if omitted, false	boolean
loyaltyPoints	Element	Loyalty points earned for this item	long
mmGroup HierarchyId		The mmGroup hierarchy id of the item	string
mmGroupId	Element	The mmGroup id for the item	string
mmGroup HierarchyId	Element	The mmGroup hierarchy id	string
brandGroupId	Element	The brand id	string
brandGroup HierarchyId	Element	The brand hierarchy id	string
mmGroup Description	Element	The mmGroup description	string
mmGroupVariant GroupId	Element	the mmGroup group region	string
mmGroupVariant HierarchyId	Element	the mmGroup hierarchy region	string
netQuantity	Element	Net quantity for this item	double
notFound	Element	if true, product was not found if omitted, false	boolean
notDiscountable	Element	if true, product was not discountable if omitted, false	boolean
orderable	Element	if true, this item is orderable; if omitted, false	boolean
priceEntered	Element	if true, price was entered if omitted, false	boolean
priceTypeId	Element	Price type id for this item	string
productID	Element	The product id of the item	string	20
productImageURL	Element	Product image URL for this item	string
productTypeId	Element	The type of product (e.g. skuProduct)	string	50
qtyEntered	Element	if true, quantity was entered if omitted, false	boolean
quantity	Element	Quantity for this item	double
reason Description	Element
salesPerson UserId	Element	Salesperson who created this item	string	20
salesPersonName	Element	Salesperson name who created this item	string
sellingCode	Element	The selling code of the item	string	20
serialNumber	Element	Serial number of this item	string	40
sizeDescription	Element	Size description of the product
sizeId	Element	Size id of the product
sourceInventory Type	Element	Inventory type of this item	string
styleAttribute OptionValues	Element	Attributes of the style item
styleId	Element	Style id of the product
type	Element
unitPrice	Element	Single unit price for this item	long

modifiers

XML Tag	Parent Element	Type	Description	Data Type	Length
returnInformation Modifier		Element	Information on the return
priceOverride Modifier		Element	Information on the price override

returnInformationModifier

XML Tag	Type	Description	Data Type
returnInformation Modifier	Root	Outer wrapper for the entity
returnedAt	Element	Information on the user and location for the return (See originatedBy)	originated By
returnedQuantity	Element	The quantity that was returned	double
returnedValue	Element	The value that was returned	long

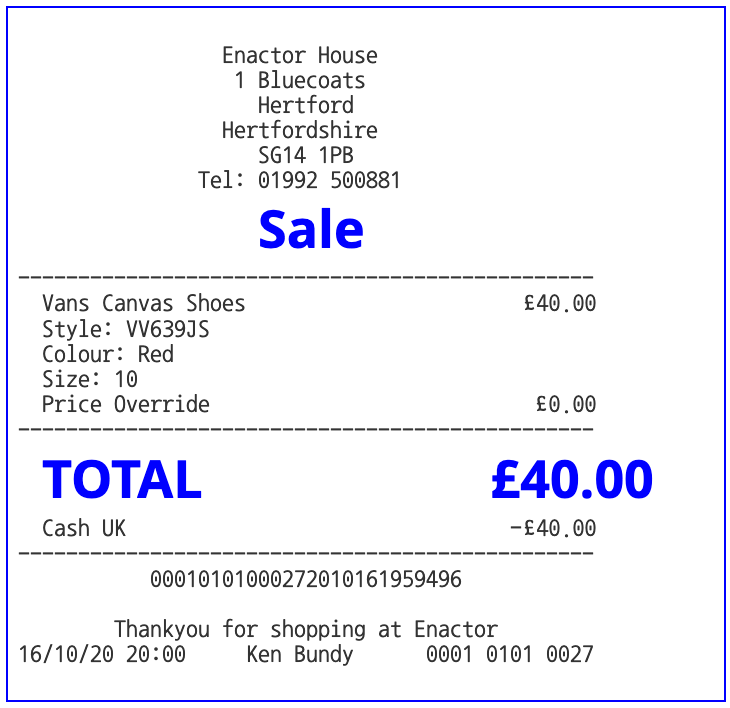

priceOverrideModifier

XML Tag	Parent Element	Type	Description	Data Type
priceOverride Modifier		Root	Outer wrapper for the entity
modifierItem Line	priceOverride Modifier	attribute	The line number where the modifier information can be found	int
newPrice	priceOverride Modifier	Element	The new price after the price override	long
originalPrice	priceOverride Modifier	Element	The original price before the price override	long

priceOverrideItem

XML Tag	Parent Element	Type	Description	Data Type
priceOverride Item		Root	Outer wrapper for the entity
(items common)	priceOverride Item	Element	See items common	items common
reasonKey	priceOverride Item	Element	The outer wrapper for the reason information
reasonId	reasonKey	Element	The id of the selected reason code	string
regionId	reasonKey	Element	The region for the selected reason code	group
type	priceOverride Item	Element	The type of modifier	string
reasonDescription	priceOverride Item	Element	The description from the selected reason code for the modifier	string
newPrice	priceOverride Item	Element	The new price after the price override	long

discountModifier

XML Tag	Parent Element	Type	Description	Data Type
discount Modifier		Root	Outer wrapper for the entity
modifierItem Line	discount Modifier	attribute	The line number where the modifier information can be found	int
value	discount Modifier	Element	Value of the discount to the customer	long
effectiveValue	discount Modifier	Element	Value of the discount to the organisation	long
originalItem Value	discount Modifier	Element	Original price of the item before the discount	long
discountType	discount Modifier	Element	The type of discount	string

discountItem

XML Tag	Parent Element	Type	Description	Data Type
discountItem		Root	Outer wrapper for the entity
(items common)	discountItem	Element	See items common	items common
reasonKey	discountItem	Element	The outer wrapper for the reason information
reasonId	reasonKey	Element	The id of the selected reason code	string
regionId	reasonKey	Element	The region for the selected reason code	group
type	discountItem	Element	The type of modifier	string
reasonDescription	discountItem	Element	The description from the selected reason code for the modifier	string
percentage	discountItem	Element	The percentage discount	double
roundingRule	discountItem	Element	The rounding rule id applied with the discount	string
maxDiscount Percent	discountItem	Element	The maximum allowed discount percentage	double
discountAmount Limit	discountItem	Element	The maximum allowed discount limit	long
numberReceipt Copies	discountItem	Element	Number of copy receipts to be printed for this discount	int
overlapping	discountItem	Element	if true, discount can overlap with other discounts if omitted, false	boolean
printSignatureSlip	discountItem	Element	if true, print a signature slip for this discount if omitted, false	boolean

quantityModifier

XML Tag	Parent Element	Type	Description	Data Type
quantity Modifier		Root	Outer wrapper for the entity
modifierItem Line	quantity Modifier	attribute	The line number where the modifier information can be found	int
new Quantity	quantity Modifier	Element	The quantity after the quantity change	double
original Quantity	quantity Modifier	Element	The quantity before the quantity change	double

quantityModifierItem

XML Tag	Parent Element	Type	Description	Data Type
quantityModifier Item		Root	Outer wrapper for the entity
(items common)	quantity ModifierItem	Element	See items common	items common
type	quantity ModifierItem	Element	The type of modifier	string
newQuantity	quantity ModifierItem	Element	The quantity after the quantity change	double

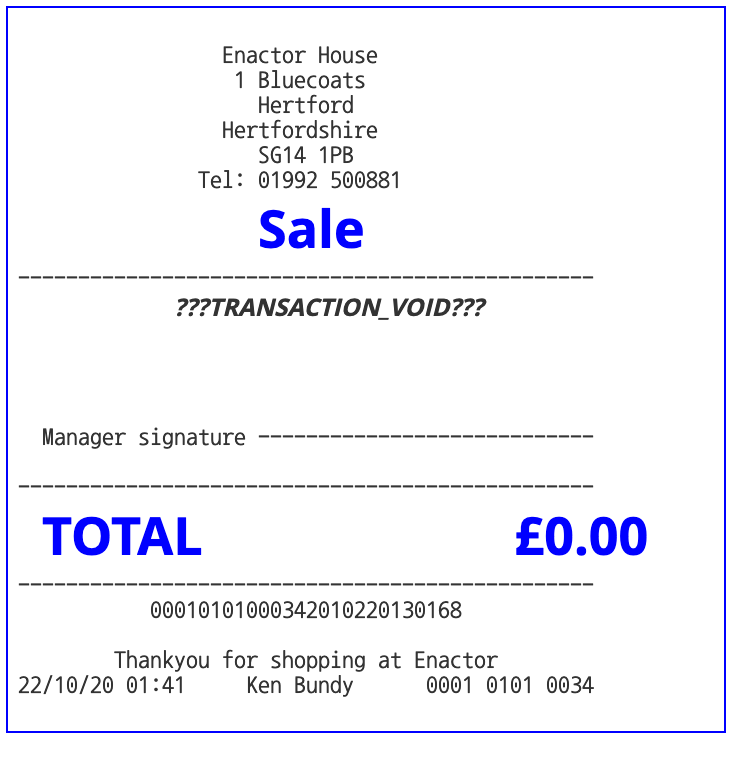

transactionVoidItem

XML Tag	Parent Element	Type	Description	Data Type
transactionVoid Item		Root	Outer wrapper for the entity
(items common)	transactionVoid Item	Element	See items common	items common
reasonKey	transactionVoid Item	Element	The outer wrapper for the reason information
reasonId	transactionVoid Item	Element	The id of the selected reason code	string
regionId	transactionVoid Item	Element	The region for the selected reason code	group
type	transactionVoid Item	Element	The type of modifier	string
notVoidable	transactionVoid Item	Element	if true, this item is not voidable if omitted, false	boolean

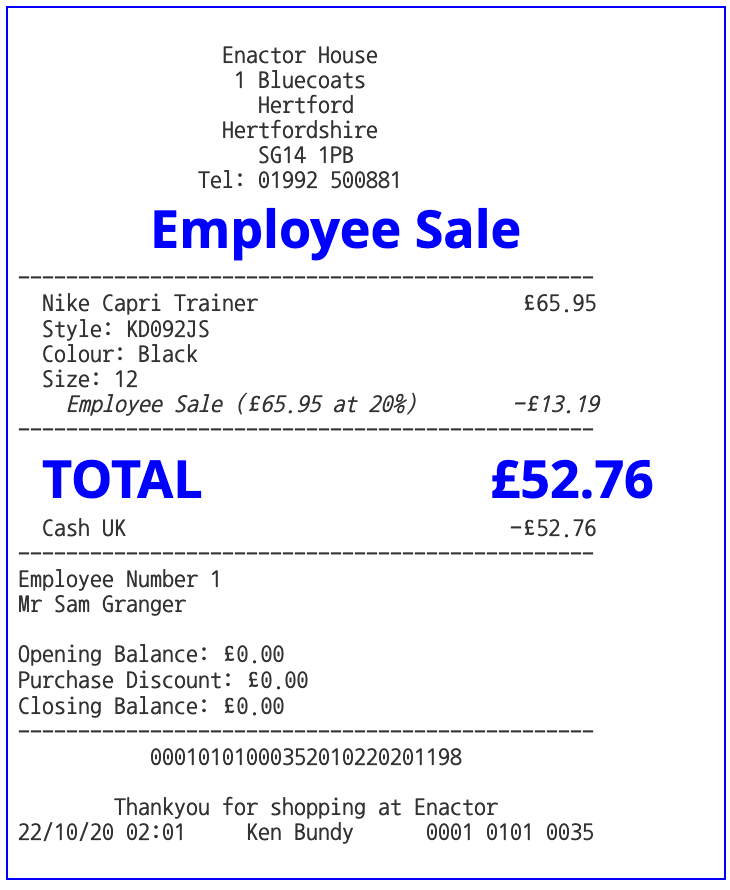

employeeSaleTransactionDiscountItem

XML Tag	Parent Element	Type	Description	Data Type
employeeSale TransactionDiscount Item		Root	Outer wrapper for the entity
(items common)	employeeSale Transaction DiscountItem	Element	See items common	items common
reasonKey	employeeSale Transaction DiscountItem	Element	The outer wrapper for the reason information
reasonId	employeeSale Transaction DiscountItem	Element	The id of the selected reason code	string
regionId	employeeSale Transaction DiscountItem	Element	The region for the selected reason code	group
type	employeeSale Transaction DiscountItem	Element	The type of modifier	string
reasonDescription	employeeSale Transaction DiscountItem	Element	The description from the selected reason code for the modifier	string
postPromotion	employeeSale Transaction DiscountItem	Element	if true, indicates employee discount is after promotions if omitted, false	boolean
roundingRule	employeeSale Transaction DiscountItem	Element	The rounding rule id applied with the discount	string
numberCopy Receipts	employeeSale Transaction DiscountItem	Element	Number of copy receipts to be printed for this discount	int
overlapping	employeeSale Transaction DiscountItem	Element	if true, discount can overlap with other discounts if omitted, false	boolean
printSignatureSlip	employeeSale Transaction DiscountItem	Element	if true, print a signature slip for this discount if omitted, false	boolean
employeeId	employeeSale Transaction DiscountItem	Element	The employee id	string
employee LocationId	employeeSale Transaction DiscountItem	Element	The employee location	string
affectEmployee Balance	employeeSale Transaction DiscountItem	Element	if true, this discount affects the employee balance account	boolean
adjustBalance By	employeeSale Transaction DiscountItem	Element	The method to use to adjust the employee balance account	string
employeeDiscount Allowance	employeeSale Transaction DiscountItem	Element	Maximum allowed discount	long
usedDiscount Allowance	employeeSale Transaction DiscountItem	Element	How much of the employee discount has been used	long
accountBalance UpdateAccount Type	employeeSale Transaction DiscountItem	Element	Type of account balance update	String
accountUpdate BalanceCommitted	employeeSale Transaction DiscountItem	Element	if true, account balance has been updated if omitted, false	boolean
accountBalance UpdateBalanceDate	employeeSale Transaction DiscountItem	Element	Date of the account balance update transaction	dateTime
employeeName	employeeSale Transaction DiscountItem	Element	Employee name (See Name)	Name
dataFromAccount Balance	employeeSale Transaction DiscountItem	Element	if true, data from account balance has been accessed	boolean
employeeDiscount Type	employeeSale Transaction DiscountItem	Element	The employee discount type	string
employeeDiscount	employeeSale Transaction DiscountItem	Element	The employee discount	double
employeeAllowance Discount	employeeSale Transaction DiscountItem	Element	The employee allowance discount	double
appliesAfter Promotions	employeeSale Transaction DiscountItem	Element	if true, the employee discount applies after promotions if omitted, false	boolean
excludeReceipt Return	employeeSale Transaction DiscountItem	Element	if true, do not allow receipt returns; if omitted, false	boolean

storageItem

XML Tag	Parent Element	Type	Description	Data Type
storageItem		Root	Outer wrapper for the entity
deviceId	storageItem	Element	Device where the transaction was created	string
dateTimeCreated	storageItem	Element	Date and time when the storage item was created	dateTime
userId	storageItem	Element	Id of the user who created this item	string
storageId	storageItem	Element	Id of the storage item. This consists of a storageRef and storageTag	storage Details
storingStage	storageItem	Element	Describes at which point of the transaction this was stored	string

serviceChargeFeeItem

XML Tag	Parent Element	Type	Description	Data Type
serviceChargeFeeItem		Root	Outer wrapper for the entity
feeAmount	serviceChargeFeeItem	Element	The total fee value that is charged	int
feeRate	serviceChargeFeeItem	Element	The rate (calculated to the total value of the Transaction) at which the fee is charged	Double
feeType	serviceChargeFeeItem	Element	Unique identifier of what the fee item type is	string

basketOptionValuesItem

XML Tag	Parent Element	Type	Description	Data Type	Length
basketOptionValuesItem		Root	Outer wrapper for the entity
basketOptionValues	basketOptionValuesItem	Element	Contains the different basket options that have been added for the product specified by the line number property in basketOptionValuesItem	BasketOptionValues Details

basketOptionValue

XML Tag	Parent Element	Type	Description	Data Type
basketOptionValue		Root	Outer wrapper for the entity
optionId	basketOptionValue	Element	Contains the different basket options that have been added for the product specified by the line number property in basketOptionValuesItem	BasketOptionValues Details
optionSetOptionReference	basketOptionValue	Element	Contains the details of the Option Set and the path of the Option Set	optionSetOptionReference Details
optionSetId	optionSetOptionReference	Element	Specifies the Option Set type and the Option Set ID, which is the unique identifier of the Option Set	optionSet Details
optionPath	optionSetOptionReference	Element	This specifies where in the Option Set tree is this Option found	string
optionId	basketOptionValue	Element	Unique identifier for an Option	string
optionValue	basketOptionValue	Element	Contains the value of the selected Option	string
optionDescription	basketOptionValue	Element	Contains the text that is displayed for this Option in the transaction	string
optionLineNumber	basketOptionValue	Element	This is the equivalent line number of the basket for the Option	int

tenderItem

XML Tag	Parent Element	Type	Description	Data Type
(various)		Root	Outer wrapper for the entity
(items common)	(tender item)	Element	See items common	items common
tenderKey	(tender item)	Element	Outer wrapper for tender key info
tenderId	tenderKey	Element	The id for the tender	string
groupId	tenderKey	Element	The region id for the tender	group
tenderType	(tender item)	Element	The type of tender from the tender definition	string
tenderAmount	(tender item)	Element	The amount of the tender	long
currencyId	(tender item)	Element	The currency type of the tender	string
currency Description	(tender item)	Element	The description of the currency	string
surchargeAmount	(tender item)	Element	The surcharge amount for this tender	long
openDrawer AtEnd	(tender item)	Element	if true, the cash drawer should be opened at the end of the transaction for this tender if omitted, false	boolean
childLine Numbers	(tender item)	Element	The line number of any child tender record as a result of using this tender	int
isChange	(tender item)	Element	if true, this tender is the resulting change amount due if omitted, false	boolean

orderDetailsItem

XML Tag	Parent Element	Type	Description	Data Type	Length
orderDetailsItem		Root	Outer wrapper for the entity
(items common)	orderDetailsItem	Element	See items common	items common
orderReference	orderDetailsItem	Element	The order id in Enactor system.	string
deliveryName	orderDetailsItem	Element	Delivery name
surname	deliveryName	Element	Surname for the delivery name	string	100
forename	deliveryName	Element	Forename for the delivery name	string	100
initials	deliveryName	Element	The initials for the delivery name	string	5
title	deliveryName	Element	The title for the delivery name	string	10
sex	deliveryName	Element	Gender (MALE or FEMALE) for the delivery name	Sex
dateOfBrith	deliveryName	Element	Date of birth for the delivery name	date
deliveryAddress	orderDetailsItem	Element	Delivery address
organisation	deliveryAddress	Element	The name of the organisation for the livery address	string	40
street1	deliveryAddress	Element	Line 1 of the delivery address	string	40
street2	deliveryAddress	Element	Line 2 of the delivery address	string	40
street3	deliveryAddress	Element	Line 3 of the delivery address	string	40
town	deliveryAddress	Element	The town (city) of the delivery address	string	40
county	deliveryAddress	Element	The county of the delivery address	string	40
country	deliveryAddress	Element	Country description for the country	string	25
countryCodeId	deliveryAddress	Element	Country code id for accessing the country code.	string	5
postcode	deliveryAddress	Element	The postcode for the delivery address	string	10
province	deliveryAddress	Element	The province for the delivery address	string	5
email	deliveryAddress	Element	The email for the delivery address	string	255
phone1	deliveryAddress	Element	The first phone number for the delivery address	string	20
phone2	deliveryAddress	Element	The second phone number for the delivery address	string	20
mobilePhone	deliveryAddress	Element	The mobile phone number for the delivery address	string	20
sendCustomerDeliveryNotification	orderDetailsItem	Element	If the customer should be notified for the delivery. Default false	boolean
notificationEmailAddress	orderDetailsItem	Element	The email address used for sendCustomerDeliveryNotification	string
notificationMobilePhone	orderDetailsItem	Element	The phone number used for sendCustomerDeliveryNotification	string
customerOrderTypeId	orderDetailsItem	Element	Use this to access the customerOrderType	string	20
deliveryOptions	orderDetailsItem	Element	List of delivery options: addressDeliveryOption locationCollectionDeliveryOption

addressDeliveryOption

XML Tag	Parent Element	Type	Description	Data Type
addressDeliveryOption		Root	Outer wrapper for the entity
deliverySlot	addressDeliveryOption	Element	The delivery slot for this delivery option.
fulfilmentOptions	deliverySlot	Element	List of fulfilmentOptions. Can be locationStockFulfilment or SupplierFulfilment
products	addressDeliveryOption	Element	List of product and quantity for this delivery option. The elements in the list can be productQuantity or productLineQuantity
orderDepositLines	addressDeliveryOption	Element	List of entries for specifying deposit against the lines in the basket for this delivery option. See orderDepositLine
deliveryOptionEffectiveNetValue	addressDeliveryOption	Element	The order value of items in this delivery option	long

locationCollectionDeliveryOption

XML Tag	Parent Element	Type	Description	Data Type	Length
locationCollectionDeliveryOption		Root	Outer wrapper for the entity
deliverySlot	locationCollectionDeliveryOption	Element	The delivery slot for this delivery option.
fulfilmentOptions	deliverySlot	Element	List of fulfilmentOptions. Can be locationStockFulfilment or supplierFulfilment
products	locationCollectionDeliveryOption	Element	List of product and quantity for this delivery option. The elements in the list can be productQuantity or productLineQuantity
orderDepositLines	locationCollectionDeliveryOption	Element	List of entries for specifying deposit against the lines in the basket for this delivery option. Type orderDepositLine
deliveryOptionEffectiveNetValue	locationCollectionDeliveryOption	Element	The order value of items in this delivery option	long
locationId	locationCollectionDeliveryOption	Element	The location id of the location where the customer will collect the orde	string	20
deliveryDescription	locationCollectionDeliveryOption	Element	Description. Normally set to name of the collection store.	string

locationStockFulfilment

XML Tag	Parent Element	Type	Description	Data Type	Length
locationStockFulfilment		Root	Outer wrapper for the entity
productId	locationStockFulfilment	Element	The product associated with this fulfilment	string	20
quantity	locationStockFulfilment	Element	The product associated with this fulfilment	double
locationId	locationStockFulfilment	Element	The location associated with this fulfilment	string	20

supplierFulfilment

XML Tag	Parent Element	Type	Description	Data Type	Length
supplierFulfilment		Root	Outer wrapper for the entity
productId	supplierFulfilment	Element	The product associated with this fulfilment	string	20
quantity	supplierFulfilment	Element	The product associated with this fulfilment	double
supplierId	supplierFulfilment	Element	The supplier associated with this fulfilment	string	20

productQuantity

XML Tag	Parent Element	Type	Description	Data Type	Length
productQuantity		Root	Outer wrapper for the entity
productKey	productQuantity	Element	The product associated with this fulfilment	string	20
quantity	productQuantity	Element	The product associated with this fulfilment	double

productLineQuantity

XML Tag	Parent Element	Type	Description	Data Type	Length
productLineQuantity		Root	Outer wrapper for the entity
productKey	productLineQuantity	Element	The product associated with this fulfilment	string	20
quantity	productLineQuantity	Element	The product associated with this fulfilment	double
lineNumber	productLineQuantity	Element	The basket item associated with this entity	Int

deliveryDepositLine

XML Tag	Parent Element	Type	Description	Data Type
orderDepositLine		Root	Outer wrapper for the entity
lineNumber	orderDepositLine	Element	The deposit line item	Int
value	orderDepositLine	Element	The value of the deposit	long

customerOrderDepositBasketItem

XML Tag	Parent Element	Type	Description	Data Type	Length
customerOrderDepositBasketItem		Root	Outer wrapper for the entity
(items common)	customerOrderDepositBasketItem	Element	See items common	items common
depositReasonId	customerOrderDepositBasketItem	Element	The reason key for the deposit
reasonId	depositReasonId	Element	The reason Id for the deposit reason	string	20
regionId	depositReasonId	Element	The group Id of the region in the deposit reason	string	20
groupHierarchyId	regionId	Attribute	The hierarchy Id of the region in the deposit reason	string	20
groupTypeId	regionId	Attribute	The group type Id of the region in the deposit reason. (Should be 'region'.)	string	30
depositPercentage	customerOrderDepositBasketItem	Element	The percentage of the deposit, base of the order value.	float
depositValue	customerOrderDepositBasketItem	Element	The value of the deposit amount	long
preAuthValue	customerOrderDepositBasketItem	Element	The value to pre Auth	long

customerOrderPaymentBasketItem

XML Tag	Parent Element	Type	Description	Data Type	Length
customerOrderPaymentBasketItem		Root	Outer wrapper for the entity
(items common)	customerOrderPaymentBasketItem	Element	See items common	items common
reasonKey	customerOrderPaymentBasketItem	Element	The reason key for the payment
reasonId	reasonKey	Element	The reason Id for the payment reason	string	20
regionId	reasonKey	Element	The group Id of the region in the payment reason	string	20
groupHierarchyId	regionId	Attribute	The hierarchy Id of the region in the payment reason	string	20
groupTypeId	regionId	Attribute	The group type Id of the region in the payment reason. (Should be 'region'.)	string	30
referenceNumber	customerOrderPaymentBasketItem	Element	This is the referenceNumber in item (common) but this will normally be the order Id.	string
CustomerOrderHeaderId	customerOrderPaymentBasketItem	Element	The key to the order.	string	40
forCollection	customerOrderPaymentBasketItem	Element	True if this item was added for a collection.	boolean
forCancellation	customerOrderPaymentBasketItem	Element	True if this item was added for a cancellation.	boolean
unitPrice	customerOrderPaymentBasketItem	Element	The basic payment to be made by the customer.	long

RestaurantSaleTransaction

RestaurantSaleTransaction is the XML that is generated when a sale transaction is done using a POS terminal which has been configured with the transaction type as Restaurant Sale. The restaurantSaleTransaction XML is an extension of the normalRetailSaleTransaction XML, which means that it has all the properties that the normalRetailSaleTransaction has and in addition more properties exist that are specific just to restaurantSaleTransaction. This section describes each of these XML properties that can be seen in the restaurantSaleTransaction XML.

XML Structure

restaurantSaleTransaction

XML Tag	Parent Element	Type	Description	Data Type
restaurantSaleTransaction		Root	Outer wrapper for the entity
covers	restaurantSaleTransaction	Element	Describes the total number of diners that are served in the transaction	Int
tableId	restaurantSaleTransaction	Element	Unique identifier of a restaurant table	string
areaId	restaurantSaleTransaction	Element	Unique identifier of a restaurant area	string
selectedAllergens	restaurantSaleTransaction	Element	Details of the different Allergens that have been selected in this transaction	selected Allergens details

customerRetailDetails

XML Tag	Parent Element	Type	Description	Data Type	Length
customerRetailDetails		Root	Outer wrapper for the entity
recordedDiner	relatedParties	Element	Describes the details of the individual diner	recordedDiner Details

RecordedDiner

XML Tag	Parent Element	Type	Description	Data Type
relatedPartyTypeId	recordedDiner	Element	Unique identifier of the related party type	string
relatedPartyId	recordedDiner	Element	Unique identifier of the related party	string
identityDetails	recordedDiner	Element	Details to identify the recorded diner of this transaction	string
additionalData	recordedDiner	Element	Addition details of the recorded diner of this transaction	string
seatId	recordedDiner	Element	Describes where the diner is seated
selectedAllergens	recordedDiner	Element	Describes the details of the Allergens selected for this diner	selectedAllergens Details
allergenKey	selectedAllergens	Element	Describes the details of the Allergens selected for this diner	string

selectedAllergens

XML Tag	Parent Element	Type	Description	Data Type	Length
selectedAllergens		Root	Outer wrapper for the entity
allergenKey	selectedAllergens	Element	Describes the details of the Allergens selected for this transaction	string

hospitalitySaleItem All properties of a merchandiseItem applies to hospitalitySaleItem as well, and in addition there are properties that are unique to hospitalitySaleItem. Following describes these XML properties.

XML Tag	Parent Element	Type	Description	Data Type
hospitalitySaleItem		Root	Outer wrapper for the entity
relatedPartyId	hospitalitySaleItem	Element	Specifies the diner related to this hospitality item	string
restaurantCourseId	hospitalitySaleItem	Element	Specifies the unique restaurant course and restaurant area that this hospitality item is part of	restaurantCourse Details
restaurantId	restaurantCourseId	Element	Specifies the restaurant location (of this restaurant course and restaurant area) that this hospitality item is part of	string
isSideDish	hospitalitySaleItem	Element	if true, this item contains a side dish; if omitted, false	boolean

hospitalityProductOptionItem

XML Tag	Parent Element	Type	Description	Data Type
hospitalityProductOptionItem		Root	Outer wrapper for the entity
relatedPartyId	hospitalityProductOptionItem	Element	Specifies the diner related to this hospitality item	string
soldAsOption	hospitalityProductOptionItem	Element	if true, this item is sold as an option product; if omitted, false	boolean

productPreparationOptionItem

XML Tag	Parent Element	Type	Description	Data Type
productPreparationOptionItem		Root	Outer wrapper for the entity
choice	productPreparationOptionItem	Element	The choice of product preparation option that is selected for this item.	string
choiceDescription	productPreparationOptionItem	Element	Description of the choice of production preparation option selected for this item	string

courseInstructionItem

XML Tag	Parent Element	Type	Description	Data Type
courseInstructionItem		Root	Outer wrapper for the entity
message	courseInstructionItem	Element	This is what is displayed to the person receiving the course instruction.	string
restaurantCourseId	courseInstructionItem	Element	Specifies the unique restaurant course and restaurant area that this hospitality item is part of	restaurantCourse Details
restaurantId	restaurantCourseId	Element	Specifies the restaurant location (of this restaurant course and restaurant area) that this hospitality item is part of	string
courseSequence	courseInstructionItem	Element	Specifies which number of the sequence order that this course is in Eg: Starters would be 1, Mains would be 2.	Int

statusChangeInstructionItem

XML Tag	Parent Element	Type	Description	Data Type	Length
statusChangeInstructionItem		Root	Outer wrapper for the entity
restaurantTableStatusDefinitionId	statusChangeInstructionItem	Element	This defines the new status of the table	string

cashTenderItem

XML Tag	Parent Element	Type	Description	Data Type	Length
cashTenderItem		Root	Outer wrapper for the entity
splitNumber	cashTenderItem	Element	Specifies the unique split number given to each bill split	Int

billSplits

XML Tag	Parent Element	Type	Description	Data Type
billSplits		Root	Outer wrapper for the entity
billSplit	billSplits	Element	This contains the details of the individual bill splits	billSplit Details
tenderAmount	billSplit	Element	The value of the individual bill split	Long
paid	billSplit	Element	if true, this bill split has been paid; if omitted, false	boolean

orderPrints

XML Tag	Parent Element	Type	Description	Data Type
orderPrints		Root	Outer wrapper for the entity
orderPrint	orderPrints	Element	This contains the details of the individual order prints. This is used for reprinting receipts as well.	orderPrint Details
dateTime	orderPrint	Element	The date and time at which the order print has been done.	dateTime
printDocket	orderPrint	Element	Represents the individual destinations, line numbers to be printed and the number of copies for each	printDocketDetails
preparationTypeId	printDocket	Element	The destination printer that is used to print this print docket	string
lineNumbers	printDocket	Element	The basket line number that is to be printed for this print docket	Int
printedCopies	printDocket	Element	The number of copies to print for this print docket	Int

Examples

Simple Sale

Receipt

Transaction XML

<?xml version="1.0" encoding="UTF-8" standalone="yes"?>
<retail:normalRetailSaleTransaction xmlns:core="http://www.enactor.com/core"
    xmlns:retail="http://www.enactor.com/retail">
    <retail:applicationId>POS</retail:applicationId>
    <retail:transactionId>00010101000032010021737323</retail:transactionId>
    <retail:source>mpos1@0001.enactor</retail:source>
    <retail:sourceApplication>POS</retail:sourceApplication>
    <retail:topic>Transactions</retail:topic>
    <retail:sequenceNumber>16</retail:sequenceNumber>
    <retail:transactionNumber>3</retail:transactionNumber>
    <retail:originatedBy>
        <retail:locationId>0001</retail:locationId>
        <retail:branchNumber>1</retail:branchNumber>
        <retail:terminalNumber>101</retail:terminalNumber>
        <retail:transactionNumber>3</retail:transactionNumber>
        <retail:deviceId>mpos1@0001.enactor</retail:deviceId>
        <retail:userId>1</retail:userId>
        <retail:regionId groupHierarchyId="All" groupTypeId="region">UK</retail:regionId>
        <retail:userEmployeeId></retail:userEmployeeId>
        <retail:printableName>Mike Carrell</retail:printableName>
    </retail:originatedBy>
    <retail:completedBy>
        <retail:locationId>0001</retail:locationId>
        <retail:branchNumber>1</retail:branchNumber>
        <retail:terminalNumber>101</retail:terminalNumber>
        <retail:transactionNumber>3</retail:transactionNumber>
        <retail:deviceId>mpos1@0001.enactor</retail:deviceId>
        <retail:userId>1</retail:userId>
        <retail:regionId groupHierarchyId="All" groupTypeId="region">UK</retail:regionId>
        <retail:userEmployeeId></retail:userEmployeeId>
        <retail:printableName>Mike Carrell</retail:printableName>
        <retail:cashManagementMethod>TERMINAL</retail:cashManagementMethod>
        <retail:cashManagementOwnerId>101</retail:cashManagementOwnerId>
        <retail:branchName>Enactor Store</retail:branchName>
    </retail:completedBy>
    <retail:dateTimeCreated>2020-10-02T17:37:32Z</retail:dateTimeCreated>
    <retail:dateTimeCompleted>2020-10-02T17:38:04Z</retail:dateTimeCompleted>
    <retail:trainingDetails>
        <retail:trainingMode>false</retail:trainingMode>
    </retail:trainingDetails>
    <retail:customerRetailDetails>
        <retail:relatedPartyTypeId></retail:relatedPartyTypeId>
        <retail:identityDetails/>
        <retail:validatedOnline>false</retail:validatedOnline>
        <retail:newCustomer>false</retail:newCustomer>
        <retail:marketingDetailsCaptured>false</retail:marketingDetailsCaptured>
    </retail:customerRetailDetails>
    <retail:basket>
        <retail:items>
            <retail:styleColourSizeItem isReturn="false">
                <retail:lineNumber>1</retail:lineNumber>
                <retail:description>Ben Sherman Short Oxford</retail:description>
                <retail:deviceId>mpos1@0001.enactor</retail:deviceId>
                <retail:value>3742</retail:value>
                <retail:netValue>3742</retail:netValue>
                <retail:effectiveNetValue>3742</retail:effectiveNetValue>
                <retail:dateTimeCreated>2020-10-02T17:37:57Z</retail:dateTimeCreated>
                <retail:userId>1</retail:userId>
                <retail:modifiersNetValue>0</retail:modifiersNetValue>
                <retail:modifiersEffectiveNetValue>0</retail:modifiersEffectiveNetValue>
                <retail:modifiersVoidQuantity>0.0</retail:modifiersVoidQuantity>
                <retail:modifiersQuantity>0.0</retail:modifiersQuantity>
                <retail:notDiscountable>false</retail:notDiscountable>
                <retail:maxDiscount>0.0</retail:maxDiscount>
                <retail:productID>ID816BN-1</retail:productID>
                <retail:productTypeId>skuProduct</retail:productTypeId>
                <retail:unitPrice>3742</retail:unitPrice>
                <retail:quantity>1.0</retail:quantity>
                <retail:netQuantity>1.0</retail:netQuantity>
                <retail:handKeyed>true</retail:handKeyed>
                <retail:sourceInventoryType>AVA</retail:sourceInventoryType>
                <retail:orderable>true</retail:orderable>
                <retail:priceTypeId>R</retail:priceTypeId>
                <retail:productImageURL>image://PRODUCT/ID816BN-3.jpg</retail:productImageURL>
                <retail:type>VALUE</retail:type>
                <retail:mmGroupId>MENS_SHIRTS</retail:mmGroupId>
                <retail:mmGroupHierarchyId>FASHION</retail:mmGroupHierarchyId>
                <retail:brandGroupId>BEN_SHERMAN</retail:brandGroupId>
                <retail:brandGroupHierarchyId>FASHION</retail:brandGroupHierarchyId>
                <retail:mmGroupDescription>Mens Shirts</retail:mmGroupDescription>
                <retail:mmGroupVariantGroupId>All</retail:mmGroupVariantGroupId>
                <retail:mmGroupVariantHierarchyId>All</retail:mmGroupVariantHierarchyId>
                <retail:styleId>ID816BN</retail:styleId>
                <retail:sizeId sizeRangeId="MENS_SHIRTS">S</retail:sizeId>
                <retail:sizeDescription>S</retail:sizeDescription>
                <retail:colourId colourRangeId="MENS_SHIRTS">BLACK</retail:colourId>
                <retail:colourDescription>Black</retail:colourDescription>
            </retail:styleColourSizeItem>
            <retail:cashTenderItem>
                <retail:lineNumber>2</retail:lineNumber>
                <retail:description>Cash UK</retail:description>
                <retail:deviceId>mpos1@0001.enactor</retail:deviceId>
                <retail:value>-3742</retail:value>
                <retail:netValue>-3742</retail:netValue>
                <retail:effectiveNetValue>-3742</retail:effectiveNetValue>
                <retail:dateTimeCreated>2020-10-02T17:38:03Z</retail:dateTimeCreated>
                <retail:userId>1</retail:userId>
                <retail:tenderKey>
                    <retail:tenderId>CASH_UK</retail:tenderId>
                    <retail:groupId groupHierarchyId="All" groupTypeId="region">UK</retail:groupId>
                </retail:tenderKey>
                <retail:tenderType>cashTender</retail:tenderType>
                <retail:tenderAmount>3742</retail:tenderAmount>
                <retail:currencyId>GBP</retail:currencyId>
                <retail:currencyDescription>Pounds Sterling</retail:currencyDescription>
                <retail:surchargeAmount>0</retail:surchargeAmount>
                <retail:openDrawerAtEnd>false</retail:openDrawerAtEnd>
            </retail:cashTenderItem>
        </retail:items>
        <retail:balance>0</retail:balance>
        <retail:currencyId>GBP</retail:currencyId>
        <retail:currencyDescription>Pounds Sterling</retail:currencyDescription>
        <retail:taxInclusive>true</retail:taxInclusive>
        <retail:taxSchemeId>UK</retail:taxSchemeId>
        <retail:itemCount>2</retail:itemCount>
        <retail:saleItemQuantity>1.0</retail:saleItemQuantity>
        <retail:returnItemQuantity>0.0</retail:returnItemQuantity>
        <retail:returnMerchandiseItemQuantity>0.0</retail:returnMerchandiseItemQuantity>
        <retail:returnMerchandiseItemNetValue>0</retail:returnMerchandiseItemNetValue>
        <retail:saleItemNetValue>3742</retail:saleItemNetValue>
        <retail:returnItemNetValue>0</retail:returnItemNetValue>
        <retail:merchandiseItemQuantity>1.0</retail:merchandiseItemQuantity>
        <retail:merchandiseItemValue>3742</retail:merchandiseItemValue>
        <retail:total>3742</retail:total>
        <retail:grossTotal>3742</retail:grossTotal>
        <retail:taxTotal>0</retail:taxTotal>
        <retail:totalTaxAdjustment>0</retail:totalTaxAdjustment>
        <retail:preAuthBalance>0</retail:preAuthBalance>
        <retail:effectiveSaleValue>0</retail:effectiveSaleValue>
    </retail:basket>
    <retail:loyaltyPointsDetails dayNumber="0">
        <retail:loyaltyPointsBalance>0</retail:loyaltyPointsBalance>
        <retail:loyaltyPointsEarned>0</retail:loyaltyPointsEarned>
        <retail:promotionalLoyaltyPointsEarned>0</retail:promotionalLoyaltyPointsEarned>
        <retail:loyaltyPointsMissed>0</retail:loyaltyPointsMissed>
        <retail:loyaltyPointsRate>0</retail:loyaltyPointsRate>
        <retail:loyaltyAccountOffline>true</retail:loyaltyAccountOffline>
        <retail:loyaltyPointsUsed>0</retail:loyaltyPointsUsed>
        <retail:totalSpend>0</retail:totalSpend>
        <retail:spendToNextTier>0</retail:spendToNextTier>
        <retail:externalProvider>false</retail:externalProvider>
        <retail:noLoyaltyUpdate>false</retail:noLoyaltyUpdate>
        <retail:rewardValue>0</retail:rewardValue>
        <retail:rewardValueRedeemed>0</retail:rewardValueRedeemed>
    </retail:loyaltyPointsDetails>
    <retail:receiptDetails>
        <retail:taxReceiptRequested>false</retail:taxReceiptRequested>
    </retail:receiptDetails>
</retail:normalRetailSaleTransaction>

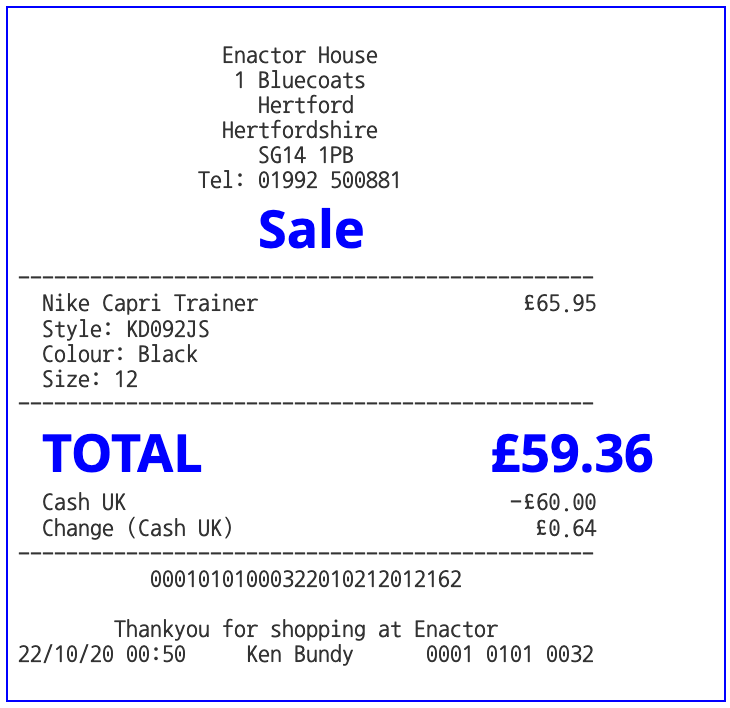

Simple Sale with Change

Receipt

Transaction XML

<?xml version="1.0" encoding="UTF-8" standalone="yes"?>
<retail:normalRetailSaleTransaction xmlns:core="http://www.enactor.com/core"
    xmlns:retail="http://www.enactor.com/retail">
    <retail:applicationId>POS</retail:applicationId>
    <retail:transactionId>00010101000322010212012162</retail:transactionId>
    <retail:source>mpos1@0001.enactor</retail:source>
    <retail:sourceApplication>POS</retail:sourceApplication>
    <retail:topic>Transactions</retail:topic>
    <retail:sequenceNumber>77</retail:sequenceNumber>
    <retail:transactionNumber>32</retail:transactionNumber>
    <retail:originatedBy>
        <retail:locationId>0001</retail:locationId>
        <retail:branchNumber>1</retail:branchNumber>
        <retail:terminalNumber>101</retail:terminalNumber>
        <retail:transactionNumber>32</retail:transactionNumber>
        <retail:deviceId>mpos1@0001.enactor</retail:deviceId>
        <retail:userId>KB</retail:userId>
        <retail:regionId groupHierarchyId="All" groupTypeId="region">UK</retail:regionId>
        <retail:userEmployeeId></retail:userEmployeeId>
        <retail:printableName>Ken Bundy</retail:printableName>
    </retail:originatedBy>
    <retail:completedBy>
        <retail:locationId>0001</retail:locationId>
        <retail:branchNumber>1</retail:branchNumber>
        <retail:terminalNumber>101</retail:terminalNumber>
        <retail:transactionNumber>32</retail:transactionNumber>
        <retail:deviceId>mpos1@0001.enactor</retail:deviceId>
        <retail:userId>KB</retail:userId>
        <retail:regionId groupHierarchyId="All" groupTypeId="region">UK</retail:regionId>
        <retail:userEmployeeId></retail:userEmployeeId>
        <retail:printableName>Ken Bundy</retail:printableName>
        <retail:cashManagementMethod>TERMINAL</retail:cashManagementMethod>
        <retail:cashManagementOwnerId>101</retail:cashManagementOwnerId>
        <retail:branchName>Enactor Store</retail:branchName>
    </retail:completedBy>
    <retail:dateTimeCreated>2020-10-21T20:12:16Z</retail:dateTimeCreated>
    <retail:dateTimeCompleted>2020-10-22T00:50:48Z</retail:dateTimeCompleted>
    <retail:trainingDetails>
        <retail:trainingMode>false</retail:trainingMode>
    </retail:trainingDetails>
    <retail:customerRetailDetails>
        <retail:relatedPartyTypeId></retail:relatedPartyTypeId>
        <retail:identityDetails/>
        <retail:validatedOnline>false</retail:validatedOnline>
        <retail:newCustomer>false</retail:newCustomer>
        <retail:marketingDetailsCaptured>false</retail:marketingDetailsCaptured>
    </retail:customerRetailDetails>
    <retail:basket>
        <retail:items>
            <retail:styleColourSizeItem isReturn="false">
                <retail:lineNumber>1</retail:lineNumber>
                <retail:description>Nike Capri Trainer</retail:description>
                <retail:deviceId>mpos1@0001.enactor</retail:deviceId>
                <retail:value>6595</retail:value>
                <retail:netValue>5936</retail:netValue>
                <retail:effectiveNetValue>5936</retail:effectiveNetValue>
                <retail:dateTimeCreated>2020-10-22T00:50:24Z</retail:dateTimeCreated>
                <retail:userId>KB</retail:userId>
                <retail:modifiers>
                    <retail:discountModifier modifierItemLine="2">
                        <retail:value>-659</retail:value>
                        <retail:effectiveValue>-659</retail:effectiveValue>
                        <retail:originalItemValue>6595</retail:originalItemValue>
                        <retail:discountType>ITEM</retail:discountType>
                    </retail:discountModifier>
                </retail:modifiers>
                <retail:modifiersNetValue>-659</retail:modifiersNetValue>
                <retail:modifiersEffectiveNetValue>-659</retail:modifiersEffectiveNetValue>
                <retail:modifiersVoidQuantity>0.0</retail:modifiersVoidQuantity>
                <retail:modifiersQuantity>0.0</retail:modifiersQuantity>
                <retail:notDiscountable>false</retail:notDiscountable>
                <retail:maxDiscount>0.0</retail:maxDiscount>
                <retail:productID>KD092JS-1</retail:productID>
                <retail:productTypeId>skuProduct</retail:productTypeId>
                <retail:unitPrice>6595</retail:unitPrice>
                <retail:quantity>1.0</retail:quantity>
                <retail:netQuantity>1.0</retail:netQuantity>
                <retail:handKeyed>true</retail:handKeyed>
                <retail:sourceInventoryType>AVA</retail:sourceInventoryType>
                <retail:orderable>true</retail:orderable>
                <retail:priceTypeId>R</retail:priceTypeId>
                <retail:productImageURL>image://PRODUCT/KD092JS-1.jpg</retail:productImageURL>
                <retail:type>VALUE</retail:type>
                <retail:mmGroupId>MENS_SHOES</retail:mmGroupId>
                <retail:mmGroupHierarchyId>FASHION</retail:mmGroupHierarchyId>
                <retail:brandGroupId>NIKE</retail:brandGroupId>
                <retail:brandGroupHierarchyId>FASHION</retail:brandGroupHierarchyId>
                <retail:mmGroupDescription>Mens Shoes</retail:mmGroupDescription>
                <retail:mmGroupVariantGroupId>All</retail:mmGroupVariantGroupId>
                <retail:mmGroupVariantHierarchyId>All</retail:mmGroupVariantHierarchyId>
                <retail:styleId>KD092JS</retail:styleId>
                <retail:sizeId sizeRangeId="MENS_SHOES">12</retail:sizeId>
                <retail:sizeDescription>12</retail:sizeDescription>
                <retail:colourId colourRangeId="MENS_SHOES">BLACK</retail:colourId>
                <retail:colourDescription>Black</retail:colourDescription>
            </retail:styleColourSizeItem>
            <retail:discountItem>
                <retail:lineNumber>2</retail:lineNumber>
                <retail:description>Item Discount</retail:description>
                <retail:deviceId>mpos1@0001.enactor</retail:deviceId>
                <retail:value>-659</retail:value>
                <retail:netValue>0</retail:netValue>
                <retail:effectiveNetValue>0</retail:effectiveNetValue>
                <retail:dateTimeCreated>2020-10-22T00:50:39Z</retail:dateTimeCreated>
                <retail:userId>KB</retail:userId>
                <retail:reasonKey>
                    <retail:reasonId>ID-UK1</retail:reasonId>
                    <retail:regionId groupHierarchyId="All" groupTypeId="region">UK</retail:regionId>
                </retail:reasonKey>
                <retail:type>PERCENTAGE</retail:type>
                <retail:reasonDescription>10% Item Discount</retail:reasonDescription>
                <retail:percentage>0.1</retail:percentage>
                <retail:roundingRule>DOWN</retail:roundingRule>
                <retail:maxDiscountPercentage>0.0</retail:maxDiscountPercentage>
                <retail:discountAmountLimit>0</retail:discountAmountLimit>
                <retail:numberCopyReceipts>0</retail:numberCopyReceipts>
                <retail:overlapping>false</retail:overlapping>
                <retail:printSignatureSlip>false</retail:printSignatureSlip>
            </retail:discountItem>
            <retail:cashTenderItem>
                <retail:lineNumber>3</retail:lineNumber>
                <retail:description>Cash UK</retail:description>
                <retail:deviceId>mpos1@0001.enactor</retail:deviceId>
                <retail:value>-6000</retail:value>
                <retail:netValue>-6000</retail:netValue>
                <retail:effectiveNetValue>-6000</retail:effectiveNetValue>
                <retail:dateTimeCreated>2020-10-22T00:50:45Z</retail:dateTimeCreated>
                <retail:userId>KB</retail:userId>
                <retail:childLineNumbers>4</retail:childLineNumbers>
                <retail:tenderKey>
                    <retail:tenderId>CASH_UK</retail:tenderId>
                    <retail:groupId groupHierarchyId="All" groupTypeId="region">UK</retail:groupId>
                </retail:tenderKey>
                <retail:tenderType>cashTender</retail:tenderType>
                <retail:tenderAmount>6000</retail:tenderAmount>
                <retail:currencyId>GBP</retail:currencyId>
                <retail:currencyDescription>Pounds Sterling</retail:currencyDescription>
                <retail:surchargeAmount>0</retail:surchargeAmount>
                <retail:openDrawerAtEnd>false</retail:openDrawerAtEnd>
            </retail:cashTenderItem>
            <retail:cashTenderItem>
                <retail:lineNumber>4</retail:lineNumber>
                <retail:description>Cash UK</retail:description>
                <retail:deviceId>mpos1@0001.enactor</retail:deviceId>
                <retail:value>64</retail:value>
                <retail:netValue>64</retail:netValue>
                <retail:effectiveNetValue>64</retail:effectiveNetValue>
                <retail:dateTimeCreated>2020-10-22T00:50:48.136Z</retail:dateTimeCreated>
                <retail:userId>KB</retail:userId>
                <retail:tenderKey>
                    <retail:tenderId>CASH_UK</retail:tenderId>
                    <retail:groupId groupHierarchyId="All" groupTypeId="region">UK</retail:groupId>
                </retail:tenderKey>
                <retail:tenderType>cashTender</retail:tenderType>
                <retail:tenderAmount>64</retail:tenderAmount>
                <retail:isChange>true</retail:isChange>
                <retail:currencyId>GBP</retail:currencyId>
                <retail:currencyDescription>Pounds Sterling</retail:currencyDescription>
                <retail:openDrawerAtEnd>true</retail:openDrawerAtEnd>
            </retail:cashTenderItem>
        </retail:items>
        <retail:balance>0</retail:balance>
        <retail:currencyId>GBP</retail:currencyId>
        <retail:currencyDescription>Pounds Sterling</retail:currencyDescription>
        <retail:taxInclusive>true</retail:taxInclusive>
        <retail:taxSchemeId>UK</retail:taxSchemeId>
        <retail:itemCount>4</retail:itemCount>
        <retail:saleItemQuantity>1.0</retail:saleItemQuantity>
        <retail:returnItemQuantity>0.0</retail:returnItemQuantity>
        <retail:returnMerchandiseItemQuantity>0.0</retail:returnMerchandiseItemQuantity>
        <retail:returnMerchandiseItemNetValue>0</retail:returnMerchandiseItemNetValue>
        <retail:saleItemNetValue>5936</retail:saleItemNetValue>
        <retail:returnItemNetValue>0</retail:returnItemNetValue>
        <retail:merchandiseItemQuantity>1.0</retail:merchandiseItemQuantity>
        <retail:merchandiseItemValue>6595</retail:merchandiseItemValue>
        <retail:total>5936</retail:total>
        <retail:grossTotal>5936</retail:grossTotal>
        <retail:taxTotal>0</retail:taxTotal>
        <retail:totalTaxAdjustment>0</retail:totalTaxAdjustment>
        <retail:preAuthBalance>0</retail:preAuthBalance>
        <retail:effectiveSaleValue>0</retail:effectiveSaleValue>
    </retail:basket>
    <retail:loyaltyPointsDetails dayNumber="0">
        <retail:loyaltyPointsBalance>0</retail:loyaltyPointsBalance>
        <retail:loyaltyPointsEarned>0</retail:loyaltyPointsEarned>
        <retail:promotionalLoyaltyPointsEarned>0</retail:promotionalLoyaltyPointsEarned>
        <retail:loyaltyPointsMissed>0</retail:loyaltyPointsMissed>
        <retail:loyaltyPointsRate>0</retail:loyaltyPointsRate>
        <retail:loyaltyAccountOffline>true</retail:loyaltyAccountOffline>
        <retail:loyaltyPointsUsed>0</retail:loyaltyPointsUsed>
        <retail:totalSpend>0</retail:totalSpend>
        <retail:spendToNextTier>0</retail:spendToNextTier>
        <retail:externalProvider>false</retail:externalProvider>
        <retail:noLoyaltyUpdate>false</retail:noLoyaltyUpdate>
        <retail:rewardValue>0</retail:rewardValue>
        <retail:rewardValueRedeemed>0</retail:rewardValueRedeemed>
    </retail:loyaltyPointsDetails>
    <retail:receiptDetails>
        <retail:taxReceiptRequested>false</retail:taxReceiptRequested>
    </retail:receiptDetails>
</retail:normalRetailSaleTransaction>

Simple Sale with Price Override

Receipt

Transaction XML

<?xml version="1.0" encoding="UTF-8" standalone="yes"?>
<retail:normalRetailSaleTransaction xmlns:core="http://www.enactor.com/core"
    xmlns:retail="http://www.enactor.com/retail">
    <retail:applicationId>POS</retail:applicationId>
    <retail:transactionId>00010101000272010161959496</retail:transactionId>
    <retail:source>mpos1@0001.enactor</retail:source>
    <retail:sourceApplication>POS</retail:sourceApplication>
    <retail:topic>Transactions</retail:topic>
    <retail:sequenceNumber>66</retail:sequenceNumber>
    <retail:transactionNumber>27</retail:transactionNumber>
    <retail:originatedBy>
        <retail:locationId>0001</retail:locationId>
        <retail:branchNumber>1</retail:branchNumber>
        <retail:terminalNumber>101</retail:terminalNumber>
        <retail:transactionNumber>27</retail:transactionNumber>
        <retail:deviceId>mpos1@0001.enactor</retail:deviceId>
        <retail:userId>6</retail:userId>
        <retail:regionId groupHierarchyId="All" groupTypeId="region">UK</retail:regionId>
        <retail:userEmployeeId></retail:userEmployeeId>
        <retail:printableName>Ken Bundy</retail:printableName>
    </retail:originatedBy>
    <retail:completedBy>
        <retail:locationId>0001</retail:locationId>
        <retail:branchNumber>1</retail:branchNumber>
        <retail:terminalNumber>101</retail:terminalNumber>
        <retail:transactionNumber>27</retail:transactionNumber>
        <retail:deviceId>mpos1@0001.enactor</retail:deviceId>
        <retail:userId>6</retail:userId>
        <retail:regionId groupHierarchyId="All" groupTypeId="region">UK</retail:regionId>
        <retail:userEmployeeId></retail:userEmployeeId>
        <retail:printableName>Ken Bundy</retail:printableName>
        <retail:cashManagementMethod>TERMINAL</retail:cashManagementMethod>
        <retail:cashManagementOwnerId>101</retail:cashManagementOwnerId>
        <retail:branchName>Enactor Store</retail:branchName>
    </retail:completedBy>
    <retail:dateTimeCreated>2020-10-16T19:59:49Z</retail:dateTimeCreated>
    <retail:dateTimeCompleted>2020-10-16T20:00:54Z</retail:dateTimeCompleted>
    <retail:trainingDetails>
        <retail:trainingMode>false</retail:trainingMode>
    </retail:trainingDetails>
    <retail:customerRetailDetails>
        <retail:relatedPartyTypeId></retail:relatedPartyTypeId>
        <retail:identityDetails/>
        <retail:validatedOnline>false</retail:validatedOnline>
        <retail:newCustomer>false</retail:newCustomer>
        <retail:marketingDetailsCaptured>false</retail:marketingDetailsCaptured>
    </retail:customerRetailDetails>
    <retail:basket>
        <retail:items>
            <retail:styleColourSizeItem isReturn="false">
                <retail:lineNumber>1</retail:lineNumber>
                <retail:description>Vans Canvas Shoes</retail:description>
                <retail:deviceId>mpos1@0001.enactor</retail:deviceId>
                <retail:value>4000</retail:value>
                <retail:netValue>4000</retail:netValue>
                <retail:effectiveNetValue>4000</retail:effectiveNetValue>
                <retail:dateTimeCreated>2020-10-16T20:00:19Z</retail:dateTimeCreated>
                <retail:userId>6</retail:userId>
                <retail:modifiers>
                    <retail:priceOverrideModifier modifierItemLine="2">
                        <retail:newPrice>4000</retail:newPrice>
                        <retail:originalPrice>5995</retail:originalPrice>
                    </retail:priceOverrideModifier>
                </retail:modifiers>
                <retail:modifiersNetValue>0</retail:modifiersNetValue>
                <retail:modifiersEffectiveNetValue>0</retail:modifiersEffectiveNetValue>
                <retail:modifiersVoidQuantity>0.0</retail:modifiersVoidQuantity>
                <retail:modifiersQuantity>0.0</retail:modifiersQuantity>
                <retail:notDiscountable>false</retail:notDiscountable>
                <retail:maxDiscount>0.0</retail:maxDiscount>
                <retail:productID>VV639JS-10</retail:productID>
                <retail:productTypeId>skuProduct</retail:productTypeId>
                <retail:unitPrice>4000</retail:unitPrice>
                <retail:quantity>1.0</retail:quantity>
                <retail:netQuantity>1.0</retail:netQuantity>
                <retail:handKeyed>true</retail:handKeyed>
                <retail:sourceInventoryType>AVA</retail:sourceInventoryType>
                <retail:orderable>true</retail:orderable>
                <retail:priceTypeId>R</retail:priceTypeId>
                <retail:productImageURL>image://PRODUCT/VV639JS-1.jpg</retail:productImageURL>
                <retail:type>VALUE</retail:type>
                <retail:mmGroupId>MENS_SHOES</retail:mmGroupId>
                <retail:mmGroupHierarchyId>FASHION</retail:mmGroupHierarchyId>
                <retail:brandGroupId>VANS</retail:brandGroupId>
                <retail:brandGroupHierarchyId>FASHION</retail:brandGroupHierarchyId>
                <retail:mmGroupDescription>Mens Shoes</retail:mmGroupDescription>
                <retail:mmGroupVariantGroupId>All</retail:mmGroupVariantGroupId>
                <retail:mmGroupVariantHierarchyId>All</retail:mmGroupVariantHierarchyId>
                <retail:styleId>VV639JS</retail:styleId>
                <retail:sizeId sizeRangeId="MENS_SHOES">10</retail:sizeId>
                <retail:sizeDescription>10</retail:sizeDescription>
                <retail:colourId colourRangeId="MENS_SHOES">RED</retail:colourId>
                <retail:colourDescription>Red</retail:colourDescription>
            </retail:styleColourSizeItem>
            <retail:priceOverrideItem>
                <retail:lineNumber>2</retail:lineNumber>
                <retail:description>Price Override</retail:description>
                <retail:deviceId>mpos1@0001.enactor</retail:deviceId>
                <retail:dateTimeCreated>2020-10-16T20:00:35Z</retail:dateTimeCreated>
                <retail:userId>6</retail:userId>
                <retail:reasonKey>
                    <retail:reasonId>PO-UK2</retail:reasonId>
                    <retail:regionId groupHierarchyId="All" groupTypeId="region">UK</retail:regionId>
                </retail:reasonKey>
                <retail:type>PRICE_OVERRIDE</retail:type>
                <retail:reasonDescription>Price Override Down</retail:reasonDescription>
                <retail:newPrice>4000</retail:newPrice>
            </retail:priceOverrideItem>
            <retail:cashTenderItem>
                <retail:lineNumber>3</retail:lineNumber>
                <retail:description>Cash UK</retail:description>
                <retail:deviceId>mpos1@0001.enactor</retail:deviceId>
                <retail:value>-4000</retail:value>
                <retail:netValue>-4000</retail:netValue>
                <retail:effectiveNetValue>-4000</retail:effectiveNetValue>
                <retail:dateTimeCreated>2020-10-16T20:00:53Z</retail:dateTimeCreated>
                <retail:userId>6</retail:userId>
                <retail:tenderKey>
                    <retail:tenderId>CASH_UK</retail:tenderId>
                    <retail:groupId groupHierarchyId="All" groupTypeId="region">UK</retail:groupId>
                </retail:tenderKey>
                <retail:tenderType>cashTender</retail:tenderType>
                <retail:tenderAmount>4000</retail:tenderAmount>
                <retail:currencyId>GBP</retail:currencyId>
                <retail:currencyDescription>Pounds Sterling</retail:currencyDescription>
                <retail:surchargeAmount>0</retail:surchargeAmount>
                <retail:openDrawerAtEnd>false</retail:openDrawerAtEnd>
            </retail:cashTenderItem>
        </retail:items>
        <retail:balance>0</retail:balance>
        <retail:currencyId>GBP</retail:currencyId>
        <retail:currencyDescription>Pounds Sterling</retail:currencyDescription>
        <retail:taxInclusive>true</retail:taxInclusive>
        <retail:taxSchemeId>UK</retail:taxSchemeId>
        <retail:itemCount>3</retail:itemCount>
        <retail:saleItemQuantity>1.0</retail:saleItemQuantity>
        <retail:returnItemQuantity>0.0</retail:returnItemQuantity>
        <retail:returnMerchandiseItemQuantity>0.0</retail:returnMerchandiseItemQuantity>
        <retail:returnMerchandiseItemNetValue>0</retail:returnMerchandiseItemNetValue>
        <retail:saleItemNetValue>4000</retail:saleItemNetValue>
        <retail:returnItemNetValue>0</retail:returnItemNetValue>
        <retail:merchandiseItemQuantity>1.0</retail:merchandiseItemQuantity>
        <retail:merchandiseItemValue>4000</retail:merchandiseItemValue>
        <retail:total>4000</retail:total>
        <retail:grossTotal>4000</retail:grossTotal>
        <retail:taxTotal>0</retail:taxTotal>
        <retail:totalTaxAdjustment>0</retail:totalTaxAdjustment>
        <retail:preAuthBalance>0</retail:preAuthBalance>
        <retail:effectiveSaleValue>0</retail:effectiveSaleValue>
    </retail:basket>
    <retail:loyaltyPointsDetails dayNumber="0">
        <retail:loyaltyPointsBalance>0</retail:loyaltyPointsBalance>
        <retail:loyaltyPointsEarned>0</retail:loyaltyPointsEarned>
        <retail:promotionalLoyaltyPointsEarned>0</retail:promotionalLoyaltyPointsEarned>
        <retail:loyaltyPointsMissed>0</retail:loyaltyPointsMissed>
        <retail:loyaltyPointsRate>0</retail:loyaltyPointsRate>
        <retail:loyaltyAccountOffline>true</retail:loyaltyAccountOffline>
        <retail:loyaltyPointsUsed>0</retail:loyaltyPointsUsed>
        <retail:totalSpend>0</retail:totalSpend>
        <retail:spendToNextTier>0</retail:spendToNextTier>
        <retail:externalProvider>false</retail:externalProvider>
        <retail:noLoyaltyUpdate>false</retail:noLoyaltyUpdate>
        <retail:rewardValue>0</retail:rewardValue>
        <retail:rewardValueRedeemed>0</retail:rewardValueRedeemed>
    </retail:loyaltyPointsDetails>
    <retail:receiptDetails>
        <retail:taxReceiptRequested>false</retail:taxReceiptRequested>
    </retail:receiptDetails>
</retail:normalRetailSaleTransaction>

Simple Sale with Percent Markdown

Receipt

Transaction XML

<?xml version="1.0" encoding="UTF-8" standalone="yes"?>
<retail:normalRetailSaleTransaction xmlns:core="http://www.enactor.com/core"
    xmlns:retail="http://www.enactor.com/retail">
    <retail:applicationId>POS</retail:applicationId>
    <retail:transactionId>00010101000292010212009198</retail:transactionId>
    <retail:source>mpos1@0001.enactor</retail:source>
    <retail:sourceApplication>POS</retail:sourceApplication>
    <retail:topic>Transactions</retail:topic>
    <retail:sequenceNumber>74</retail:sequenceNumber>
    <retail:transactionNumber>29</retail:transactionNumber>
    <retail:originatedBy>
        <retail:locationId>0001</retail:locationId>
        <retail:branchNumber>1</retail:branchNumber>
        <retail:terminalNumber>101</retail:terminalNumber>
        <retail:transactionNumber>29</retail:transactionNumber>
        <retail:deviceId>mpos1@0001.enactor</retail:deviceId>
        <retail:userId>KB</retail:userId>
        <retail:regionId groupHierarchyId="All" groupTypeId="region">UK</retail:regionId>
        <retail:userEmployeeId></retail:userEmployeeId>
        <retail:printableName>Ken Bundy</retail:printableName>
    </retail:originatedBy>
    <retail:completedBy>
        <retail:locationId>0001</retail:locationId>
        <retail:branchNumber>1</retail:branchNumber>
        <retail:terminalNumber>101</retail:terminalNumber>
        <retail:transactionNumber>29</retail:transactionNumber>
        <retail:deviceId>mpos1@0001.enactor</retail:deviceId>
        <retail:userId>KB</retail:userId>
        <retail:regionId groupHierarchyId="All" groupTypeId="region">UK</retail:regionId>
        <retail:userEmployeeId></retail:userEmployeeId>
        <retail:printableName>Ken Bundy</retail:printableName>
        <retail:cashManagementMethod>TERMINAL</retail:cashManagementMethod>
        <retail:cashManagementOwnerId>101</retail:cashManagementOwnerId>
        <retail:branchName>Enactor Store</retail:branchName>
    </retail:completedBy>
    <retail:dateTimeCreated>2020-10-21T20:09:19Z</retail:dateTimeCreated>
    <retail:dateTimeCompleted>2020-10-21T20:09:53Z</retail:dateTimeCompleted>
    <retail:trainingDetails>
        <retail:trainingMode>false</retail:trainingMode>
    </retail:trainingDetails>
    <retail:customerRetailDetails>
        <retail:relatedPartyTypeId></retail:relatedPartyTypeId>
        <retail:identityDetails/>
        <retail:validatedOnline>false</retail:validatedOnline>
        <retail:newCustomer>false</retail:newCustomer>
        <retail:marketingDetailsCaptured>false</retail:marketingDetailsCaptured>
    </retail:customerRetailDetails>
    <retail:basket>
        <retail:items>
            <retail:styleColourSizeItem isReturn="false">
                <retail:lineNumber>1</retail:lineNumber>
                <retail:description>Nike Capri Trainer</retail:description>
                <retail:deviceId>mpos1@0001.enactor</retail:deviceId>
                <retail:value>6595</retail:value>
                <retail:netValue>5936</retail:netValue>
                <retail:effectiveNetValue>5936</retail:effectiveNetValue>
                <retail:dateTimeCreated>2020-10-21T20:09:32Z</retail:dateTimeCreated>
                <retail:userId>KB</retail:userId>
                <retail:modifiers>
                    <retail:discountModifier modifierItemLine="2">
                        <retail:value>-659</retail:value>
                        <retail:effectiveValue>-659</retail:effectiveValue>
                        <retail:originalItemValue>6595</retail:originalItemValue>
                        <retail:discountType>ITEM</retail:discountType>
                    </retail:discountModifier>
                </retail:modifiers>
                <retail:modifiersNetValue>-659</retail:modifiersNetValue>
                <retail:modifiersEffectiveNetValue>-659</retail:modifiersEffectiveNetValue>
                <retail:modifiersVoidQuantity>0.0</retail:modifiersVoidQuantity>
                <retail:modifiersQuantity>0.0</retail:modifiersQuantity>
                <retail:notDiscountable>false</retail:notDiscountable>
                <retail:maxDiscount>0.0</retail:maxDiscount>
                <retail:productID>KD092JS-1</retail:productID>
                <retail:productTypeId>skuProduct</retail:productTypeId>
                <retail:unitPrice>6595</retail:unitPrice>
                <retail:quantity>1.0</retail:quantity>
                <retail:netQuantity>1.0</retail:netQuantity>
                <retail:handKeyed>true</retail:handKeyed>
                <retail:sourceInventoryType>AVA</retail:sourceInventoryType>
                <retail:orderable>true</retail:orderable>
                <retail:priceTypeId>R</retail:priceTypeId>
                <retail:productImageURL>image://PRODUCT/KD092JS-1.jpg</retail:productImageURL>
                <retail:type>VALUE</retail:type>
                <retail:mmGroupId>MENS_SHOES</retail:mmGroupId>
                <retail:mmGroupHierarchyId>FASHION</retail:mmGroupHierarchyId>
                <retail:brandGroupId>NIKE</retail:brandGroupId>
                <retail:brandGroupHierarchyId>FASHION</retail:brandGroupHierarchyId>
                <retail:mmGroupDescription>Mens Shoes</retail:mmGroupDescription>
                <retail:mmGroupVariantGroupId>All</retail:mmGroupVariantGroupId>
                <retail:mmGroupVariantHierarchyId>All</retail:mmGroupVariantHierarchyId>
                <retail:styleId>KD092JS</retail:styleId>
                <retail:sizeId sizeRangeId="MENS_SHOES">12</retail:sizeId>
                <retail:sizeDescription>12</retail:sizeDescription>
                <retail:colourId colourRangeId="MENS_SHOES">BLACK</retail:colourId>
                <retail:colourDescription>Black</retail:colourDescription>
            </retail:styleColourSizeItem>
            <retail:discountItem>
                <retail:lineNumber>2</retail:lineNumber>
                <retail:description>Item Discount</retail:description>
                <retail:deviceId>mpos1@0001.enactor</retail:deviceId>
                <retail:value>-659</retail:value>
                <retail:netValue>0</retail:netValue>
                <retail:effectiveNetValue>0</retail:effectiveNetValue>
                <retail:dateTimeCreated>2020-10-21T20:09:46Z</retail:dateTimeCreated>
                <retail:userId>KB</retail:userId>
                <retail:reasonKey>
                    <retail:reasonId>ID-UK1</retail:reasonId>
                    <retail:regionId groupHierarchyId="All" groupTypeId="region">UK</retail:regionId>
                </retail:reasonKey>
                <retail:type>PERCENTAGE</retail:type>
                <retail:reasonDescription>10% Item Discount</retail:reasonDescription>
                <retail:percentage>0.1</retail:percentage>
                <retail:roundingRule>DOWN</retail:roundingRule>
                <retail:maxDiscountPercentage>0.0</retail:maxDiscountPercentage>
                <retail:discountAmountLimit>0</retail:discountAmountLimit>
                <retail:numberCopyReceipts>0</retail:numberCopyReceipts>
                <retail:overlapping>false</retail:overlapping>
                <retail:printSignatureSlip>false</retail:printSignatureSlip>
            </retail:discountItem>
            <retail:cashTenderItem>
                <retail:lineNumber>3</retail:lineNumber>
                <retail:description>Cash UK</retail:description>
                <retail:deviceId>mpos1@0001.enactor</retail:deviceId>
                <retail:value>-5936</retail:value>
                <retail:netValue>-5936</retail:netValue>
                <retail:effectiveNetValue>-5936</retail:effectiveNetValue>
                <retail:dateTimeCreated>2020-10-21T20:09:52Z</retail:dateTimeCreated>
                <retail:userId>KB</retail:userId>
                <retail:tenderKey>
                    <retail:tenderId>CASH_UK</retail:tenderId>
                    <retail:groupId groupHierarchyId="All" groupTypeId="region">UK</retail:groupId>
                </retail:tenderKey>
                <retail:tenderType>cashTender</retail:tenderType>
                <retail:tenderAmount>5936</retail:tenderAmount>
                <retail:currencyId>GBP</retail:currencyId>
                <retail:currencyDescription>Pounds Sterling</retail:currencyDescription>
                <retail:surchargeAmount>0</retail:surchargeAmount>
                <retail:openDrawerAtEnd>false</retail:openDrawerAtEnd>
            </retail:cashTenderItem>
        </retail:items>
        <retail:balance>0</retail:balance>
        <retail:currencyId>GBP</retail:currencyId>
        <retail:currencyDescription>Pounds Sterling</retail:currencyDescription>
        <retail:taxInclusive>true</retail:taxInclusive>
        <retail:taxSchemeId>UK</retail:taxSchemeId>
        <retail:itemCount>3</retail:itemCount>
        <retail:saleItemQuantity>1.0</retail:saleItemQuantity>
        <retail:returnItemQuantity>0.0</retail:returnItemQuantity>
        <retail:returnMerchandiseItemQuantity>0.0</retail:returnMerchandiseItemQuantity>
        <retail:returnMerchandiseItemNetValue>0</retail:returnMerchandiseItemNetValue>
        <retail:saleItemNetValue>5936</retail:saleItemNetValue>
        <retail:returnItemNetValue>0</retail:returnItemNetValue>
        <retail:merchandiseItemQuantity>1.0</retail:merchandiseItemQuantity>
        <retail:merchandiseItemValue>6595</retail:merchandiseItemValue>
        <retail:total>5936</retail:total>
        <retail:grossTotal>5936</retail:grossTotal>
        <retail:taxTotal>0</retail:taxTotal>
        <retail:totalTaxAdjustment>0</retail:totalTaxAdjustment>
        <retail:preAuthBalance>0</retail:preAuthBalance>
        <retail:effectiveSaleValue>0</retail:effectiveSaleValue>
    </retail:basket>
    <retail:loyaltyPointsDetails dayNumber="0">
        <retail:loyaltyPointsBalance>0</retail:loyaltyPointsBalance>
        <retail:loyaltyPointsEarned>0</retail:loyaltyPointsEarned>
        <retail:promotionalLoyaltyPointsEarned>0</retail:promotionalLoyaltyPointsEarned>
        <retail:loyaltyPointsMissed>0</retail:loyaltyPointsMissed>
        <retail:loyaltyPointsRate>0</retail:loyaltyPointsRate>
        <retail:loyaltyAccountOffline>true</retail:loyaltyAccountOffline>
        <retail:loyaltyPointsUsed>0</retail:loyaltyPointsUsed>
        <retail:totalSpend>0</retail:totalSpend>
        <retail:spendToNextTier>0</retail:spendToNextTier>
        <retail:externalProvider>false</retail:externalProvider>
        <retail:noLoyaltyUpdate>false</retail:noLoyaltyUpdate>
        <retail:rewardValue>0</retail:rewardValue>
        <retail:rewardValueRedeemed>0</retail:rewardValueRedeemed>
    </retail:loyaltyPointsDetails>
    <retail:receiptDetails>
        <retail:taxReceiptRequested>false</retail:taxReceiptRequested>
    </retail:receiptDetails>
</retail:normalRetailSaleTransaction>

Simple Sale with Voided Item

Receipt

Transaction XML

<?xml version="1.0" encoding="UTF-8" standalone="yes"?>
<retail:normalRetailSaleTransaction xmlns:core="http://www.enactor.com/core"
    xmlns:retail="http://www.enactor.com/retail">
    <retail:applicationId>POS</retail:applicationId>
    <retail:transactionId>00010101000312010212010598</retail:transactionId>
    <retail:source>mpos1@0001.enactor</retail:source>
    <retail:sourceApplication>POS</retail:sourceApplication>
    <retail:topic>Transactions</retail:topic>
    <retail:sequenceNumber>76</retail:sequenceNumber>
    <retail:transactionNumber>31</retail:transactionNumber>
    <retail:originatedBy>
        <retail:locationId>0001</retail:locationId>
        <retail:branchNumber>1</retail:branchNumber>
        <retail:terminalNumber>101</retail:terminalNumber>
        <retail:transactionNumber>31</retail:transactionNumber>
        <retail:deviceId>mpos1@0001.enactor</retail:deviceId>
        <retail:userId>KB</retail:userId>
        <retail:regionId groupHierarchyId="All" groupTypeId="region">UK</retail:regionId>
        <retail:userEmployeeId></retail:userEmployeeId>
        <retail:printableName>Ken Bundy</retail:printableName>
    </retail:originatedBy>
    <retail:completedBy>
        <retail:locationId>0001</retail:locationId>
        <retail:branchNumber>1</retail:branchNumber>
        <retail:terminalNumber>101</retail:terminalNumber>
        <retail:transactionNumber>31</retail:transactionNumber>
        <retail:deviceId>mpos1@0001.enactor</retail:deviceId>
        <retail:userId>KB</retail:userId>
        <retail:regionId groupHierarchyId="All" groupTypeId="region">UK</retail:regionId>
        <retail:userEmployeeId></retail:userEmployeeId>
        <retail:printableName>Ken Bundy</retail:printableName>
        <retail:cashManagementMethod>TERMINAL</retail:cashManagementMethod>
        <retail:cashManagementOwnerId>101</retail:cashManagementOwnerId>
        <retail:branchName>Enactor Store</retail:branchName>
    </retail:completedBy>
    <retail:dateTimeCreated>2020-10-21T20:10:59Z</retail:dateTimeCreated>
    <retail:dateTimeCompleted>2020-10-21T20:12:13Z</retail:dateTimeCompleted>
    <retail:trainingDetails>
        <retail:trainingMode>false</retail:trainingMode>
    </retail:trainingDetails>
    <retail:customerRetailDetails>
        <retail:relatedPartyTypeId></retail:relatedPartyTypeId>
        <retail:identityDetails/>
        <retail:validatedOnline>false</retail:validatedOnline>
        <retail:newCustomer>false</retail:newCustomer>
        <retail:marketingDetailsCaptured>false</retail:marketingDetailsCaptured>
    </retail:customerRetailDetails>
    <retail:basket>
        <retail:items>
            <retail:styleColourSizeItem isReturn="false">
                <retail:lineNumber>1</retail:lineNumber>
                <retail:description>Button Down Collar Red</retail:description>
                <retail:deviceId>mpos1@0001.enactor</retail:deviceId>
                <retail:value>2595</retail:value>
                <retail:netValue>2595</retail:netValue>
                <retail:effectiveNetValue>2595</retail:effectiveNetValue>
                <retail:dateTimeCreated>2020-10-21T20:11:58Z</retail:dateTimeCreated>
                <retail:userId>KB</retail:userId>
                <retail:modifiersNetValue>0</retail:modifiersNetValue>
                <retail:modifiersEffectiveNetValue>0</retail:modifiersEffectiveNetValue>
                <retail:modifiersVoidQuantity>0.0</retail:modifiersVoidQuantity>
                <retail:modifiersQuantity>0.0</retail:modifiersQuantity>
                <retail:notDiscountable>false</retail:notDiscountable>
                <retail:maxDiscount>0.0</retail:maxDiscount>
                <retail:productID>DF517XM-3</retail:productID>
                <retail:productTypeId>skuProduct</retail:productTypeId>
                <retail:unitPrice>2595</retail:unitPrice>
                <retail:quantity>1.0</retail:quantity>
                <retail:netQuantity>1.0</retail:netQuantity>
                <retail:handKeyed>true</retail:handKeyed>
                <retail:sourceInventoryType>AVA</retail:sourceInventoryType>
                <retail:orderable>true</retail:orderable>
                <retail:priceTypeId>R</retail:priceTypeId>
                <retail:productImageURL>image://PRODUCT/DF517XM-2.jpg</retail:productImageURL>
                <retail:type>VALUE</retail:type>
                <retail:mmGroupId>MENS_SHIRTS</retail:mmGroupId>
                <retail:mmGroupHierarchyId>FASHION</retail:mmGroupHierarchyId>
                <retail:brandGroupId>INTERNAL</retail:brandGroupId>
                <retail:brandGroupHierarchyId>FASHION</retail:brandGroupHierarchyId>
                <retail:mmGroupDescription>Mens Shirts</retail:mmGroupDescription>
                <retail:mmGroupVariantGroupId>All</retail:mmGroupVariantGroupId>
                <retail:mmGroupVariantHierarchyId>All</retail:mmGroupVariantHierarchyId>
                <retail:styleId>DF517XM</retail:styleId>
                <retail:sizeId sizeRangeId="MENS_SHIRTS">L</retail:sizeId>
                <retail:sizeDescription>L</retail:sizeDescription>
                <retail:colourId colourRangeId="MENS_SHIRTS">RED</retail:colourId>
                <retail:colourDescription>Red</retail:colourDescription>
            </retail:styleColourSizeItem>
            <retail:styleColourSizeItem isReturn="false">
                <retail:lineNumber>2</retail:lineNumber>
                <retail:description>Nike Capri Trainer</retail:description>
                <retail:deviceId>mpos1@0001.enactor</retail:deviceId>
                <retail:value>6595</retail:value>
                <retail:netValue>0</retail:netValue>
                <retail:effectiveNetValue>0</retail:effectiveNetValue>
                <retail:dateTimeCreated>2020-10-21T20:12:01Z</retail:dateTimeCreated>
                <retail:userId>KB</retail:userId>
                <retail:voided>true</retail:voided>
                <retail:modifiers>
                    <retail:voidModifier modifierItemLine="3">
                        <retail:voidQuantity>1.0</retail:voidQuantity>
                    </retail:voidModifier>
                </retail:modifiers>
                <retail:modifiersNetValue>0</retail:modifiersNetValue>
                <retail:modifiersEffectiveNetValue>0</retail:modifiersEffectiveNetValue>
                <retail:modifiersVoidQuantity>1.0</retail:modifiersVoidQuantity>
                <retail:modifiersQuantity>-1.0</retail:modifiersQuantity>
                <retail:notDiscountable>false</retail:notDiscountable>
                <retail:maxDiscount>0.0</retail:maxDiscount>
                <retail:productID>KD092JS-1</retail:productID>
                <retail:productTypeId>skuProduct</retail:productTypeId>
                <retail:unitPrice>6595</retail:unitPrice>
                <retail:quantity>1.0</retail:quantity>
                <retail:netQuantity>0.0</retail:netQuantity>
                <retail:handKeyed>true</retail:handKeyed>
                <retail:sourceInventoryType>AVA</retail:sourceInventoryType>
                <retail:orderable>true</retail:orderable>
                <retail:priceTypeId>R</retail:priceTypeId>
                <retail:productImageURL>image://PRODUCT/KD092JS-1.jpg</retail:productImageURL>
                <retail:type>VALUE</retail:type>
                <retail:mmGroupId>MENS_SHOES</retail:mmGroupId>
                <retail:mmGroupHierarchyId>FASHION</retail:mmGroupHierarchyId>
                <retail:brandGroupId>NIKE</retail:brandGroupId>
                <retail:brandGroupHierarchyId>FASHION</retail:brandGroupHierarchyId>
                <retail:mmGroupDescription>Mens Shoes</retail:mmGroupDescription>
                <retail:mmGroupVariantGroupId>All</retail:mmGroupVariantGroupId>
                <retail:mmGroupVariantHierarchyId>All</retail:mmGroupVariantHierarchyId>
                <retail:styleId>KD092JS</retail:styleId>
                <retail:sizeId sizeRangeId="MENS_SHOES">12</retail:sizeId>
                <retail:sizeDescription>12</retail:sizeDescription>
                <retail:colourId colourRangeId="MENS_SHOES">BLACK</retail:colourId>
                <retail:colourDescription>Black</retail:colourDescription>
            </retail:styleColourSizeItem>
            <retail:voidItem voidedLine="2">
                <retail:lineNumber>3</retail:lineNumber>
                <retail:deviceId>mpos1@0001.enactor</retail:deviceId>
                <retail:value>-6595</retail:value>
                <retail:netValue>0</retail:netValue>
                <retail:effectiveNetValue>0</retail:effectiveNetValue>
                <retail:dateTimeCreated>2020-10-21T20:12:09Z</retail:dateTimeCreated>
                <retail:userId>KB</retail:userId>
                <retail:reasonKey>
                    <retail:reasonId>IV-UK1</retail:reasonId>
                    <retail:regionId groupHierarchyId="All" groupTypeId="region">UK</retail:regionId>
                </retail:reasonKey>
                <retail:notVoidable>true</retail:notVoidable>
                <retail:type>VOID</retail:type>
                <retail:voidQuantity>1.0</retail:voidQuantity>
            </retail:voidItem>
            <retail:cashTenderItem>
                <retail:lineNumber>4</retail:lineNumber>
                <retail:description>Cash UK</retail:description>
                <retail:deviceId>mpos1@0001.enactor</retail:deviceId>
                <retail:value>-2595</retail:value>
                <retail:netValue>-2595</retail:netValue>
                <retail:effectiveNetValue>-2595</retail:effectiveNetValue>
                <retail:dateTimeCreated>2020-10-21T20:12:12Z</retail:dateTimeCreated>
                <retail:userId>KB</retail:userId>
                <retail:tenderKey>
                    <retail:tenderId>CASH_UK</retail:tenderId>
                    <retail:groupId groupHierarchyId="All" groupTypeId="region">UK</retail:groupId>
                </retail:tenderKey>
                <retail:tenderType>cashTender</retail:tenderType>
                <retail:tenderAmount>2595</retail:tenderAmount>
                <retail:currencyId>GBP</retail:currencyId>
                <retail:currencyDescription>Pounds Sterling</retail:currencyDescription>
                <retail:surchargeAmount>0</retail:surchargeAmount>
                <retail:openDrawerAtEnd>false</retail:openDrawerAtEnd>
            </retail:cashTenderItem>
        </retail:items>
        <retail:balance>0</retail:balance>
        <retail:currencyId>GBP</retail:currencyId>
        <retail:currencyDescription>Pounds Sterling</retail:currencyDescription>
        <retail:taxInclusive>true</retail:taxInclusive>
        <retail:taxSchemeId>UK</retail:taxSchemeId>
        <retail:itemCount>4</retail:itemCount>
        <retail:saleItemQuantity>1.0</retail:saleItemQuantity>
        <retail:returnItemQuantity>0.0</retail:returnItemQuantity>
        <retail:returnMerchandiseItemQuantity>0.0</retail:returnMerchandiseItemQuantity>
        <retail:returnMerchandiseItemNetValue>0</retail:returnMerchandiseItemNetValue>
        <retail:saleItemNetValue>2595</retail:saleItemNetValue>
        <retail:returnItemNetValue>0</retail:returnItemNetValue>
        <retail:merchandiseItemQuantity>1.0</retail:merchandiseItemQuantity>
        <retail:merchandiseItemValue>2595</retail:merchandiseItemValue>
        <retail:total>2595</retail:total>
        <retail:grossTotal>2595</retail:grossTotal>
        <retail:taxTotal>0</retail:taxTotal>
        <retail:totalTaxAdjustment>0</retail:totalTaxAdjustment>
        <retail:preAuthBalance>0</retail:preAuthBalance>
        <retail:effectiveSaleValue>0</retail:effectiveSaleValue>
    </retail:basket>
    <retail:loyaltyPointsDetails dayNumber="0">
        <retail:loyaltyPointsBalance>0</retail:loyaltyPointsBalance>
        <retail:loyaltyPointsEarned>0</retail:loyaltyPointsEarned>
        <retail:promotionalLoyaltyPointsEarned>0</retail:promotionalLoyaltyPointsEarned>
        <retail:loyaltyPointsMissed>0</retail:loyaltyPointsMissed>
        <retail:loyaltyPointsRate>0</retail:loyaltyPointsRate>
        <retail:loyaltyAccountOffline>true</retail:loyaltyAccountOffline>
        <retail:loyaltyPointsUsed>0</retail:loyaltyPointsUsed>
        <retail:totalSpend>0</retail:totalSpend>
        <retail:spendToNextTier>0</retail:spendToNextTier>
        <retail:externalProvider>false</retail:externalProvider>
        <retail:noLoyaltyUpdate>false</retail:noLoyaltyUpdate>
        <retail:rewardValue>0</retail:rewardValue>
        <retail:rewardValueRedeemed>0</retail:rewardValueRedeemed>
    </retail:loyaltyPointsDetails>
    <retail:receiptDetails>
        <retail:taxReceiptRequested>false</retail:taxReceiptRequested>
    </retail:receiptDetails>
</retail:normalRetailSaleTransaction>

Sale with Quantity and Split Tender

Receipt

Transaction XML

<?xml version="1.0" encoding="UTF-8" standalone="yes"?>
<retail:normalRetailSaleTransaction xmlns:core="http://www.enactor.com/core"
    xmlns:retail="http://www.enactor.com/retail">
    <retail:applicationId>POS</retail:applicationId>
    <retail:transactionId>00010101000332010220050517</retail:transactionId>
    <retail:source>mpos1@0001.enactor</retail:source>
    <retail:sourceApplication>POS</retail:sourceApplication>
    <retail:topic>Transactions</retail:topic>
    <retail:sequenceNumber>78</retail:sequenceNumber>
    <retail:transactionNumber>33</retail:transactionNumber>
    <retail:originatedBy>
        <retail:locationId>0001</retail:locationId>
        <retail:branchNumber>1</retail:branchNumber>
        <retail:terminalNumber>101</retail:terminalNumber>
        <retail:transactionNumber>33</retail:transactionNumber>
        <retail:deviceId>mpos1@0001.enactor</retail:deviceId>
        <retail:userId>KB</retail:userId>
        <retail:regionId groupHierarchyId="All" groupTypeId="region">UK</retail:regionId>
        <retail:userEmployeeId></retail:userEmployeeId>
        <retail:printableName>Ken Bundy</retail:printableName>
    </retail:originatedBy>
    <retail:completedBy>
        <retail:locationId>0001</retail:locationId>
        <retail:branchNumber>1</retail:branchNumber>
        <retail:terminalNumber>101</retail:terminalNumber>
        <retail:transactionNumber>33</retail:transactionNumber>
        <retail:deviceId>mpos1@0001.enactor</retail:deviceId>
        <retail:userId>KB</retail:userId>
        <retail:regionId groupHierarchyId="All" groupTypeId="region">UK</retail:regionId>
        <retail:userEmployeeId></retail:userEmployeeId>
        <retail:printableName>Ken Bundy</retail:printableName>
        <retail:cashManagementMethod>TERMINAL</retail:cashManagementMethod>
        <retail:cashManagementOwnerId>101</retail:cashManagementOwnerId>
        <retail:branchName>Enactor Store</retail:branchName>
    </retail:completedBy>
    <retail:dateTimeCreated>2020-10-22T00:50:51Z</retail:dateTimeCreated>
    <retail:dateTimeCompleted>2020-10-22T01:30:06Z</retail:dateTimeCompleted>
    <retail:trainingDetails>
        <retail:trainingMode>false</retail:trainingMode>
    </retail:trainingDetails>
    <retail:customerRetailDetails>
        <retail:relatedPartyTypeId></retail:relatedPartyTypeId>
        <retail:identityDetails/>
        <retail:validatedOnline>false</retail:validatedOnline>
        <retail:newCustomer>false</retail:newCustomer>
        <retail:marketingDetailsCaptured>false</retail:marketingDetailsCaptured>
    </retail:customerRetailDetails>
    <retail:basket>
        <retail:items>
            <retail:styleColourSizeItem isReturn="false">
                <retail:lineNumber>1</retail:lineNumber>
                <retail:description>Nike Capri Trainer</retail:description>
                <retail:deviceId>mpos1@0001.enactor</retail:deviceId>
                <retail:value>13190</retail:value>
                <retail:netValue>13190</retail:netValue>
                <retail:effectiveNetValue>13190</retail:effectiveNetValue>
                <retail:dateTimeCreated>2020-10-22T01:29:14Z</retail:dateTimeCreated>
                <retail:userId>KB</retail:userId>
                <retail:modifiers>
                    <retail:quantityModifier modifierItemLine="2">
                        <retail:newQuantity>2.0</retail:newQuantity>
                        <retail:originalQuantity>1.0</retail:originalQuantity>
                    </retail:quantityModifier>
                </retail:modifiers>
                <retail:modifiersNetValue>0</retail:modifiersNetValue>
                <retail:modifiersEffectiveNetValue>0</retail:modifiersEffectiveNetValue>
                <retail:modifiersVoidQuantity>0.0</retail:modifiersVoidQuantity>
                <retail:modifiersQuantity>0.0</retail:modifiersQuantity>
                <retail:notDiscountable>false</retail:notDiscountable>
                <retail:maxDiscount>0.0</retail:maxDiscount>
                <retail:productID>KD092JS-1</retail:productID>
                <retail:productTypeId>skuProduct</retail:productTypeId>
                <retail:unitPrice>6595</retail:unitPrice>
                <retail:quantity>2.0</retail:quantity>
                <retail:netQuantity>2.0</retail:netQuantity>
                <retail:handKeyed>true</retail:handKeyed>
                <retail:sourceInventoryType>AVA</retail:sourceInventoryType>
                <retail:orderable>true</retail:orderable>
                <retail:priceTypeId>R</retail:priceTypeId>
                <retail:productImageURL>image://PRODUCT/KD092JS-1.jpg</retail:productImageURL>
                <retail:type>VALUE</retail:type>
                <retail:mmGroupId>MENS_SHOES</retail:mmGroupId>
                <retail:mmGroupHierarchyId>FASHION</retail:mmGroupHierarchyId>
                <retail:brandGroupId>NIKE</retail:brandGroupId>
                <retail:brandGroupHierarchyId>FASHION</retail:brandGroupHierarchyId>
                <retail:mmGroupDescription>Mens Shoes</retail:mmGroupDescription>
                <retail:mmGroupVariantGroupId>All</retail:mmGroupVariantGroupId>
                <retail:mmGroupVariantHierarchyId>All</retail:mmGroupVariantHierarchyId>
                <retail:styleId>KD092JS</retail:styleId>
                <retail:sizeId sizeRangeId="MENS_SHOES">12</retail:sizeId>
                <retail:sizeDescription>12</retail:sizeDescription>
                <retail:colourId colourRangeId="MENS_SHOES">BLACK</retail:colourId>
                <retail:colourDescription>Black</retail:colourDescription>
            </retail:styleColourSizeItem>
            <retail:quantityModifierItem>
                <retail:lineNumber>2</retail:lineNumber>
                <retail:description>Modify Quantity</retail:description>
                <retail:deviceId>mpos1@0001.enactor</retail:deviceId>
                <retail:dateTimeCreated>2020-10-22T01:29:34Z</retail:dateTimeCreated>
                <retail:userId>KB</retail:userId>
                <retail:type>QUANTITY</retail:type>
                <retail:newQuantity>2.0</retail:newQuantity>
            </retail:quantityModifierItem>
            <retail:cashTenderItem>
                <retail:lineNumber>3</retail:lineNumber>
                <retail:description>Cash UK</retail:description>
                <retail:deviceId>mpos1@0001.enactor</retail:deviceId>
                <retail:value>-10000</retail:value>
                <retail:netValue>-10000</retail:netValue>
                <retail:effectiveNetValue>-10000</retail:effectiveNetValue>
                <retail:dateTimeCreated>2020-10-22T01:29:54Z</retail:dateTimeCreated>
                <retail:userId>KB</retail:userId>
                <retail:tenderKey>
                    <retail:tenderId>CASH_UK</retail:tenderId>
                    <retail:groupId groupHierarchyId="All" groupTypeId="region">UK</retail:groupId>
                </retail:tenderKey>
                <retail:tenderType>cashTender</retail:tenderType>
                <retail:tenderAmount>10000</retail:tenderAmount>
                <retail:currencyId>GBP</retail:currencyId>
                <retail:currencyDescription>Pounds Sterling</retail:currencyDescription>
                <retail:surchargeAmount>0</retail:surchargeAmount>
                <retail:openDrawerAtEnd>false</retail:openDrawerAtEnd>
            </retail:cashTenderItem>
            <retail:cashTenderItem>
                <retail:lineNumber>4</retail:lineNumber>
                <retail:description>Cash UK</retail:description>
                <retail:deviceId>mpos1@0001.enactor</retail:deviceId>
                <retail:value>-5000</retail:value>
                <retail:netValue>-5000</retail:netValue>
                <retail:effectiveNetValue>-5000</retail:effectiveNetValue>
                <retail:dateTimeCreated>2020-10-22T01:30:06Z</retail:dateTimeCreated>
                <retail:userId>KB</retail:userId>
                <retail:childLineNumbers>5</retail:childLineNumbers>
                <retail:tenderKey>
                    <retail:tenderId>CASH_UK</retail:tenderId>
                    <retail:groupId groupHierarchyId="All" groupTypeId="region">UK</retail:groupId>
                </retail:tenderKey>
                <retail:tenderType>cashTender</retail:tenderType>
                <retail:tenderAmount>5000</retail:tenderAmount>
                <retail:currencyId>GBP</retail:currencyId>
                <retail:currencyDescription>Pounds Sterling</retail:currencyDescription>
                <retail:surchargeAmount>0</retail:surchargeAmount>
                <retail:openDrawerAtEnd>false</retail:openDrawerAtEnd>
            </retail:cashTenderItem>
            <retail:cashTenderItem>
                <retail:lineNumber>5</retail:lineNumber>
                <retail:description>Cash UK</retail:description>
                <retail:deviceId>mpos1@0001.enactor</retail:deviceId>
                <retail:value>1810</retail:value>
                <retail:netValue>1810</retail:netValue>
                <retail:effectiveNetValue>1810</retail:effectiveNetValue>
                <retail:dateTimeCreated>2020-10-22T01:30:06.344Z</retail:dateTimeCreated>
                <retail:userId>KB</retail:userId>
                <retail:tenderKey>
                    <retail:tenderId>CASH_UK</retail:tenderId>
                    <retail:groupId groupHierarchyId="All" groupTypeId="region">UK</retail:groupId>
                </retail:tenderKey>
                <retail:tenderType>cashTender</retail:tenderType>
                <retail:tenderAmount>1810</retail:tenderAmount>
                <retail:isChange>true</retail:isChange>
                <retail:currencyId>GBP</retail:currencyId>
                <retail:currencyDescription>Pounds Sterling</retail:currencyDescription>
                <retail:openDrawerAtEnd>true</retail:openDrawerAtEnd>
            </retail:cashTenderItem>
        </retail:items>
        <retail:balance>0</retail:balance>
        <retail:currencyId>GBP</retail:currencyId>
        <retail:currencyDescription>Pounds Sterling</retail:currencyDescription>
        <retail:taxInclusive>true</retail:taxInclusive>
        <retail:taxSchemeId>UK</retail:taxSchemeId>
        <retail:itemCount>5</retail:itemCount>
        <retail:saleItemQuantity>2.0</retail:saleItemQuantity>
        <retail:returnItemQuantity>0.0</retail:returnItemQuantity>
        <retail:returnMerchandiseItemQuantity>0.0</retail:returnMerchandiseItemQuantity>
        <retail:returnMerchandiseItemNetValue>0</retail:returnMerchandiseItemNetValue>
        <retail:saleItemNetValue>13190</retail:saleItemNetValue>
        <retail:returnItemNetValue>0</retail:returnItemNetValue>
        <retail:merchandiseItemQuantity>2.0</retail:merchandiseItemQuantity>
        <retail:merchandiseItemValue>13190</retail:merchandiseItemValue>
        <retail:total>13190</retail:total>
        <retail:grossTotal>13190</retail:grossTotal>
        <retail:taxTotal>0</retail:taxTotal>
        <retail:totalTaxAdjustment>0</retail:totalTaxAdjustment>
        <retail:preAuthBalance>0</retail:preAuthBalance>
        <retail:effectiveSaleValue>0</retail:effectiveSaleValue>
    </retail:basket>
    <retail:loyaltyPointsDetails dayNumber="0">
        <retail:loyaltyPointsBalance>0</retail:loyaltyPointsBalance>
        <retail:loyaltyPointsEarned>0</retail:loyaltyPointsEarned>
        <retail:promotionalLoyaltyPointsEarned>0</retail:promotionalLoyaltyPointsEarned>
        <retail:loyaltyPointsMissed>0</retail:loyaltyPointsMissed>
        <retail:loyaltyPointsRate>0</retail:loyaltyPointsRate>
        <retail:loyaltyAccountOffline>true</retail:loyaltyAccountOffline>
        <retail:loyaltyPointsUsed>0</retail:loyaltyPointsUsed>
        <retail:totalSpend>0</retail:totalSpend>
        <retail:spendToNextTier>0</retail:spendToNextTier>
        <retail:externalProvider>false</retail:externalProvider>
        <retail:noLoyaltyUpdate>false</retail:noLoyaltyUpdate>
        <retail:rewardValue>0</retail:rewardValue>
        <retail:rewardValueRedeemed>0</retail:rewardValueRedeemed>
    </retail:loyaltyPointsDetails>
    <retail:receiptDetails>
        <retail:taxReceiptRequested>false</retail:taxReceiptRequested>
    </retail:receiptDetails>
</retail:normalRetailSaleTransaction>

Employee Sale

Receipt

Transaction XML

<?xml version="1.0" encoding="UTF-8" standalone="yes"?>
<retail:employeeRetailSaleTransaction xmlns:core="http://www.enactor.com/core"
    xmlns:retail="http://www.enactor.com/retail">
    <retail:applicationId>POS</retail:applicationId>
    <retail:transactionId>00010101000352010220201198</retail:transactionId>
    <retail:source>mpos1@0001.enactor</retail:source>
    <retail:sourceApplication>POS</retail:sourceApplication>
    <retail:topic>Transactions</retail:topic>
    <retail:sequenceNumber>80</retail:sequenceNumber>
    <retail:transactionNumber>35</retail:transactionNumber>
    <retail:originatedBy>
        <retail:locationId>0001</retail:locationId>
        <retail:branchNumber>1</retail:branchNumber>
        <retail:terminalNumber>101</retail:terminalNumber>
        <retail:transactionNumber>35</retail:transactionNumber>
        <retail:deviceId>mpos1@0001.enactor</retail:deviceId>
        <retail:userId>KB</retail:userId>
        <retail:regionId groupHierarchyId="All" groupTypeId="region">UK</retail:regionId>
        <retail:userEmployeeId></retail:userEmployeeId>
        <retail:printableName>Ken Bundy</retail:printableName>
    </retail:originatedBy>
    <retail:completedBy>
        <retail:locationId>0001</retail:locationId>
        <retail:branchNumber>1</retail:branchNumber>
        <retail:terminalNumber>101</retail:terminalNumber>
        <retail:transactionNumber>35</retail:transactionNumber>
        <retail:deviceId>mpos1@0001.enactor</retail:deviceId>
        <retail:userId>KB</retail:userId>
        <retail:regionId groupHierarchyId="All" groupTypeId="region">UK</retail:regionId>
        <retail:userEmployeeId></retail:userEmployeeId>
        <retail:printableName>Ken Bundy</retail:printableName>
        <retail:cashManagementMethod>TERMINAL</retail:cashManagementMethod>
        <retail:cashManagementOwnerId>101</retail:cashManagementOwnerId>
        <retail:branchName>Enactor Store</retail:branchName>
    </retail:completedBy>
    <retail:dateTimeCreated>2020-10-22T02:01:19Z</retail:dateTimeCreated>
    <retail:dateTimeCompleted>2020-10-22T02:01:35Z</retail:dateTimeCompleted>
    <retail:trainingDetails>
        <retail:trainingMode>false</retail:trainingMode>
    </retail:trainingDetails>
    <retail:customerRetailDetails>
        <retail:relatedPartyTypeId></retail:relatedPartyTypeId>
        <retail:identityDetails/>
        <retail:validatedOnline>false</retail:validatedOnline>
        <retail:newCustomer>false</retail:newCustomer>
        <retail:marketingDetailsCaptured>false</retail:marketingDetailsCaptured>
    </retail:customerRetailDetails>
    <retail:basket>
        <retail:items>
            <retail:employeeSaleTransactionDiscountItem>
                <retail:lineNumber>1</retail:lineNumber>
                <retail:deviceId>mpos1@0001.enactor</retail:deviceId>
                <retail:value>-1319</retail:value>
                <retail:reasonKey>
                    <retail:reasonId>ES-UK1</retail:reasonId>
                    <retail:regionId groupHierarchyId="All" groupTypeId="region">UK</retail:regionId>
                </retail:reasonKey>
                <retail:referenceNumber></retail:referenceNumber>
                <retail:type>VALUE</retail:type>
                <retail:reasonDescription>Employee Sale</retail:reasonDescription>
                <retail:postPromotion>true</retail:postPromotion>
                <retail:roundingRule>DOWN</retail:roundingRule>
                <retail:numberCopyReceipts>0</retail:numberCopyReceipts>
                <retail:overlapping>true</retail:overlapping>
                <retail:printSignatureSlip>true</retail:printSignatureSlip>
                <retail:employeeId>1</retail:employeeId>
                <retail:employeeLocationId>0001</retail:employeeLocationId>
                <retail:affectEmployeeBalance>true</retail:affectEmployeeBalance>
                <retail:adjustBalanceBy>DISCOUNT</retail:adjustBalanceBy>
                <retail:employeeDiscountAllowance>0</retail:employeeDiscountAllowance>
                <retail:usedDiscountAllowance>0</retail:usedDiscountAllowance>
                <retail:accountBalanceUpdateAccountType>employeeDiscountBalanceAccount</retail:accountBalanceUpdateAccountType>
                <retail:accountUpdateBalanceCommited>false</retail:accountUpdateBalanceCommited>
                <retail:accountBalanceUpdateBalanceDate>2020-10-22T02:01:35Z</retail:accountBalanceUpdateBalanceDate>
                <retail:employeeName>
                    <retail:surname>Granger</retail:surname>
                    <retail:forename>Sam</retail:forename>
                    <retail:initials>S</retail:initials>
                    <retail:title>Mr</retail:title>
                    <retail:sex>MALE</retail:sex>
                    <retail:dateOfBirth>1964-08-17T00:00:00+01:00</retail:dateOfBirth>
                </retail:employeeName>
                <retail:dataFromAccountBalance>true</retail:dataFromAccountBalance>
                <retail:employeeDiscountType>EMPLOYEE</retail:employeeDiscountType>
                <retail:employeeDiscount>0.2</retail:employeeDiscount>
                <retail:employeeAllowanceDiscount>0.2</retail:employeeAllowanceDiscount>
                <retail:appliesAfterPromotions>false</retail:appliesAfterPromotions>
                <retail:excludeReceiptReturn>false</retail:excludeReceiptReturn>
            </retail:employeeSaleTransactionDiscountItem>
            <retail:styleColourSizeItem isReturn="false">
                <retail:lineNumber>2</retail:lineNumber>
                <retail:description>Nike Capri Trainer</retail:description>
                <retail:deviceId>mpos1@0001.enactor</retail:deviceId>
                <retail:value>6595</retail:value>
                <retail:netValue>5276</retail:netValue>
                <retail:effectiveNetValue>5276</retail:effectiveNetValue>
                <retail:dateTimeCreated>2020-10-22T02:01:25Z</retail:dateTimeCreated>
                <retail:userId>KB</retail:userId>
                <retail:modifiers>
                    <retail:employeeDiscountModifier modifierItemLine="1">
                        <retail:value>-1319</retail:value>
                        <retail:effectiveValue>-1319</retail:effectiveValue>
                        <retail:originalItemValue>6595</retail:originalItemValue>
                        <retail:discountType>TRANSACTION</retail:discountType>
                        <retail:displayPercentage>0.2</retail:displayPercentage>
                        <retail:affectBalance>false</retail:affectBalance>
                        <retail:discountedValue>0</retail:discountedValue>
                        <retail:effectivePercentage>0.2</retail:effectivePercentage>
                    </retail:employeeDiscountModifier>
                </retail:modifiers>
                <retail:modifiersNetValue>-1319</retail:modifiersNetValue>
                <retail:modifiersEffectiveNetValue>-1319</retail:modifiersEffectiveNetValue>
                <retail:modifiersVoidQuantity>0.0</retail:modifiersVoidQuantity>
                <retail:modifiersQuantity>0.0</retail:modifiersQuantity>
                <retail:notDiscountable>false</retail:notDiscountable>
                <retail:maxDiscount>0.0</retail:maxDiscount>
                <retail:productID>KD092JS-1</retail:productID>
                <retail:productTypeId>skuProduct</retail:productTypeId>
                <retail:unitPrice>6595</retail:unitPrice>
                <retail:quantity>1.0</retail:quantity>
                <retail:netQuantity>1.0</retail:netQuantity>
                <retail:handKeyed>true</retail:handKeyed>
                <retail:sourceInventoryType>AVA</retail:sourceInventoryType>
                <retail:orderable>true</retail:orderable>
                <retail:priceTypeId>R</retail:priceTypeId>
                <retail:productImageURL>image://PRODUCT/KD092JS-1.jpg</retail:productImageURL>
                <retail:type>VALUE</retail:type>
                <retail:mmGroupId>MENS_SHOES</retail:mmGroupId>
                <retail:mmGroupHierarchyId>FASHION</retail:mmGroupHierarchyId>
                <retail:brandGroupId>NIKE</retail:brandGroupId>
                <retail:brandGroupHierarchyId>FASHION</retail:brandGroupHierarchyId>
                <retail:mmGroupDescription>Mens Shoes</retail:mmGroupDescription>
                <retail:mmGroupVariantGroupId>All</retail:mmGroupVariantGroupId>
                <retail:mmGroupVariantHierarchyId>All</retail:mmGroupVariantHierarchyId>
                <retail:styleId>KD092JS</retail:styleId>
                <retail:sizeId sizeRangeId="MENS_SHOES">12</retail:sizeId>
                <retail:sizeDescription>12</retail:sizeDescription>
                <retail:colourId colourRangeId="MENS_SHOES">BLACK</retail:colourId>
                <retail:colourDescription>Black</retail:colourDescription>
            </retail:styleColourSizeItem>
            <retail:cashTenderItem>
                <retail:lineNumber>3</retail:lineNumber>
                <retail:description>Cash UK</retail:description>
                <retail:deviceId>mpos1@0001.enactor</retail:deviceId>
                <retail:value>-5276</retail:value>
                <retail:netValue>-5276</retail:netValue>
                <retail:effectiveNetValue>-5276</retail:effectiveNetValue>
                <retail:dateTimeCreated>2020-10-22T02:01:31Z</retail:dateTimeCreated>
                <retail:userId>KB</retail:userId>
                <retail:tenderKey>
                    <retail:tenderId>CASH_UK</retail:tenderId>
                    <retail:groupId groupHierarchyId="All" groupTypeId="region">UK</retail:groupId>
                </retail:tenderKey>
                <retail:tenderType>cashTender</retail:tenderType>
                <retail:tenderAmount>5276</retail:tenderAmount>
                <retail:currencyId>GBP</retail:currencyId>
                <retail:currencyDescription>Pounds Sterling</retail:currencyDescription>
                <retail:surchargeAmount>0</retail:surchargeAmount>
                <retail:openDrawerAtEnd>false</retail:openDrawerAtEnd>
            </retail:cashTenderItem>
        </retail:items>
        <retail:balance>0</retail:balance>
        <retail:currencyId>GBP</retail:currencyId>
        <retail:currencyDescription>Pounds Sterling</retail:currencyDescription>
        <retail:taxInclusive>true</retail:taxInclusive>
        <retail:taxSchemeId>UK</retail:taxSchemeId>
        <retail:itemCount>3</retail:itemCount>
        <retail:saleItemQuantity>1.0</retail:saleItemQuantity>
        <retail:returnItemQuantity>0.0</retail:returnItemQuantity>
        <retail:returnMerchandiseItemQuantity>0.0</retail:returnMerchandiseItemQuantity>
        <retail:returnMerchandiseItemNetValue>0</retail:returnMerchandiseItemNetValue>
        <retail:saleItemNetValue>5276</retail:saleItemNetValue>
        <retail:returnItemNetValue>0</retail:returnItemNetValue>
        <retail:merchandiseItemQuantity>1.0</retail:merchandiseItemQuantity>
        <retail:merchandiseItemValue>6595</retail:merchandiseItemValue>
        <retail:total>5276</retail:total>
        <retail:grossTotal>5276</retail:grossTotal>
        <retail:taxTotal>0</retail:taxTotal>
        <retail:totalTaxAdjustment>0</retail:totalTaxAdjustment>
        <retail:preAuthBalance>0</retail:preAuthBalance>
        <retail:effectiveSaleValue>0</retail:effectiveSaleValue>
    </retail:basket>
    <retail:loyaltyPointsDetails dayNumber="0">
        <retail:loyaltyPointsBalance>0</retail:loyaltyPointsBalance>
        <retail:loyaltyPointsEarned>0</retail:loyaltyPointsEarned>
        <retail:promotionalLoyaltyPointsEarned>0</retail:promotionalLoyaltyPointsEarned>
        <retail:loyaltyPointsMissed>0</retail:loyaltyPointsMissed>
        <retail:loyaltyPointsRate>0</retail:loyaltyPointsRate>
        <retail:loyaltyAccountOffline>true</retail:loyaltyAccountOffline>
        <retail:loyaltyPointsUsed>0</retail:loyaltyPointsUsed>
        <retail:totalSpend>0</retail:totalSpend>
        <retail:spendToNextTier>0</retail:spendToNextTier>
        <retail:externalProvider>false</retail:externalProvider>
        <retail:noLoyaltyUpdate>false</retail:noLoyaltyUpdate>
        <retail:rewardValue>0</retail:rewardValue>
        <retail:rewardValueRedeemed>0</retail:rewardValueRedeemed>
    </retail:loyaltyPointsDetails>
    <retail:receiptDetails>
        <retail:taxReceiptRequested>false</retail:taxReceiptRequested>
    </retail:receiptDetails>
    <retail:employeeNumber>1</retail:employeeNumber>
    <retail:employeeCardDetails>
        <retail:pan>1</retail:pan>
        <retail:keyed>true</retail:keyed>
    </retail:employeeCardDetails>
</retail:employeeRetailSaleTransaction>

Simple Refund

Receipt

Transaction XML

<?xml version="1.0" encoding="UTF-8" standalone="yes"?>
<retail:normalRetailSaleTransaction xmlns:core="http://www.enactor.com/core"
    xmlns:retail="http://www.enactor.com/retail">
    <retail:applicationId>POS</retail:applicationId>
    <retail:transactionId>00010101000262010152007117</retail:transactionId>
    <retail:source>mpos1@0001.enactor</retail:source>
    <retail:sourceApplication>POS</retail:sourceApplication>
    <retail:topic>Transactions</retail:topic>
    <retail:sequenceNumber>58</retail:sequenceNumber>
    <retail:transactionNumber>26</retail:transactionNumber>
    <retail:originatedBy>
        <retail:locationId>0001</retail:locationId>
        <retail:branchNumber>1</retail:branchNumber>
        <retail:terminalNumber>101</retail:terminalNumber>
        <retail:transactionNumber>26</retail:transactionNumber>
        <retail:deviceId>mpos1@0001.enactor</retail:deviceId>
        <retail:userId>KB</retail:userId>
        <retail:regionId groupHierarchyId="All" groupTypeId="region">UK</retail:regionId>
        <retail:userEmployeeId></retail:userEmployeeId>
        <retail:printableName>Ken Bundy</retail:printableName>
    </retail:originatedBy>
    <retail:completedBy>
        <retail:locationId>0001</retail:locationId>
        <retail:branchNumber>1</retail:branchNumber>
        <retail:terminalNumber>101</retail:terminalNumber>
        <retail:transactionNumber>26</retail:transactionNumber>
        <retail:deviceId>mpos1@0001.enactor</retail:deviceId>
        <retail:userId>KB</retail:userId>
        <retail:regionId groupHierarchyId="All" groupTypeId="region">UK</retail:regionId>
        <retail:userEmployeeId></retail:userEmployeeId>
        <retail:printableName>Ken Bundy</retail:printableName>
        <retail:cashManagementMethod>TERMINAL</retail:cashManagementMethod>
        <retail:cashManagementOwnerId>101</retail:cashManagementOwnerId>
        <retail:branchName>Enactor Store</retail:branchName>
    </retail:completedBy>
    <retail:dateTimeCreated>2020-10-15T20:07:11Z</retail:dateTimeCreated>
    <retail:dateTimeCompleted>2020-10-15T20:07:49Z</retail:dateTimeCompleted>
    <retail:trainingDetails>
        <retail:trainingMode>false</retail:trainingMode>
    </retail:trainingDetails>
    <retail:customerRetailDetails>
        <retail:relatedPartyTypeId></retail:relatedPartyTypeId>
        <retail:identityDetails/>
        <retail:customerNumber></retail:customerNumber>
        <retail:validatedOnline>false</retail:validatedOnline>
        <retail:newCustomer>false</retail:newCustomer>
        <retail:marketingDetailsCaptured>false</retail:marketingDetailsCaptured>
    </retail:customerRetailDetails>
    <retail:basket>
        <retail:items>
            <retail:styleColourSizeReturnItem isReturn="true">
                <retail:lineNumber>1</retail:lineNumber>
                <retail:description>Nike Capri Trainer</retail:description>
                <retail:deviceId>mpos1@0001.enactor</retail:deviceId>
                <retail:value>-6595</retail:value>
                <retail:netValue>-6595</retail:netValue>
                <retail:effectiveNetValue>-6595</retail:effectiveNetValue>
                <retail:dateTimeCreated>2020-10-15T20:07:30Z</retail:dateTimeCreated>
                <retail:userId>KB</retail:userId>
                <retail:reasonKey>
                    <retail:reasonId>RR-UK3</retail:reasonId>
                    <retail:regionId groupHierarchyId="All" groupTypeId="region">UK</retail:regionId>
                </retail:reasonKey>
                <retail:modifiersNetValue>0</retail:modifiersNetValue>
                <retail:modifiersEffectiveNetValue>0</retail:modifiersEffectiveNetValue>
                <retail:modifiersVoidQuantity>0.0</retail:modifiersVoidQuantity>
                <retail:modifiersQuantity>0.0</retail:modifiersQuantity>
                <retail:notDiscountable>false</retail:notDiscountable>
                <retail:maxDiscount>0.0</retail:maxDiscount>
                <retail:productID>KD092JS-1</retail:productID>
                <retail:sellingCode></retail:sellingCode>
                <retail:productTypeId>skuProduct</retail:productTypeId>
                <retail:unitPrice>6595</retail:unitPrice>
                <retail:quantity>-1.0</retail:quantity>
                <retail:netQuantity>-1.0</retail:netQuantity>
                <retail:returnItemDetail>
                    <retail:originatingTransactionKey applicationId="POS">00010101000242010151938598</retail:originatingTransactionKey>
                    <retail:originatedBy>
                        <retail:locationId>0001</retail:locationId>
                        <retail:branchNumber>1</retail:branchNumber>
                        <retail:terminalNumber>101</retail:terminalNumber>
                        <retail:transactionNumber>24</retail:transactionNumber>
                        <retail:deviceId>mpos1@0001.enactor</retail:deviceId>
                        <retail:userId>KEN.BUNDY</retail:userId>
                        <retail:regionId groupHierarchyId="All" groupTypeId="region">UK</retail:regionId>
                        <retail:userEmployeeId></retail:userEmployeeId>
                        <retail:printableName>Ken Bundy</retail:printableName>
                    </retail:originatedBy>
                    <retail:originalTotal>6595</retail:originalTotal>
                    <retail:originalDate>2020-10-15T19:39:18Z</retail:originalDate>
                    <retail:originalTenders>
                        <retail:transactionTenderAmount>
                            <retail:tenderId>
                                <retail:tenderId>CASH_UK</retail:tenderId>
                                <retail:groupId groupHierarchyId="All" groupTypeId="region">UK</retail:groupId>
                            </retail:tenderId>
                            <retail:amount>-6595</retail:amount>
                            <retail:currencyId>GBP</retail:currencyId>
                            <retail:foreignAmount>0</retail:foreignAmount>
                            <retail:description>Cash UK</retail:description>
                            <retail:transactionId applicationId="POS">00010101000242010151938598</retail:transactionId>
                            <retail:lineNumber>2</retail:lineNumber>
                        </retail:transactionTenderAmount>
                    </retail:originalTenders>
                    <retail:returnReasonKey>
                        <retail:reasonId>RR-UK3</retail:reasonId>
                        <retail:regionId groupHierarchyId="All" groupTypeId="region">UK</retail:regionId>
                    </retail:returnReasonKey>
                    <retail:returnDescription>Managers Discretion</retail:returnDescription>
                    <retail:effectOnInventory>AVA</retail:effectOnInventory>
                    <retail:printSignatureSlip>true</retail:printSignatureSlip>
                    <retail:copyReceipts>1</retail:copyReceipts>
                    <retail:originalLineNumber>1</retail:originalLineNumber>
                    <retail:returnedTenderAllocation>
                        <retail:tenderId>
                            <retail:tenderId>CASH_UK</retail:tenderId>
                            <retail:groupId groupHierarchyId="All" groupTypeId="region">UK</retail:groupId>
                        </retail:tenderId>
                        <retail:amount>-6595</retail:amount>
                    </retail:returnedTenderAllocation>
                    <retail:skipReturnOriginalTenders>false</retail:skipReturnOriginalTenders>
                    <retail:originalSalespersonUserId>KEN.BUNDY</retail:originalSalespersonUserId>
                    <retail:remainingReceiptReturnQuantity>1.0</retail:remainingReceiptReturnQuantity>
                </retail:returnItemDetail>
                <retail:sourceInventoryType>AVA</retail:sourceInventoryType>
                <retail:returnTransactionNumber>26</retail:returnTransactionNumber>
                <retail:orderable>true</retail:orderable>
                <retail:noTaxRecalculation>true</retail:noTaxRecalculation>
                <retail:priceTypeId>R</retail:priceTypeId>
                <retail:productImageURL>image://PRODUCT/KD092JS-1.jpg</retail:productImageURL>
                <retail:type>VALUE</retail:type>
                <retail:mmGroupId>MENS_SHOES</retail:mmGroupId>
                <retail:mmGroupHierarchyId>FASHION</retail:mmGroupHierarchyId>
                <retail:brandGroupId>NIKE</retail:brandGroupId>
                <retail:brandGroupHierarchyId>FASHION</retail:brandGroupHierarchyId>
                <retail:mmGroupDescription>Mens Shoes</retail:mmGroupDescription>
                <retail:mmGroupVariantGroupId>All</retail:mmGroupVariantGroupId>
                <retail:mmGroupVariantHierarchyId>All</retail:mmGroupVariantHierarchyId>
                <retail:productGroupGroupKeys>
                    <core:groupKey variantGroupHierarchyId="All" variantGroupId="All" variantGroupTypeId="region" groupHierarchyId="FASHION" groupTypeId="productGroup">MENS_SHOES</core:groupKey>
                </retail:productGroupGroupKeys>
                <retail:styleId>KD092JS</retail:styleId>
                <retail:sizeId sizeRangeId="MENS_SHOES">12</retail:sizeId>
                <retail:sizeDescription>12</retail:sizeDescription>
                <retail:colourId colourRangeId="MENS_SHOES">BLACK</retail:colourId>
                <retail:colourDescription>Black</retail:colourDescription>
            </retail:styleColourSizeReturnItem>
            <retail:cashTenderItem>
                <retail:lineNumber>2</retail:lineNumber>
                <retail:description>Cash UK</retail:description>
                <retail:deviceId>mpos1@0001.enactor</retail:deviceId>
                <retail:value>6595</retail:value>
                <retail:netValue>6595</retail:netValue>
                <retail:effectiveNetValue>6595</retail:effectiveNetValue>
                <retail:dateTimeCreated>2020-10-15T20:07:44Z</retail:dateTimeCreated>
                <retail:userId>KB</retail:userId>
                <retail:tenderKey>
                    <retail:tenderId>CASH_UK</retail:tenderId>
                    <retail:groupId groupHierarchyId="All" groupTypeId="region">UK</retail:groupId>
                </retail:tenderKey>
                <retail:tenderType>cashTender</retail:tenderType>
                <retail:tenderAmount>6595</retail:tenderAmount>
                <retail:isRefund>true</retail:isRefund>
                <retail:currencyId>GBP</retail:currencyId>
                <retail:currencyDescription>Pounds Sterling</retail:currencyDescription>
                <retail:surchargeAmount>0</retail:surchargeAmount>
                <retail:openDrawerAtEnd>false</retail:openDrawerAtEnd>
            </retail:cashTenderItem>
        </retail:items>
        <retail:balance>0</retail:balance>
        <retail:currencyId>GBP</retail:currencyId>
        <retail:currencyDescription>Pounds Sterling</retail:currencyDescription>
        <retail:taxInclusive>true</retail:taxInclusive>
        <retail:taxSchemeId>UK</retail:taxSchemeId>
        <retail:itemCount>2</retail:itemCount>
        <retail:saleItemQuantity>0.0</retail:saleItemQuantity>
        <retail:returnItemQuantity>1.0</retail:returnItemQuantity>
        <retail:returnMerchandiseItemQuantity>1.0</retail:returnMerchandiseItemQuantity>
        <retail:returnMerchandiseItemNetValue>-6595</retail:returnMerchandiseItemNetValue>
        <retail:saleItemNetValue>0</retail:saleItemNetValue>
        <retail:returnItemNetValue>-6595</retail:returnItemNetValue>
        <retail:merchandiseItemQuantity>0.0</retail:merchandiseItemQuantity>
        <retail:merchandiseItemValue>0</retail:merchandiseItemValue>
        <retail:total>-6595</retail:total>
        <retail:grossTotal>-6595</retail:grossTotal>
        <retail:taxTotal>0</retail:taxTotal>
        <retail:returnBasketDetail/>
        <retail:totalTaxAdjustment>0</retail:totalTaxAdjustment>
        <retail:preAuthBalance>0</retail:preAuthBalance>
        <retail:effectiveSaleValue>0</retail:effectiveSaleValue>
    </retail:basket>
    <retail:loyaltyPointsDetails dayNumber="0">
        <retail:loyaltyPointsBalance>0</retail:loyaltyPointsBalance>
        <retail:loyaltyPointsEarned>0</retail:loyaltyPointsEarned>
        <retail:promotionalLoyaltyPointsEarned>0</retail:promotionalLoyaltyPointsEarned>
        <retail:loyaltyPointsMissed>0</retail:loyaltyPointsMissed>
        <retail:loyaltyPointsRate>0</retail:loyaltyPointsRate>
        <retail:loyaltyAccountOffline>true</retail:loyaltyAccountOffline>
        <retail:loyaltyPointsUsed>0</retail:loyaltyPointsUsed>
        <retail:totalSpend>0</retail:totalSpend>
        <retail:spendToNextTier>0</retail:spendToNextTier>
        <retail:externalProvider>false</retail:externalProvider>
        <retail:noLoyaltyUpdate>false</retail:noLoyaltyUpdate>
        <retail:rewardValue>0</retail:rewardValue>
        <retail:rewardValueRedeemed>0</retail:rewardValueRedeemed>
    </retail:loyaltyPointsDetails>
    <retail:receiptDetails>
        <retail:taxReceiptRequested>false</retail:taxReceiptRequested>
    </retail:receiptDetails>
</retail:normalRetailSaleTransaction>

Voided Transaction

Receipt

Transaction XML

<?xml version="1.0" encoding="UTF-8" standalone="yes"?>
<retail:normalRetailSaleTransaction xmlns:core="http://www.enactor.com/core"
    xmlns:retail="http://www.enactor.com/retail">
    <retail:applicationId>POS</retail:applicationId>
    <retail:transactionId>00010101000342010220130168</retail:transactionId>
    <retail:source>mpos1@0001.enactor</retail:source>
    <retail:sourceApplication>POS</retail:sourceApplication>
    <retail:topic>Transactions</retail:topic>
    <retail:sequenceNumber>79</retail:sequenceNumber>
    <retail:transactionNumber>34</retail:transactionNumber>
    <retail:originatedBy>
        <retail:locationId>0001</retail:locationId>
        <retail:branchNumber>1</retail:branchNumber>
        <retail:terminalNumber>101</retail:terminalNumber>
        <retail:transactionNumber>34</retail:transactionNumber>
        <retail:deviceId>mpos1@0001.enactor</retail:deviceId>
        <retail:userId>KB</retail:userId>
        <retail:regionId groupHierarchyId="All" groupTypeId="region">UK</retail:regionId>
        <retail:userEmployeeId></retail:userEmployeeId>
        <retail:printableName>Ken Bundy</retail:printableName>
    </retail:originatedBy>
    <retail:completedBy>
        <retail:locationId>0001</retail:locationId>
        <retail:branchNumber>1</retail:branchNumber>
        <retail:terminalNumber>101</retail:terminalNumber>
        <retail:transactionNumber>34</retail:transactionNumber>
        <retail:deviceId>mpos1@0001.enactor</retail:deviceId>
        <retail:userId>KB</retail:userId>
        <retail:regionId groupHierarchyId="All" groupTypeId="region">UK</retail:regionId>
        <retail:userEmployeeId></retail:userEmployeeId>
        <retail:printableName>Ken Bundy</retail:printableName>
        <retail:cashManagementMethod>TERMINAL</retail:cashManagementMethod>
        <retail:cashManagementOwnerId>101</retail:cashManagementOwnerId>
        <retail:branchName>Enactor Store</retail:branchName>
    </retail:completedBy>
    <retail:dateTimeCreated>2020-10-22T01:30:16Z</retail:dateTimeCreated>
    <retail:dateTimeCompleted>2020-10-22T01:41:06Z</retail:dateTimeCompleted>
    <retail:trainingDetails>
        <retail:trainingMode>false</retail:trainingMode>
    </retail:trainingDetails>
    <retail:customerRetailDetails>
        <retail:relatedPartyTypeId></retail:relatedPartyTypeId>
        <retail:identityDetails/>
        <retail:validatedOnline>false</retail:validatedOnline>
        <retail:newCustomer>false</retail:newCustomer>
        <retail:marketingDetailsCaptured>false</retail:marketingDetailsCaptured>
    </retail:customerRetailDetails>
    <retail:basket>
        <retail:items>
            <retail:styleColourSizeItem isReturn="false">
                <retail:lineNumber>1</retail:lineNumber>
                <retail:description>Nike Capri Trainer</retail:description>
                <retail:deviceId>mpos1@0001.enactor</retail:deviceId>
                <retail:value>6595</retail:value>
                <retail:netValue>0</retail:netValue>
                <retail:effectiveNetValue>0</retail:effectiveNetValue>
                <retail:dateTimeCreated>2020-10-22T01:41:01Z</retail:dateTimeCreated>
                <retail:userId>KB</retail:userId>
                <retail:voided>true</retail:voided>
                <retail:modifiersNetValue>0</retail:modifiersNetValue>
                <retail:modifiersEffectiveNetValue>0</retail:modifiersEffectiveNetValue>
                <retail:modifiersVoidQuantity>0.0</retail:modifiersVoidQuantity>
                <retail:modifiersQuantity>0.0</retail:modifiersQuantity>
                <retail:notDiscountable>false</retail:notDiscountable>
                <retail:maxDiscount>0.0</retail:maxDiscount>
                <retail:productID>KD092JS-1</retail:productID>
                <retail:productTypeId>skuProduct</retail:productTypeId>
                <retail:unitPrice>6595</retail:unitPrice>
                <retail:quantity>1.0</retail:quantity>
                <retail:netQuantity>1.0</retail:netQuantity>
                <retail:handKeyed>true</retail:handKeyed>
                <retail:sourceInventoryType>AVA</retail:sourceInventoryType>
                <retail:orderable>true</retail:orderable>
                <retail:priceTypeId>R</retail:priceTypeId>
                <retail:productImageURL>image://PRODUCT/KD092JS-1.jpg</retail:productImageURL>
                <retail:type>VALUE</retail:type>
                <retail:mmGroupId>MENS_SHOES</retail:mmGroupId>
                <retail:mmGroupHierarchyId>FASHION</retail:mmGroupHierarchyId>
                <retail:brandGroupId>NIKE</retail:brandGroupId>
                <retail:brandGroupHierarchyId>FASHION</retail:brandGroupHierarchyId>
                <retail:mmGroupDescription>Mens Shoes</retail:mmGroupDescription>
                <retail:mmGroupVariantGroupId>All</retail:mmGroupVariantGroupId>
                <retail:mmGroupVariantHierarchyId>All</retail:mmGroupVariantHierarchyId>
                <retail:styleId>KD092JS</retail:styleId>
                <retail:sizeId sizeRangeId="MENS_SHOES">12</retail:sizeId>
                <retail:sizeDescription>12</retail:sizeDescription>
                <retail:colourId colourRangeId="MENS_SHOES">BLACK</retail:colourId>
                <retail:colourDescription>Black</retail:colourDescription>
            </retail:styleColourSizeItem>
            <retail:transactionVoidItem>
                <retail:lineNumber>2</retail:lineNumber>
                <retail:dateTimeCreated>2020-10-22T01:41:06Z</retail:dateTimeCreated>
                <retail:reasonKey>
                    <retail:reasonId>TV-UK1</retail:reasonId>
                    <retail:regionId groupHierarchyId="All" groupTypeId="region">UK</retail:regionId>
                </retail:reasonKey>
                <retail:childLineNumbers>3</retail:childLineNumbers>
                <retail:totalAtVoid>6595</retail:totalAtVoid>
            </retail:transactionVoidItem>
            <retail:voidItem voidedLine="1">
                <retail:lineNumber>3</retail:lineNumber>
                <retail:deviceId>mpos1@0001.enactor</retail:deviceId>
                <retail:value>-6595</retail:value>
                <retail:netValue>0</retail:netValue>
                <retail:effectiveNetValue>0</retail:effectiveNetValue>
                <retail:dateTimeCreated>2020-10-22T01:41:06Z</retail:dateTimeCreated>
                <retail:userId>KB</retail:userId>
                <retail:reasonKey>
                    <retail:reasonId>TV-UK1</retail:reasonId>
                    <retail:regionId groupHierarchyId="All" groupTypeId="region">UK</retail:regionId>
                </retail:reasonKey>
                <retail:notVoidable>true</retail:notVoidable>
                <retail:type>VOID</retail:type>
            </retail:voidItem>
        </retail:items>
        <retail:balance>0</retail:balance>
        <retail:currencyId>GBP</retail:currencyId>
        <retail:currencyDescription>Pounds Sterling</retail:currencyDescription>
        <retail:taxInclusive>true</retail:taxInclusive>
        <retail:taxSchemeId>UK</retail:taxSchemeId>
        <retail:itemCount>3</retail:itemCount>
        <retail:saleItemQuantity>0.0</retail:saleItemQuantity>
        <retail:returnItemQuantity>0.0</retail:returnItemQuantity>
        <retail:returnMerchandiseItemQuantity>0.0</retail:returnMerchandiseItemQuantity>
        <retail:returnMerchandiseItemNetValue>0</retail:returnMerchandiseItemNetValue>
        <retail:saleItemNetValue>0</retail:saleItemNetValue>
        <retail:returnItemNetValue>0</retail:returnItemNetValue>
        <retail:merchandiseItemQuantity>0.0</retail:merchandiseItemQuantity>
        <retail:merchandiseItemValue>0</retail:merchandiseItemValue>
        <retail:total>0</retail:total>
        <retail:grossTotal>0</retail:grossTotal>
        <retail:taxTotal>0</retail:taxTotal>
        <retail:totalTaxAdjustment>0</retail:totalTaxAdjustment>
        <retail:preAuthBalance>0</retail:preAuthBalance>
        <retail:effectiveSaleValue>0</retail:effectiveSaleValue>
    </retail:basket>
    <retail:loyaltyPointsDetails dayNumber="0">
        <retail:loyaltyPointsBalance>0</retail:loyaltyPointsBalance>
        <retail:loyaltyPointsEarned>0</retail:loyaltyPointsEarned>
        <retail:promotionalLoyaltyPointsEarned>0</retail:promotionalLoyaltyPointsEarned>
        <retail:loyaltyPointsMissed>0</retail:loyaltyPointsMissed>
        <retail:loyaltyPointsRate>0</retail:loyaltyPointsRate>
        <retail:loyaltyAccountOffline>true</retail:loyaltyAccountOffline>
        <retail:loyaltyPointsUsed>0</retail:loyaltyPointsUsed>
        <retail:totalSpend>0</retail:totalSpend>
        <retail:spendToNextTier>0</retail:spendToNextTier>
        <retail:externalProvider>false</retail:externalProvider>
        <retail:noLoyaltyUpdate>false</retail:noLoyaltyUpdate>
        <retail:rewardValue>0</retail:rewardValue>
        <retail:rewardValueRedeemed>0</retail:rewardValueRedeemed>
    </retail:loyaltyPointsDetails>
    <retail:receiptDetails>
        <retail:taxReceiptRequested>false</retail:taxReceiptRequested>
    </retail:receiptDetails>
</retail:normalRetailSaleTransaction>

Create Order

Receipt

Transaction XML

<?xml version="1.0" encoding="UTF-8" standalone="yes"?>
<retail:normalRetailSaleTransaction xmlns:core="http://www.enactor.com/core"
    xmlns:retail="http://www.enactor.com/retail">
    <retail:applicationId>POS</retail:applicationId>
    <retail:transactionId>00010001002222206211403059</retail:transactionId>
    <retail:source>pos1@0001.enactor</retail:source>
    <retail:sourceApplication>POS</retail:sourceApplication>
    <retail:topic>Transactions</retail:topic>
    <retail:sequenceNumber>730</retail:sequenceNumber>
    <retail:transactionRecoveryId></retail:transactionRecoveryId>
    <retail:transactionNumber>222</retail:transactionNumber>
    <retail:applicationVersion>2.7-SNAPSHOT</retail:applicationVersion>
    <retail:originatedBy>
        <retail:locationId>0001</retail:locationId>
        <retail:branchNumber>1</retail:branchNumber>
        <retail:terminalNumber>1</retail:terminalNumber>
        <retail:transactionNumber>222</retail:transactionNumber>
        <retail:deviceId>pos1@0001.enactor</retail:deviceId>
        <retail:userId>ADMIN</retail:userId>
        <retail:regionId groupHierarchyId="All" groupTypeId="region">UK</retail:regionId>
        <retail:userEmployeeId></retail:userEmployeeId>
        <retail:printableName>admin</retail:printableName>
    </retail:originatedBy>
    <retail:completedBy>
        <retail:locationId>0001</retail:locationId>
        <retail:branchNumber>1</retail:branchNumber>
        <retail:terminalNumber>1</retail:terminalNumber>
        <retail:transactionNumber>222</retail:transactionNumber>
        <retail:deviceId>pos1@0001.enactor</retail:deviceId>
        <retail:userId>ADMIN</retail:userId>
        <retail:regionId groupHierarchyId="All" groupTypeId="region">UK</retail:regionId>
        <retail:userEmployeeId></retail:userEmployeeId>
        <retail:printableName>admin</retail:printableName>
        <retail:cashManagementMethod>TERMINAL</retail:cashManagementMethod>
        <retail:cashManagementOwnerId>1</retail:cashManagementOwnerId>
        <retail:branchName>Enactor Store</retail:branchName>
    </retail:completedBy>
    <retail:dateTimeCreated>2022-06-21T14:03:05+01:00</retail:dateTimeCreated>
    <retail:dateTimeCompleted>2022-06-21T14:06:30+01:00</retail:dateTimeCompleted>
    <retail:trainingDetails>
        <retail:trainingMode>false</retail:trainingMode>
    </retail:trainingDetails>
    <retail:availableReceiptLocales>
        <core:localeKey variant="" country="GB">en</core:localeKey>
        <core:localeKey variant="" country="DK">da</core:localeKey>
        <core:localeKey variant="" country="FI">fi</core:localeKey>
    </retail:availableReceiptLocales>
    <retail:fiscalDetails/>
    <retail:customerRetailDetails>
        <retail:relatedPartyTypeId/>
        <retail:name>
            <retail:surname>Harrison</retail:surname>
            <retail:forename>Mark</retail:forename>
            <retail:initials>N</retail:initials>
            <retail:title>Mr</retail:title>
            <retail:sex>MALE</retail:sex>
            <retail:dateOfBirth>1979-08-28T00:00:00+01:00</retail:dateOfBirth>
        </retail:name>
        <retail:identityDetails/>
        <retail:customerNumber>1</retail:customerNumber>
        <retail:customerAddress>
            <retail:countryCodeId></retail:countryCodeId>
            <retail:isPreferred>true</retail:isPreferred>
            <retail:organisation>Enactor</retail:organisation>
            <retail:typeId></retail:typeId>
            <retail:county>Hertfordshire</retail:county>
            <retail:email>demo@enactor.co.uk</retail:email>
            <retail:phone1>01295768256</retail:phone1>
            <retail:postCode>SG141PB</retail:postCode>
            <retail:street1>1 Enactor House</retail:street1>
            <retail:street2>Bluecoats Avenue</retail:street2>
            <retail:town>Hertford</retail:town>
            <retail:isTemplate>false</retail:isTemplate>
            <retail:referenceId></retail:referenceId>
        </retail:customerAddress>
        <retail:validatedOnline>false</retail:validatedOnline>
        <retail:newCustomer>false</retail:newCustomer>
        <retail:organisation></retail:organisation>
        <retail:marketingDetailsCaptured>false</retail:marketingDetailsCaptured>
    </retail:customerRetailDetails>
    <retail:basket>
        <retail:items>
            <retail:orderDetailsItem>
                <retail:lineNumber>1</retail:lineNumber>
                <retail:description>Order</retail:description>
                <retail:deviceId>pos1@0001.enactor</retail:deviceId>
                <retail:value>-19000</retail:value>
                <retail:netValue>-19000</retail:netValue>
                <retail:effectiveNetValue>-19000</retail:effectiveNetValue>
                <retail:supplementaryValues/>
                <retail:dateTimeCreated>2022-06-21T14:03:07+01:00</retail:dateTimeCreated>
                <retail:userId>ADMIN</retail:userId>
                <retail:childLineNumbers>4</retail:childLineNumbers>
                <retail:type>VALUE</retail:type>
                <retail:orderReference>64</retail:orderReference>
                <retail:deliveryName>
                    <retail:surname>Harrison</retail:surname>
                    <retail:forename>Mark</retail:forename>
                    <retail:initials>N</retail:initials>
                    <retail:title>MR</retail:title>
                    <retail:sex>MALE</retail:sex>
                    <retail:dateOfBirth>1979-08-28T00:00:00+01:00</retail:dateOfBirth>
                </retail:deliveryName>
                <retail:deliveryAddress>
                    <retail:country>UK</retail:country>
                    <retail:countryCodeId>GB</retail:countryCodeId>
                    <retail:isPreferred>true</retail:isPreferred>
                    <retail:organisation>Enactor</retail:organisation>
                    <retail:typeId></retail:typeId>
                    <retail:county>Hertfordshire</retail:county>
                    <retail:email>demo@enactor.co.uk</retail:email>
                    <retail:phone1>01295768256</retail:phone1>
                    <retail:postCode>SG141PB</retail:postCode>
                    <retail:street1>1 Enactor House</retail:street1>
                    <retail:street2>Bluecoats Avenue</retail:street2>
                    <retail:town>Hertford</retail:town>
                    <retail:isTemplate>false</retail:isTemplate>
                    <retail:referenceId></retail:referenceId>
                </retail:deliveryAddress>
                <retail:deliveryInstructions></retail:deliveryInstructions>
                <retail:deductTax>false</retail:deductTax>
                <retail:freightForwarderInHouse>true</retail:freightForwarderInHouse>
                <retail:sendCustomerDeliveryNotification>true</retail:sendCustomerDeliveryNotification>
                <retail:export>false</retail:export>
                <retail:tenderDescription></retail:tenderDescription>
                <retail:deliveryOptions>
                    <retail:locationCollectionDeliveryOption>
                        <retail:deliverySlot>
                            <retail:currencyId></retail:currencyId>
                            <retail:fulfilmentOptions>
<retail:locationStockFulfilment>
    <retail:productId>1001</retail:productId>
    <retail:quantity>1.0</retail:quantity>
    <retail:locationId>0001</retail:locationId>
</retail:locationStockFulfilment>
                            </retail:fulfilmentOptions>
                        </retail:deliverySlot>
                        <retail:deliveryDescription>Enactor Store</retail:deliveryDescription>
                        <retail:products>
                            <retail:productQuantity>
<retail:productKey>1001</retail:productKey>
<retail:quantity>1.0</retail:quantity>
                            </retail:productQuantity>
                        </retail:products>
                        <retail:orderDepositLines>
                            <retail:orderDepositLine>
<retail:lineNumber>4</retail:lineNumber>
<retail:value>1900</retail:value>
                            </retail:orderDepositLine>
                        </retail:orderDepositLines>
                        <retail:deliveryOptionEffectiveNetValue>9000</retail:deliveryOptionEffectiveNetValue>
                        <retail:locationId>0001</retail:locationId>
                    </retail:locationCollectionDeliveryOption>
                    <retail:addressDeliveryOption>
                        <retail:deliverySlot>
                            <retail:currencyId></retail:currencyId>
                            <retail:fulfilmentOptions>
<retail:locationStockFulfilment>
    <retail:productId>2001</retail:productId>
    <retail:quantity>1.0</retail:quantity>
    <retail:locationId>0001</retail:locationId>
</retail:locationStockFulfilment>
                            </retail:fulfilmentOptions>
                        </retail:deliverySlot>
                        <retail:products>
                            <retail:productQuantity>
<retail:productKey>2001</retail:productKey>
<retail:quantity>1.0</retail:quantity>
                            </retail:productQuantity>
                        </retail:products>
                        <retail:orderDepositLines>
                            <retail:orderDepositLine>
<retail:lineNumber>4</retail:lineNumber>
<retail:value>1900</retail:value>
                            </retail:orderDepositLine>
                        </retail:orderDepositLines>
                        <retail:deliveryOptionEffectiveNetValue>9000</retail:deliveryOptionEffectiveNetValue>
                        <retail:address>
                            <retail:country>UK</retail:country>
                            <retail:countryCodeId>GB</retail:countryCodeId>
                            <retail:isPreferred>true</retail:isPreferred>
                            <retail:organisation>Enactor</retail:organisation>
                            <retail:typeId></retail:typeId>
                            <retail:county>Hertfordshire</retail:county>
                            <retail:email>demo@enactor.co.uk</retail:email>
                            <retail:phone1>01295768256</retail:phone1>
                            <retail:postCode>SG141PB</retail:postCode>
                            <retail:street1>1 Enactor House</retail:street1>
                            <retail:street2>Bluecoats Avenue</retail:street2>
                            <retail:town>Hertford</retail:town>
                            <retail:isTemplate>false</retail:isTemplate>
                            <retail:referenceId></retail:referenceId>
                            <retail:lastUpdated>2021-11-15T12:00:26Z</retail:lastUpdated>
                            <retail:addressReferenceId>c637-:19f34d5d541:4780d454:e6018e477d3b5ada</retail:addressReferenceId>
                        </retail:address>
                        <retail:name>
                            <retail:surname>Harrison</retail:surname>
                            <retail:forename>Mark</retail:forename>
                            <retail:initials>N</retail:initials>
                            <retail:title>MR</retail:title>
                            <retail:sex>MALE</retail:sex>
                            <retail:dateOfBirth>1979-08-28T00:00:00+01:00</retail:dateOfBirth>
                        </retail:name>
                    </retail:addressDeliveryOption>
                </retail:deliveryOptions>
                <retail:estimatedDeliveryDate/>
                <retail:customerOrderTypeId>CUSTOMER_ORDER</retail:customerOrderTypeId>
                <retail:notificationEmailAddress>demo@enactor.co.uk</retail:notificationEmailAddress>
                <retail:notificationMobilePhone></retail:notificationMobilePhone>
            </retail:orderDetailsItem>
            <retail:merchandiseItem isReturn="false">
                <retail:lineNumber>2</retail:lineNumber>
                <retail:description>Product 1001</retail:description>
                <retail:localisedDescription>
                    <core:string variant="" language="da" country="DK">Product 1001</core:string>
                    <core:string variant="" language="en" country="GB">Product 1001</core:string>
                    <core:string variant="" language="fi" country="FI">Product 1001</core:string>
                </retail:localisedDescription>
                <retail:deviceId>pos1@0001.enactor</retail:deviceId>
                <retail:value>10000</retail:value>
                <retail:netValue>10000</retail:netValue>
                <retail:effectiveNetValue>10000</retail:effectiveNetValue>
                <retail:supplementaryValues/>
                <retail:dateTimeCreated>2022-06-21T14:03:15+01:00</retail:dateTimeCreated>
                <retail:userId>ADMIN</retail:userId>
                <retail:modifiers>
                    <retail:orderModifier modifierItemLine="1"/>
                </retail:modifiers>
                <retail:modifiersNetValue>0</retail:modifiersNetValue>
                <retail:modifiersEffectiveNetValue>0</retail:modifiersEffectiveNetValue>
                <retail:modifiersVoidQuantity>0.0</retail:modifiersVoidQuantity>
                <retail:modifiersQuantity>0.0</retail:modifiersQuantity>
                <retail:notDiscountable>false</retail:notDiscountable>
                <retail:maxDiscount>0.0</retail:maxDiscount>
                <retail:productID>1001</retail:productID>
                <retail:productTypeId>merchandiseProduct</retail:productTypeId>
                <retail:unitPrice>10000</retail:unitPrice>
                <retail:quantity>1.0</retail:quantity>
                <retail:netQuantity>1.0</retail:netQuantity>
                <retail:handKeyed>true</retail:handKeyed>
                <retail:sourceInventoryType xsi:nil="true"/>
                <retail:salespersonUserId>ADMIN</retail:salespersonUserId>
                <retail:salespersonName>admin</retail:salespersonName>
                <retail:orderable>true</retail:orderable>
                <retail:priceTypeId>R</retail:priceTypeId>
                <retail:productImageURL></retail:productImageURL>
                <retail:type>VALUE</retail:type>
                <retail:warrantyInformation></retail:warrantyInformation>
                <retail:localisedWarrantyInformation/>
            </retail:merchandiseItem>
            <retail:merchandiseItem isReturn="false">
                <retail:lineNumber>3</retail:lineNumber>
                <retail:description>Product 2001</retail:description>
                <retail:localisedDescription>
                    <core:string variant="" language="da" country="DK">Product 2001</core:string>
                    <core:string variant="" language="en" country="GB">Product 2001</core:string>
                    <core:string variant="" language="fi" country="FI">Product 2001</core:string>
                </retail:localisedDescription>
                <retail:deviceId>pos1@0001.enactor</retail:deviceId>
                <retail:value>9000</retail:value>
                <retail:netValue>9000</retail:netValue>
                <retail:effectiveNetValue>9000</retail:effectiveNetValue>
                <retail:supplementaryValues/>
                <retail:dateTimeCreated>2022-06-21T14:06:07+01:00</retail:dateTimeCreated>
                <retail:userId>ADMIN</retail:userId>
                <retail:modifiers>
                    <retail:orderModifier modifierItemLine="1"/>
                </retail:modifiers>
                <retail:modifiersNetValue>0</retail:modifiersNetValue>
                <retail:modifiersEffectiveNetValue>0</retail:modifiersEffectiveNetValue>
                <retail:modifiersVoidQuantity>0.0</retail:modifiersVoidQuantity>
                <retail:modifiersQuantity>0.0</retail:modifiersQuantity>
                <retail:notDiscountable>false</retail:notDiscountable>
                <retail:maxDiscount>0.0</retail:maxDiscount>
                <retail:productID>2001</retail:productID>
                <retail:productTypeId>merchandiseProduct</retail:productTypeId>
                <retail:unitPrice>9000</retail:unitPrice>
                <retail:quantity>1.0</retail:quantity>
                <retail:netQuantity>1.0</retail:netQuantity>
                <retail:handKeyed>true</retail:handKeyed>
                <retail:sourceInventoryType xsi:nil="true"/>
                <retail:salespersonUserId>ADMIN</retail:salespersonUserId>
                <retail:salespersonName>admin</retail:salespersonName>
                <retail:orderable>true</retail:orderable>
                <retail:priceTypeId>R</retail:priceTypeId>
                <retail:productImageURL></retail:productImageURL>
                <retail:type>VALUE</retail:type>
                <retail:warrantyInformation></retail:warrantyInformation>
                <retail:localisedWarrantyInformation/>
            </retail:merchandiseItem>
            <retail:customerOrderDepositBasketItem>
                <retail:lineNumber>4</retail:lineNumber>
                <retail:deviceId>pos1@0001.enactor</retail:deviceId>
                <retail:value>1900</retail:value>
                <retail:netValue>1900</retail:netValue>
                <retail:effectiveNetValue>1900</retail:effectiveNetValue>
                <retail:supplementaryValues/>
                <retail:dateTimeCreated>2022-06-21T14:06:24+01:00</retail:dateTimeCreated>
                <retail:userId>ADMIN</retail:userId>
                <retail:allowVoidWhenChild>true</retail:allowVoidWhenChild>
                <retail:depositReasonId>
                    <retail:reasonId>COD005</retail:reasonId>
                    <retail:regionId groupHierarchyId="All" groupTypeId="region">UK</retail:regionId>
                </retail:depositReasonId>
                <retail:depositPercentage>0.1</retail:depositPercentage>
                <retail:depositValue>1900</retail:depositValue>
            </retail:customerOrderDepositBasketItem>
            <retail:cashTenderItem>
                <retail:lineNumber>5</retail:lineNumber>
                <retail:description>Cash UK</retail:description>
                <retail:localisedDescription>
                    <core:string variant="" language="da" country="DK">Cash UK</core:string>
                    <core:string variant="" language="en" country="GB">Cash UK</core:string>
                    <core:string variant="" language="fi" country="FI">Cash UK</core:string>
                </retail:localisedDescription>
                <retail:deviceId>pos1@0001.enactor</retail:deviceId>
                <retail:value>-1900</retail:value>
                <retail:netValue>-1900</retail:netValue>
                <retail:effectiveNetValue>-1900</retail:effectiveNetValue>
                <retail:supplementaryValues/>
                <retail:dateTimeCreated>2022-06-21T14:06:29+01:00</retail:dateTimeCreated>
                <retail:userId>ADMIN</retail:userId>
                <retail:notVoidable>false</retail:notVoidable>
                <retail:tenderKey>
                    <retail:tenderId>CASH_UK</retail:tenderId>
                    <retail:groupId groupHierarchyId="All" groupTypeId="region">UK</retail:groupId>
                </retail:tenderKey>
                <retail:tenderType>cashTender</retail:tenderType>
                <retail:tenderAmount>1900</retail:tenderAmount>
                <retail:currencyId>GBP</retail:currencyId>
                <retail:currencyDescription>Pounds Sterling</retail:currencyDescription>
                <retail:surchargeAmount>0</retail:surchargeAmount>
                <retail:openDrawerAtEnd>false</retail:openDrawerAtEnd>
            </retail:cashTenderItem>
        </retail:items>
        <retail:balance>0</retail:balance>
        <retail:currencyId>GBP</retail:currencyId>
        <retail:currencyDescription>Pounds Sterling</retail:currencyDescription>
        <retail:taxInclusive>true</retail:taxInclusive>
        <retail:taxSchemeId>UK</retail:taxSchemeId>
        <retail:itemCount>5</retail:itemCount>
        <retail:saleItemQuantity>2.0</retail:saleItemQuantity>
        <retail:returnItemQuantity>0.0</retail:returnItemQuantity>
        <retail:returnMerchandiseItemQuantity>0.0</retail:returnMerchandiseItemQuantity>
        <retail:returnMerchandiseItemNetValue>0</retail:returnMerchandiseItemNetValue>
        <retail:saleItemNetValue>19000</retail:saleItemNetValue>
        <retail:returnItemNetValue>0</retail:returnItemNetValue>
        <retail:merchandiseItemQuantity>2.0</retail:merchandiseItemQuantity>
        <retail:merchandiseItemValue>19000</retail:merchandiseItemValue>
        <retail:total>1900</retail:total>
        <retail:grossTotal>1900</retail:grossTotal>
        <retail:taxTotal>0</retail:taxTotal>
        <retail:currentModifierLineNumber>1</retail:currentModifierLineNumber>
        <retail:totalTaxAdjustment>0</retail:totalTaxAdjustment>
        <retail:preAuthBalance>0</retail:preAuthBalance>
        <retail:effectiveSaleValue>17100</retail:effectiveSaleValue>
    </retail:basket>
    <retail:loyaltyPointsDetails dayNumber="0">
        <retail:loyaltyPointsBalance>0</retail:loyaltyPointsBalance>
        <retail:loyaltyPointsEarned>0</retail:loyaltyPointsEarned>
        <retail:promotionalLoyaltyPointsEarned>0</retail:promotionalLoyaltyPointsEarned>
        <retail:loyaltyPointsMissed>191</retail:loyaltyPointsMissed>
        <retail:loyaltyPointsRate>0</retail:loyaltyPointsRate>
        <retail:loyaltyAccountOffline>true</retail:loyaltyAccountOffline>
        <retail:loyaltyPointsUsed>0</retail:loyaltyPointsUsed>
        <retail:totalSpend>0</retail:totalSpend>
        <retail:spendToNextTier>0</retail:spendToNextTier>
        <retail:externalProvider>false</retail:externalProvider>
        <retail:noLoyaltyUpdate>false</retail:noLoyaltyUpdate>
        <retail:rewardValue>0</retail:rewardValue>
        <retail:rewardValueRedeemed>0</retail:rewardValueRedeemed>
    </retail:loyaltyPointsDetails>
    <retail:receiptDetails/>
</retail:normalRetailSaleTransaction>

Order Payment

Receipt

Transaction XML

<?xml version="1.0" encoding="UTF-8" standalone="yes"?>
<retail:normalRetailSaleTransaction xmlns:core="http://www.enactor.com/core"
    xmlns:retail="http://www.enactor.com/retail">
    <retail:applicationId>POS</retail:applicationId>
    <retail:transactionId>00010001002252206211643186</retail:transactionId>
    <retail:source>pos1@0001.enactor</retail:source>
    <retail:sourceApplication>POS</retail:sourceApplication>
    <retail:topic>Transactions</retail:topic>
    <retail:sequenceNumber>733</retail:sequenceNumber>
    <retail:transactionRecoveryId></retail:transactionRecoveryId>
    <retail:transactionNumber>225</retail:transactionNumber>
    <retail:applicationVersion>2.7-SNAPSHOT</retail:applicationVersion>
    <retail:originatedBy>
        <retail:locationId>0001</retail:locationId>
        <retail:branchNumber>1</retail:branchNumber>
        <retail:terminalNumber>1</retail:terminalNumber>
        <retail:transactionNumber>225</retail:transactionNumber>
        <retail:deviceId>pos1@0001.enactor</retail:deviceId>
        <retail:userId>ADMIN</retail:userId>
        <retail:regionId groupHierarchyId="All" groupTypeId="region">UK</retail:regionId>
        <retail:userEmployeeId></retail:userEmployeeId>
        <retail:printableName>admin</retail:printableName>
    </retail:originatedBy>
    <retail:completedBy>
        <retail:locationId>0001</retail:locationId>
        <retail:branchNumber>1</retail:branchNumber>
        <retail:terminalNumber>1</retail:terminalNumber>
        <retail:transactionNumber>225</retail:transactionNumber>
        <retail:deviceId>pos1@0001.enactor</retail:deviceId>
        <retail:userId>ADMIN</retail:userId>
        <retail:regionId groupHierarchyId="All" groupTypeId="region">UK</retail:regionId>
        <retail:userEmployeeId></retail:userEmployeeId>
        <retail:printableName>admin</retail:printableName>
        <retail:cashManagementMethod>TERMINAL</retail:cashManagementMethod>
        <retail:cashManagementOwnerId>1</retail:cashManagementOwnerId>
        <retail:branchName>Enactor Store</retail:branchName>
    </retail:completedBy>
    <retail:dateTimeCreated>2022-06-21T16:43:18+01:00</retail:dateTimeCreated>
    <retail:dateTimeCompleted>2022-06-21T17:16:33+01:00</retail:dateTimeCompleted>
    <retail:trainingDetails>
        <retail:trainingMode>false</retail:trainingMode>
    </retail:trainingDetails>
    <retail:availableReceiptLocales>
        <core:localeKey variant="" country="GB">en</core:localeKey>
        <core:localeKey variant="" country="DK">da</core:localeKey>
        <core:localeKey variant="" country="FI">fi</core:localeKey>
    </retail:availableReceiptLocales>
    <retail:fiscalDetails/>
    <retail:customerRetailDetails>
        <retail:relatedPartyTypeId/>
        <retail:identityDetails/>
        <retail:validatedOnline>false</retail:validatedOnline>
        <retail:newCustomer>false</retail:newCustomer>
        <retail:marketingDetailsCaptured>false</retail:marketingDetailsCaptured>
    </retail:customerRetailDetails>
    <retail:basket>
        <retail:items>
            <retail:customerOrderPaymentBasketItem>
                <retail:lineNumber>1</retail:lineNumber>
                <retail:description>Payment</retail:description>
                <retail:deviceId>pos1@0001.enactor</retail:deviceId>
                <retail:value>226</retail:value>
                <retail:netValue>226</retail:netValue>
                <retail:effectiveNetValue>226</retail:effectiveNetValue>
                <retail:supplementaryValues/>
                <retail:dateTimeCreated>2022-06-21T17:16:21+01:00</retail:dateTimeCreated>
                <retail:userId>ADMIN</retail:userId>
                <retail:reasonKey>
                    <retail:reasonId></retail:reasonId>
                    <retail:regionId groupHierarchyId="" groupTypeId="region"></retail:regionId>
                </retail:reasonKey>
                <retail:referenceNumber>34</retail:referenceNumber>
                <retail:customerOrderHeaderId>34</retail:customerOrderHeaderId>
                <retail:forCollection>false</retail:forCollection>
                <retail:unitPrice>226</retail:unitPrice>
                <retail:forCancellation>false</retail:forCancellation>
            </retail:customerOrderPaymentBasketItem>
            <retail:cashTenderItem>
                <retail:lineNumber>2</retail:lineNumber>
                <retail:description>Cash UK</retail:description>
                <retail:localisedDescription>
                    <core:string variant="" language="da" country="DK">Cash UK</core:string>
                    <core:string variant="" language="en" country="GB">Cash UK</core:string>
                    <core:string variant="" language="fi" country="FI">Cash UK</core:string>
                </retail:localisedDescription>
                <retail:deviceId>pos1@0001.enactor</retail:deviceId>
                <retail:value>-226</retail:value>
                <retail:netValue>-226</retail:netValue>
                <retail:effectiveNetValue>-226</retail:effectiveNetValue>
                <retail:supplementaryValues/>
                <retail:dateTimeCreated>2022-06-21T17:16:31+01:00</retail:dateTimeCreated>
                <retail:userId>ADMIN</retail:userId>
                <retail:notVoidable>false</retail:notVoidable>
                <retail:tenderKey>
                    <retail:tenderId>CASH_UK</retail:tenderId>
                    <retail:groupId groupHierarchyId="All" groupTypeId="region">UK</retail:groupId>
                </retail:tenderKey>
                <retail:tenderType>cashTender</retail:tenderType>
                <retail:tenderAmount>226</retail:tenderAmount>
                <retail:currencyId>GBP</retail:currencyId>
                <retail:currencyDescription>Pounds Sterling</retail:currencyDescription>
                <retail:surchargeAmount>0</retail:surchargeAmount>
                <retail:openDrawerAtEnd>false</retail:openDrawerAtEnd>
            </retail:cashTenderItem>
        </retail:items>
        <retail:balance>0</retail:balance>
        <retail:currencyId>GBP</retail:currencyId>
        <retail:currencyDescription>Pounds Sterling</retail:currencyDescription>
        <retail:taxInclusive>true</retail:taxInclusive>
        <retail:taxSchemeId>UK</retail:taxSchemeId>
        <retail:itemCount>2</retail:itemCount>
        <retail:saleItemQuantity>0.0</retail:saleItemQuantity>
        <retail:returnItemQuantity>0.0</retail:returnItemQuantity>
        <retail:returnMerchandiseItemQuantity>0.0</retail:returnMerchandiseItemQuantity>
        <retail:returnMerchandiseItemNetValue>0</retail:returnMerchandiseItemNetValue>
        <retail:saleItemNetValue>0</retail:saleItemNetValue>
        <retail:returnItemNetValue>0</retail:returnItemNetValue>
        <retail:merchandiseItemQuantity>0.0</retail:merchandiseItemQuantity>
        <retail:merchandiseItemValue>0</retail:merchandiseItemValue>
        <retail:total>226</retail:total>
        <retail:grossTotal>226</retail:grossTotal>
        <retail:taxTotal>0</retail:taxTotal>
        <retail:totalTaxAdjustment>0</retail:totalTaxAdjustment>
        <retail:preAuthBalance>0</retail:preAuthBalance>
        <retail:effectiveSaleValue>0</retail:effectiveSaleValue>
    </retail:basket>
    <retail:loyaltyPointsDetails dayNumber="0">
        <retail:loyaltyPointsBalance>0</retail:loyaltyPointsBalance>
        <retail:loyaltyPointsEarned>0</retail:loyaltyPointsEarned>
        <retail:promotionalLoyaltyPointsEarned>0</retail:promotionalLoyaltyPointsEarned>
        <retail:loyaltyPointsMissed>1</retail:loyaltyPointsMissed>
        <retail:loyaltyPointsRate>0</retail:loyaltyPointsRate>
        <retail:loyaltyAccountOffline>true</retail:loyaltyAccountOffline>
        <retail:loyaltyPointsUsed>0</retail:loyaltyPointsUsed>
        <retail:totalSpend>0</retail:totalSpend>
        <retail:spendToNextTier>0</retail:spendToNextTier>
        <retail:externalProvider>false</retail:externalProvider>
        <retail:noLoyaltyUpdate>false</retail:noLoyaltyUpdate>
        <retail:rewardValue>0</retail:rewardValue>
        <retail:rewardValueRedeemed>0</retail:rewardValueRedeemed>
    </retail:loyaltyPointsDetails>
    <retail:receiptDetails/>
</retail:normalRetailSaleTransaction>

Restaurant Sale

Transaction XML

<?xml version="1.0" encoding="UTF-8" standalone="yes"?>
<retail:restaurantSaleTransaction xmlns:core="http://www.enactor.com/core" xmlns:retail="http://www.enactor.com/retail" xmlns:ns4="http://www.enactor.com/retail/storedRestaurantSaleTransaction/service" xmlns:ns5="http://securetransport.dw/rcservice/xml" xmlns:ns6="http://www.enactor.com/crm" xmlns:sref="http://docs.oasis-open.org/wsbpel/2.0/serviceref" xmlns:ns8="com/firstdata/Merchant/gmfV9.02" xmlns:htt="http://docs.oasis-open.org/ns/bpel4people/ws-humantask/types/200803" xmlns:htd="http://docs.oasis-open.org/ns/bpel4people/ws-humantask/200803" xmlns:ns11="http://www.fu.gov.si/" xmlns:ns12="http://www.w3.org/2000/09/xmldsig#" xmlns:ns13="http://www.apis-it.hr/fin/2012/types/f73" xmlns:hta="http://docs.oasis-open.org/ns/bpel4people/ws-humantask/api/200803" xmlns:ns15="http://www.enactor.com/addressLookup/service" xmlns:ns16="http://www.enactor.com/retail/restaurantTableStatus/service" xmlns:ns17="http://www.enactor.com/crm/customerLoyalty/service" xmlns:ns18="http://www.enactor.com/retail/storedRetailTransaction/service" xmlns:tools="http://www.enactor.com/tools" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance">
    <retail:applicationId>POS</retail:applicationId>
    <retail:transactionId>55200004001682209221026525</retail:transactionId>
    <retail:source>POS01@REST1.enactor</retail:source>
    <retail:sourceApplication>POS</retail:sourceApplication>
    <retail:topic>Transactions</retail:topic>
    <retail:sequenceNumber>1963</retail:sequenceNumber>
    <retail:transactionRecoveryId></retail:transactionRecoveryId>
    <retail:transactionNumber>168</retail:transactionNumber>
    <retail:applicationVersion>2.7-SNAPSHOT</retail:applicationVersion>
    <retail:originatedBy>
        <retail:locationId>REST1</retail:locationId>
        <retail:branchNumber>0</retail:branchNumber>
        <retail:terminalNumber>4</retail:terminalNumber>
        <retail:transactionNumber>168</retail:transactionNumber>
        <retail:deviceId>POS01@REST1.enactor</retail:deviceId>
        <retail:userId>999</retail:userId>
        <retail:regionId groupHierarchyId="All" groupTypeId="region">UK</retail:regionId>
        <retail:userEmployeeId></retail:userEmployeeId>
        <retail:printableName>Waiter 1</retail:printableName>
    </retail:originatedBy>
    <retail:completedBy>
        <retail:locationId>REST1</retail:locationId>
        <retail:branchNumber>0</retail:branchNumber>
        <retail:terminalNumber>4</retail:terminalNumber>
        <retail:transactionNumber>168</retail:transactionNumber>
        <retail:deviceId>POS01@REST1.enactor</retail:deviceId>
        <retail:userId>999</retail:userId>
        <retail:regionId groupHierarchyId="All" groupTypeId="region">UK</retail:regionId>
        <retail:userEmployeeId></retail:userEmployeeId>
        <retail:printableName>Waiter 1</retail:printableName>
        <retail:cashManagementMethod>TERMINAL</retail:cashManagementMethod>
        <retail:cashManagementOwnerId>4</retail:cashManagementOwnerId>
        <retail:branchName>My Restaurant</retail:branchName>
    </retail:completedBy>
    <retail:dateTimeCreated>2022-09-22T10:26:52+01:00</retail:dateTimeCreated>
    <retail:dateTimeCompleted>2022-09-22T10:28:49+01:00</retail:dateTimeCompleted>
    <retail:trainingDetails>
        <retail:trainingMode>false</retail:trainingMode>
    </retail:trainingDetails>
    <retail:customerRetailDetails>
        <retail:relatedPartyTypeId></retail:relatedPartyTypeId>
        <retail:identityDetails/>
        <retail:additionalData/>
        <retail:relatedParties>
            <retail:recordedDiner>
                <retail:relatedPartyTypeId>DINER</retail:relatedPartyTypeId>
                <retail:relatedPartyId>1</retail:relatedPartyId>
                <retail:identityDetails/>
                <retail:additionalData/>
                <retail:seatId>1</retail:seatId>
                <retail:selectedAllergens>
                    <retail:allergenKey>CRUSTACEANS</retail:allergenKey>
                </retail:selectedAllergens>
            </retail:recordedDiner>
            <retail:recordedDiner>
                <retail:relatedPartyTypeId>DINER</retail:relatedPartyTypeId>
                <retail:relatedPartyId>2</retail:relatedPartyId>
                <retail:identityDetails/>
                <retail:additionalData/>
                <retail:seatId>2</retail:seatId>
            </retail:recordedDiner>
        </retail:relatedParties>
        <retail:validatedOnline>false</retail:validatedOnline>
        <retail:newCustomer>true</retail:newCustomer>
        <retail:marketingDetailsCaptured>false</retail:marketingDetailsCaptured>
    </retail:customerRetailDetails>
    <retail:basket>
        <retail:items>
            <retail:storageItem>
                <retail:lineNumber>1</retail:lineNumber>
                <retail:deviceId>POS01@REST1.enactor</retail:deviceId>
                <retail:supplementaryValues/>
                <retail:dateTimeCreated>2022-09-22T10:26:53+01:00</retail:dateTimeCreated>
                <retail:userId>999</retail:userId>
                <retail:storageId storageRef="55200004001682209221026525" storageTag="TRANSACTION_ID"/>
                <retail:storingStage>Sale</retail:storingStage>
            </retail:storageItem>
            <retail:serviceChargeFeeItem isReturn="false">
                <retail:lineNumber>2</retail:lineNumber>
                <retail:description>Service Charge</retail:description>
                <retail:deviceId>POS01@REST1.enactor</retail:deviceId>
                <retail:value>1075</retail:value>
                <retail:netValue>1075</retail:netValue>
                <retail:effectiveNetValue>1075</retail:effectiveNetValue>
                <retail:supplementaryValues/>
                <retail:dateTimeCreated>2022-09-22T10:26:55+01:00</retail:dateTimeCreated>
                <retail:userId>999</retail:userId>
                <retail:notDiscountable>false</retail:notDiscountable>
                <retail:maxDiscount>0.0</retail:maxDiscount>
                <retail:productID>SERVICE_CHARGE</retail:productID>
                <retail:productTypeId>serviceProduct</retail:productTypeId>
                <retail:unitPrice>1075</retail:unitPrice>
                <retail:quantity>1.0</retail:quantity>
                <retail:netQuantity>1.0</retail:netQuantity>
                <retail:priceEntered>true</retail:priceEntered>
                <retail:handKeyed>true</retail:handKeyed>
                <retail:sourceInventoryType>AVA</retail:sourceInventoryType>
                <retail:productImageURL></retail:productImageURL>
                <retail:type>VALUE</retail:type>
                <retail:feeAmount>0</retail:feeAmount>
                <retail:feeRate>0.125</retail:feeRate>
                <retail:feeType>ServiceCharge</retail:feeType>
                <retail:applicableItemsGrossValue>8600</retail:applicableItemsGrossValue>
            </retail:serviceChargeFeeItem>
            <retail:hospitalitySaleItem isReturn="false">
                <retail:lineNumber>3</retail:lineNumber>
                <retail:description>Champagne Philipponnat - glass</retail:description>
                <retail:deviceId>POS01@REST1.enactor</retail:deviceId>
                <retail:value>1000</retail:value>
                <retail:netValue>1000</retail:netValue>
                <retail:effectiveNetValue>1000</retail:effectiveNetValue>
                <retail:supplementaryValues/>
                <retail:dateTimeCreated>2022-09-22T10:27:02+01:00</retail:dateTimeCreated>
                <retail:userId>999</retail:userId>
                <retail:relatedPartyId>1</retail:relatedPartyId>
                <retail:modifiersNetValue>0</retail:modifiersNetValue>
                <retail:modifiersEffectiveNetValue>0</retail:modifiersEffectiveNetValue>
                <retail:modifiersVoidQuantity>0.0</retail:modifiersVoidQuantity>
                <retail:modifiersQuantity>0.0</retail:modifiersQuantity>
                <retail:notDiscountable>false</retail:notDiscountable>
                <retail:maxDiscount>0.0</retail:maxDiscount>
                <retail:productID>0001000001</retail:productID>
                <retail:productTypeId>hospitalityProduct</retail:productTypeId>
                <retail:unitPrice>1000</retail:unitPrice>
                <retail:quantity>1.0</retail:quantity>
                <retail:netQuantity>1.0</retail:netQuantity>
                <retail:handKeyed>true</retail:handKeyed>
                <retail:text></retail:text>
                <retail:sourceInventoryType>AVA</retail:sourceInventoryType>
                <retail:priceTypeId>R</retail:priceTypeId>
     <retail:productImageURL>image://PRODUCT/champagne.png</retail:productImageURL>
                <retail:type>VALUE</retail:type>
                <retail:mmGroupId>874</retail:mmGroupId>
                <retail:mmGroupHierarchyId>UK</retail:mmGroupHierarchyId>
                <retail:warrantyInformation></retail:warrantyInformation>
                <retail:localisedWarrantyInformation/>
                <retail:mmGroupVariantGroupId>All</retail:mmGroupVariantGroupId>
                <retail:mmGroupVariantHierarchyId>All</retail:mmGroupVariantHierarchyId>
                <retail:restaurantCourseId courseId="BAR" areaId="ROOF_TERRACE">
                    <retail:restaurantId>REST1</retail:restaurantId>
                </retail:restaurantCourseId>
                <retail:isSideDish>false</retail:isSideDish>
            </retail:hospitalitySaleItem>
            <retail:hospitalitySaleItem isReturn="false">
                <retail:lineNumber>4</retail:lineNumber>
                <retail:description>Champagne Philipponnat - glass</retail:description>
                <retail:deviceId>POS01@REST1.enactor</retail:deviceId>
                <retail:value>1000</retail:value>
                <retail:netValue>1000</retail:netValue>
                <retail:effectiveNetValue>1000</retail:effectiveNetValue>
                <retail:supplementaryValues/>
                <retail:dateTimeCreated>2022-09-22T10:27:04+01:00</retail:dateTimeCreated>
                <retail:userId>999</retail:userId>
                <retail:relatedPartyId>2</retail:relatedPartyId>
                <retail:modifiersNetValue>0</retail:modifiersNetValue>
                <retail:modifiersEffectiveNetValue>0</retail:modifiersEffectiveNetValue>
                <retail:modifiersVoidQuantity>0.0</retail:modifiersVoidQuantity>
                <retail:modifiersQuantity>0.0</retail:modifiersQuantity>
                <retail:notDiscountable>false</retail:notDiscountable>
                <retail:maxDiscount>0.0</retail:maxDiscount>
                <retail:productID>0001000001</retail:productID>
                <retail:productTypeId>hospitalityProduct</retail:productTypeId>
                <retail:unitPrice>1000</retail:unitPrice>
                <retail:quantity>1.0</retail:quantity>
                <retail:netQuantity>1.0</retail:netQuantity>
                <retail:handKeyed>true</retail:handKeyed>
                <retail:text></retail:text>
                <retail:sourceInventoryType>AVA</retail:sourceInventoryType>
                <retail:priceTypeId>R</retail:priceTypeId>
   <retail:productImageURL>image://PRODUCT/champagne.png</retail:productImageURL>
                <retail:type>VALUE</retail:type>
                <retail:mmGroupId>874</retail:mmGroupId>
                <retail:mmGroupHierarchyId>UK</retail:mmGroupHierarchyId>
                <retail:warrantyInformation></retail:warrantyInformation>
                <retail:localisedWarrantyInformation/>
                <retail:mmGroupVariantGroupId>All</retail:mmGroupVariantGroupId>
                <retail:mmGroupVariantHierarchyId>All</retail:mmGroupVariantHierarchyId>
                <retail:restaurantCourseId courseId="BAR" areaId="ROOF_TERRACE">
                    <retail:restaurantId>REST1</retail:restaurantId>
                </retail:restaurantCourseId>
                <retail:isSideDish>false</retail:isSideDish>
            </retail:hospitalitySaleItem>
            <retail:hospitalitySaleItem isReturn="false">
                <retail:lineNumber>5</retail:lineNumber>
                <retail:description>Cornish Misto</retail:description>
                <retail:deviceId>POS01@REST1.enactor</retail:deviceId>
                <retail:value>2500</retail:value>
                <retail:netValue>2500</retail:netValue>
                <retail:effectiveNetValue>2500</retail:effectiveNetValue>
                <retail:supplementaryValues/>
                <retail:dateTimeCreated>2022-09-22T10:27:06+01:00</retail:dateTimeCreated>
                <retail:userId>999</retail:userId>
                <retail:relatedPartyId>1</retail:relatedPartyId>
                <retail:modifiers>
                    <retail:productOptionModifier modifierItemLine="6"/>
                    <retail:productOptionModifier modifierItemLine="7"/>
                    <retail:productPreparationOptionModifier modifierItemLine="8"/>
                </retail:modifiers>
                <retail:modifiersNetValue>0</retail:modifiersNetValue>
                <retail:modifiersEffectiveNetValue>0</retail:modifiersEffectiveNetValue>
                <retail:modifiersVoidQuantity>0.0</retail:modifiersVoidQuantity>
                <retail:modifiersQuantity>0.0</retail:modifiersQuantity>
                <retail:notDiscountable>false</retail:notDiscountable>
                <retail:maxDiscount>0.0</retail:maxDiscount>
                <retail:productID>0000000011</retail:productID>
                <retail:productTypeId>hospitalityProduct</retail:productTypeId>
                <retail:unitPrice>2500</retail:unitPrice>
                <retail:quantity>1.0</retail:quantity>
                <retail:netQuantity>1.0</retail:netQuantity>
                <retail:handKeyed>true</retail:handKeyed>
                <retail:text></retail:text>
                <retail:sourceInventoryType>AVA</retail:sourceInventoryType>
                <retail:priceTypeId>R</retail:priceTypeId>
 <retail:productImageURL>image://PRODUCT/cornishMisto.png</retail:productImageURL>
                <retail:type>VALUE</retail:type>
                <retail:warrantyInformation></retail:warrantyInformation>
                <retail:localisedWarrantyInformation/>
                <retail:restaurantCourseId courseId="MAINS" areaId="ROOF_TERRACE">
                    <retail:restaurantId>REST1</retail:restaurantId>
                </retail:restaurantCourseId>
                <retail:isSideDish>false</retail:isSideDish>
            </retail:hospitalitySaleItem>
            <retail:basketOptionValuesItem>
                <retail:lineNumber>6</retail:lineNumber>
                <retail:deviceId>POS01@REST1.enactor</retail:deviceId>
                <retail:value>0</retail:value>
                <retail:netValue>0</retail:netValue>
                <retail:effectiveNetValue>0</retail:effectiveNetValue>
                <retail:supplementaryValues/>
                <retail:dateTimeCreated>2022-09-22T10:27:11+01:00</retail:dateTimeCreated>
                <retail:userId>999</retail:userId>
                <retail:modifiersNetValue>0</retail:modifiersNetValue>
                <retail:modifiersEffectiveNetValue>0</retail:modifiersEffectiveNetValue>
                <retail:modifiersVoidQuantity>0.0</retail:modifiersVoidQuantity>
                <retail:modifiersQuantity>0.0</retail:modifiersQuantity>
                <retail:quantity>1.0</retail:quantity>
                <retail:netQuantity>1.0</retail:netQuantity>
                <retail:sourceInventoryType>AVA</retail:sourceInventoryType>
                <retail:type>VALUE</retail:type>
                <retail:basketOptionValues>
                    <retail:basketOptionValue>
                        <retail:optionId>Chargeable</retail:optionId>
                        <retail:optionSetOptionReference>
                            <retail:optionSetId type="productOptionOptionSet" optionSetId="Chargeable">
                                <retail:groupId groupHierarchyId="All" groupTypeId="region">UK</retail:groupId>
                            </retail:optionSetId>
                            <retail:optionPath>Chargeable</retail:optionPath>
                        </retail:optionSetOptionReference>
                        <retail:optionDescription>Chips</retail:optionDescription>
                        <retail:optionLineNumber>7</retail:optionLineNumber>
                    </retail:basketOptionValue>
                    <retail:basketOptionValue>
                        <retail:optionId>Served with extra</retail:optionId>
                        <retail:optionValue>Beetroot</retail:optionValue>
                        <retail:optionDescription>Extra Beetroot</retail:optionDescription>
                        <retail:optionLineNumber>8</retail:optionLineNumber>
                    </retail:basketOptionValue>
                </retail:basketOptionValues>
            </retail:basketOptionValuesItem>
            <retail:hospitalityProductOptionItem isReturn="false">
                <retail:lineNumber>7</retail:lineNumber>
                <retail:description>Chips</retail:description>
                <retail:deviceId>POS01@REST1.enactor</retail:deviceId>
                <retail:value>100</retail:value>
                <retail:netValue>100</retail:netValue>
                <retail:effectiveNetValue>100</retail:effectiveNetValue>
                <retail:supplementaryValues/>
                <retail:dateTimeCreated>2022-09-22T10:27:11+01:00</retail:dateTimeCreated>
                <retail:userId>999</retail:userId>
                <retail:relatedPartyId>1</retail:relatedPartyId>
                <retail:modifiersNetValue>0</retail:modifiersNetValue>
                <retail:modifiersEffectiveNetValue>0</retail:modifiersEffectiveNetValue>
                <retail:modifiersVoidQuantity>0.0</retail:modifiersVoidQuantity>
                <retail:modifiersQuantity>0.0</retail:modifiersQuantity>
                <retail:notDiscountable>false</retail:notDiscountable>
                <retail:maxDiscount>0.0</retail:maxDiscount>
                <retail:productID>004456</retail:productID>
                <retail:productTypeId>hospitalityOptionProduct</retail:productTypeId>
                <retail:unitPrice>100</retail:unitPrice>
                <retail:quantity>1.0</retail:quantity>
                <retail:netQuantity>1.0</retail:netQuantity>
                <retail:handKeyed>true</retail:handKeyed>
                <retail:sourceInventoryType>AVA</retail:sourceInventoryType>
                <retail:priceTypeId>PDT_OPTION</retail:priceTypeId>
                <retail:soldAsOption>true</retail:soldAsOption>
                <retail:productImageURL></retail:productImageURL>
                <retail:type>VALUE</retail:type>
                <retail:mmGroupId>874</retail:mmGroupId>
                <retail:mmGroupHierarchyId>UK</retail:mmGroupHierarchyId>
                <retail:warrantyInformation></retail:warrantyInformation>
                <retail:localisedWarrantyInformation/>
                <retail:mmGroupVariantGroupId>All</retail:mmGroupVariantGroupId>
                <retail:mmGroupVariantHierarchyId>All</retail:mmGroupVariantHierarchyId>
                <retail:optionId>Chargeable</retail:optionId>
                <retail:optionSetOptionReference>
                    <retail:optionSetId type="productOptionOptionSet" optionSetId="Chargeable">
                        <retail:groupId groupHierarchyId="All" groupTypeId="region">UK</retail:groupId>
                    </retail:optionSetId>
                    <retail:optionPath>Chargeable</retail:optionPath>
                </retail:optionSetOptionReference>
            </retail:hospitalityProductOptionItem>
            <retail:productPreparationOptionItem notReturnable="true">
                <retail:lineNumber>8</retail:lineNumber>
                <retail:description>Served with extra</retail:description>
                <retail:deviceId>POS01@REST1.enactor</retail:deviceId>
                <retail:value>0</retail:value>
                <retail:netValue>0</retail:netValue>
                <retail:effectiveNetValue>0</retail:effectiveNetValue>
                <retail:supplementaryValues/>
                <retail:dateTimeCreated>2022-09-22T10:27:11+01:00</retail:dateTimeCreated>
                <retail:userId>999</retail:userId>
                <retail:relatedPartyId>1</retail:relatedPartyId>
                <retail:modifiersNetValue>0</retail:modifiersNetValue>
                <retail:modifiersEffectiveNetValue>0</retail:modifiersEffectiveNetValue>
                <retail:modifiersVoidQuantity>0.0</retail:modifiersVoidQuantity>
                <retail:modifiersQuantity>0.0</retail:modifiersQuantity>
                <retail:quantity>1.0</retail:quantity>
                <retail:netQuantity>1.0</retail:netQuantity>
                <retail:sourceInventoryType>AVA</retail:sourceInventoryType>
                <retail:soldAsOption>true</retail:soldAsOption>
                <retail:type>VALUE</retail:type>
                <retail:optionId>Served with extra</retail:optionId>
                <retail:optionSetOptionReference>
                    <retail:optionSetId type="productPreparationOptionSet" optionSetId="Extra Salad Options">
                        <retail:groupId groupHierarchyId="All" groupTypeId="region">All</retail:groupId>
                    </retail:optionSetId>
                    <retail:optionPath>Served with extra</retail:optionPath>
                </retail:optionSetOptionReference>
                <retail:choice>Beetroot</retail:choice>
                <retail:choiceDescription>Extra Beetroot</retail:choiceDescription>
            </retail:productPreparationOptionItem>
            <retail:hospitalitySaleItem isReturn="false">
                <retail:lineNumber>9</retail:lineNumber>
                <retail:description>Dover Sole</retail:description>
                <retail:deviceId>POS01@REST1.enactor</retail:deviceId>
                <retail:value>3000</retail:value>
                <retail:netValue>3000</retail:netValue>
                <retail:effectiveNetValue>3000</retail:effectiveNetValue>
                <retail:supplementaryValues/>
                <retail:dateTimeCreated>2022-09-22T10:27:27+01:00</retail:dateTimeCreated>
                <retail:userId>999</retail:userId>
                <retail:relatedPartyId>2</retail:relatedPartyId>
                <retail:modifiers>
                    <retail:productOptionModifier modifierItemLine="10"/>
                    <retail:productPreparationOptionModifier modifierItemLine="11"/>
                </retail:modifiers>
                <retail:modifiersNetValue>0</retail:modifiersNetValue>
                <retail:modifiersEffectiveNetValue>0</retail:modifiersEffectiveNetValue>
                <retail:modifiersVoidQuantity>0.0</retail:modifiersVoidQuantity>
                <retail:modifiersQuantity>0.0</retail:modifiersQuantity>
                <retail:notDiscountable>false</retail:notDiscountable>
                <retail:maxDiscount>0.0</retail:maxDiscount>
                <retail:productID>0000000014</retail:productID>
                <retail:productTypeId>hospitalityProduct</retail:productTypeId>
                <retail:unitPrice>3000</retail:unitPrice>
                <retail:quantity>1.0</retail:quantity>
                <retail:netQuantity>1.0</retail:netQuantity>
                <retail:handKeyed>true</retail:handKeyed>
                <retail:text></retail:text>
                <retail:sourceInventoryType>AVA</retail:sourceInventoryType>
                <retail:miscProductData>
                    <retail:perishable>true</retail:perishable>
                </retail:miscProductData>
                <retail:priceTypeId>R</retail:priceTypeId>
 <retail:productImageURL>image://PRODUCT/doversole.png</retail:productImageURL>
                <retail:type>VALUE</retail:type>
                <retail:mmGroupId>874</retail:mmGroupId>
                <retail:mmGroupHierarchyId>UK</retail:mmGroupHierarchyId>
                <retail:warrantyInformation></retail:warrantyInformation>
                <retail:localisedWarrantyInformation/>
                <retail:measureSystemId>WEIGHT_METRIC</retail:measureSystemId>
                <retail:unitType>WEIGHED</retail:unitType>
                <retail:unitOfMeasureId>KILOGRAM</retail:unitOfMeasureId>
                <retail:unitOfMeasureDescription>Kg</retail:unitOfMeasureDescription>
                <retail:inventoryUnitOfMeasureId>GRAM</retail:inventoryUnitOfMeasureId>
                <retail:mmGroupVariantGroupId>All</retail:mmGroupVariantGroupId>
                <retail:mmGroupVariantHierarchyId>All</retail:mmGroupVariantHierarchyId>
                <retail:restaurantCourseId courseId="MAINS" areaId="ROOF_TERRACE">
                    <retail:restaurantId>REST1</retail:restaurantId>
                </retail:restaurantCourseId>
                <retail:isSideDish>false</retail:isSideDish>
            </retail:hospitalitySaleItem>
            <retail:basketOptionValuesItem>
                <retail:lineNumber>10</retail:lineNumber>
                <retail:deviceId>POS01@REST1.enactor</retail:deviceId>
                <retail:value>0</retail:value>
                <retail:netValue>0</retail:netValue>
                <retail:effectiveNetValue>0</retail:effectiveNetValue>
                <retail:supplementaryValues/>
                <retail:dateTimeCreated>2022-09-22T10:27:30+01:00</retail:dateTimeCreated>
                <retail:userId>999</retail:userId>
                <retail:modifiersNetValue>0</retail:modifiersNetValue>
                <retail:modifiersEffectiveNetValue>0</retail:modifiersEffectiveNetValue>
                <retail:modifiersVoidQuantity>0.0</retail:modifiersVoidQuantity>
                <retail:modifiersQuantity>0.0</retail:modifiersQuantity>
                <retail:quantity>1.0</retail:quantity>
                <retail:netQuantity>1.0</retail:netQuantity>
                <retail:sourceInventoryType>AVA</retail:sourceInventoryType>
                <retail:type>VALUE</retail:type>
                <retail:basketOptionValues>
                    <retail:basketOptionValue>
                        <retail:optionId>Bentleys_Grill_Sauce</retail:optionId>
                        <retail:optionValue>Hollandaise</retail:optionValue>
                        <retail:optionDescription>Hollandaise Sauce</retail:optionDescription>
                        <retail:optionLineNumber>11</retail:optionLineNumber>
                    </retail:basketOptionValue>
                </retail:basketOptionValues>
            </retail:basketOptionValuesItem>
            <retail:productPreparationOptionItem notReturnable="true">
                <retail:lineNumber>11</retail:lineNumber>
                <retail:description>Bentleys Grill Sauce</retail:description>
                <retail:deviceId>POS01@REST1.enactor</retail:deviceId>
                <retail:value>0</retail:value>
                <retail:netValue>0</retail:netValue>
                <retail:effectiveNetValue>0</retail:effectiveNetValue>
                <retail:supplementaryValues/>
                <retail:dateTimeCreated>2022-09-22T10:27:30+01:00</retail:dateTimeCreated>
                <retail:userId>999</retail:userId>
                <retail:relatedPartyId>2</retail:relatedPartyId>
                <retail:modifiersNetValue>0</retail:modifiersNetValue>
                <retail:modifiersEffectiveNetValue>0</retail:modifiersEffectiveNetValue>
                <retail:modifiersVoidQuantity>0.0</retail:modifiersVoidQuantity>
                <retail:modifiersQuantity>0.0</retail:modifiersQuantity>
                <retail:quantity>1.0</retail:quantity>
                <retail:netQuantity>1.0</retail:netQuantity>
                <retail:sourceInventoryType>AVA</retail:sourceInventoryType>
                <retail:soldAsOption>true</retail:soldAsOption>
                <retail:type>VALUE</retail:type>
                <retail:optionId>Bentleys_Grill_Sauce</retail:optionId>
                <retail:optionSetOptionReference>
                    <retail:optionSetId type="productPreparationOptionSet" optionSetId="BSG_Sauces">
                        <retail:groupId groupHierarchyId="All" groupTypeId="region">All</retail:groupId>
                    </retail:optionSetId>
                    <retail:optionPath>Bentleys_Grill_Sauce</retail:optionPath>
                </retail:optionSetOptionReference>
                <retail:choice>Hollandaise</retail:choice>
                <retail:choiceDescription>Hollandaise Sauce</retail:choiceDescription>
            </retail:productPreparationOptionItem>
            <retail:hospitalitySaleItem isReturn="false">
                <retail:lineNumber>12</retail:lineNumber>
                <retail:description>Prawns </retail:description>
                <retail:deviceId>POS01@REST1.enactor</retail:deviceId>
                <retail:value>1000</retail:value>
                <retail:netValue>1000</retail:netValue>
                <retail:effectiveNetValue>1000</retail:effectiveNetValue>
                <retail:supplementaryValues/>
                <retail:dateTimeCreated>2022-09-22T10:27:38+01:00</retail:dateTimeCreated>
                <retail:userId>999</retail:userId>
                <retail:relatedPartyId>1</retail:relatedPartyId>
                <retail:modifiers>
                    <retail:productOptionModifier modifierItemLine="13"/>
                    <retail:productPreparationOptionModifier modifierItemLine="14"/>
                </retail:modifiers>
                <retail:modifiersNetValue>0</retail:modifiersNetValue>
                <retail:modifiersEffectiveNetValue>0</retail:modifiersEffectiveNetValue>
                <retail:modifiersVoidQuantity>0.0</retail:modifiersVoidQuantity>
                <retail:modifiersQuantity>0.0</retail:modifiersQuantity>
                <retail:notDiscountable>false</retail:notDiscountable>
                <retail:maxDiscount>0.0</retail:maxDiscount>
                <retail:productID>0000000017</retail:productID>
                <retail:productTypeId>hospitalityProduct</retail:productTypeId>
                <retail:unitPrice>1000</retail:unitPrice>
                <retail:quantity>1.0</retail:quantity>
                <retail:netQuantity>1.0</retail:netQuantity>
                <retail:handKeyed>true</retail:handKeyed>
                <retail:text></retail:text>
                <retail:sourceInventoryType>AVA</retail:sourceInventoryType>
                <retail:priceTypeId>R</retail:priceTypeId>
                <retail:productImageURL></retail:productImageURL>
                <retail:type>VALUE</retail:type>
                <retail:mmGroupId>874</retail:mmGroupId>
                <retail:mmGroupHierarchyId>UK</retail:mmGroupHierarchyId>
                <retail:warrantyInformation></retail:warrantyInformation>
                <retail:localisedWarrantyInformation/>
                <retail:measureSystemId>WEIGHT_METRIC</retail:measureSystemId>
                <retail:unitType>WEIGHED</retail:unitType>
                <retail:unitOfMeasureId>GRAM</retail:unitOfMeasureId>
                <retail:unitOfMeasureDescription>g</retail:unitOfMeasureDescription>
                <retail:inventoryUnitOfMeasureId>GRAM</retail:inventoryUnitOfMeasureId>
                <retail:mmGroupVariantGroupId>All</retail:mmGroupVariantGroupId>
                <retail:mmGroupVariantHierarchyId>All</retail:mmGroupVariantHierarchyId>
                <retail:restaurantCourseId courseId="MAINS" areaId="ROOF_TERRACE">
                    <retail:restaurantId>REST1</retail:restaurantId>
                </retail:restaurantCourseId>
                <retail:isSideDish>false</retail:isSideDish>
            </retail:hospitalitySaleItem>
            <retail:basketOptionValuesItem>
                <retail:lineNumber>13</retail:lineNumber>
                <retail:deviceId>POS01@REST1.enactor</retail:deviceId>
                <retail:value>0</retail:value>
                <retail:netValue>0</retail:netValue>
                <retail:effectiveNetValue>0</retail:effectiveNetValue>
                <retail:supplementaryValues/>
                <retail:dateTimeCreated>2022-09-22T10:27:45+01:00</retail:dateTimeCreated>
                <retail:userId>999</retail:userId>
                <retail:modifiersNetValue>0</retail:modifiersNetValue>
                <retail:modifiersEffectiveNetValue>0</retail:modifiersEffectiveNetValue>
                <retail:modifiersVoidQuantity>0.0</retail:modifiersVoidQuantity>
                <retail:modifiersQuantity>0.0</retail:modifiersQuantity>
                <retail:quantity>1.0</retail:quantity>
                <retail:netQuantity>1.0</retail:netQuantity>
                <retail:sourceInventoryType>AVA</retail:sourceInventoryType>
                <retail:type>VALUE</retail:type>
                <retail:basketOptionValues>
                    <retail:basketOptionValue>
                        <retail:optionId>Bentleys_Grill_Sauce</retail:optionId>
                        <retail:optionValue>Hollandaise</retail:optionValue>
                        <retail:optionDescription>Hollandaise Sauce</retail:optionDescription>
                        <retail:optionLineNumber>14</retail:optionLineNumber>
                    </retail:basketOptionValue>
                </retail:basketOptionValues>
            </retail:basketOptionValuesItem>
            <retail:productPreparationOptionItem notReturnable="true">
                <retail:lineNumber>14</retail:lineNumber>
                <retail:description>Bentleys Grill Sauce</retail:description>
                <retail:deviceId>POS01@REST1.enactor</retail:deviceId>
                <retail:value>0</retail:value>
                <retail:netValue>0</retail:netValue>
                <retail:effectiveNetValue>0</retail:effectiveNetValue>
                <retail:supplementaryValues/>
                <retail:dateTimeCreated>2022-09-22T10:27:45+01:00</retail:dateTimeCreated>
                <retail:userId>999</retail:userId>
                <retail:relatedPartyId>1</retail:relatedPartyId>
                <retail:modifiersNetValue>0</retail:modifiersNetValue>
                <retail:modifiersEffectiveNetValue>0</retail:modifiersEffectiveNetValue>
                <retail:modifiersVoidQuantity>0.0</retail:modifiersVoidQuantity>
                <retail:modifiersQuantity>0.0</retail:modifiersQuantity>
                <retail:quantity>1.0</retail:quantity>
                <retail:netQuantity>1.0</retail:netQuantity>
                <retail:sourceInventoryType>AVA</retail:sourceInventoryType>
                <retail:soldAsOption>true</retail:soldAsOption>
                <retail:type>VALUE</retail:type>
                <retail:optionId>Bentleys_Grill_Sauce</retail:optionId>
                <retail:optionSetOptionReference>
                    <retail:optionSetId type="productPreparationOptionSet" optionSetId="BSG_Sauces">
                        <retail:groupId groupHierarchyId="All" groupTypeId="region">All</retail:groupId>
                    </retail:optionSetId>
                    <retail:optionPath>Bentleys_Grill_Sauce</retail:optionPath>
                </retail:optionSetOptionReference>
                <retail:choice>Hollandaise</retail:choice>
                <retail:choiceDescription>Hollandaise Sauce</retail:choiceDescription>
            </retail:productPreparationOptionItem>
            <retail:courseInstructionItem>
                <retail:lineNumber>15</retail:lineNumber>
                <retail:supplementaryValues/>
                <retail:dateTimeCreated>2022-09-22T10:28:04+01:00</retail:dateTimeCreated>
                <retail:userId>999</retail:userId>
                <retail:message>Mains Away</retail:message>
                <retail:restaurantCourseId courseId="MAINS" areaId="ROOF_TERRACE">
                    <retail:restaurantId>REST1</retail:restaurantId>
                </retail:restaurantCourseId>
                <retail:courseSequence>3</retail:courseSequence>
            </retail:courseInstructionItem>
            <retail:statusChangeInstructionItem>
                <retail:lineNumber>16</retail:lineNumber>
                <retail:supplementaryValues/>
                <retail:restaurantTableStatusDefinitionId statusId="MAINS">MAINS</retail:restaurantTableStatusDefinitionId>
            </retail:statusChangeInstructionItem>
            <retail:storageItem>
                <retail:lineNumber>17</retail:lineNumber>
                <retail:deviceId>POS01@REST1.enactor</retail:deviceId>
                <retail:supplementaryValues/>
                <retail:dateTimeCreated>2022-09-22T10:28:11+01:00</retail:dateTimeCreated>
                <retail:userId>999</retail:userId>
                <retail:storageId storageRef="55200004001682209221026525" storageTag="TRANSACTION_ID"/>
                <retail:storingStage>Sale</retail:storingStage>
            </retail:storageItem>
            <retail:cashTenderItem>
                <retail:lineNumber>18</retail:lineNumber>
                <retail:description>Cash UK</retail:description>
                <retail:deviceId>POS01@REST1.enactor</retail:deviceId>
                <retail:value>-9675</retail:value>
                <retail:netValue>-9675</retail:netValue>
                <retail:effectiveNetValue>-9675</retail:effectiveNetValue>
                <retail:supplementaryValues/>
                <retail:dateTimeCreated>2022-09-22T10:28:48+01:00</retail:dateTimeCreated>
                <retail:userId>999</retail:userId>
                <retail:splitNumber>1</retail:splitNumber>
                <retail:notVoidable>false</retail:notVoidable>
                <retail:tenderKey>
                    <retail:tenderId>CASH_UK</retail:tenderId>
                    <retail:groupId groupHierarchyId="All" groupTypeId="region">UK</retail:groupId>
                </retail:tenderKey>
                <retail:tenderType>cashTender</retail:tenderType>
                <retail:tenderAmount>9675</retail:tenderAmount>
                <retail:currencyId>GBP</retail:currencyId>
                <retail:currencyDescription>Pounds Sterling</retail:currencyDescription>
                <retail:surchargeAmount>0</retail:surchargeAmount>
                <retail:openDrawerAtEnd>false</retail:openDrawerAtEnd>
            </retail:cashTenderItem>
        </retail:items>
        <retail:balance>0</retail:balance>
        <retail:currencyId>GBP</retail:currencyId>
        <retail:currencyDescription>Pounds Sterling</retail:currencyDescription>
        <retail:taxInclusive>false</retail:taxInclusive>
        <retail:itemCount>18</retail:itemCount>
        <retail:saleItemQuantity>10.0</retail:saleItemQuantity>
        <retail:returnItemQuantity>0.0</retail:returnItemQuantity>
        <retail:returnMerchandiseItemQuantity>0.0</retail:returnMerchandiseItemQuantity>
        <retail:returnMerchandiseItemNetValue>0</retail:returnMerchandiseItemNetValue>
        <retail:saleItemNetValue>9675</retail:saleItemNetValue>
        <retail:returnItemNetValue>0</retail:returnItemNetValue>
        <retail:merchandiseItemQuantity>6.0</retail:merchandiseItemQuantity>
        <retail:merchandiseItemValue>8600</retail:merchandiseItemValue>
        <retail:total>9675</retail:total>
        <retail:grossTotal>9675</retail:grossTotal>
        <retail:taxTotal>0</retail:taxTotal>
        <retail:billSplits>
            <retail:billSplit type="FULL" splitNumber="1">
                <retail:tenderAmount>9675</retail:tenderAmount>
                <retail:paid>true</retail:paid>
            </retail:billSplit>
        </retail:billSplits>
        <retail:orderPrints>
            <retail:orderPrint orderPrintId="001">
                <retail:dateTime>2022-09-22T10:28:04+01:00</retail:dateTime>
                <retail:printDocket>
                    <retail:preparationTypeId>DISPLAY</retail:preparationTypeId>
                    <retail:lineNumbers>3</retail:lineNumbers>
                    <retail:lineNumbers>4</retail:lineNumbers>
                    <retail:printedCopies>1</retail:printedCopies>
                </retail:printDocket>
                <retail:printDocket>
                    <retail:preparationTypeId>BAR</retail:preparationTypeId>
                    <retail:lineNumbers>3</retail:lineNumbers>
                    <retail:lineNumbers>4</retail:lineNumbers>
                    <retail:printedCopies>1</retail:printedCopies>
                </retail:printDocket>
                <retail:printDocket>
                    <retail:preparationTypeId>KITCHEN_DISPLAY</retail:preparationTypeId>
                    <retail:lineNumbers>3</retail:lineNumbers>
                    <retail:lineNumbers>4</retail:lineNumbers>
                    <retail:lineNumbers>5</retail:lineNumbers>
                    <retail:lineNumbers>9</retail:lineNumbers>
                    <retail:lineNumbers>12</retail:lineNumbers>
                    <retail:printedCopies>1</retail:printedCopies>
                </retail:printDocket>
                <retail:printDocket>
                    <retail:preparationTypeId>MAINS</retail:preparationTypeId>
                    <retail:lineNumbers>5</retail:lineNumbers>
                    <retail:lineNumbers>9</retail:lineNumbers>
                    <retail:lineNumbers>12</retail:lineNumbers>
                    <retail:printedCopies>1</retail:printedCopies>
                </retail:printDocket>
                <retail:printDocket>
                    <retail:preparationTypeId>PASS</retail:preparationTypeId>
                    <retail:lineNumbers>5</retail:lineNumbers>
                    <retail:lineNumbers>9</retail:lineNumbers>
                    <retail:lineNumbers>12</retail:lineNumbers>
                    <retail:printedCopies>1</retail:printedCopies>
                </retail:printDocket>
            </retail:orderPrint>
            <retail:orderPrint orderPrintId="002">
                <retail:dateTime>2022-09-22T10:28:08+01:00</retail:dateTime>
                <retail:printDocket>
                    <retail:preparationTypeId>KITCHEN_DISPLAY</retail:preparationTypeId>
                    <retail:lineNumbers>15</retail:lineNumbers>
                    <retail:printedCopies>1</retail:printedCopies>
                </retail:printDocket>
                <retail:printDocket>
                    <retail:preparationTypeId>MAINS</retail:preparationTypeId>
                    <retail:lineNumbers>15</retail:lineNumbers>
                    <retail:printedCopies>1</retail:printedCopies>
                </retail:printDocket>
                <retail:printDocket>
                    <retail:preparationTypeId>PASS</retail:preparationTypeId>
                    <retail:lineNumbers>15</retail:lineNumbers>
                    <retail:printedCopies>1</retail:printedCopies>
                </retail:printDocket>
            </retail:orderPrint>
        </retail:orderPrints>
        <retail:totalTaxAdjustment>0</retail:totalTaxAdjustment>
        <retail:preAuthBalance>0</retail:preAuthBalance>
        <retail:effectiveSaleValue>0</retail:effectiveSaleValue>
    </retail:basket>
    <retail:loyaltyPointsDetails dayNumber="0">
        <retail:loyaltyPointsBalance>0</retail:loyaltyPointsBalance>
        <retail:loyaltyPointsEarned>0</retail:loyaltyPointsEarned>
        <retail:promotionalLoyaltyPointsEarned>0</retail:promotionalLoyaltyPointsEarned>
        <retail:loyaltyPointsMissed>0</retail:loyaltyPointsMissed>
        <retail:loyaltyPointsRate>0</retail:loyaltyPointsRate>
        <retail:loyaltyAccountOffline>true</retail:loyaltyAccountOffline>
        <retail:loyaltyPointsUsed>0</retail:loyaltyPointsUsed>
        <retail:totalSpend>0</retail:totalSpend>
        <retail:spendToNextTier>0</retail:spendToNextTier>
        <retail:externalProvider>false</retail:externalProvider>
        <retail:noLoyaltyUpdate>false</retail:noLoyaltyUpdate>
        <retail:rewardValue>0</retail:rewardValue>
        <retail:rewardValueRedeemed>0</retail:rewardValueRedeemed>
    </retail:loyaltyPointsDetails>
    <retail:notes>Allergy Alert</retail:notes>
    <retail:receiptDetails>      <retail:customerVATNumberRequested>false</retail:customerVATNumberRequested>
    </retail:receiptDetails>
    <retail:storedBy>
        <retail:deviceId>POS01@REST1.enactor</retail:deviceId>
        <retail:locationId>REST1</retail:locationId>
        <retail:userId>999</retail:userId>
        <retail:userEmployeeId></retail:userEmployeeId>
        <retail:branchNumber>0</retail:branchNumber>
        <retail:terminalNumber>4</retail:terminalNumber>
        <retail:printableName>Waiter 1</retail:printableName>
        <retail:dateTimeStored>2022-09-22T10:28:11.590+01:00</retail:dateTimeStored>
    </retail:storedBy>
    <retail:covers>2</retail:covers>
    <retail:tableId>1</retail:tableId>
    <retail:areaId>ROOF_TERRACE</retail:areaId>
    <retail:selectedAllergens>
        <retail:allergenKey>CELERY</retail:allergenKey>
        <retail:allergenKey>GLUTEN</retail:allergenKey>
        <retail:allergenKey>MILK</retail:allergenKey>
    </retail:selectedAllergens>
</retail:restaurantSaleTransaction>

Description​

Notes​

Overview​

Who, What, Where, When, and How​

Who​

Where​

When​

How​

What​

NormalRetailSaleTransaction​

XML Structure​

RestaurantSaleTransaction​

XML Structure​

Examples​

Simple Sale​

Receipt​

Transaction XML​

Simple Sale with Change​

Receipt​

Transaction XML​

Simple Sale with Price Override​

Receipt​

Transaction XML​

Simple Sale with Percent Markdown​

Receipt​

Transaction XML​

Simple Sale with Voided Item​

Receipt​

Transaction XML​

Sale with Quantity and Split Tender​

Receipt​

Transaction XML​

Employee Sale​

Receipt​

Transaction XML​

Simple Refund​

Receipt​

Transaction XML​

Voided Transaction​

Receipt​

​

Transaction XML​

Create Order​

Receipt​

​

Transaction XML​

Order Payment​

Receipt​

​

Transaction XML​

Restaurant Sale​

Transaction XML​

Description

Notes

Overview

Who, What, Where, When, and How

Who

Where

When

How

What

NormalRetailSaleTransaction

XML Structure

RestaurantSaleTransaction

XML Structure

Examples

Simple Sale

Receipt

Transaction XML

Simple Sale with Change

Receipt

Transaction XML

Simple Sale with Price Override

Receipt

Transaction XML

Simple Sale with Percent Markdown

Receipt

Transaction XML

Simple Sale with Voided Item

Receipt

Transaction XML

Sale with Quantity and Split Tender

Receipt

Transaction XML

Employee Sale

Receipt

Transaction XML

Simple Refund

Receipt

Transaction XML

Voided Transaction

Receipt

Transaction XML

Create Order

Receipt

Transaction XML

Order Payment

Receipt

Transaction XML

Restaurant Sale

Transaction XML
