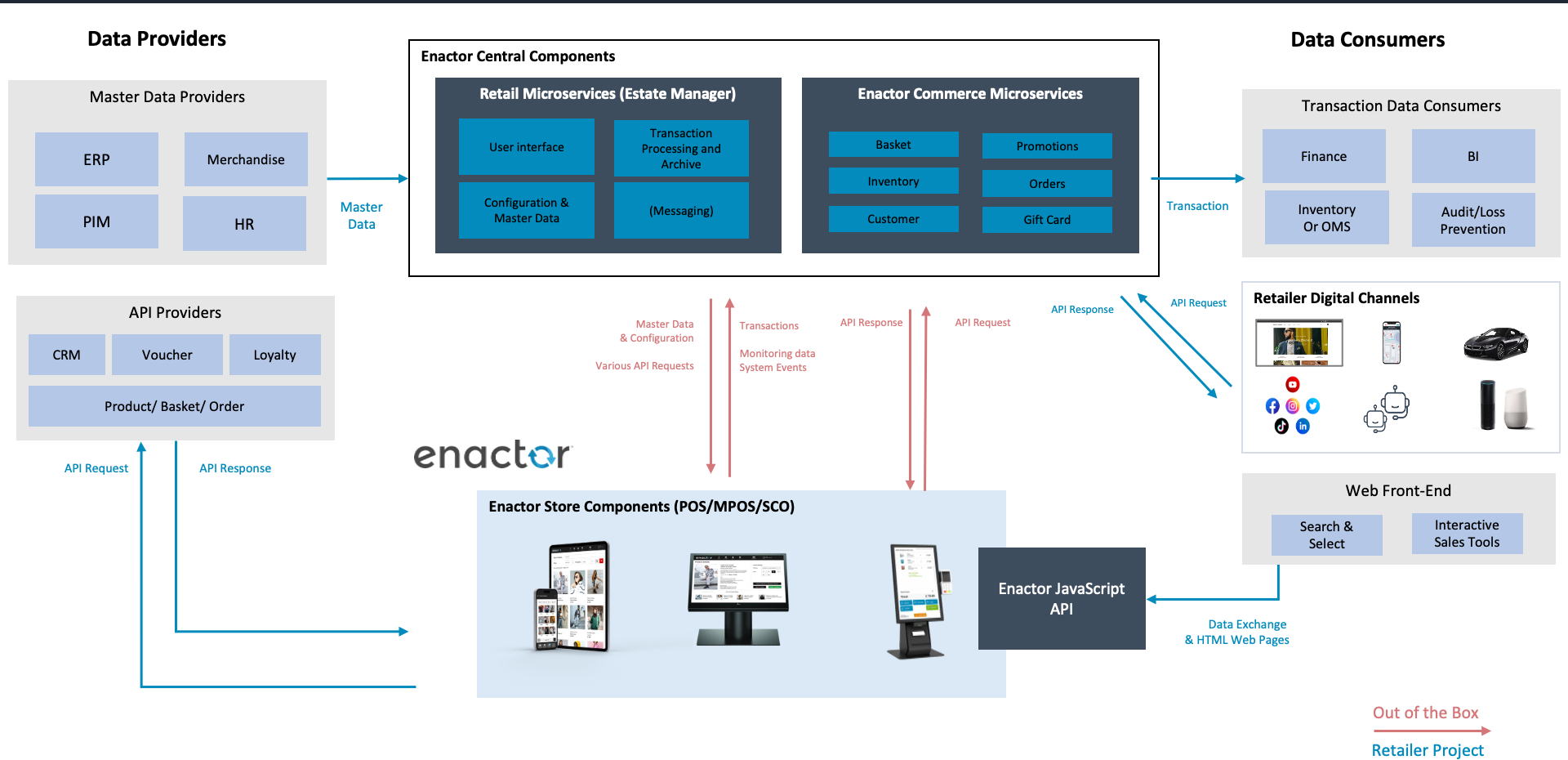

Integration

Inbound and Outbound Data Integration

Data Providers (Inbound)

Master Data Providers

ERP

Merchandise

PIM

HR

Master Data →

API Providers

CRM

Voucher

Loyalty

Product / Basket / Order

↑ API Request · API Response ↓

Enactor Central Components

Retail Microservices (Estate Manager)

User Interface

Transaction Processing & Archive

Configuration & Master Data

(Messaging)

Enactor Commerce Microservices

Basket

Promotions

Inventory

Orders

Customer

Gift Card

↕ Master Data & Configuration · Transactions · Monitoring data & System Events

Enactor Store Components (POS/MPOS/SCO)

Mobile

Tablet

Fixed POS

Self-Checkout

Enactor JavaScript API

Data Consumers (Outbound)

Transaction Data Consumers

Finance

BI

Inventory Or OMS

Audit/Loss Prevention

Retailer Digital Channels

Web

Mobile

Social

IoT & Voice

Web Front-End

Search & Select

Interactive Sales Tools

— Out of the Box— Retailer Project

Inbound Master and Configuration Data

Inbound master data and configuration typically use an API transfer. The Estate Manager provides an Import API monitored by the File Importer service, which automatically processes and imports data files in ZIP, JSON, or XML format. A message queue can also accept Enactor formatted data.

Outbound Transaction and System Event Data

Outbound transaction data uses Queues on the Estate Manager for Transactions and System Events. The Process Connection diagram can also route outputs to other messaging systems (e.g., Kafka, JMS, Google Pub/Sub) for downstream consumption.

---

Further Reading

Document	Description
Product Base Data	Importing product master data
Users and Employees	Importing user and employee data
CRM Data	Importing customer and CRM data
Retail Transaction Data	Exporting retail transaction data
System Events	Exporting system event data
Cash Management Data	Exporting cash management transaction data
