Open API Architecture

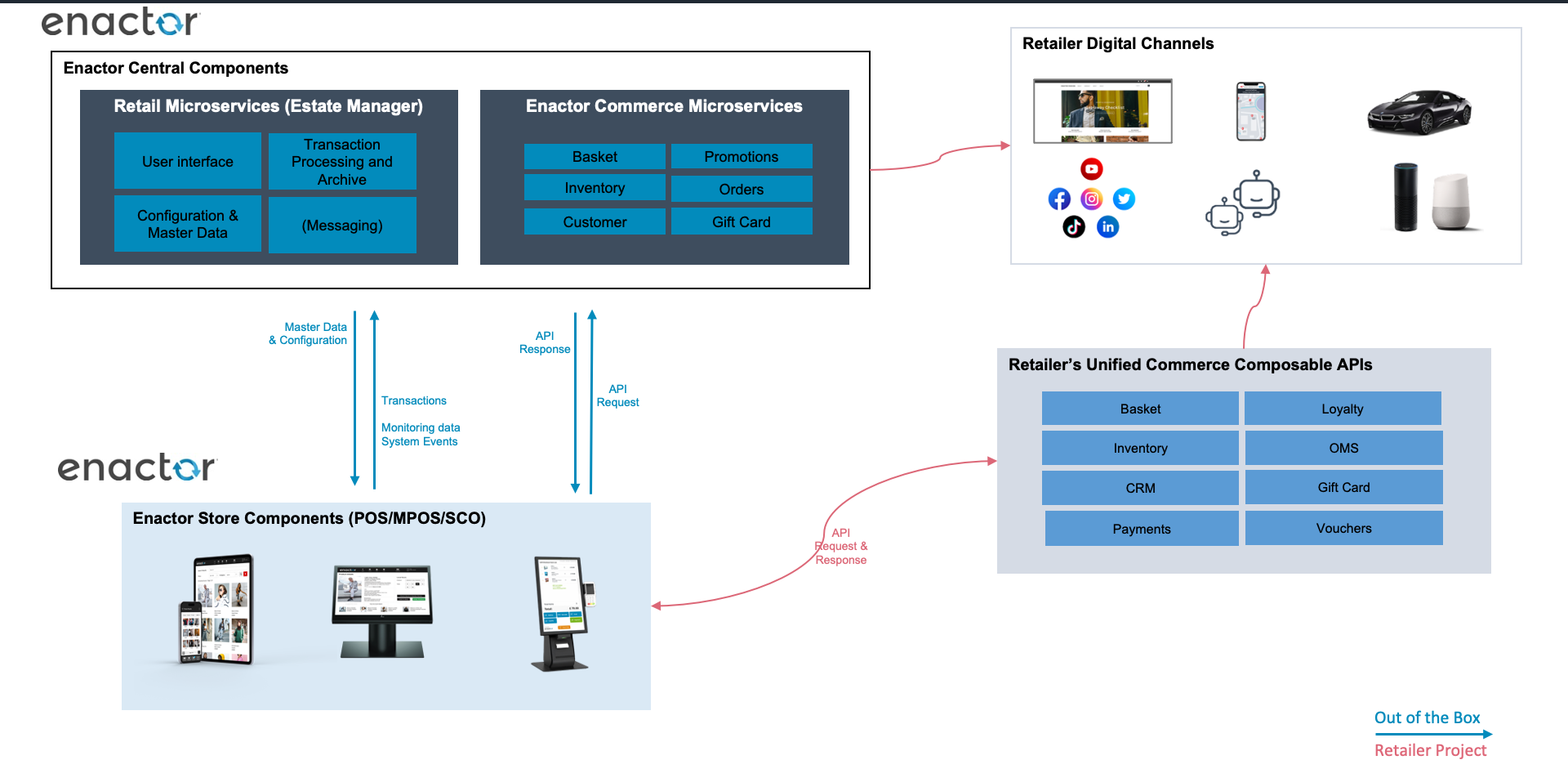

Platform and Open API Architecture
Enactor Central Components
Retail Microservices (Estate Manager)
User Interface
Transaction Processing and Archive
Configuration & Master Data
(Messaging)
Enactor Commerce Microservices
Basket
Promotions
Inventory
Orders
Customer
Gift Card
↕ Master Data & Configuration · Transactions · Monitoring data & System Events
Enactor Store Components (POS/MPOS/SCO)
Mobile
Tablet
Fixed POS
Self-Checkout
Retailer Digital Channels
Web
Mobile
Social
IoT & Voice
Connected Car
↔ API Request & Response
Retailer's Unified Commerce Composable APIs
Basket
Loyalty
Inventory
OMS
CRM
Gift Card
Payments
Vouchers
— Out of the Box— Retailer Project
Enactor Central Components:
- Retail Microservices (Estate Manager) - User Interface, Transaction Processing and Archive, Configuration and Master Data, Messaging
- Enactor Commerce Microservices - Basket, Promotions, Inventory, Orders, Customer, Gift Card
Enactor Store Components (POS/MPOS/SCO):
- Master Data and Configuration flows down from central
- Transactions, Monitoring data, and System Events flow up
Retailer's Unified Commerce Composable APIs:
- Basket | Loyalty | Inventory | OMS | CRM | Gift Card | Payments | Vouchers
APIs connect to Retailer Digital Channels (web, mobile, social, IoT). Available out of the box, with retailer project extensions.

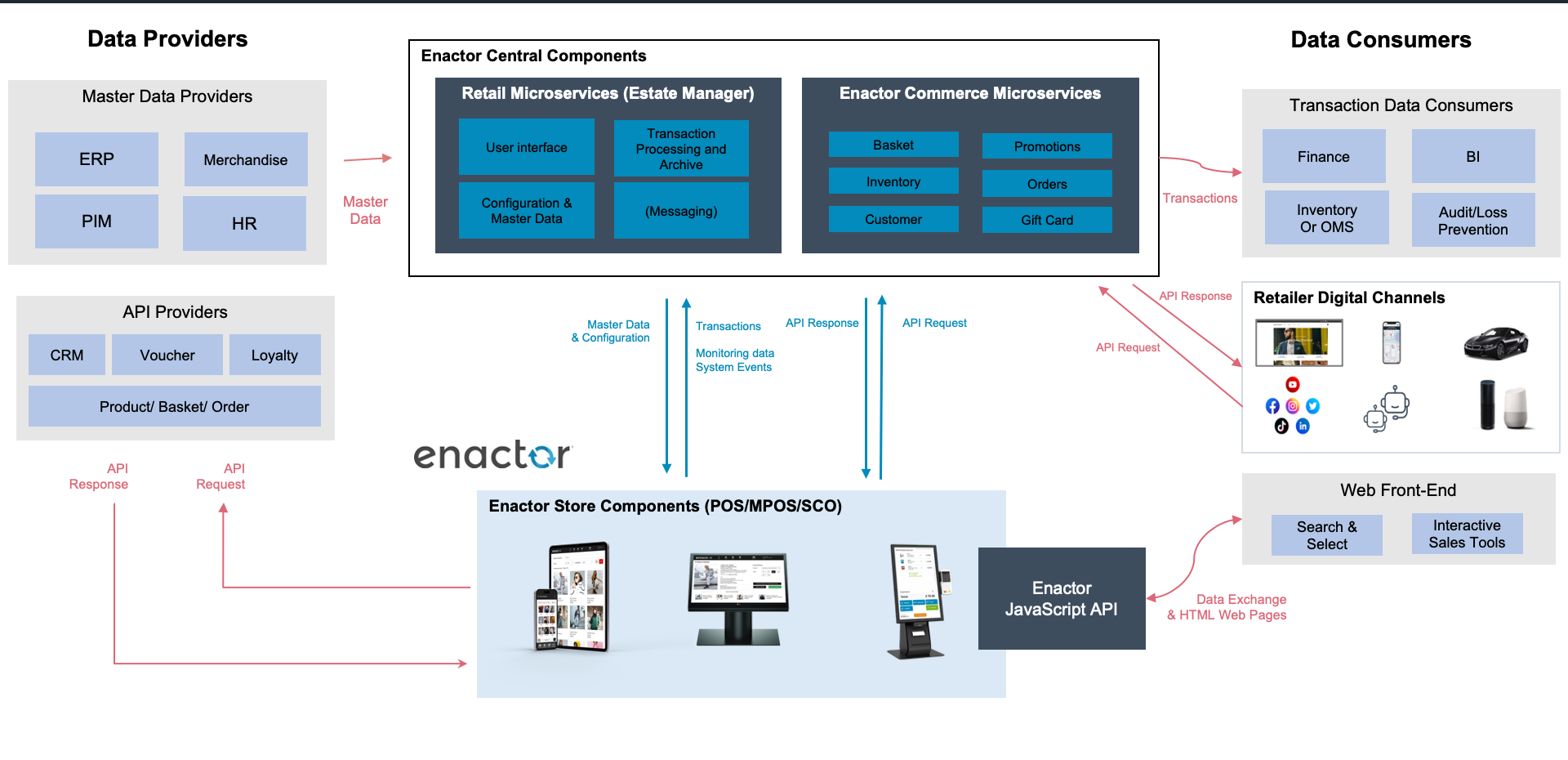

API-First Architecture within a Retailer
Data Providers
Master Data Providers
ERP
Merchandise
PIM
HR
Master Data →
API Providers
CRM
Voucher
Loyalty
Product / Basket / Order
↑ API Request · API Response ↓
Enactor Central Components
Retail Microservices (Estate Manager)
User Interface
Transaction Processing & Archive
Configuration & Master Data
(Messaging)
Enactor Commerce Microservices
Basket
Promotions
Inventory
Orders
Customer
Gift Card
↕ Master Data & Configuration · Transactions · Monitoring data & System Events
Enactor Store Components (POS/MPOS/SCO)
Mobile
Tablet
Fixed POS
Self-Checkout
Enactor JavaScript API
Data Consumers
Transaction Data Consumers
Finance
BI
Inventory Or OMS
Audit/Loss Prevention
Retailer Digital Channels
Web
Mobile
Social
IoT & Voice
Web Front-End
Search & Select
Interactive Sales Tools
— Out of the Box— Retailer Project
| Area | Systems |
|---|---|
| Master Data Providers | ERP, Merchandise, PIM, HR - feed master data into Enactor |
| API Providers | CRM, Voucher, Loyalty, Product/Basket/Order - connected via API request/response |
| Enactor Central Components | Retail Microservices (Estate Manager) + Commerce Microservices - process and distribute data |
| Enactor Store Components | POS/MPOS/SCO - connected via master data down, transactions up |
| Transaction Data Consumers | Finance, BI, Inventory or OMS, Audit/Loss Prevention |
| Retailer Digital Channels | Web, mobile, social, IoT - connected via APIs |
| Web Front-End | Search and Select, Interactive Sales Tools - via Enactor JavaScript API (Data Exchange and HTML Web Pages) |
Further Reading
| Document | Description |
|---|---|
| UC API - Introduction | Introduction to the Unified Commerce API |
| UC API - Functions | Available UC API functions |
| UC API - Extension Points | UC API extension points for customisation |
