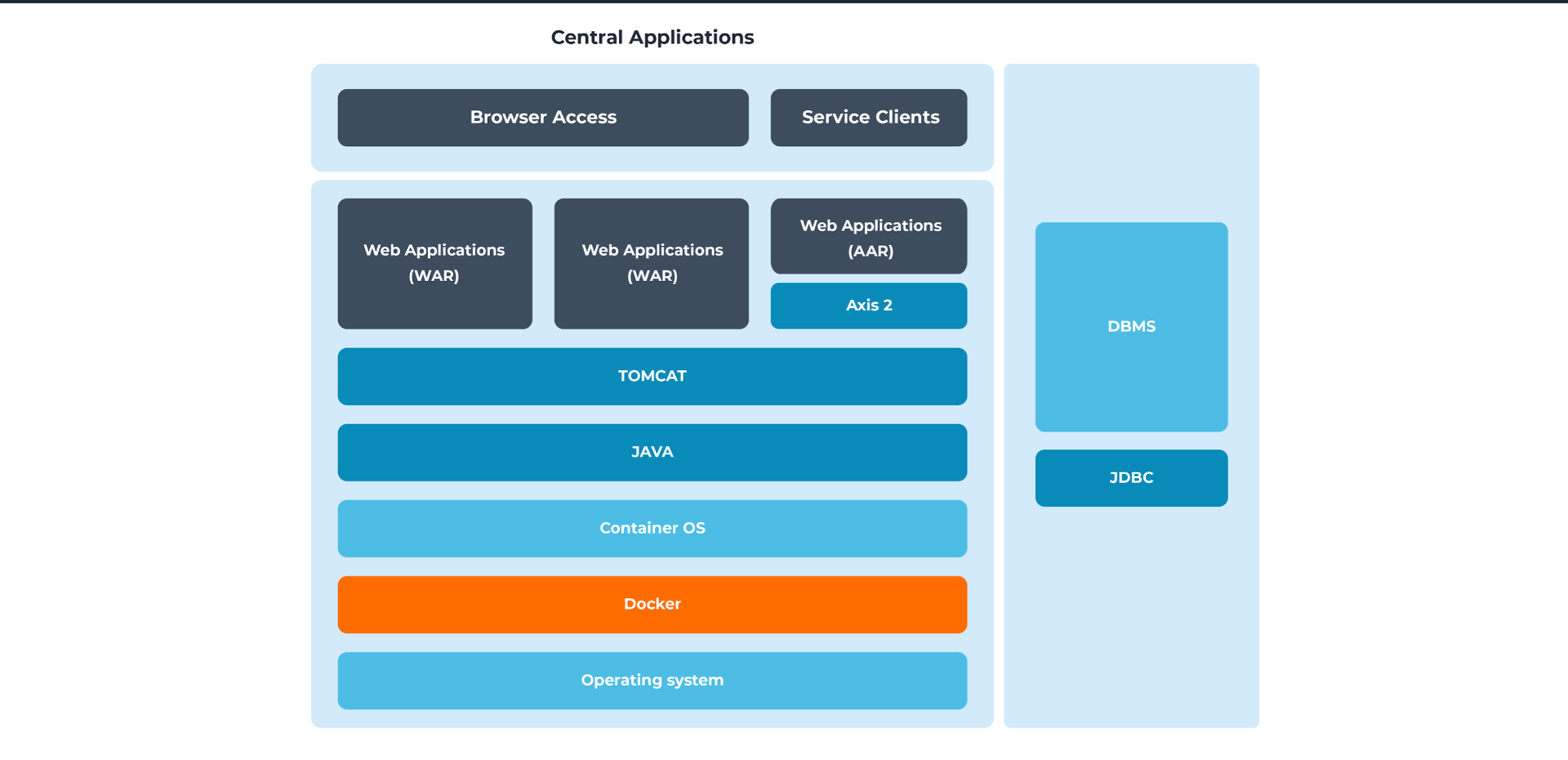

Container Architecture

Container Stack

Central Applications

Browser Access

Service Clients

Web Applications (WAR)

Web Applications (WAR)

Web Applications (AAR)

Axis 2

TOMCAT

JAVA

Container OS

Docker

Operating system

DBMS

JDBC

Technology stack (bottom to top):

1. Operating System
2. Docker
3. Container OS
4. Java
5. Tomcat
6. Web Applications - WAR files + AAR (with Axis 2 for web services)
7. Browser Access and Service Clients

Database: DBMS connected via JDBC

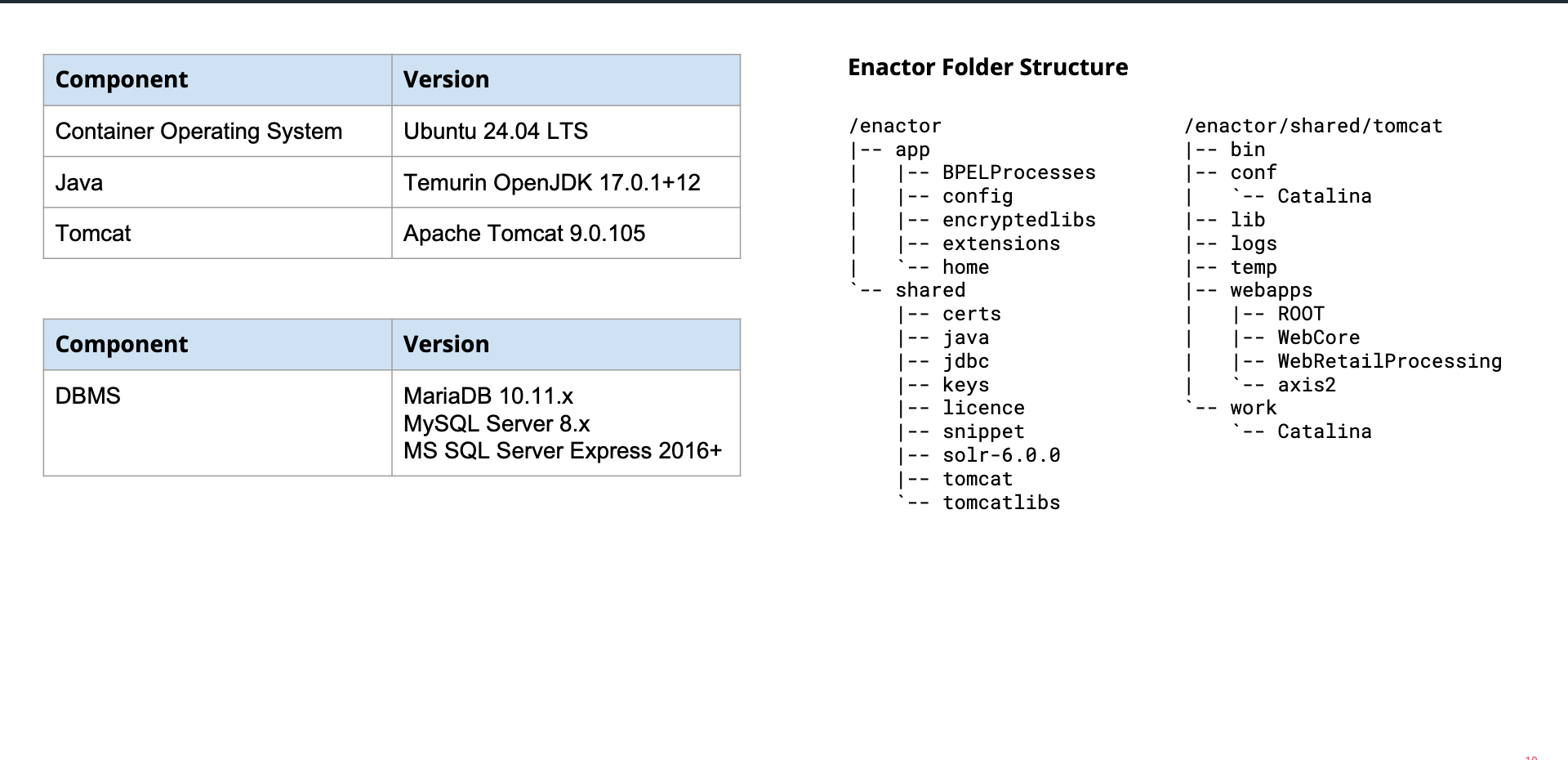

Container Versions and Structure

Enactor Folder Structure

/enactor
|-- app
|   |-- BPELProcesses
|   |-- config
|   |-- encryptedlibs
|   |-- extensions
|   `-- home
`-- shared
  |-- certs
  |-- java
  |-- jdbc
  |-- keys
  |-- licence
  |-- snippet
  |-- solr-6.0.0
  |-- tomcat
  `-- tomcatlibs

/enactor/shared/tomcat
|-- bin
|-- conf
|   `-- Catalina
|-- lib
|-- logs
|-- temp
|-- webapps
|   |-- ROOT
|   |-- WebCore
|   |-- WebRetailProcessing
|   `-- axis2
`-- work
  `-- Catalina

Component	Version
Container Operating System	Ubuntu 24.04 LTS
Java	Temurin OpenJDK 17.0.1+12
Tomcat	Apache Tomcat 9.0.105
DBMS	MariaDB 10.11.x | MySQL Server 8.x | MS SQL Server Express 2016+

Enactor Folder Structure

/enactor/app/ - BPELProcesses, config, encryptedlibs, extensions, home

/enactor/shared/ - certs, java, jdbc, keys, licence, snippet, solr-6.0.0, tomcat, tomcatlibs

/enactor/shared/tomcat/webapps/ - ROOT, WebCore, WebRetailProcessing, axis2

---
