Microservice Architecture

Section Overview

This section covers three main areas:

• Microservice Architecture - Nano services, core microservices, deployment
• Container Architecture - Technology stack, versions, folder structure
• POS Internal Architecture - Device components, software layers, React UI

---

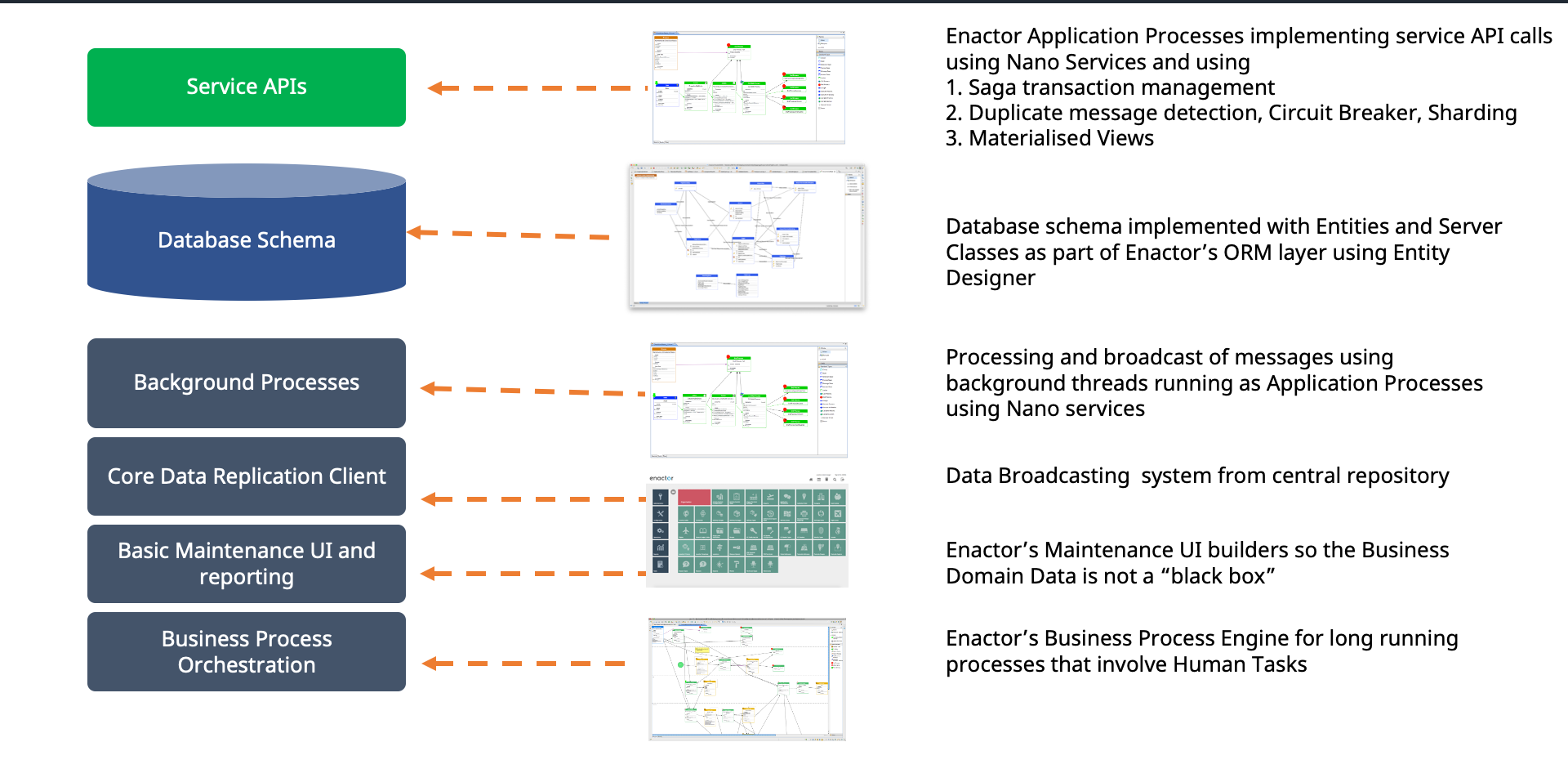

Architecture Overview

Each Enactor microservice is built from six architectural layers:

Layer	Description
Service APIs	Enactor Application Processes implementing service API calls using Nano Services with Saga transaction management, Duplicate message detection, Circuit Breaker, Sharding, and Materialised Views
Database Schema	Implemented with Entities and Server Classes as part of Enactor's ORM layer using Entity Designer
Background Processes	Processing and broadcast of messages using background threads running as Application Processes using Nano Services
Core Data Replication Client	Data Broadcasting system from central repository
Basic Maintenance UI and Reporting	Enactor's Maintenance UI builders so the Business Domain Data is not a "black box"
Business Process Orchestration	Enactor's Business Process Engine for long running processes that involve Human Tasks

Core Enactor Microservices

Service	Description
Retail Transactions	Provides sales data and cash management services for stores and reporting services and processes retail transactions from message queues
Store Inventory	Provides store inventory management services and updates inventory from retail transactions message queues
Order Services	Provides order services, orchestrates the execution of order processes, and processes order transactions
Basket Services	Provides basket services to applications such as web sites and mobile applications using the same engine that the POS uses internally
Promotion Services	Provides promotion services to applications such as web sites and mobile applications using the same engine that the POS uses internally
Customer Services	Provides customer sales and loyalty services and processes customer sales and loyalty transaction data to update customer transaction history and loyalty scheme totals

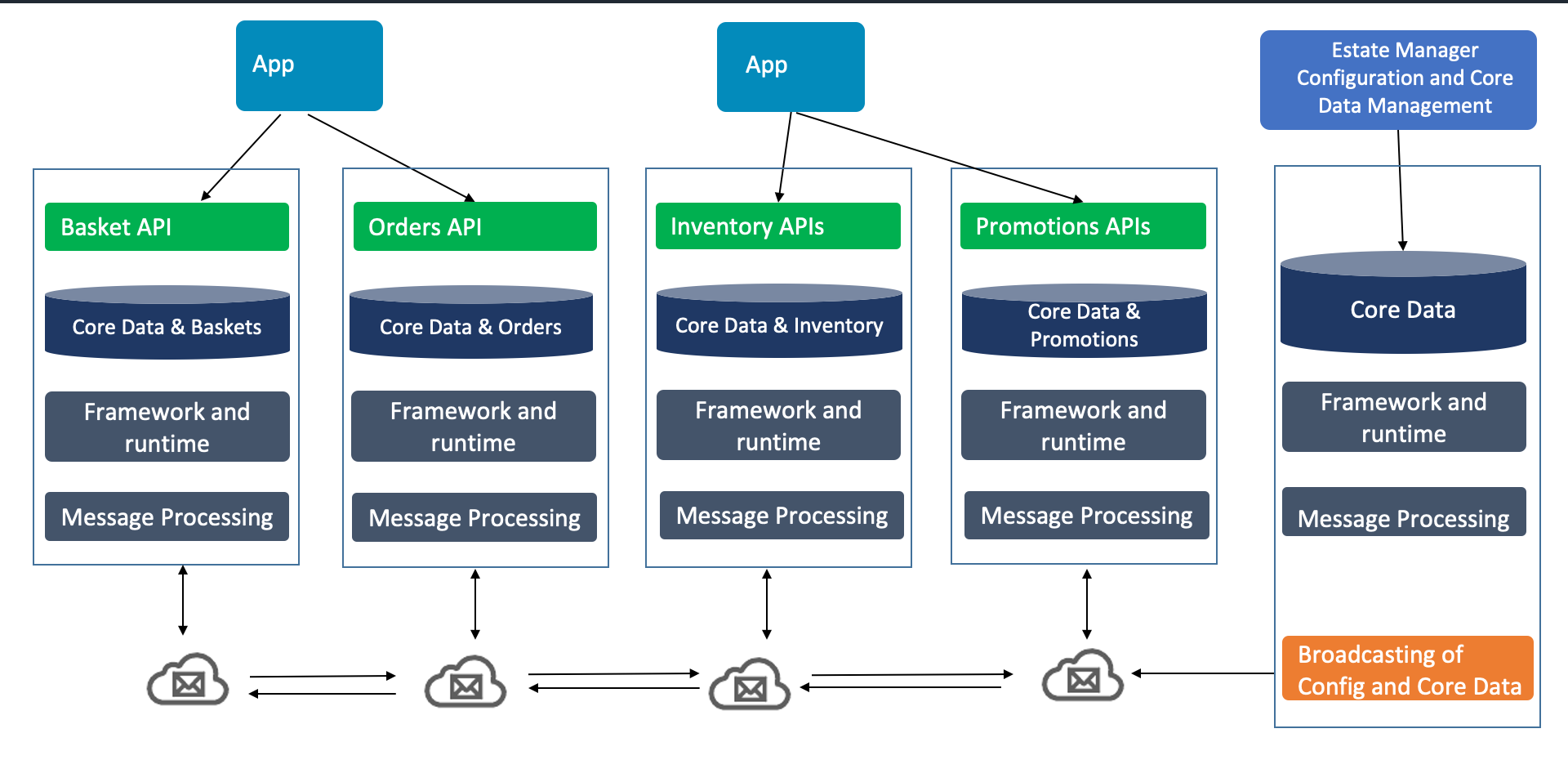

Core Microservices Diagram

Each domain-specific microservice follows the same layered structure:

• API layer - Basket API, Orders API, Inventory APIs, Promotions APIs
• Core Data and domain data - Core Data and Baskets, Core Data and Orders, Core Data and Inventory, Core Data and Promotions
• Framework and Runtime - Shared framework layer
• Message Processing - Cloud messaging between all microservices

The Estate Manager handles Configuration and Core Data Management, broadcasting config and core data to all services.

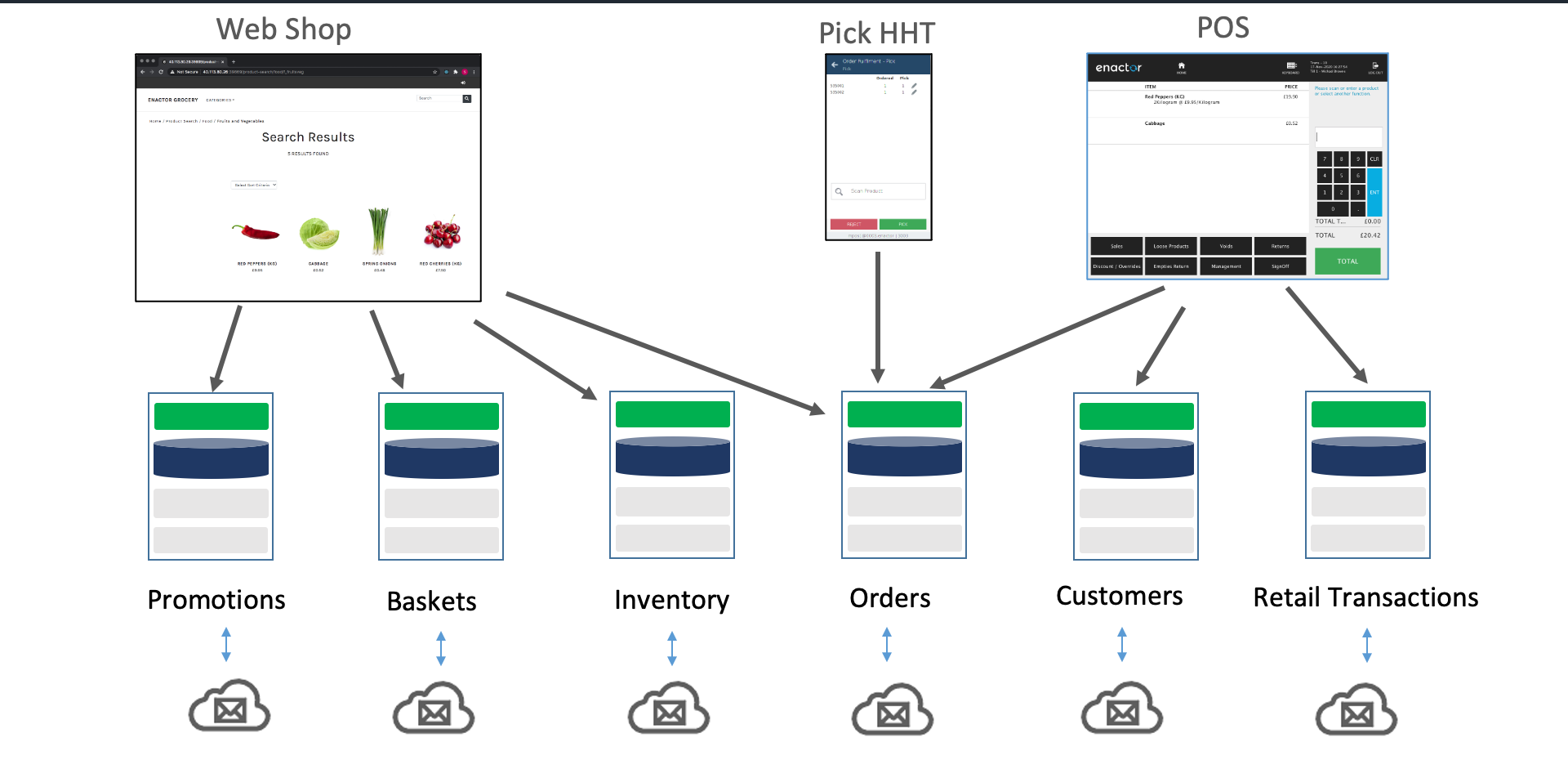

Click and Collect User Journey

A complete omnichannel journey across three touchpoints:

1. Web Shop - Customer searches and browses products online
2. Pick HHT - Warehouse staff receives and fulfils the order
3. POS - Customer collects and pays at checkout

Each touchpoint connects to the underlying microservices:

• Promotions - Pricing and offers across all channels
• Baskets - Shared basket engine for web and POS
• Inventory - Real-time stock across all locations
• Orders - Order orchestration and fulfilment
• Customers - Customer data and loyalty
• Retail Transactions - Transaction processing and archive

All microservices communicate via cloud messaging.

Deploying and Upgrading Microservices

• Stacks deployed by Swarm or Kubernetes automatically deploy contained components from their runtime JAR files
• A DB schema management component within each stack automatically creates necessary database instances, schemas, tables, document stores, and indexes upon first startup
• Software upgrades are delivered as new container versions from Docker registries, managed by Swarm or Kubernetes
• The DB schema management component automatically updates existing schemas, tables, and indexes (and transforms data) on the first startup after a container upgrade
• Message queues are automatically created when subscribers first register for send or receive, requiring no special handling during deployment or upgrade

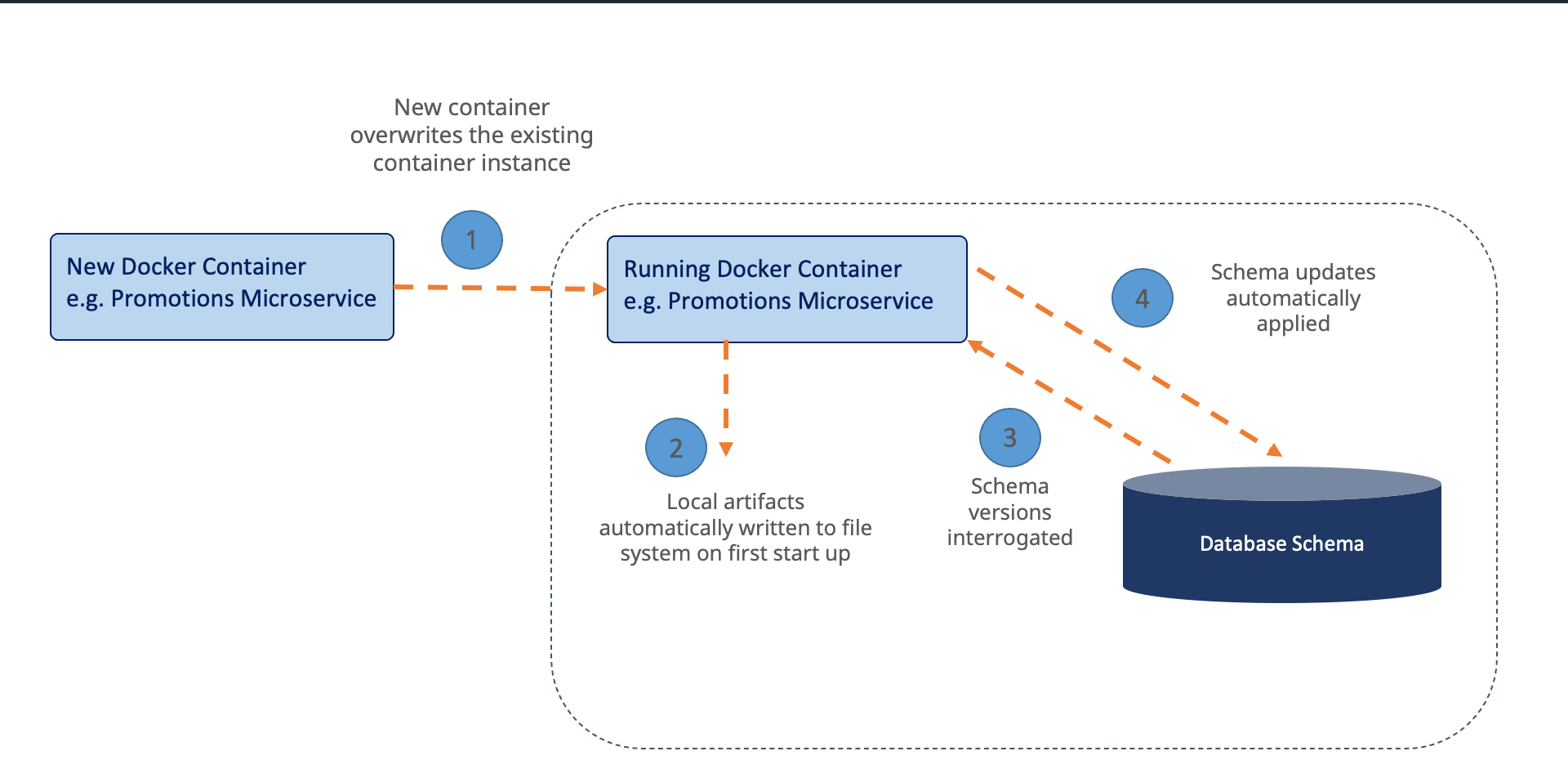

Deployment Process

Container upgrade process (e.g. Promotions Microservice):

1. Deploy - New Docker container overwrites the existing container instance
2. Initialise - Local artifacts automatically written to file system on first startup
3. Interrogate - Schema versions interrogated against the Database Schema
4. Update - Schema updates automatically applied

---

Further Reading

Document	Description
Central Application - Docker Container Deployment	Docker container deployment including technology stack
Central Application Deployment on Kubernetes	Kubernetes deployment and orchestration
EM Service Status List	Viewing microservice status in Estate Manager
