Architecture Overview

Architecture Overview

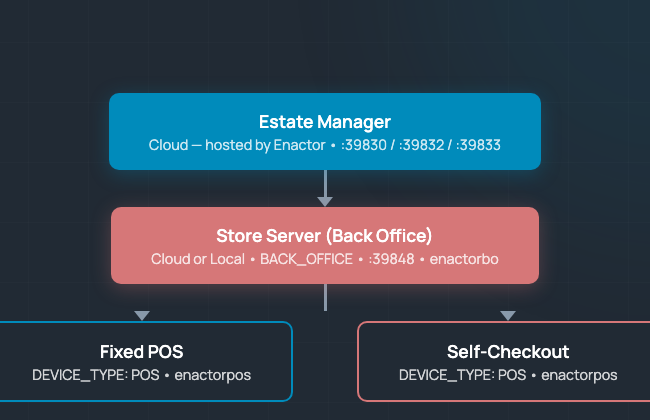

The Enactor architecture has three layers:

• Estate Manager -- Cloud, hosted by Enactor. Ports: 39830 / 39832 / 39833
• Store Server (Back Office) -- Cloud or Local. Device type: BACK_OFFICE. Database: enactorbo. Port: 39848
• Fixed POS -- Local (in-store). Device type: POS. Database: enactorpos
• Self-Checkout -- Local (in-store). Device type: POS. Database: enactorpos

Tip: The Mobile Server is a separate component -- covered in Module 2.
