Overview​

This tutorial will guide you how to automate the basic POS Sign On Feature

What you will learn​

How to use the following steps

  1. Check page display

  2. Enter text into a field

  3. Press a Button

Pre-requisites​

Should have a POS Setup and Automation Workspace Setup

Exercises​

Add Automation Script File

Right click on the Automated Tests project and create a new package in the test folder, feature.retail.pos.tutorials.signOn

note

Make sure your package is registered in the testNG.xml

Right click on the package and create a new cucumber test PosSignOn.feature

Add the Steps

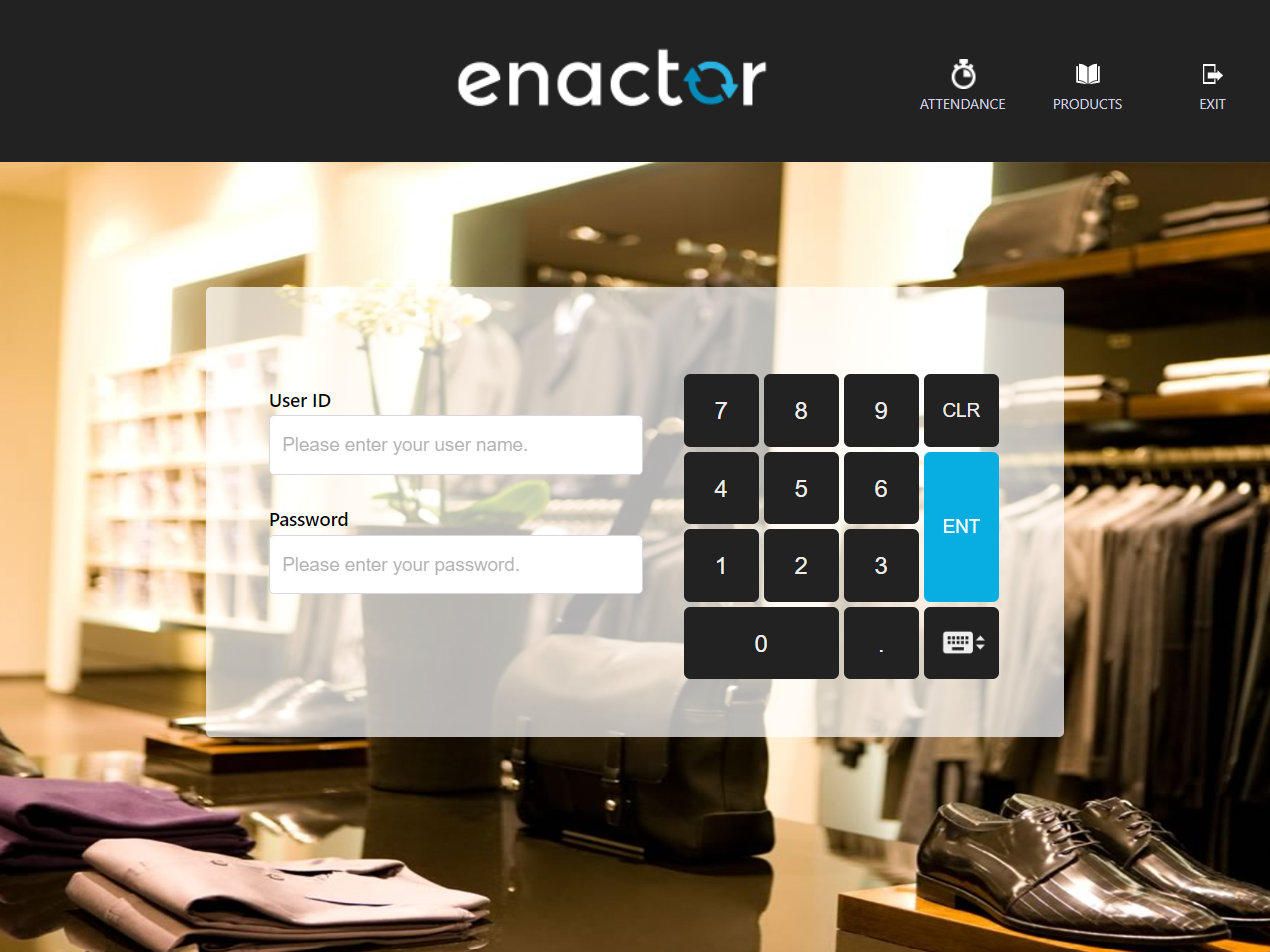

Sign on Screen

  • Find the window id of the Sign on Screen (Refer Window Inspection).

  • Add Window entry to the .properties file ( Refer Window Details to set up Client Property file).

your entry would be like

WINDOW_ENTER_USER=Point-of-Sale Application:Point-of-Sale Application:Enter User Pos/SignOn/SignOn EnterUserState NextGen1024x768/Pos/SignOn/EnterUser

  • With the above entry, you can refer this page as "Enter User" in the feature file.

  • Now, find the component IDs for the Username and Password text fileds. (Refer Component Inspection).

  • Add the component entries to .properties file ( Refer Component Details to set up Client Property file).

your entries would be like

COMPONENT_USER_NAME_TEXT=INPUT_TEXT_1
COMPONENT_PASSWORD_TEXT=INPUT_TEXT_2

  • With the above entries, you can refer the text fields as "User Name Text" and "Password Text" in the feature file.

  • Then add data property entries for Sales Assistant Username and Sales Assistant Password in the data property file. Refer Data property File

your entries would be like

SALES_ASSISTANT_USERNAME=000102
SALES_ASSISTANT_PASSWORD=000102
  • Finally, Your feature file would be like ,
Scenario: Sign on with a valid user id and password
    Given "Enter User" page is shown
    When user enters "${Sales Assistant Username}" into "User Name Text" field
    And user enters "${Sales Assistant Password}" into "Password Text" field
    And user presses "ENT" button
    Then "Transaction Basket" page is shown
    When user presses "Sign Off" button
    Then "Enter User" page is shown
  • Your client properties file entries would be like,
COMPONENT_USER_NAME_TEXT=INPUT_TEXT_1
COMPONENT_PASSWORD_TEXT=INPUT_TEXT_2

WINDOW_ENTER_USER=Point-of-Sale Application:Point-of-Sale Application:Enter User Pos/SignOn/SignOn EnterUserState NextGen1024x768/Pos/SignOn/EnterUser
WINDOW_TRANSACTION_BASKET=Point-of-Sale Application:Point-of-Sale Application:Sale  Pos/Sale/Sale  SignedOnState  NextGen1024x768/Pos/Sale/Sale
  • Your data properties file entries would be like,
SALES_ASSISTANT_USERNAME=000102
SALES_ASSISTANT_PASSWORD=000102
