POS Extension Tutorial

Overview

This tutorial guides you through enhancing the Training POS Extension you have already generated which implement a PreSignOnValidationExtension.

You will learn how to enforce user-based login restrictions by validating whether a user is attempting to sign in within their allowed login time. This will be achieved by adding a custom Java Action.

Validation Rules

Restrict sign-on for user 000102 to a predefined time window.
Allow unrestricted sign-on for all other users.

When a restricted user attempts to sign on outside the allowed time.

Display an appropriate validation message.
Prevent login and return the user to the Sign-On screen.

info

The user login restrictions are currently hardcoded within the Java Action for simplicity. This implementation can be further enhanced by externalizing the configuration (e.g., using a configuration file or database) to make the solution more flexible and maintainable.

When testing this functionality, ensure that the configured time range includes the current system time so that you can easily observe both allowed and restricted login behavior.

What you will learn

How to enhance the generated POS Extension Implementation with toolkit knowledge matching to POS World.

Pre-requisites

Exercises

Open previously generated Pos/SignOn/PreSignOnValidationExtensionImplementation Application Process using the Application Process Editor

Delete PreSignOnValidationExtension Message State and the End Proces Action.

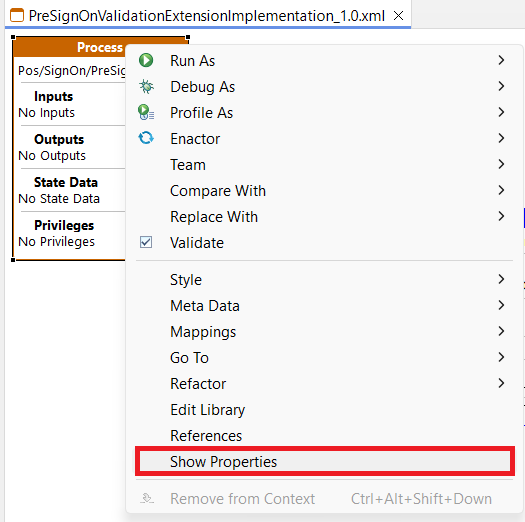

Right-click on the Process and select Show Properties. Then update the following properties.

EditProcess

Property	Value
Inputs	enactor.signOn.UserId [java.lang.String]
State Data	enactor.signOn.UserId [java.lang.String] allowedStartTime [java.lang.String] allowedEndTime [java.lang.String]

Add UserShiftValidationAction Action

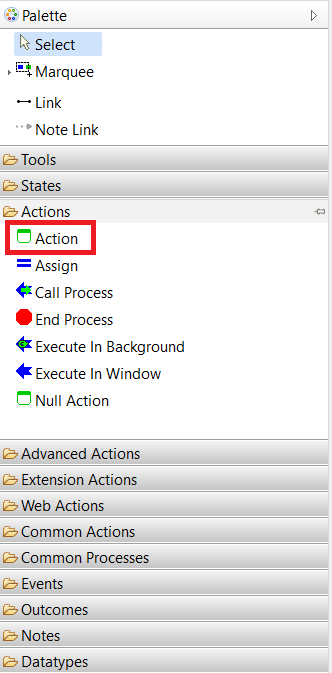

Go to Process Editor Palette, expand Actions, drag and drop the Action into the Process Editor.

PaletteAdvancedActions

Right-click on the Action and select Show Properties. Then update the following properties.

Property	Value
Action ID	UserShiftValidationAction
Class Name	com.enactor.sample.UserShiftValidationAction
Inputs	enactor.signOn.UserId [java.lang.String]
Outputs	allowedStartTime [java.lang.String] allowedEndTime [java.lang.String]
Outcomes	Success, Fail

note

You can also double-click the Action in different Action Sections on the editor to edit Inputs, Outcomes, and Outputs

You can also drag and drop Inputs ,Outputs from Process State Data

Add Message State

Go to Process Editor Palette, expand States, drag and drop the Message State into the Process Editor.

MessageStatePalette

Right-click on the Message State and select Show Properties. Then update the following properties.

Property	Value
Name	Pre SignOn Validation Failed Message
State ID	PreSignOnValidationFailedMessage
Events	OKPressed
Inputs	allowedStartTime [java.lang.String] allowedEndTime [java.lang.String]
Message Base	TrainingPOSExtension/TrainingPOSExtensionMessages
Message ID	ShiftRestrictionMessage
URL	/Message/PopUpModalOK

Add End Process

Go to the Process Editor Palette, expand Actions, and drag and drop the End Process action into the Process Editor.
Right-click on the End Process action and select Show Properties. Then update the following properties.

Property	Value
Action ID	EndProcessSuccess
Process Outcome	Success

Then right click on the End Process Action -> style -> select Keys Only.
Go to the Process Editor Palette, expand Actions, and drag and drop another End Process action into the Process Editor.
Right-click on the newly added End Process action and select Show Properties. Then update the following properties.

Property	Value
Action ID	EndProcessFail
Process Outcome	Fail

Then right click on the EndProcessFail Action -> style -> select Keys Only.

Connect the Process Flow

Use the Link tool from the Palette and configure the flow as follows:

Connect the StateEntered event in the Start State to the UserShiftValidationAction action.
Connect Success outcome of UserShiftValidationAction > EndProcessSuccess action
Connect Fail outcome of UserShiftValidationAction > PreSignOnValidationFailedMessage Message State
Connect the OKPressed event of the PreSignOnValidationFailedMessage Message States to the EndProcessFail action.

Update Message Resource

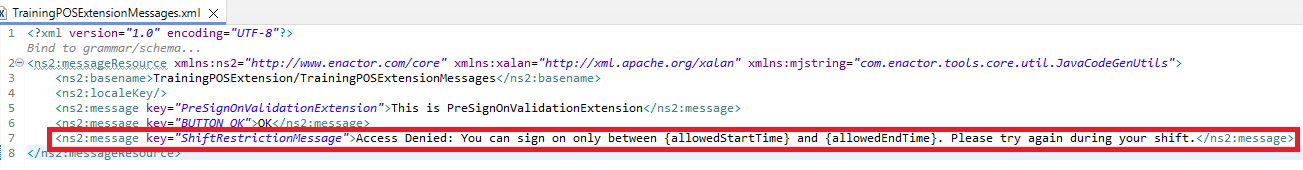

Add the following line to the TrainingPOSExtension/TrainingPOSExtensionMessages.xml file.

<ns2:message key="ShiftRestrictionMessage">Access Denied: You can sign on only between {allowedStartTime} and {allowedEndTime}. Please try again during your shift.</ns2:message>

MessageResourceFile

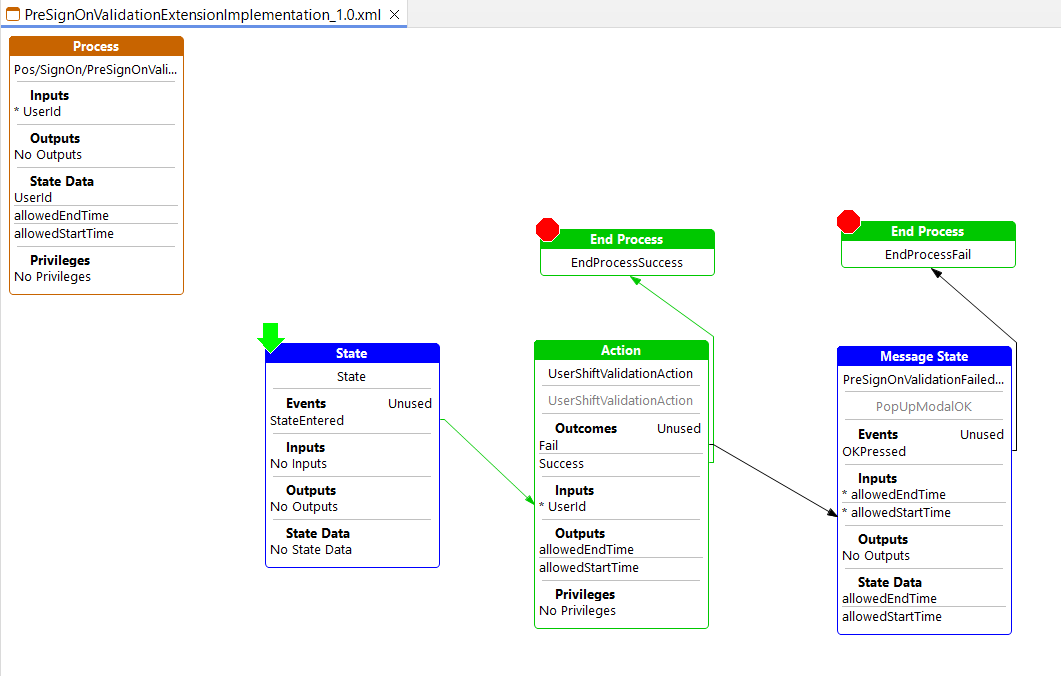

Finally, The application Process Should be as below.

FianllProcess

Create the Java Action

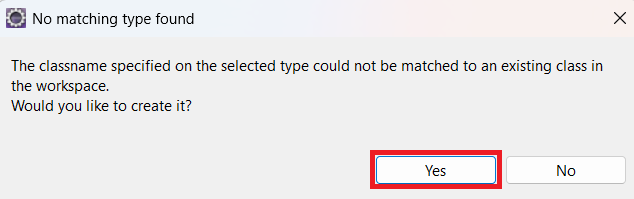

Double Click on the UserShiftValidationAction Action to Implement it.

CreateActionPopup

Click Yes to create the action.

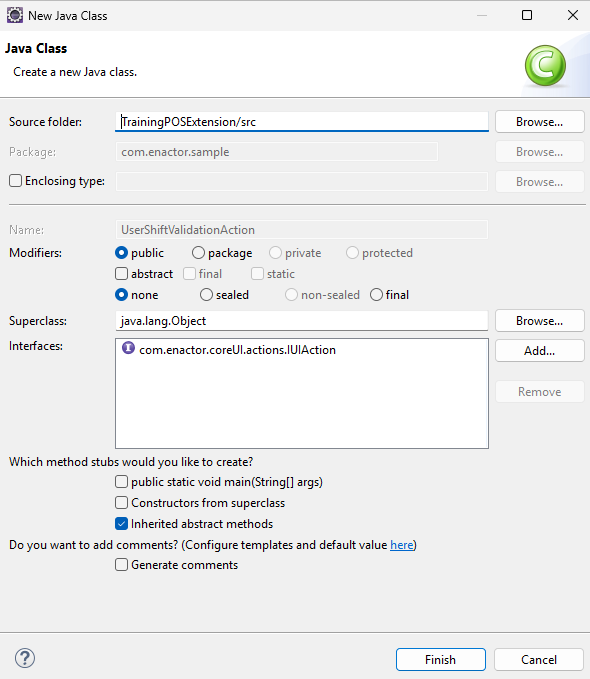

CreateAction

Click Finish to generate the Action.

You can now implement the generated Action and add your own custom logic as required.

In this example, when a user attempts to log in, the system validates both the user ID and the current time:

All users, except 000102 (e.g., 000101), are allowed to log in at any time without restrictions.
User 000102 is only allowed to log in between 2:00 PM and 5:00 PM.

If the user attempts to log in within the allowed time range, the login is successful. Otherwise, the login fails, and the system uses the configured shift start time and shift end time (allowedStartTime and allowedEndTime) to display an appropriate message indicating the user's permitted shift period.

package com.enactor.sample;

import com.enactor.core.application.process.ApplicationProcessDataType;
import com.enactor.core.application.process.ApplicationProcessException;
import com.enactor.core.application.process.IApplicationProcessData;
import com.enactor.core.application.process.IApplicationProcessOutcome;
import com.enactor.coreUI.actions.IUIAction;
import com.enactor.coreUI.actions.UIActionFunctions;
import com.enactor.coreUI.processes.CoreUIOutcomes;
import com.enactor.coreUI.annotations.Input;
import com.enactor.coreUI.annotations.Inputs;
import com.enactor.coreUI.annotations.Outcomes;
import com.enactor.coreUI.annotations.Output;
import com.enactor.coreUI.annotations.Outputs;
import java.time.LocalTime;
import java.time.format.DateTimeFormatter;

import java.util.Calendar;
import java.util.HashMap;
import java.util.Map;

@Inputs({ @Input(name = "enactor.signOn.UserId", type = java.lang.String.class, required = true) })
@Outputs({ @Output(name = "allowedStartTime", type = java.lang.String.class),
		@Output(name = "allowedEndTime", type = java.lang.String.class) })
@Outcomes({ "Success", "Fail" })
public class UserShiftValidationAction implements IUIAction {

	private static final long serialVersionUID = 1L;

	public static final ApplicationProcessDataType ALLOWED_START_DATA = new ApplicationProcessDataType(
			"allowedStartTime", String.class.getName());
	public static final ApplicationProcessDataType ALLOWED_END_DATA = new ApplicationProcessDataType("allowedEndTime",
			String.class.getName());

	private static final Map<String, int[]> USER_SHIFTS = new HashMap<>();

	static {
		// This hard-coded restriction be further enhanced later by externalizing the
		// configuration (e.g., using a configuration file or database) to make the
		// solution more flexible and maintainable.
		USER_SHIFTS.put("000102", new int[] { 14, 17 });
	}

	@Override
	public IApplicationProcessOutcome execute(IApplicationProcessData inputData, IApplicationProcessData outputData)
			throws ApplicationProcessException {

		String userId = UIActionFunctions.getRequiredDataItem(inputData, "enactor.signOn.UserId");

		if (USER_SHIFTS.containsKey(userId)) {
			int[] shift = USER_SHIFTS.get(userId);
			int start = shift[0];
			int end = shift[1];

			Calendar calendar = Calendar.getInstance();
			int hour = calendar.get(Calendar.HOUR_OF_DAY);

			outputData.setData(ALLOWED_START_DATA, formatHour(start));
			outputData.setData(ALLOWED_END_DATA, formatHour(end));

			// SUCCESS case
			if (hour >= start && hour < end) {
				return CoreUIOutcomes.SUCCESS_OUTCOME;
			}

			return CoreUIOutcomes.FAIL_OUTCOME;
		}

		return CoreUIOutcomes.SUCCESS_OUTCOME;
	}

	public static String formatHour(int hour) {
		DateTimeFormatter formatter = DateTimeFormatter.ofPattern("h:mm a");
		return LocalTime.of(hour, 0).format(formatter);
	}
}

Then, Go to the Run -> Run Configuration -> Maven Build and select MVN Install (TrainingPOSExtension) and click Run.
After successfull build go to Run -> Run Configuration -> Java Application and select Training React POS and click Run.

info

Make sure that the TrainingPOSExtension project is added under the Dependencies tab in the ClassPath Entries of the Training React POS Java application launcher.

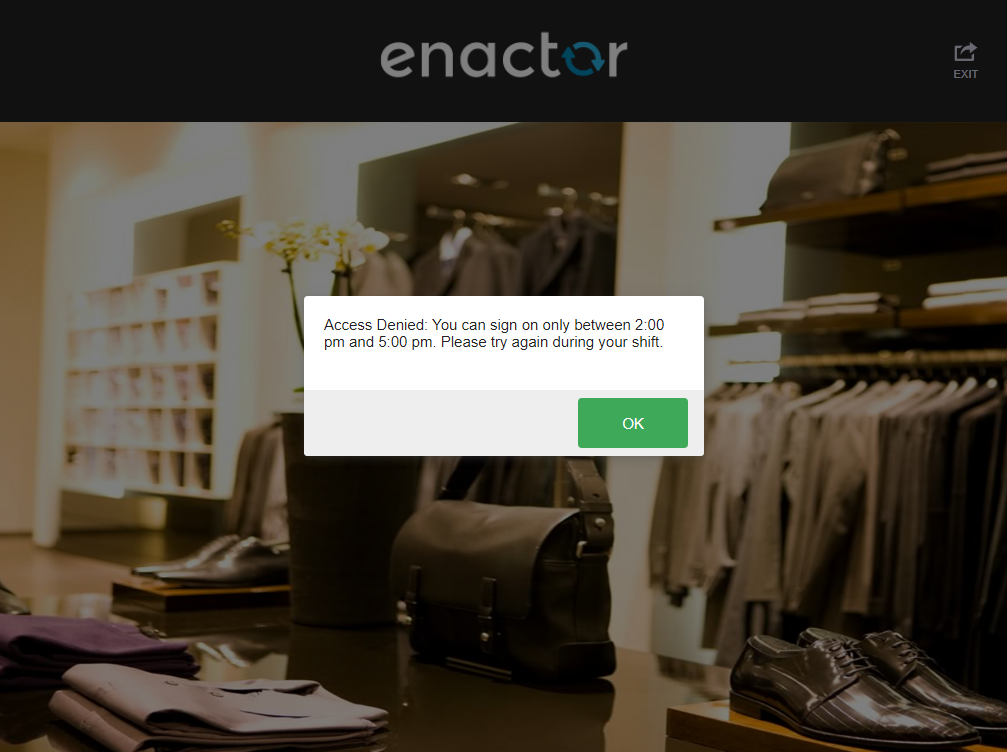

If user 000102 attempts to log in to the POS outside their allowed shift, a popup will be displayed. When the user clicks OK, they will be redirected back to the sign-on page.

RestrictedUserBehaviour

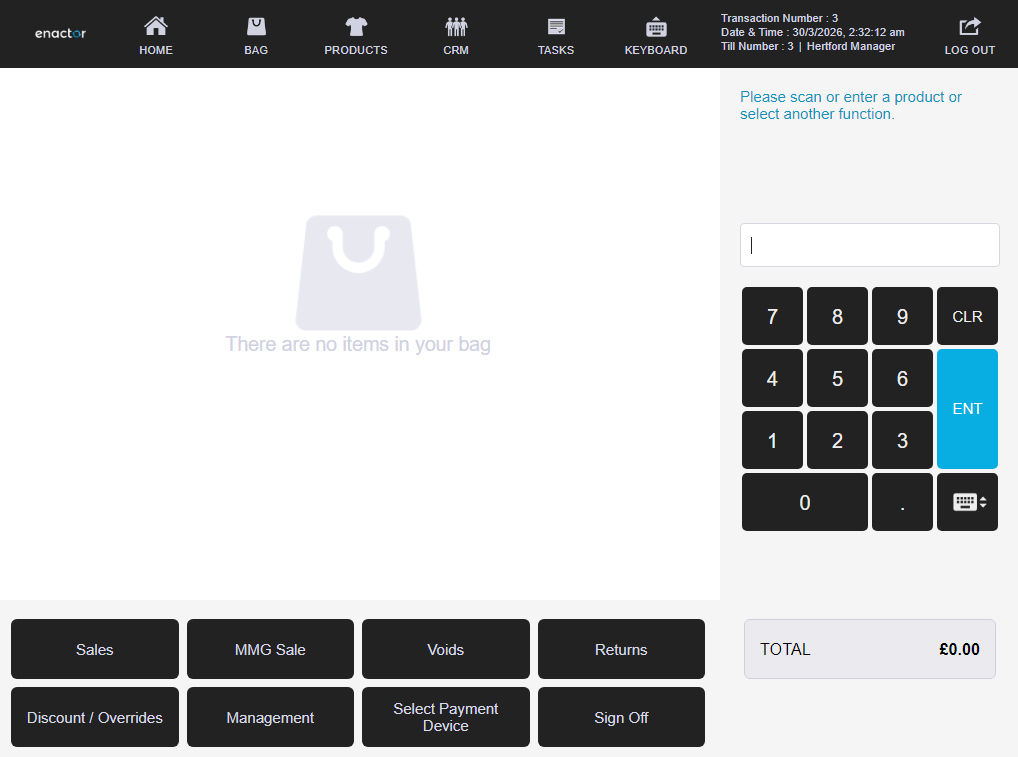

When the 000101 user logs into the POS at any time, they will be navigated directly to the basket page.

UnRestrictedUserBehaviour
