Create a POS Extension

Overview​

This tutorial will guide you how to create a POS extension.

In this exercise, we will implement the PreTenderingExtension extension found in the Tendering_1.0.xml process with a new Application Process containing a new prompt.

What you will learn​

  1. How to create a POS Extension
  2. How to build a POS Extension

Pre-requisites​

  • Ensure the Training Workspace is set up and the Training React POS is up and operational. (Refer Training Workspace Setup)

Exercises​

Import POS Extension Project​

  • Download POS Extension Project zip : POSExtension.zip and extract it.
  • Open your Eclipse Development Workspace and Import the POS Extension Project as a Maven Project to the workspace

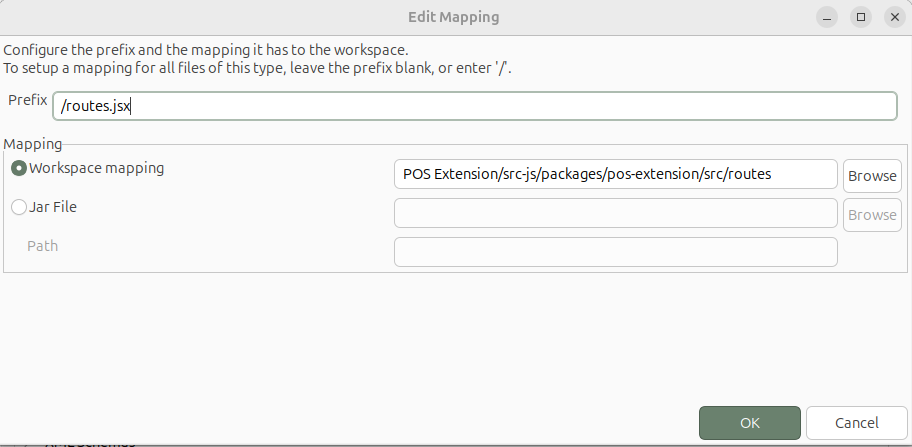

  • In your workspace click, Window -> Pereferences -> Enactor Development -> Resource Mappings and Add New React Mapping. Browse POS Extension/src-js/packages/pos-extension/src/routes as mapping and /routes.jsx as prefix.

Mappings Icon

Locate the Extension Point you want to extend​

Assume we are going to extend PreTenderingExtensionPoint

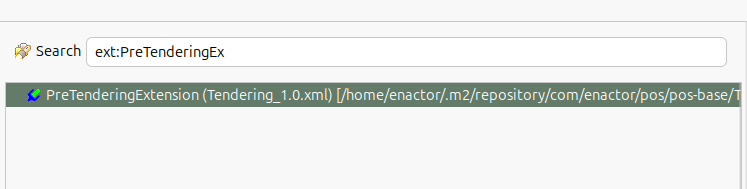

  • Go to Resource Library Search view (Window -> Show View -> Resource Library) and In the search box, type ext:PreTenderingExtensionPoint and press Enter.

Search Process

  • Double-click on the extension to open the process (In POS - Base project) and double click again on the extension to locate the extension point on the editor.

Create the New Extension Process​

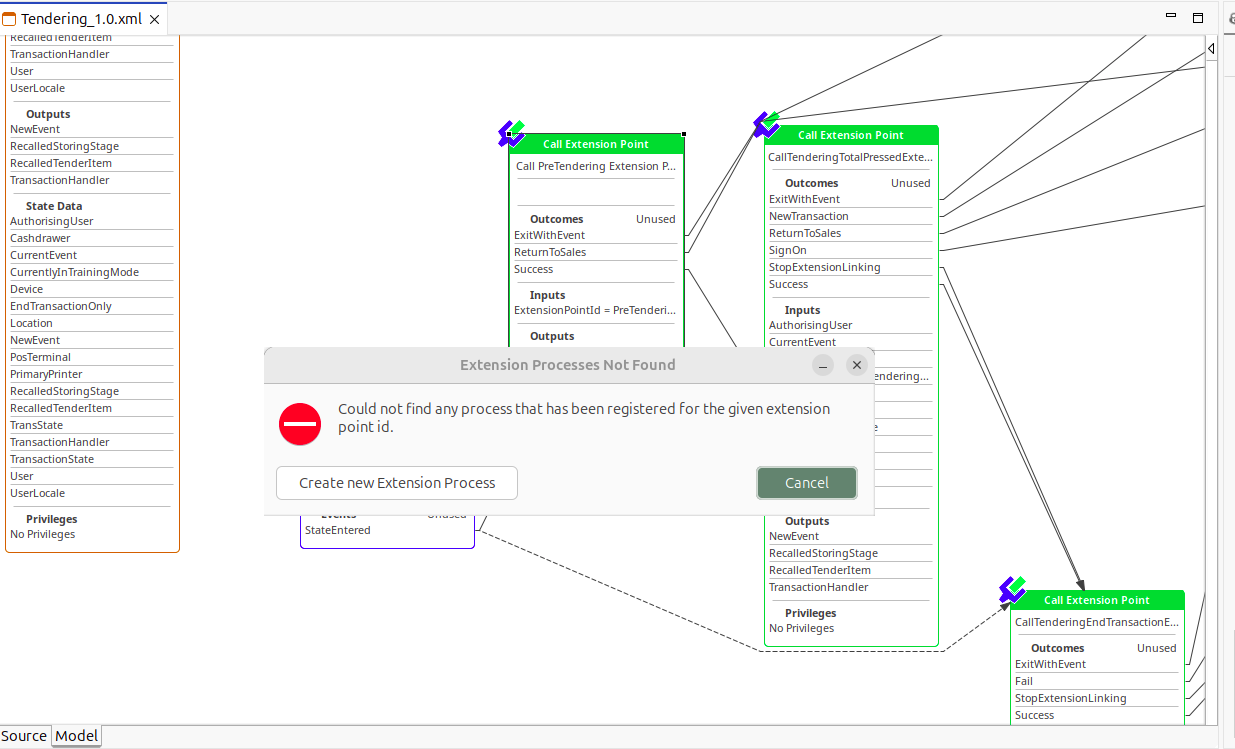

  • Double-click on the extension point to open the Extension Point Wizard.

  • Click the Create New Extension Process button.

Create New Extension Process

  • In the Extension Point Settings window,

    • Extension Id will be auto populated.

    • Fill Extension Name as Pre Tendering Extension.

    • Enter Process ID as PreTenderingExtension.

    • Browse and select the container location as POS Extension/src/META-INF/deployments/Process

    • Ensure the Derive Filenames checkbox is checked.

    • Register in Packages should be checked.

    • Browse and select the Packages Filename as POS Extension/src/META-INF/Packages.xml

    • Click Finish.

Extension Point Settings window

Verify Application Process Registration​

  • Confirm that a new Application Process named PreTenderingExtension_1.0.xml has been created under, POS Extension/src/META-INF/deployments/Process

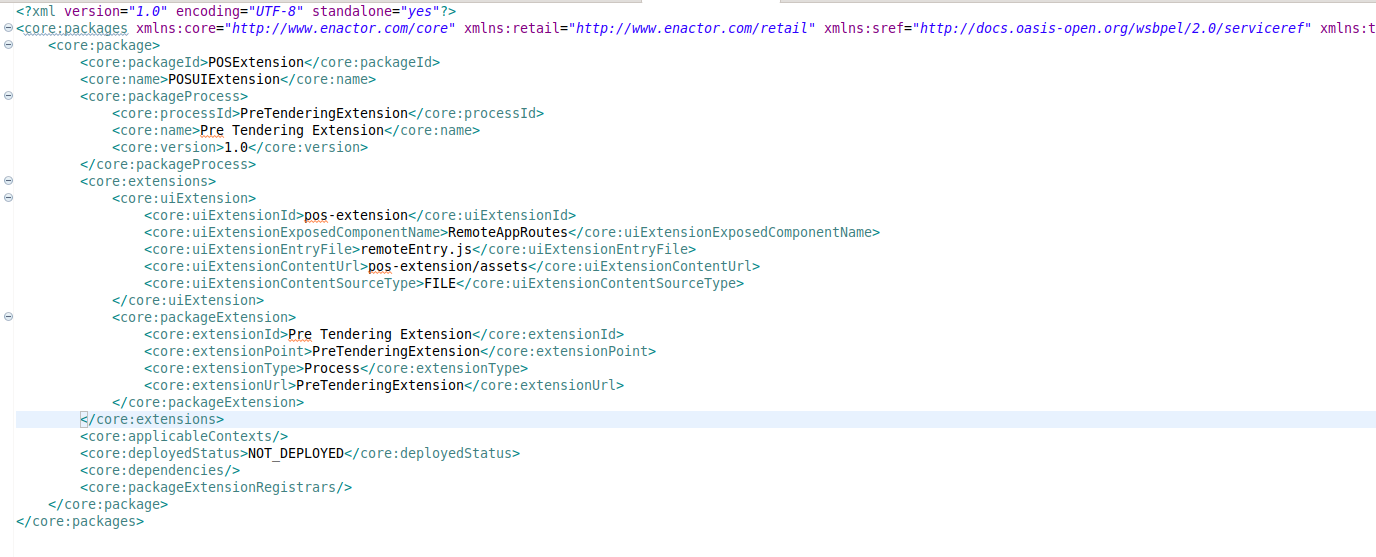

  • Confirm that the Packages.xml has following entries

Package.xml File

Implement PreTenderingExtension Application Process​

  • Open PreTenderingExtension_.0.xml using the Application Process Editor

  • Open the Palette view by navigating to Window -> Show View -> Other, then search for and open Palette.

  • From the Palette, under States, drag State and Prompt State onto the process, then under Actions, drag End Process onto the process.

  • Set Prompt State Properties and make sure final Application Process is as below.

    Application Process

Implement the React Prompt​

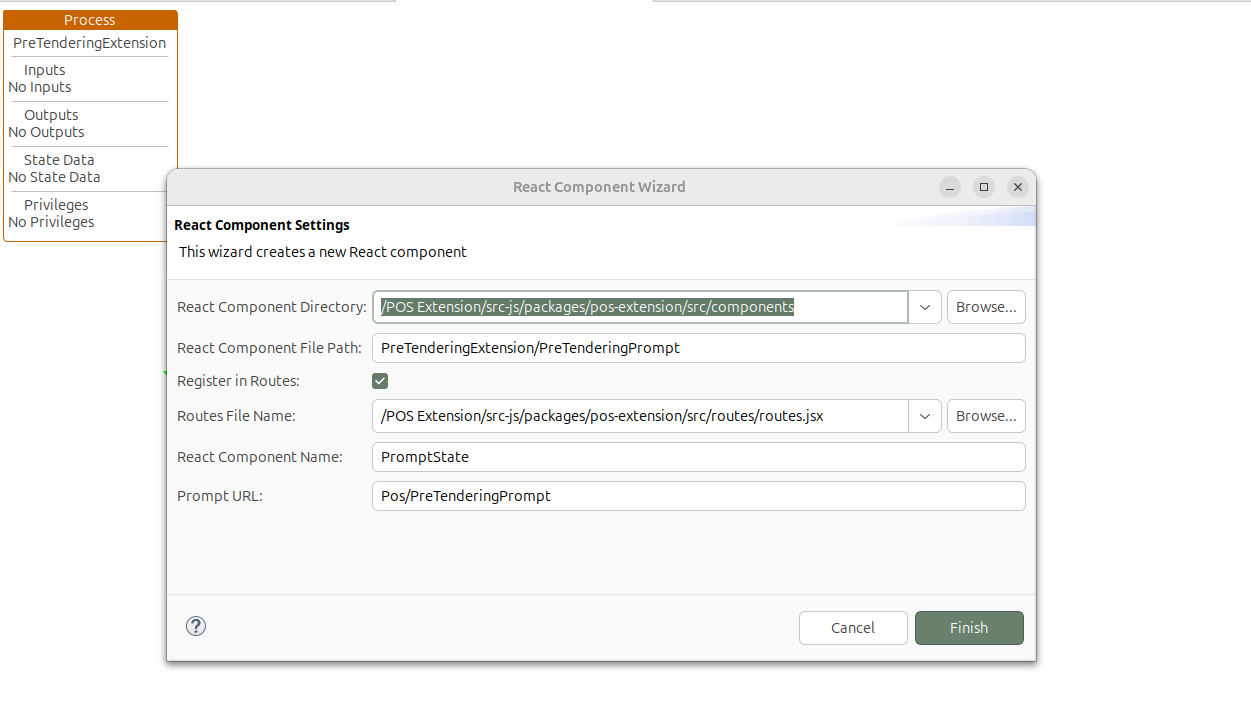

  • Double-click on the prompt state or Right Click -> Enactorr -> Create React Component to create the new React Page (For more details refer Create a New React Component)

  • New React Component Wizard will Open

Confirm Create React Component Dialog Box

  • Default Values will be Populated and click Finish to generate a Default React Page

Build the POS Extension​

  • After completing the above steps, build the POS Extension by Navigating to project root dirctory and executing the following command. mvn clean install -Pnpm-maven-integration
  • Once the build is complete, POS Extension JAR file will be located in the project's target directory.
