Viewing Enactor Code

Overview​

This task will show how to view the Enactor source for the React POS modules.

[ * Time to Complete: 15-30 minutes ]

What You Will Learn​

  • Searching and viewing Enactor React POS components

Pre-requisite​

Exercises​

Retreive Process ID and Prompt Url​

Start the React Pos, and go to any screen. In this example we are going to use the SignOn screen

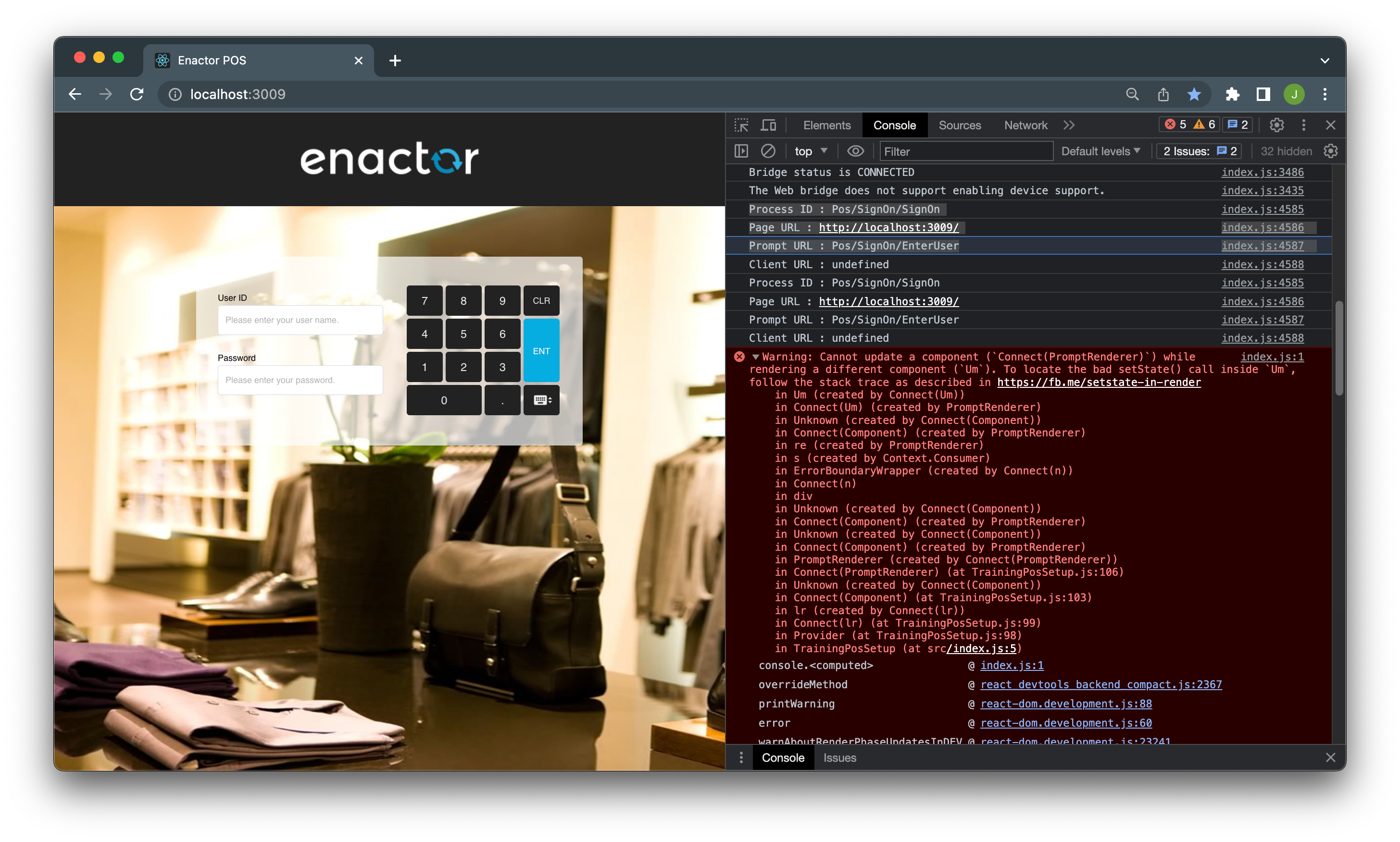

Open the developer tools → console

Look in the console for logs for the process id, and prompt url.

Process ID : Pos/SignOn/SignOn
Page URL : http://localhost:3009/
Prompt URL : Pos/SignOn/EnterUser

Find the Prompt State​

Navigate to eclipse and go to Window -> Show View -> Other -> Resource Library

Once the resource library is opened, search for the process using the latter part of the processID.

Example : p:SignOn (Refer Resource Library Search for more details.)

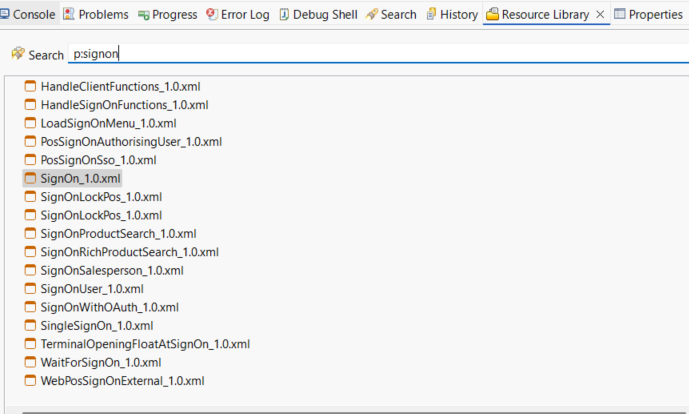

Resource Library

Open the process by double clicking on it.

Then open the outline using Window -> Show View -> Outline

Under states find the state simillar to the latter part of the relevant PromptUrl and double click on it so that the prompt state is getting highlighted on the Application process.

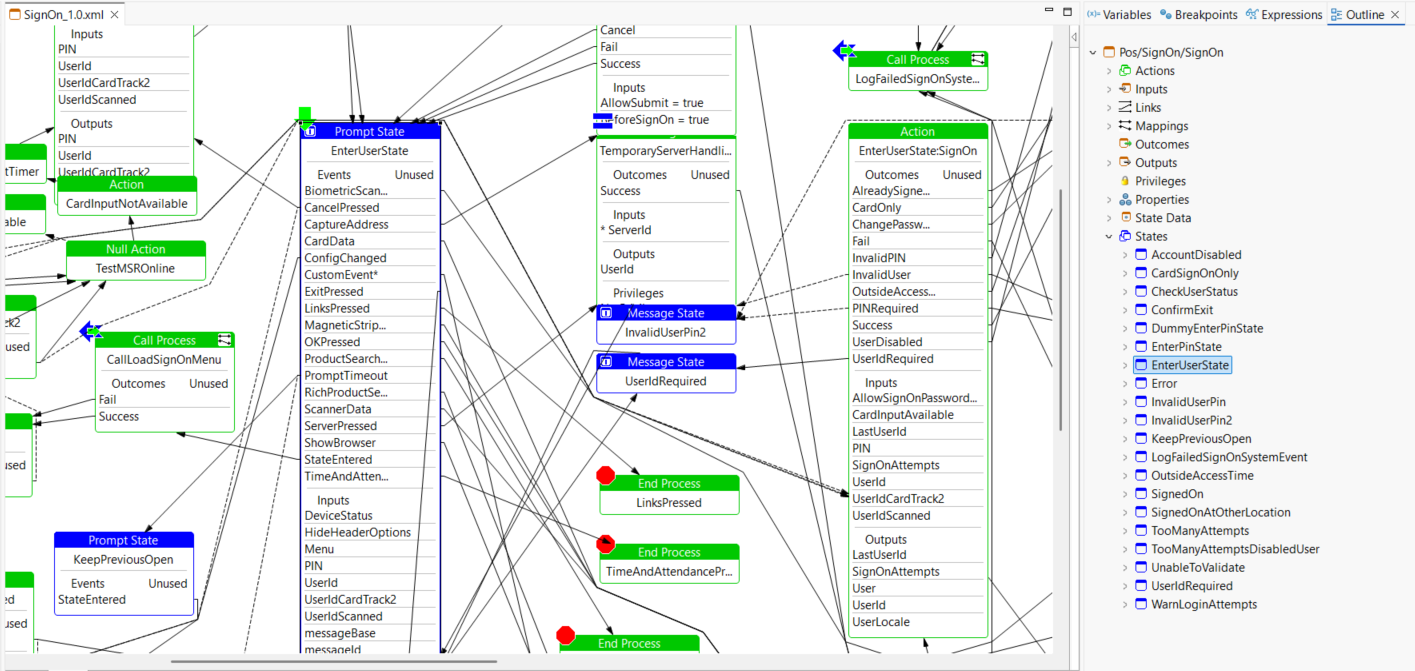

Outline

To verify the promptUrl, right click on the selected prompt state and select show properties. Check whether the URL matches the PromptUrl.

React Component Indexing​

Index the React Components by refering React Component Indexing.

Open Enactor source code using VS Code​

Follow Opening VS Code from Eclipse to set VS Code as the default editor for react components in eclipse.

To open the react component, right click on the prompt state and select Go To -> Go To React Component

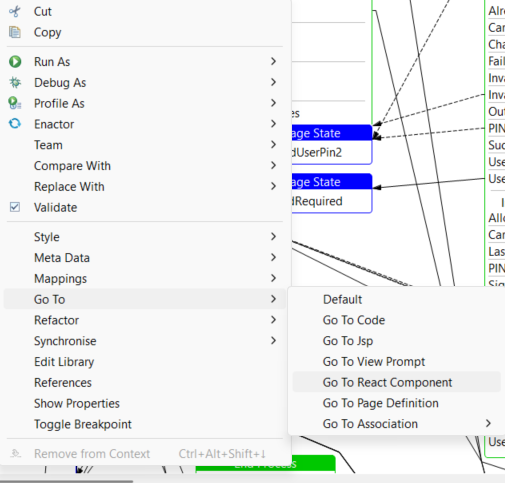

Go to React Component

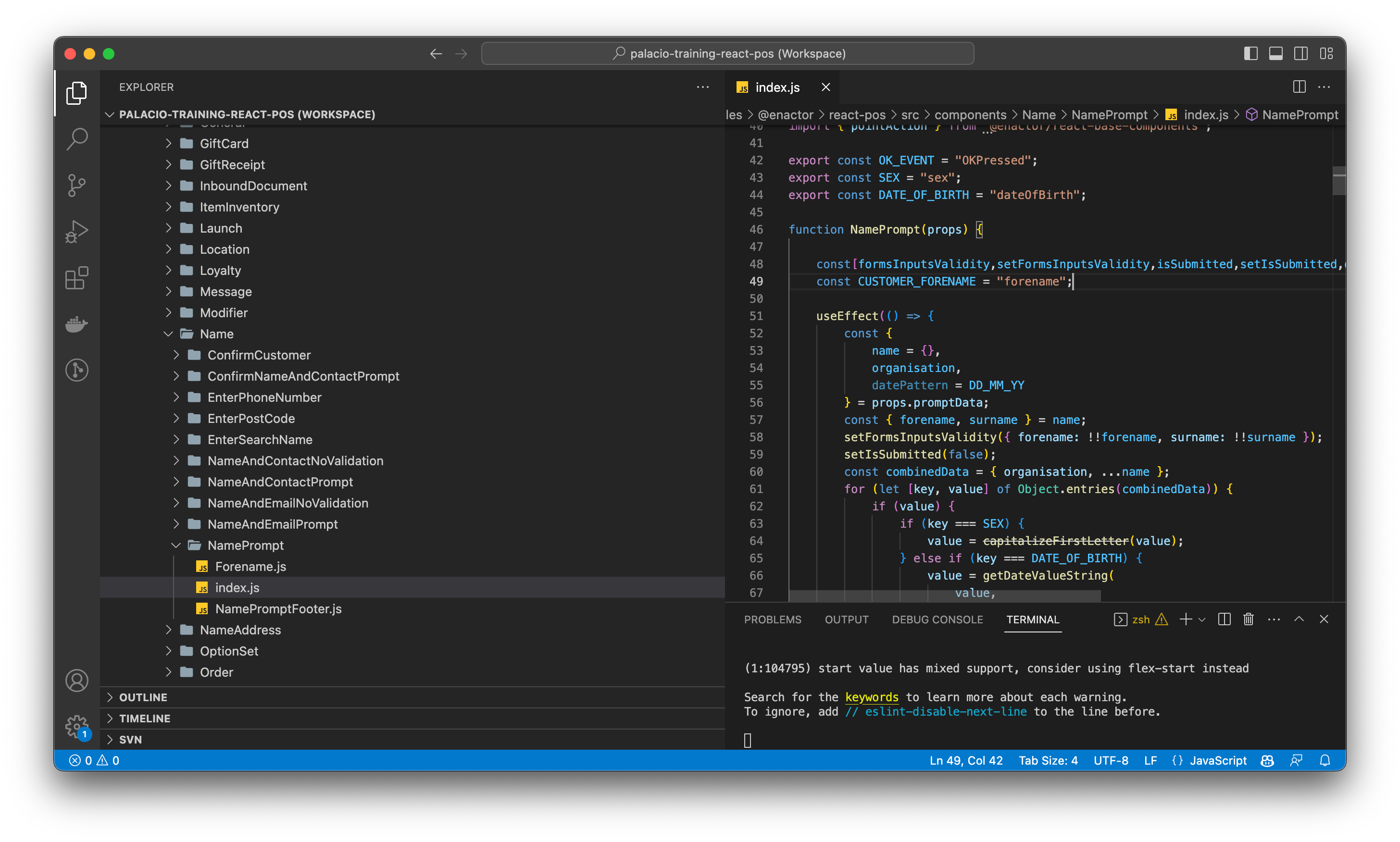

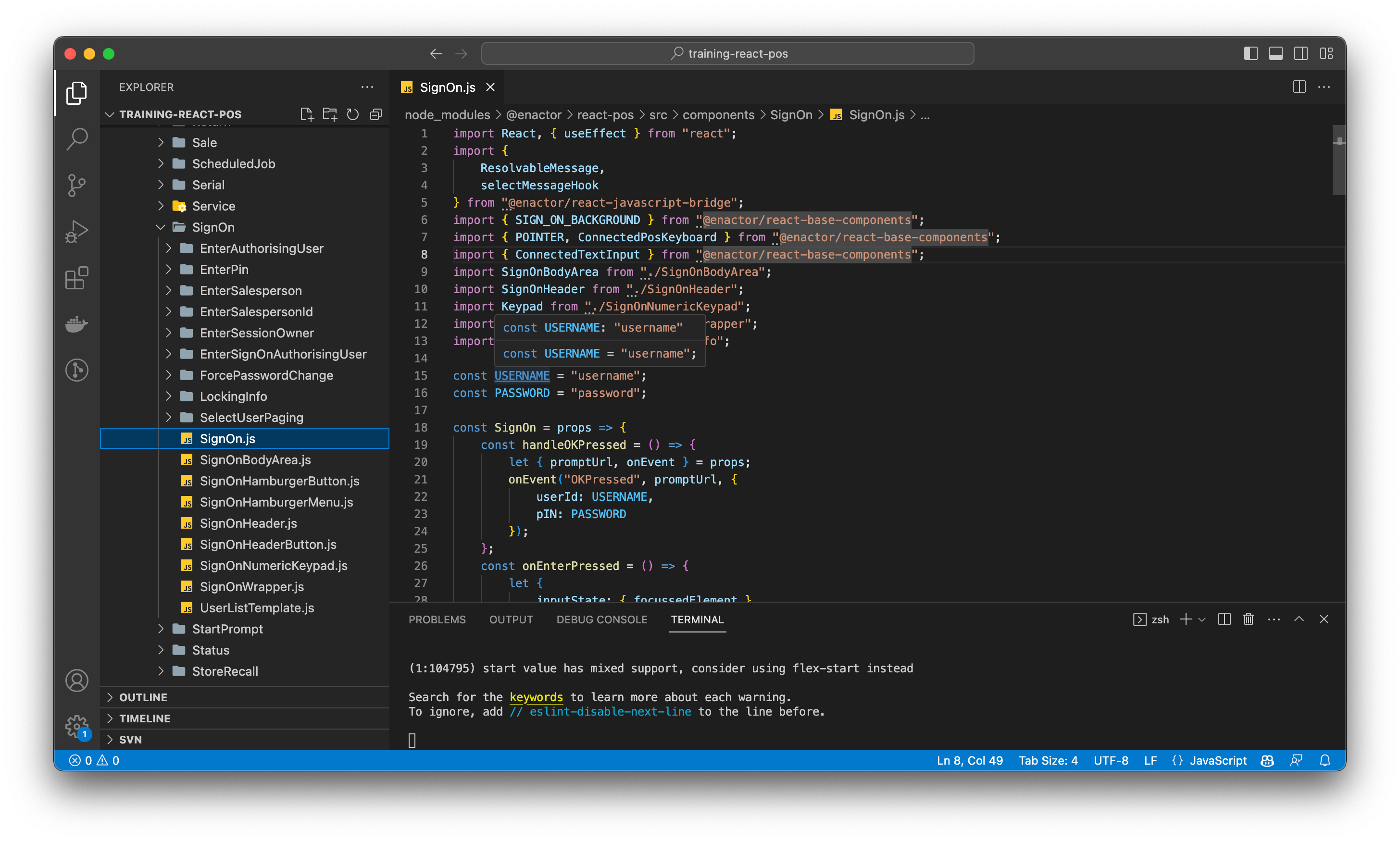

React Component should be opened in the VS code.
